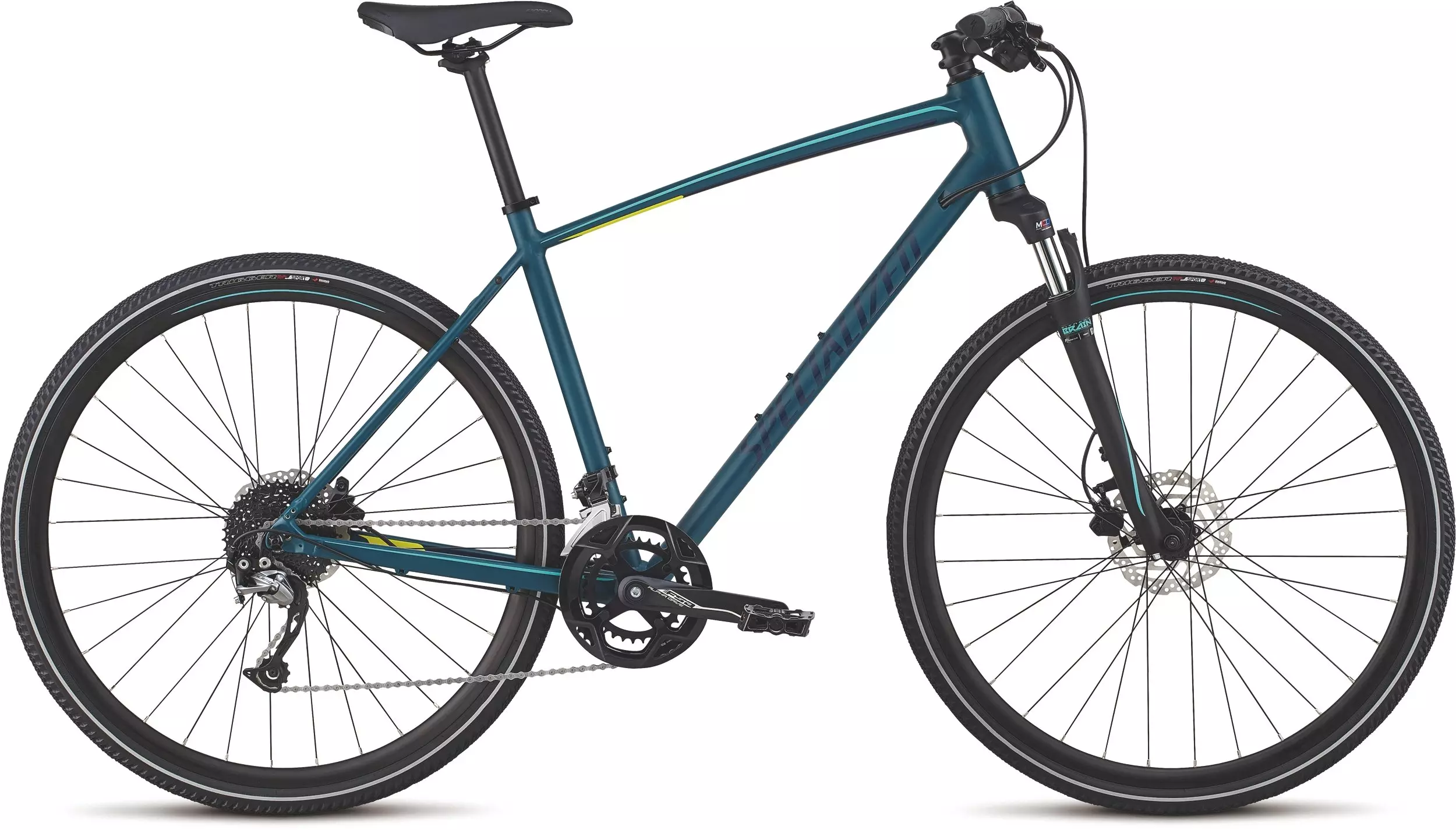

2019 CrossTrail Sport
0 Avaliações
Your fitness is important and that's why our CrossTrail Sport focuses on seamlessly…
Cor:
Tropical Teal/Acid Mint/Cast Blue Reflective
Qual é o meu tamanho?
Selecione um Tamanho
Detalhes do Produto
Your fitness is important and that's why our CrossTrail Sport focuses on seamlessly blending comfort, versatility, and efficiency.
It comes equipped with a suspension fork with our Fitness Brain technology that can tell the difference between pedaling inputs and trail bumps, so you won't be wasting any energy on your climbs. And to build on this blend of comfort and speed, the frame is built from respectably light and rugged A1 Premium SL Aluminum with a geometry that's made to fit just right from the minute you get on the bike.
Add in a mix of workhorse components from the likes of Shimano and microSHIFT, powerful Tektro hydraulic disc brakes, and rack/fender mounts, and we're sure that you'll be mixing it up quite a bit on your trail to hitting your goals.
Working with our Body Geometry team, we designed a frame that strikes the optimal balance between comfort and efficiency. The A1 SL Premium aluminum construction pairs weight savings with rugged durability, while the rack, fender, and disc mounts give you an incredibly versatile package.
An SR Suntour NEX fork w/ Fitness Brain technology features 55mm of coil-sprung travel that takes the sting out of bumpy terrain, while our Fitness Brain technology promotes more climbing and pedaling efficiency.
Braking duties are handled by Tektro hydraulic disc brakes to ensure effective, consistent, and reliable power through any kind of terrain or condition.
Especificações Técnicas
FRAMESET
FRAME
Specialized A1 SL Premium Aluminum, Fitness Geometry, fully-manipulated butted tubing, internal cable routing, flat-mount disc, quick-release, Plug + Play rack & fender mounts
SUSPENSION
FORK
SR Suntour NEX w/ Specialized Fitness Brain technology, 1-1/8" steerer, QR, fender mounts, 43mm offset, 55mm of travel
COCKPIT
HANDLEBARS
Double-butted alloy, 9-degree backsweep, 31.8mm
STEM
Specialized, 3D-forged alloy, 4-bolt, 7-degree rise
GRIPS
Specialized Body Geometry XCT, lock-on
SADDLE
Specialized Canopy Sport, steel rails, 155mm
SEATPOST
Alloy, 12mm offset, 2-bolt clamp, 27.2mm
SEAT BINDER
Bolt-type, 31.8mm
BRAKES
REAR BRAKE
Tektro HD-R310, hydraulic disc, resin pads, flat-mount, 160mm
FRONT BRAKE
Tektro HD-R305, hydraulic disc, resin pads, post-mount, 160mm Center Lock™
DRIVETRAIN
SHIFT LEVERS
microSHIFT, 9-speed
FRONT DERAILLEUR
microSHIFT Marvo LT, 31.8mm clamp
REAR DERAILLEUR
Shimano Alivio, Shadow Design, SGS cage, 9-speed
CASSETTE
SunRace, 9-Speed, 11-36t
CRANKSET
FSA Alpha Drive, 3-piece
CHAINRINGS
44/32T
BOTTOM BRACKET
BSA, square-taper, 68mm
CHAIN
KMC X9EPT, 9-speed, anti-corrosion coating w/ reusable Missing Link™
WHEELS & TIRES
RIMS
700C disc, 6061 aluminum, double-wall
FRONT HUB
Shimano Center Lock™ disc, loose ball bearings, quick-release, 32h
REAR HUB
Shimano Center Lock™ disc, loose ball bearings, quick-release, 10-speed freehub, 32h
SPOKES
Stainless, 14g
FRONT TIRE
Trigger Sport Reflect, 60 TPI, wire bead, 700x38mm
REAR TIRE
Trigger Sport Reflect, 60 TPI, wire bead, 700x38mm
INNER TUBES
Presta, 48mm valve
ACCESSORIES
PEDALS
Specialized Body Geometry Fitness, platform, plastic
* A informação sobre o peso tem como base um quadro pintado, conforme a imagem. Ele pode variar de acordo com a cor e tamanho do componente. As especificações estão sujeitas a alterações sem aviso prévio.
Geometria
| S | M | L | XL | ||||
|---|---|---|---|---|---|---|---|
| Comprimento do pedivela | 170mm | 175mm | 175mm | 175mm | |||
| Largura do guidão | 660mm | 660mm | 660mm | 660mm | |||
| Comprimento da mesa | 60mm | 70mm | 80mm | 90mm | |||
| Saddle Width | 155mm | 155mm | 155mm | 155mm | |||
| Comprimento do canote | 350mm | 350mm | 350mm | 350mm | |||
| Comprimento do tubo do selim (Centro ao topo do TS) | 400mm | 450mm | 500mm | 550mm | |||
| Deslocamento das gancheiras x espiga | 42mm | 42mm | 42mm | 42mm | |||
| Alt. do solo ao topo do tubo superior | 740mm | 776mm | 813 | 3mm | 850mm | ||
| Altura (Central ao topo da caixa) | 594mm | 611mm | 630mm | 648mm | |||
| Alcance (medido do central ao ct da cx de direção) | 390mm | 400mm | 412mm | 426mm | |||
| Comprimento do tubo da caixa de direção | 110mm | 125mm | 145mm | 165mm | |||
| Ângulo do tubo da caixa de direção | 70° | 70 | 5° | 70 | 5° | 70 | 5° |
| BB Drop | 65mm | 65mm | 65mm | 65mm | |||
| Trail | 87mm | 84mm | 84mm | 84mm | |||
| Central ao Eixo dianteiro | 630mm | 641mm | 655mm | 680mm | |||
| Comprimento da rabeira inferior | 445mm | 445mm | 445mm | 445mm | |||
| Distância entre eixos | 1067mm | 1078mm | 1096mm | 1117mm | |||
| Comprimento do tubo superior, Horizontal | 572mm | 587mm | 604mm | 624mm | |||
| Ângulo do tubo do selim | 73° | 73° | 73° | 73° |
Download do Manual
Para avisos de segurança, por favor, consulte a documentação disponibilizada nesta página na seção Download do Manual.
