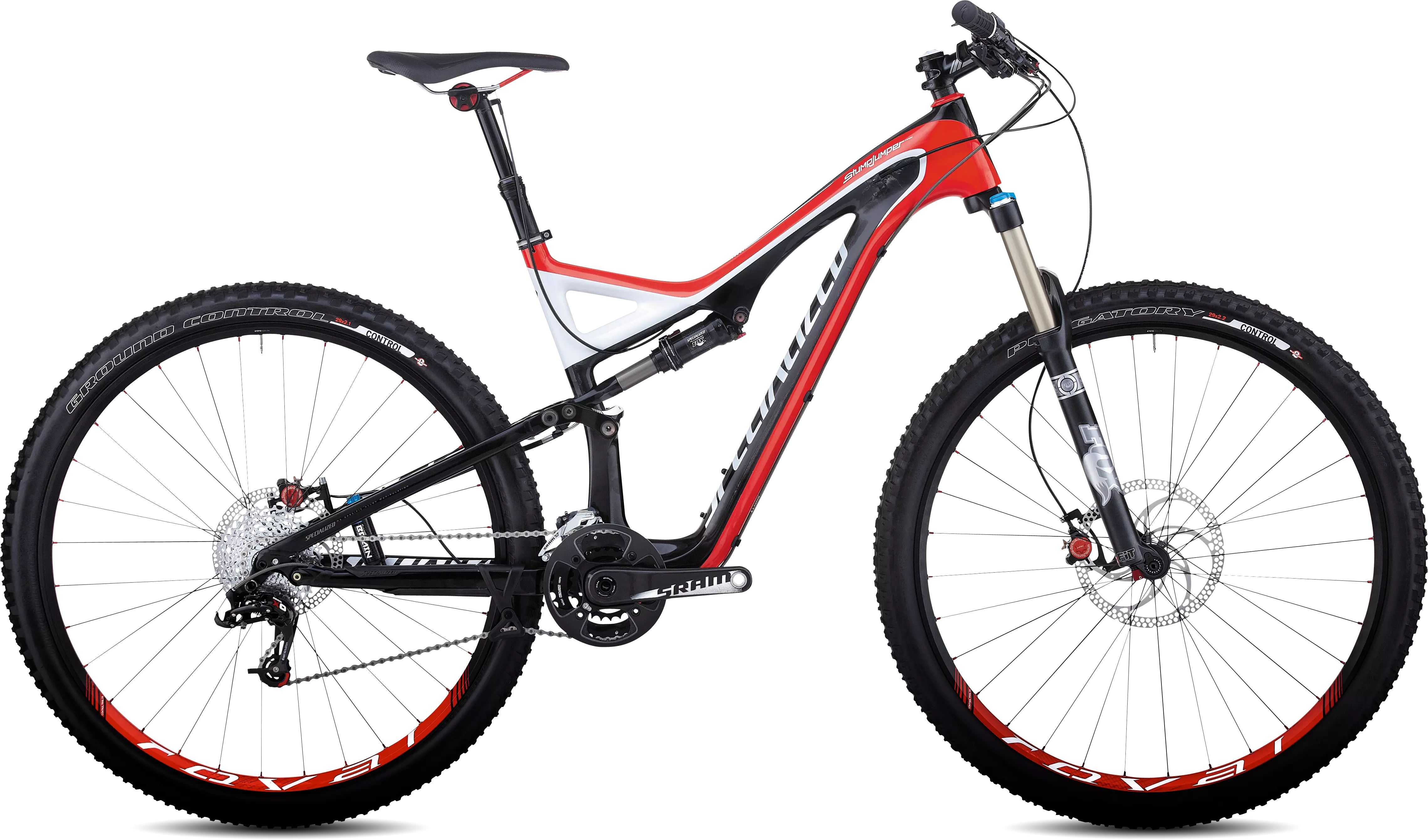

2012 Stumpjumper FSR Expert Carbon

FRAME

FACT IS 9m carbon front triangle, 29"" geometry, M5 alloy rear triangle, tapered HT, carbon PF30 BB, ISCG ’05, internal Command Post routing, 142mm dropouts, sealed cartridge bearing pivots, replaceable derailleur hanger, 130mm travel

HEADSET

1-1/8 and 1-1/2"" Threadless, Campy style upper with 1-1/2"" lower bearing for tapered integrated HT, cartridge bearings

SEAT BINDER

34.9mm clamp ID, 7050 hard anodized alloy collar, single bolt

REAR SHOCK

Fox/Specialized remote Brain with AUTOSAG, inertia valve w/Trail Tune, BrainFade adjust, 197x48mm, 29er hose length

FORK

Fox Performance F130 RL, FIT damper, tapered steerer, reb and LO adj., 15mm thru-axle, 130mm

RIMS

Roval Control Trail 29, alloy disc, 26mm, 32h

FRONT HUB

Roval Control Trail 29, 15mm thru-axle end caps, 32h

REAR HUB

Roval Control Trail 29 142+, DT Swiss alloy cassette body, QR, 28h

SPOKES

DT Swiss Super Comp, 2.0/1.65/1.8 stainless

FRONT TIRE

Specialized Purgatory Control, 60 TPI, 2Bliss ready aramid bead, dual-compound, 29x2.2""

REAR TIRE

Specialized Ground Control, 60 TPI, 2Bliss ready aramid bead, 29x2.1""

FRONT DERAILLEUR

SRAM X7, 10-speed, S3 direct mount for DMD, bottom-pull

REAR DERAILLEUR

SRAM X0, 10-speed, mid cage

SHIFT LEVERS

SRAM X9, 10-speed, trigger

CASSETTE

SRAM PG-1050, 10-speed, 11-36t

CHAIN

KMC X-10, 10-speed, w/ reusable Missing Link, nickel plates

CRANKSET

Custom SRAM carbon S-2200, 10-speed XC Trail double, PF30 spindle, removable spider, S: 170mm, Others: 175mm

CHAINRINGS

36/22, w/ carbon guard

BOTTOM BRACKET

SRAM PF30, OS press-in bearing, sealed cartridge

SEATPOST

Specialized Command Post BlackLite, 3 position, adjustable height w/air spring, remote operated, single bolt head 30.9mm, S:100mm travel, Others: 125mm

STEM

Specialized XC, 3D forged alloy, 4-bolt, 31.8mm clamp, adjustable rise, S: 60mm, M: 75, L/XL:90

HANDLEBARS

Specialized XC Mini-Riser, 7050 butted alloy, 720mm wide, 10mm rise, 10º backsweep, 6º upsweep, 31.8mm

GRIPS

Specialized lock-on, S/M: Grappler, Others: Grappler XL

SADDLE

Body Geometry Henge Comp, hollow Cr-Mo rails, 143mm width

FRONT BRAKE

Custom Formula The One R, hydraulic disc, tool-less FCS and reach adjust, metallic pad, SRAM compatible MiXmaster shifter mounts, S/M:180mm rotor, Others: 203mm rotor

REAR BRAKE

Custom Formula The One R, hydraulic disc, tool-less FCS and reach adjust, metallic pad, SRAM compatible MiXmaster shifter mounts, S/M: 160mm rotor, Others: 180mm rotor

BRAKE LEVERS

Custom Formula The One R hydraulic, tool-less reach adj.

PEDALS

Resin Test Ride Pedals with toe clips, CEN std.
