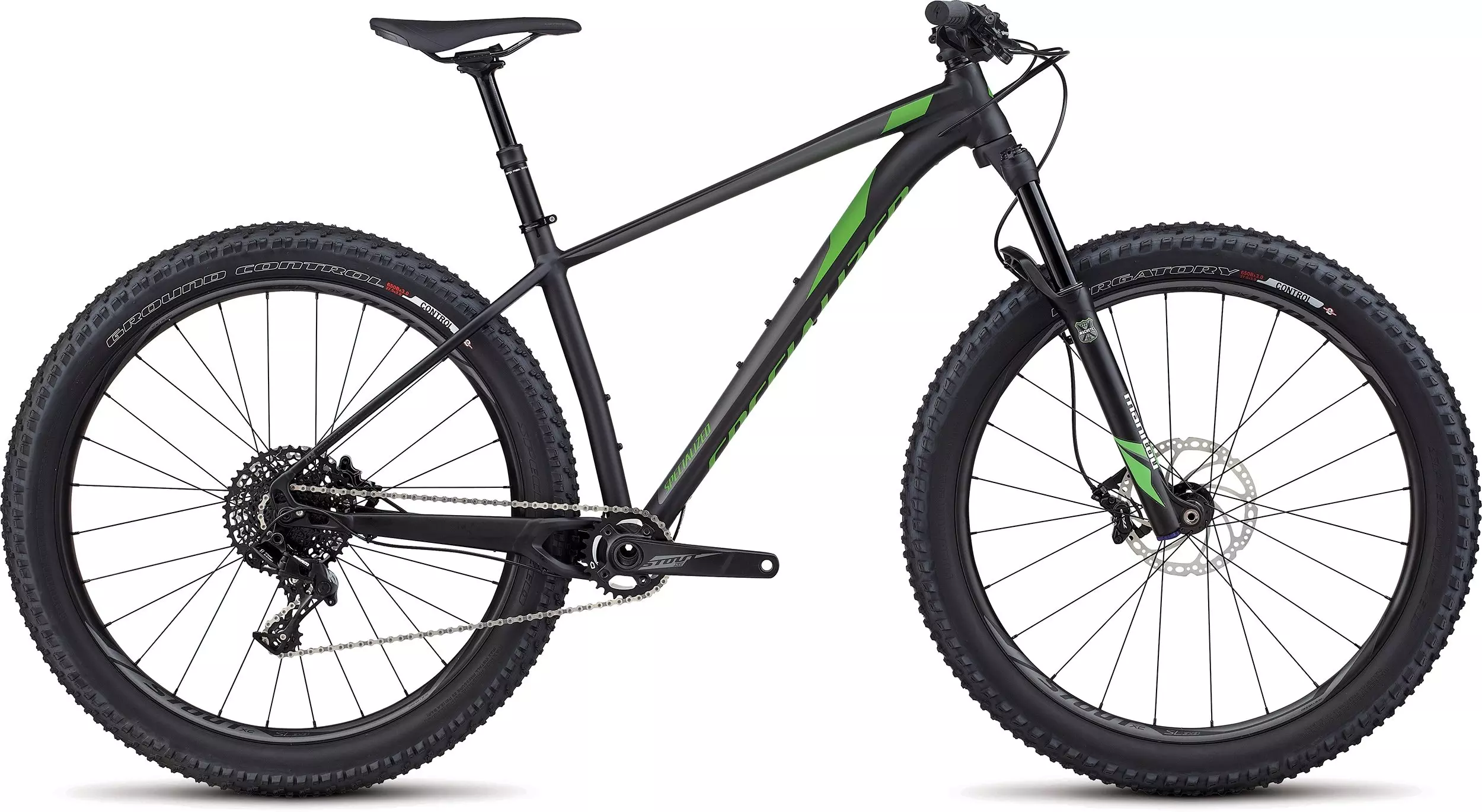

Fuse Comp 6Fattie
Overview
Technical Specifications
Geometry
Take a look at the world's strongest man, and you're not going to find some chiseled Adonis. You're going to find someone who has more volume. Behind the "extra" surface area, though, there's a man that can dominate a caber toss and run down the tarmac with a plane in tow. Mathematically, it could be broken down as more volume + versatility = dominance, and that's exactly what's at play with the Fuse Comp . Our Wheel System uplifts the Fuse to have more traction and control than any hardtail before it, while its no-nonsense build is custom spec'd to get the job done, no matter how rugged, technical, or hair raising that job might be.
  • M4 Premium Aluminum proved to be the right material for the job, allowing for a lightweight, durable frame with a low and slack geometry that's equal parts snappy and efficient on climbs and descents. It also allowed us to incorporate our exclusive Diamond Stay chainstay that accommodates the wheel/tire combination without compromising on our hallmark short chainstays that provide unrivaled handling and climbing prowess.
  • The Manitou Machete fork's 100/120mm (size-specific) of travel soaks up trail bumps, while its compression and rebound adjust enable you to dial-in the damping to your liking.
  • 650bx3.0" 6Fattie Purgatory and Ground Control tires feature a perfectly sized contact patch for life-changing levels of traction and control while cornering, all without sacrificing climbing efficiency or descending prowess. And with a GRID casing protecting the sidewalls, these tires will stand up to anything the trail can throw at them.

Technical Specifications

FRAMESET
SEAT BINDER Alloy, 31.8mm
FRAME Fully butted M4 Aluminium w/smooth welding, tapered head tube and seat tube, forged post mount 160mm disc, 148mm thru-axle dropout, alloy replaceable derailleur hanger
DRIVETRAIN
BOTTOM BRACKET BB30, sealed cartridge bearings
CHAIN SRAM PC-1130, 11-speed w/PowerLink
CRANKSET Specialized Stout XC, forged alloy, 30mm Cr-Mo spindle, 76mm BCD spider
CASSETTE SRAM PG-1130, 11-speed, 11-42t
SHIFT LEVERS SRAM NX, 11-speed, trigger
CHAINRINGS 28T
REAR DERAILLEUR SRAM NX, long cage, 11-speed
COCKPIT
SADDLE Body Geometry Henge Comp, hollow Cr-Mo rails, 143mm
SEATPOST TranzX dropper, internal cable routing, remote lever, 30.9mm, S/M: 100mm, L/XL: 120mm travel
GRIPS Specialized Sip Grip, half-waffle, S/M: regular thickness, L/XL: XL thickness
HANDLEBARS Double-butted alloy, 9-degree backsweep, 5-degree upsweep, 15mm rise, 750mm width, 31.8mm
STEM Alloy, 7-degree rise, 31.8mm clamp
BRAKES
FRONT BRAKE TRP Slate X2, hydraulic 4-piston disc, I-spec compatible, metallic pads, 203/180 rotor
REAR BRAKE TRP Slate X2, hydraulic 2-piston disc, I-spec compatible, metallic pads, 180/160mm rotor
ACCESSORIES
PEDALS Specialized Dirt Pedals
Suspension
FORK Manitou Machete 29/27.5+, Absolute Plus damper, air spring, adjustable rebound and compression/lockout, 110x15mm thru-axle, 100/120mm travel
WHEELS
FRONT HUB Specialized Stout, alloy, sealed cartridge bearings, 15x110mm spacing, 24h
REAR HUB Specialized Stout, SRAM XD driver, 12x148mm spacing, sealed cartridge bearings, 28h
INNER TUBES Standard, Presta valve
SPOKES Stainless, 14g, black
RIMS Stout 650b, alloy, disc only, 38mm inner width, 24/28h

Geometry

Geometry Chart

Fuse - Geometry

S M L XL XXL
  S M L XL XXL
Crank Length 170mm 175mm 175mm 175mm 175mm
Stem Length 50mm 50mm 60mm 60mm 70mm
Saddle Width 143mm 143mm 143mm 143mm 143mm
Handlebar Width 750mm 750mm 750mm 750mm 750mm
Seat Post Length 370mm 412mm 412mm 412mm 412mm
Reach 400mm 420mm 440mm 458mm 476mm
Stack 605mm 614mm 629mm 643mm 661mm
B-B Height (29x2.3) 319mm 319mm 319mm 319mm 319mm
Wheelbase 1112mm 1136mm 1161mm 1185mm 1211mm
Bike Stand-Over Height 755mm 781mm 806mm 830mm 866mm
B-B Height (650x3.0) 312mm 312mm 312mm 312mm 312mm
B-B Height (650x2.8) 306mm 306mm 306mm 306mm 306mm
Head-Tube Length 110mm 100mm 115mm 130mm 150mm
Front-Centre 686mm 708mm 735mm 760mm 786mm
Fork Rake/Offset 51mm 51mm 51mm 51mm 51mm
Head-Tube Angle 67.5° 67.5° 67.5° 67.5° 67.5°
Trail 95mm 95mm 95mm 95mm 95mm
Chain-Stay Length 430mm 430mm 430mm 430mm 430mm
Fork Length (full) 510mm 530mm 530mm 530mm 530mm
Seat-Tube Angle 74° 73° 73° 73° 73°
B-B Drop 51mm 51mm 51mm 51mm 51mm
Seat-Tube Length 394mm 434mm 470mm 505mm 555mm
Top-Tube Length (horizontal) 575mm 608mm 633mm 656mm 679mm
