2021 Epic EVO Expert

$11,100.00

Looking for a bike that soars as well as it sprints? Look no further than the Epic…

Colour:

GLOSS REDWOOD/SMOKE

What's my size?

Enter your height and we'll calculate your size.

Height:

For a more accurate result, include your shin length.

Select a Size

Product Details

Icon

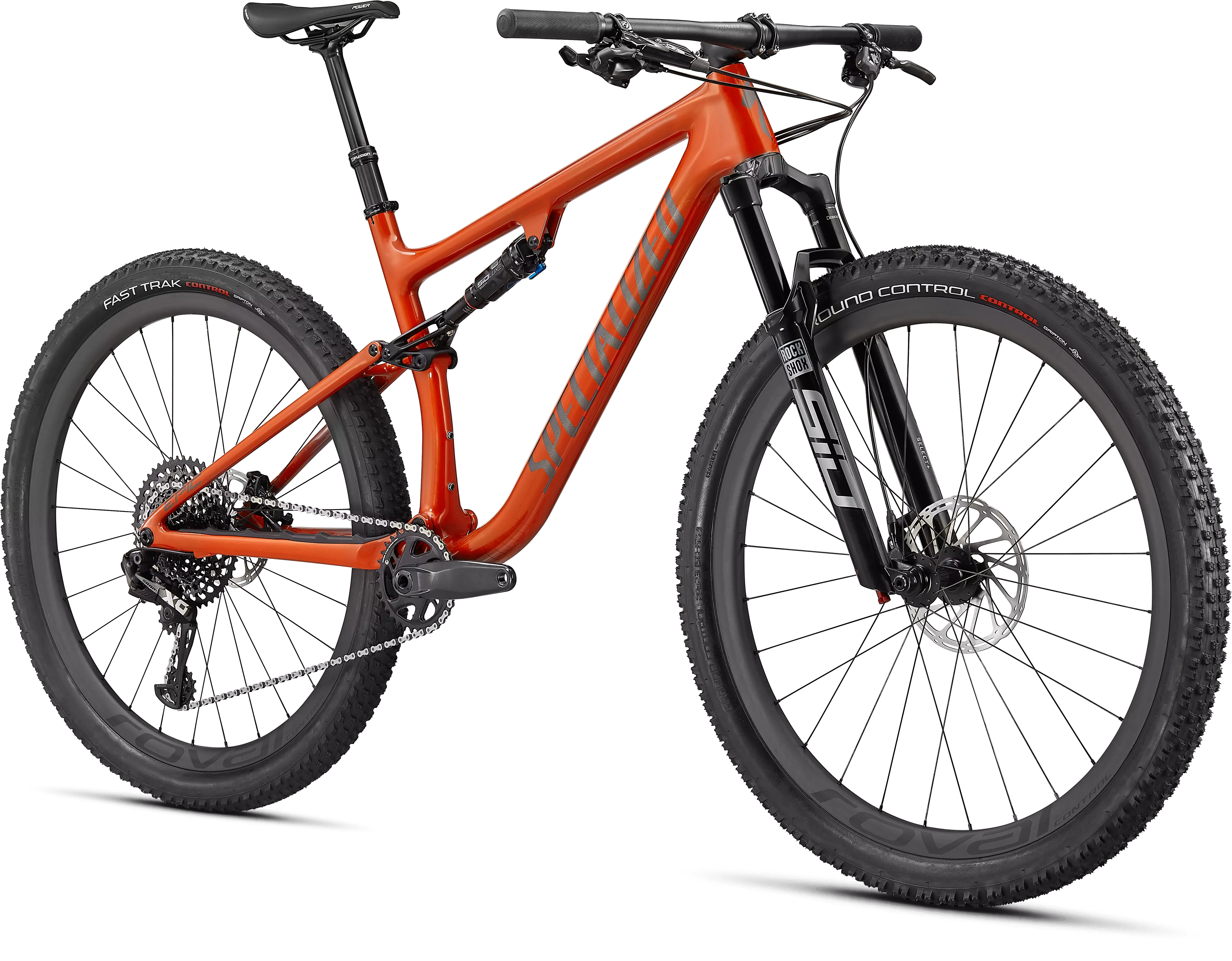

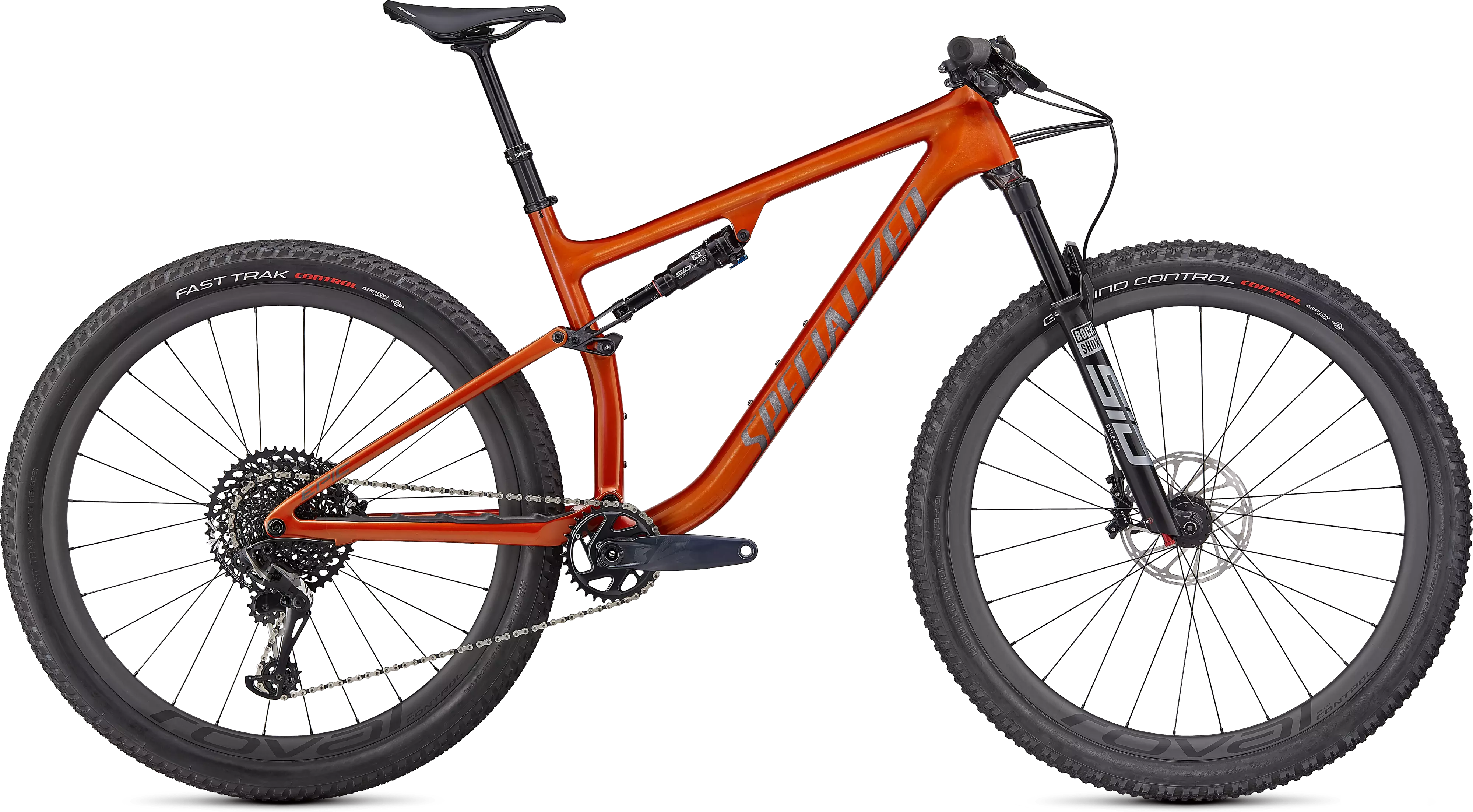

Looking for a bike that soars as well as it sprints? Look no further than the Epic EVO Expert.

Wheels up or head down, the Epic EVO Expert's masterful blending of inspired handling, capable geometry and laser-focused pedaling efficiency makes sure no rider ever has to make the decision between fast and fun.

While the Epic EVO sees a seemingly modest 20-millimeter increase in suspension travel up front over its Epic stablemate and just 10-millimeters out back, we've worked overtime to make sure it's been implemented in a way that'll have you saying 'Whoa!' as soon as you hit your first stretch of singletrack.

Meticulously engineered to retain as much of the Epic's standard-setting efficiency as possible, the EVO's new suspension kinematics work in concert with Rx XC Tune customized suspension front and rear to ensure you're able to make the absolute most out of every inch of travel on tap, while still offering increased anti-squat characteristics for improved pedaling efficiency.

With plenty of practice at staying ahead of the curve, the Epic EVO now lays claim to the most capable iteration of our Progressive XC Geometry ever to grace an Epic. It's also more versatile than ever thanks to a new flip chip-equipped rear end that allows riders to adjust headtube angle and bottom bracket height to easily customize Epic EVO's handling characteristics.

SRAM's high-flying X01 Eagle group handles shifting duties, while RockShox's SID Select+ is firmly in charge of takeoffs and landings with it's capable Charger 2 RL damper.

  • Flip It To Rip It: Tune the ride of the Epic EVO’s FACT 11m carbon frame to match your preferred handling characteristics with flip-chip simplicity that allows riders to steepen the EVO’s headtube angle by half a degree while raising the bottom bracket height by six millimeters.

  • Suspension up front comes courtesy of RockShox's SID Select+ 120-millimeter fork, featuring their Charger 2 RL Damper with two-postion compression adjustment for impressive pedaling efficiency while the DebonAir spring offers easy tuning and consistent feel throughout the entire range of travel.

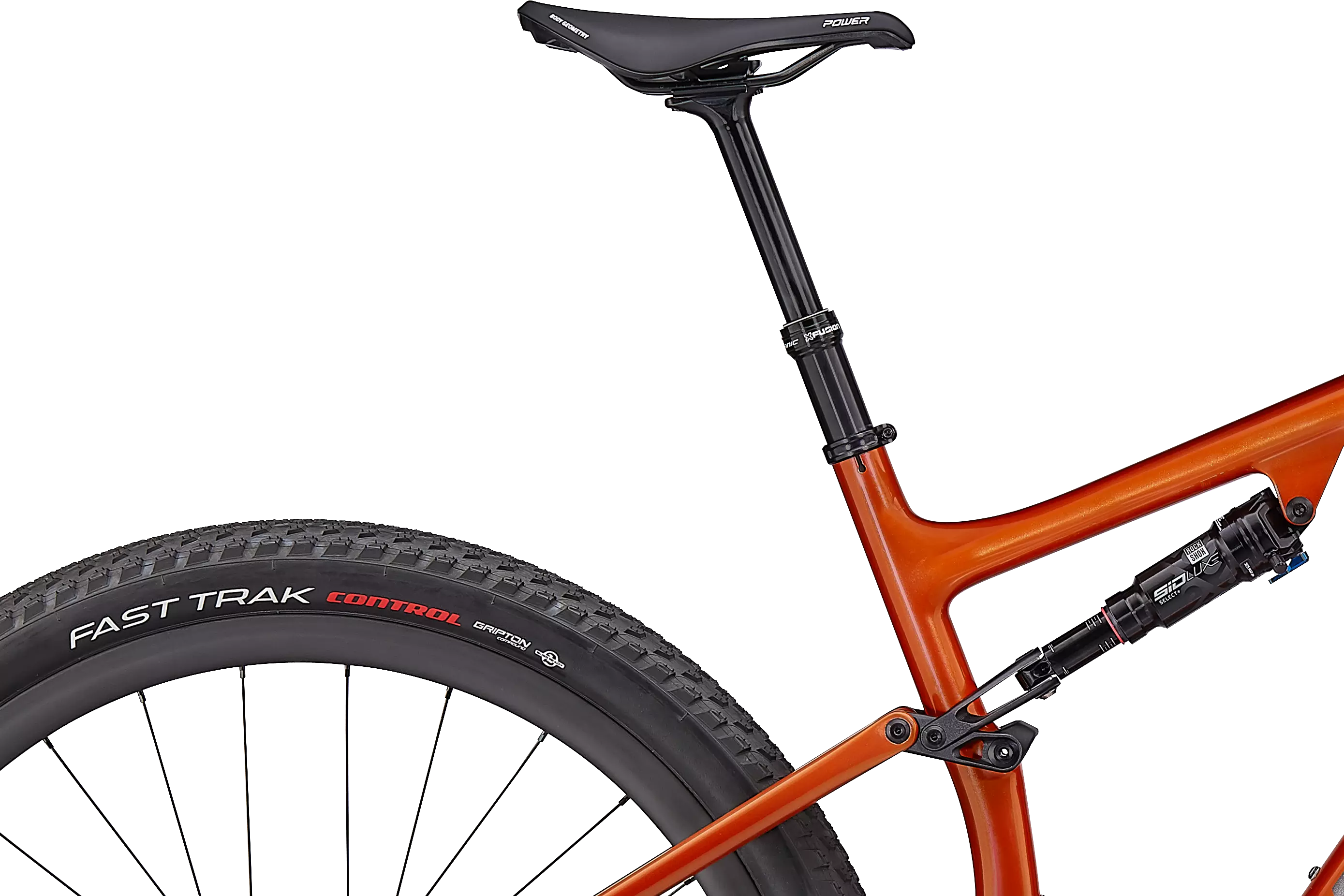

  • X-Fusion's Manic dropper post offers infinitely adjustable travel via it's slick shifter-stye remote lever for hassle-free operation when things get dicey.

  • Descending from a long World Cup lineage, hand-built Roval Control Carbon wheels feature a modern 25-millimeter internal-width hookless rim, and maximize strength, ride quality, and durability while keeping weight to a minimum.

Technical Specifications

Icon

ACCESSORIES

SWAT

SWAT EMT Cage-Mount Tool

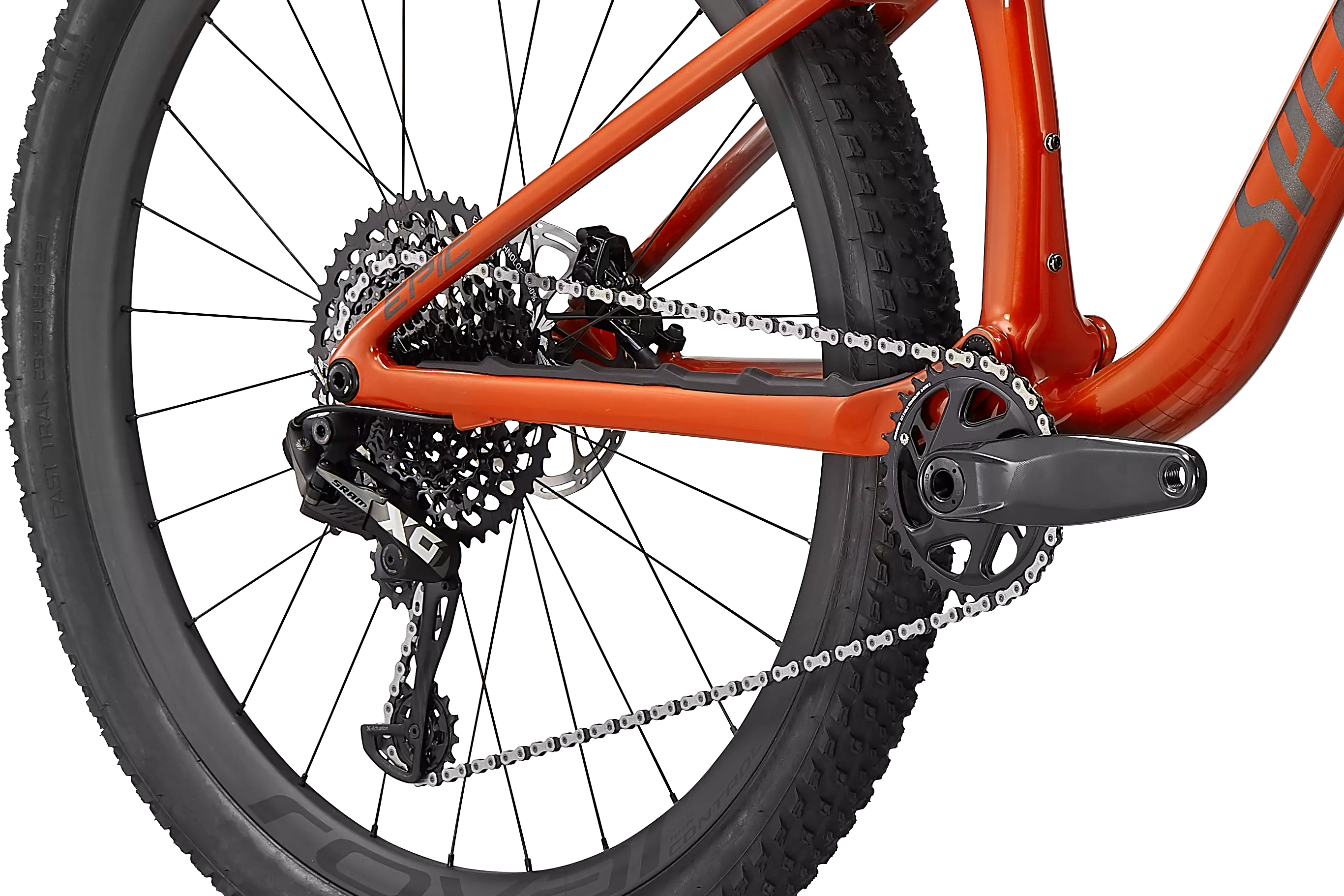

DRIVETRAIN

Rear Derailleur

SRAM X01 Eagle, 12-speed

Shift Levers

SRAM X01 Eagle, trigger, 12-speed

Cassette

SRAM XG-1275 Eagle, 12-speed, 10-50t

Chain

SRAM GX Eagle, 12-speed

Crankset

SRAM X1 Eagle, DUB, 32T, XS: 165mm, SM: 170mm, M-XL: 175mm

Chainrings

32T

Bottom Bracket

SRAM DUB, BSA 73mm, Threaded

WHEELS

Rims

Roval Control Carbon, 25mm internal width, Zero bead hook, Tubeless ready, 28h

Front Hub

DT Swiss 350, 15x110mm spacing, Torque caps, 6-bolt, 28h

Rear Hub

DT Swiss 350, Star Ratchet, SRAM XD driver body, 12mm thru-axle, 148mm spacing, 28h

Spokes

DT Swiss Competition Race

Front Tire

Ground Control, Control casing, GRIPTON® compound, 60 TPI, 2Bliss Ready, 29x2.3"

Rear Tire

Fast Trak, Control casing, GRIPTON? compound, 60 TPI, 2Bliss Ready, 29x2.3"

Inner Tubes

Presta, 60mm valve

Suspension

Rear Shock

RockShox SID LUXE Select+, Rx XC Tune, Two Position, Rebound Adjust, 190x40mm

Fork

Rockshox SID Select+, Charger 2 RL Damper, Debon Air, 15x110mm, 44mm offset, 120mm Travel

BRAKES

Front Brake

SRAM G2 RS, 4-piston caliper, hydraulic disc

Rear Brake

SRAM G2 RS, 4-piston caliper, hydraulic disc

COCKPIT

Handlebars

Specialized Alloy Minirise, 10mm rise, 750mm, 31.8mm clamp

SeatPost

X-Fusion Manic, infinite adjustable, two-bolt head, bottom mount cable routing, remote SRL LE lever, XS-SM: 100mm travel, M: 125mm travel, L-XL: 150mm travel

Tape

Specialized Trail Grips

Stem

Specialized XC, 3D-forged alloy, 4-bolt, 6-degree rise

Saddle

Body Geometry Power Comp, Cromoly rails

FRAMESET

Frame

FACT 11m Full Carbon, Progressive XC Geometry, Rider-First Engineered™, threaded BB, 12x148mm rear spacing, internal cable routing, 110mm of travel

Seat Binder

Specialized Alloy, 34.9mm

* Weights based on production painted frames as pictured. Actual weights will vary based on colourway, frame size, and component variation. Specifications are subject to change without notice.

Geometry

Icon
XSSMLXL
Crank Length165mm170mm175mm175mm175mm
Seatpost Length310mm361mm361mm425mm425mm
Handlebar Width750mm750mm750mm750mm750mm
Stem Length60mm60mm60mm60mm60mm
Saddle Width155mm155mm143mm143mm143mm
Stack603mm593mm597mm611mm629mm
Reach380mm406mm436mm460mm485mm
Head Tube Length95mm95mm100mm115mm135mm
Head Tube Angle66.5°66.5°66.5°66.5°66.5°
BB Height326mm336mm336mm336mm336mm
BB Drop46mm36mm36mm36mm36mm
Trail114mm114mm114mm114mm114mm
Fork Length, Full530mm530mm530mm530mm530mm
Fork Rake/Offset44mm44mm44mm44mm44mm
Front Centre672mm697mm729mm759mm792mm
Chainstay Length438mm438mm438mm438mm438mm
Wheelbase1106mm1132mm1164mm1194mm1227mm
Bike Standover Height760mm779mm781mm793mm804mm
Seat Tube Length375mm400mm430mm470mm520mm
Seat Tube Angle75.5°74.8°74.5°74.5°74.5°
Top Tube Length, Horizontal536mm567mm602mm629mm659mm
Geometry

Manual Downloads

Icon
Download Icon
Specialized Bicycle Owner's Manual Addendum: Riding With Kids
Download Icon
Tire Pressure and Handlebar Grips Addendum
Download Icon
Trainer Usage Addendum to the Bicycle Owner's Manual
Download Icon
2019 Rider/Bike Weight Limits and Terrain Conditions
Download Icon
Specialized Bicycle Owner's Manual (All Languages)
Download Icon
Specialized Bicycle Owner's Manual (Chinese Simplified)
Download Icon
Specialized Bicycle Owner's Manual (English)
Download Icon
Specialized Bicycle Owner's Manual (Japanese)
Download Icon
2021 EPIC EVO - USER MANUAL - ENGLISH
Download Icon
2017 FSR Tool Kit User Manual
Download Icon
2021 EPIC EVO - USER MANUAL - FRENCH
Download Icon
2021 EPIC EVO - USER MANUAL - GERMAN
Download Icon
2021 EPIC EVO - USER MANUAL - CZECH
Download Icon
2021 EPIC EVO - USER MANUAL - POLISH
Download Icon
2021 EPIC EVO - USER MANUAL - SLOVAK
Download Icon
2021 EPIC EVO - USER MANUAL - DUTCH
Download Icon
2021 EPIC EVO - USER MANUAL - DANISH
Download Icon
2021 EPIC EVO - USER MANUAL - SWEDISH
Download Icon
2021 EPIC EVO - USER MANUAL - SLOVENIAN
Download Icon
2021 EPIC EVO - USER MANUAL - CROATIAN
Download Icon
2021 EPIC EVO - USER MANUAL - RUSSIAN
Download Icon
2021 EPIC EVO - USER MANUAL - FINNISH
Download Icon
2021 EPIC EVO - USER MANUAL - ITALIAN
Download Icon
2021 EPIC EVO - USER MANUAL - SPANISH
Download Icon
2021 EPIC EVO - USER MANUAL - PORTUGUESE BRAZILIAN
Download Icon
2021 EPIC EVO - USER MANUAL - KOREAN
Download Icon
2021 EPIC EVO - USER MANUAL - CHINESE TRADITIONAL
Download Icon
2021 EPIC EVO - USER MANUAL - CHINESE SIMPLIFIED
Download Icon
2021 EPIC EVO - USER MANUAL - JAPANESE
Download Icon
2021 Epic Evo User Manual

For safety warning please refer to the documentation in the Manual Downloads section of this page.
