Camber Pro Carbon 29

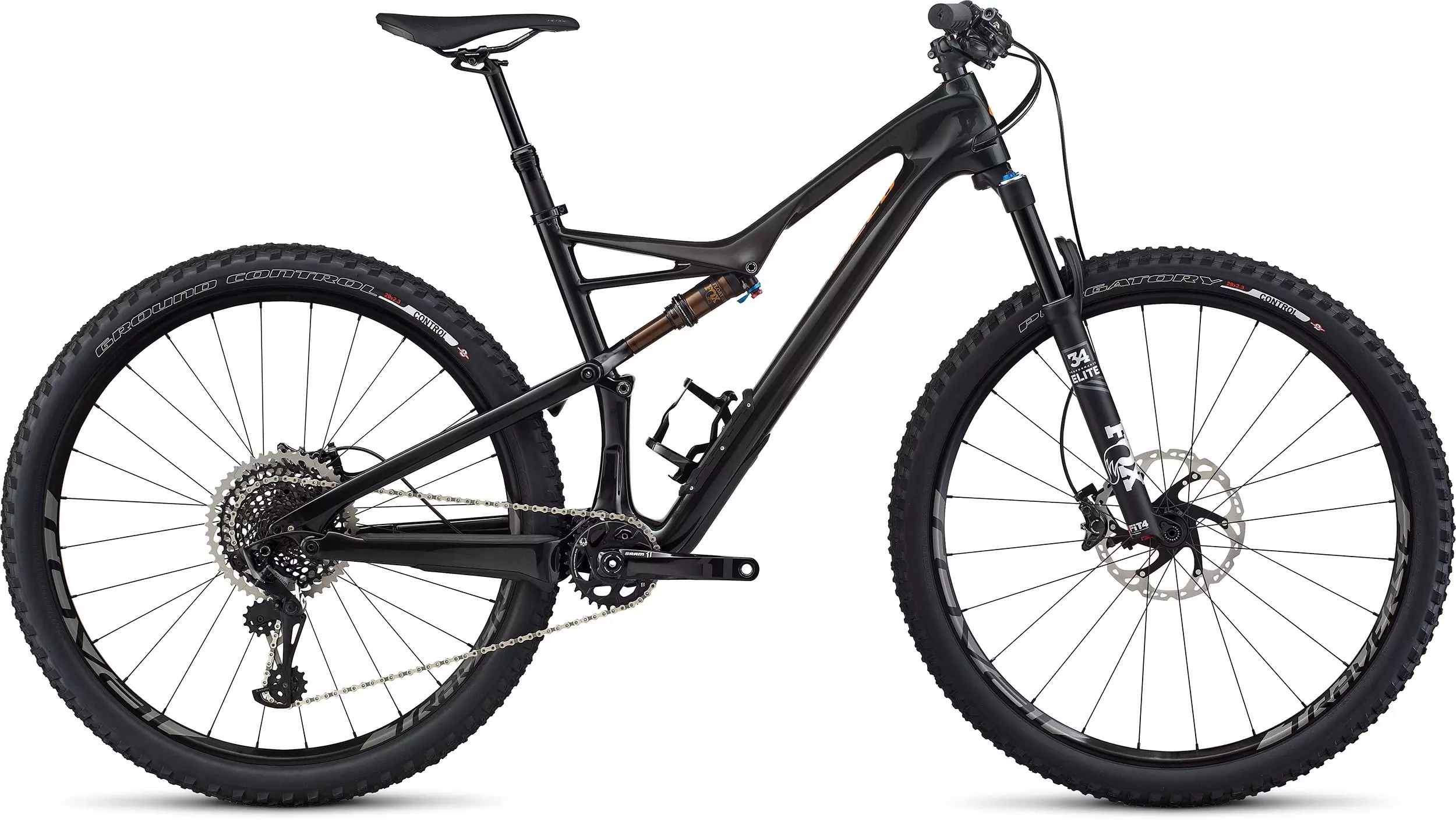

2017 Camber Pro Carbon 29
Especificaciones técnicas
FRAMESET
FRAME
FACT 11m, full carbon chassis and rear end, Trail Geometry, SWAT™ Door integration, PF30 BB, fully enclosed internal cable routing, Concentric Pivot link, 12x142mm dropouts, sealed cartridge bearing pivots, replaceable derailleur hanger, 120mm of travel
SEAT BINDER
Alloy, 34.9mm
SUSPENSION
REAR SHOCK
FOX FLOAT Factory, Rx Trail Tune, AUTOSAG, DPS damper, Kashima coating, rebound and 3-position compression and Open adjust, 205x53mm
FORK
FOX 34 Performance Elite 29, Kashima coating, 3-position adjust, compression and rebound adjust, 51mm offset, 15x100mm thru-axle, 120mm travel
WHEELS
REAR TIRE
Ground Control, Control casing, 29x2.3"", 60TPI, Aramid folding bead, 2Bliss Ready
SPOKES
DT Swiss Revolution
FRONT TIRE
Purgatory, Control casing, 29x2.3"", 60TPI, Aramid folding bead, 2Bliss Ready
RIMS
Roval Traverse 29, hookless alloy, 29mm inner width, 24/28h
INNER TUBES
29x1.75/2.4"", 60mm Presta valve
DRIVETRAIN
CHAIN
SRAM X01 Eagle, silver, 12-speed w/PowerLink
CASSETTE
SRAM XG-1295, 12-speed, 10-50t
SHIFT LEVERS
SRAM X01 Eagle, 12-speed, trigger
REAR DERAILLEUR
SRAM X01 Eagle, 12-speed
BOTTOM BRACKET
SRAM PF30, OS press-in bearings
CRANKSET
Custom SRAM XX1 Eagle, alloy, 30mm spindle, 49mm chainline, 30T
CHAINRINGS
SRAM X-Sync, direct mount, 30T
COCKPIT
HANDLEBARS
Specialized Trail, 7050 alloy, 8-degree backsweep, 6-degree upsweep, 25mm rise, 750mm width, 31.8mm
STEM
Specialized, 3D-forged alloy, 4-bolt, 6-degree rise
SEATPOST
Command Post IRcc, 12 position micro-height adjustable, alien head design, bottom mount cable routing, remote SRL lever, 30.9mm, S: 100mm, M/L/XL: 125mm travel
GRIPS
Specialized Sip Grip, half-waffle, S/M: regular thickness, L/XL: XL thickness
SADDLE
Body Geometry Henge Expert, hollow titanium rails, 143mm
BRAKES
REAR BRAKE
Shimano XT M8000, hydraulic disc, post mount, metallic pads, 160/180mm rotors
FRONT BRAKE
Shimano XT M8000, hydraulic disc, post mount, metallic pads, 180/200mm rotors
* Pesos basados en cuadros pintados de producción como se muestra en la imagen. Los pesos reales variarán en función del color, tamaño del cuadro y variación de componentes. Las especificaciones están sujetas a cambios sin previo aviso.
Geometría
| S | M | L | XL | |
|---|---|---|---|---|
| Largo de biela | 170mm | 175mm | 175mm | 175mm |
| Ancho de manubrio | 750mm | 750mm | 750mm | 750mm |
| Largo de avance | 60mm | 60mm | 75mm | 90mm |
| Saddle Width | 143mm | 143mm | 143mm | 143mm |
| Largo de poste de asiento | 390mm | 430mm | 430mm | 430mm |
| Ángulo de tubo de asiento | 75° | 75° | 75° | 75° |
| Largo de tubo de dirección | 95mm | 95mm | 115mm | 145mm |
| Ángulo de tubo de dirección | 68.5° | 68.5° | 68.5° | 68.5° |
| Largo de vaina inferior | 437mm | 437mm | 437mm | 437mm |
| Front-Center | 673mm | 701mm | 726mm | 763mm |
| Caída de caja pedalera | 42mm | 42mm | 42mm | 42mm |
| B-B Height | 330mm | 330mm | 330mm | 330mm |
| Bike Stand-Over Height | 732mm | 735mm | 752mm | 766mm |
| Fork Length (full) | 531mm | 531mm | 531mm | 531mm |
| Top-Tube Length (horizontal) | 562mm | 590mm | 613mm | 647mm |
| Seat-Tube Length | 396mm | 430mm | 468mm | 523mm |
| Stack | 609mm | 609mm | 627mm | 655mm |
| Alcance | 399mm | 427mm | 445mm | 471mm |
| Trail | 97mm | 97mm | 97mm | 97mm |
| Fork Rake/Offset | 46mm | 46mm | 46mm | 46mm |
| Distancia entre ejes | 1107mm | 1135mm | 1160mm | 1197mm |
