Allez E5

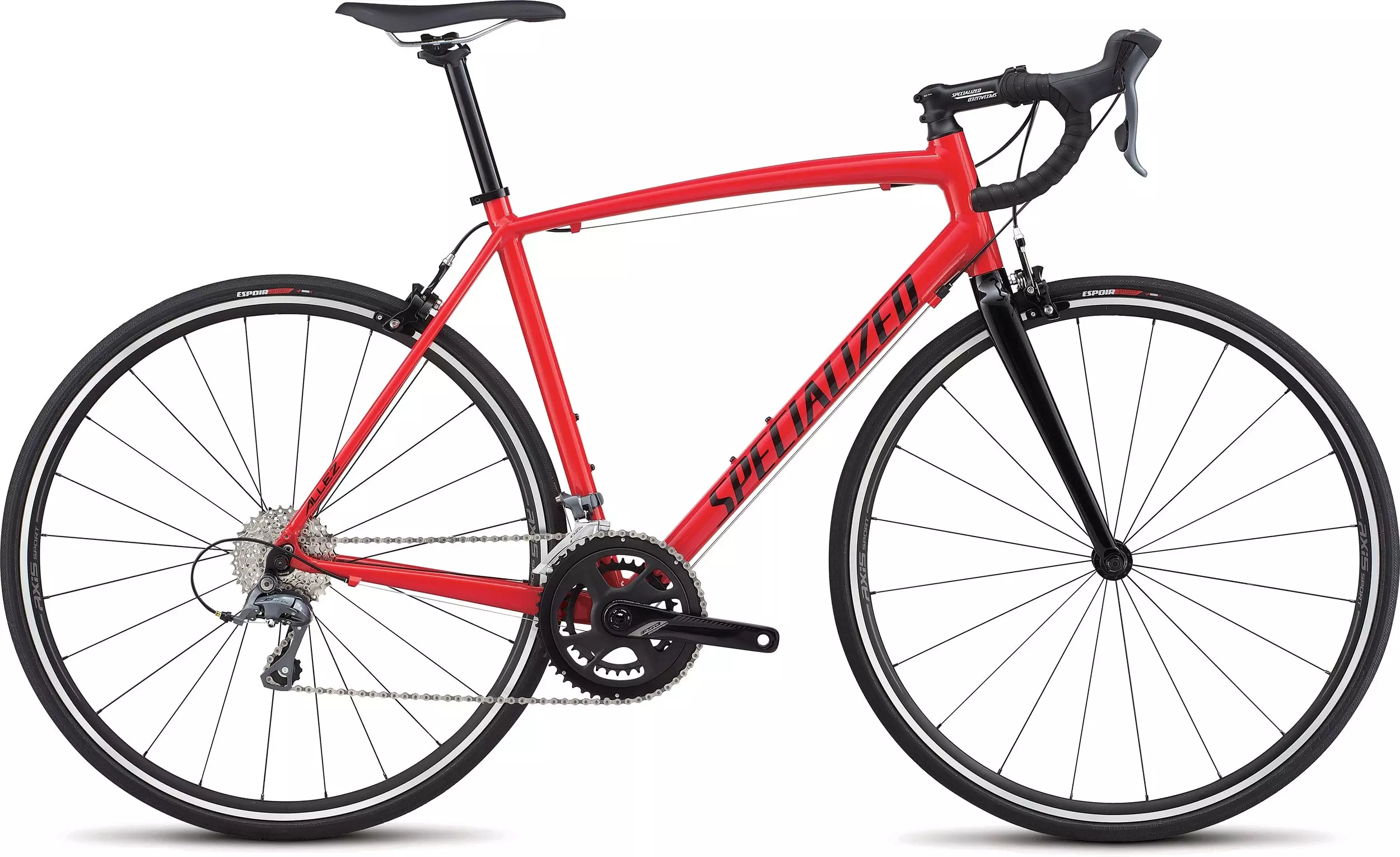

2017 Allez E5
Especificaciones técnicas
FRAMESET
FRAME
Specialized E5 Premium Aluminum, fully-manipulated tubing w/smooth welds, 1-1/8"" lower bearing
FORK
FACT carbon fiber
SEAT BINDER
Alloy, 31.8mm
WHEELS
FRONT TIRE
Espoir Sport, 700x25mm, 60TPI, wire bead, double BlackBelt protection
REAR WHEEL
Axis Sport
FRONT WHEEL
Axis Sport
INNER TUBES
700x20/28mm, 40mm Presta valve
REAR TIRE
Espoir Sport, 700x25mm, 60TPI, wire bead, double BlackBelt protection
DRIVETRAIN
REAR DERAILLEUR
Shimano Claris 2400, 8-speed
FRONT DERAILLEUR
Shimano Claris 2400, clamp-on
CRANKSET
FSA Gossamer Pro, Direct mount ABS, MegaExo Integrated Interface, 68mm English BB, 9-/10-speed, forged 6066 aluminum, 144mm Q-factor
CASSETTE
Sunrace, 8-speed, 11-32t
CHAIN
KMC Z7, 8-speed w/reusable MissingLink
SHIFT LEVERS
Shimano Claris 2400 STI
CHAINRINGS
50/34T
BOTTOM BRACKET
FSA
COCKPIT
HANDLEBARS
Specialized Shallow Drop, alloy, 125mm drop, 70mm short-reach
STEM
Specialized, 3D forged alloy, 4-bolt, 7-degree rise
SEATPOST
Alloy, 12.5mm offset, 2-bolt clamp, 27.2mm
SADDLE
Body Geometry Toupé Sport, steel rails, 143mm
TAPE
Specialized S-Wrap
BRAKES
REAR BRAKE
Tektro, caliper, short reach, dual pivot
FRONT BRAKE
Tektro, caliper, dual pivot
* Pesos basados en cuadros pintados de producción como se muestra en la imagen. Los pesos reales variarán en función del color, tamaño del cuadro y variación de componentes. Las especificaciones están sujetas a cambios sin previo aviso.
Geometría
| 49 | 52 | 54 | 56 | 58 | 61 | |
|---|---|---|---|---|---|---|
| Largo de biela | 170mm | 170mm | 172.5mm | 172.5mm | 175mm | 175mm |
| Ancho de manubrio | 400mm | 420mm | 420mm | 420mm | 440mm | 440mm |
| Largo de avance | 80mm | 90mm | 100mm | 100mm | 110mm | 110mm |
| Saddle Width | 143mm | 143mm | 143mm | 143mm | 143mm | 143mm |
| Largo de poste de asiento | 300mm | 300mm | 350mm | 350mm | 350mm | 350mm |
| Ángulo de tubo de asiento | 75.5° | 74° | 73.5° | 73.25° | 73° | 72.5° |
| Largo de tubo de dirección | 100mm | 120mm | 145mm | 170mm | 205mm | 230mm |
| Ángulo de tubo de dirección | 72.25° | 73° | 73° | 73.5° | 73.5° | 74° |
| Largo de vaina inferior | 405mm | 407mm | 407mm | 407mm | 410mm | 410mm |
| Front-Center | 578mm | 578mm | 585mm | 593mm | 607mm | 613mm |
| Caída de caja pedalera | 72mm | 72mm | 69mm | 69mm | 68mm | 68mm |
| B-B Height | 270mm | 270mm | 272.5mm | 272.5mm | 274mm | 274mm |
| Bike Stand-Over Height | 736mm | 759mm | 783mm | 805mm | 834mm | 860mm |
| Fork Length (full) | 369mm | 369mm | 369mm | 369mm | 369mm | 369mm |
| Top-Tube Length (horizontal) | 518mm | 538mm | 549mm | 565mm | 582mm | 600mm |
| Seat-Tube Length | 460mm | 490mm | 510mm | 530mm | 550mm | 580mm |
| Stack | 505mm | 527mm | 548mm | 574mm | 606mm | 632mm |
| Alcance | 387mm | 387mm | 387mm | 392mm | 397mm | 401mm |
| Trail | 62mm | 57mm | 57mm | 54mm | 54mm | 51mm |
| Fork Rake/Offset | 45mm | 45mm | 45mm | 45mm | 45mm | 45mm |
| Distancia entre ejes | 972mm | 974mm | 982mm | 990mm | 1008mm | 1014mm |
