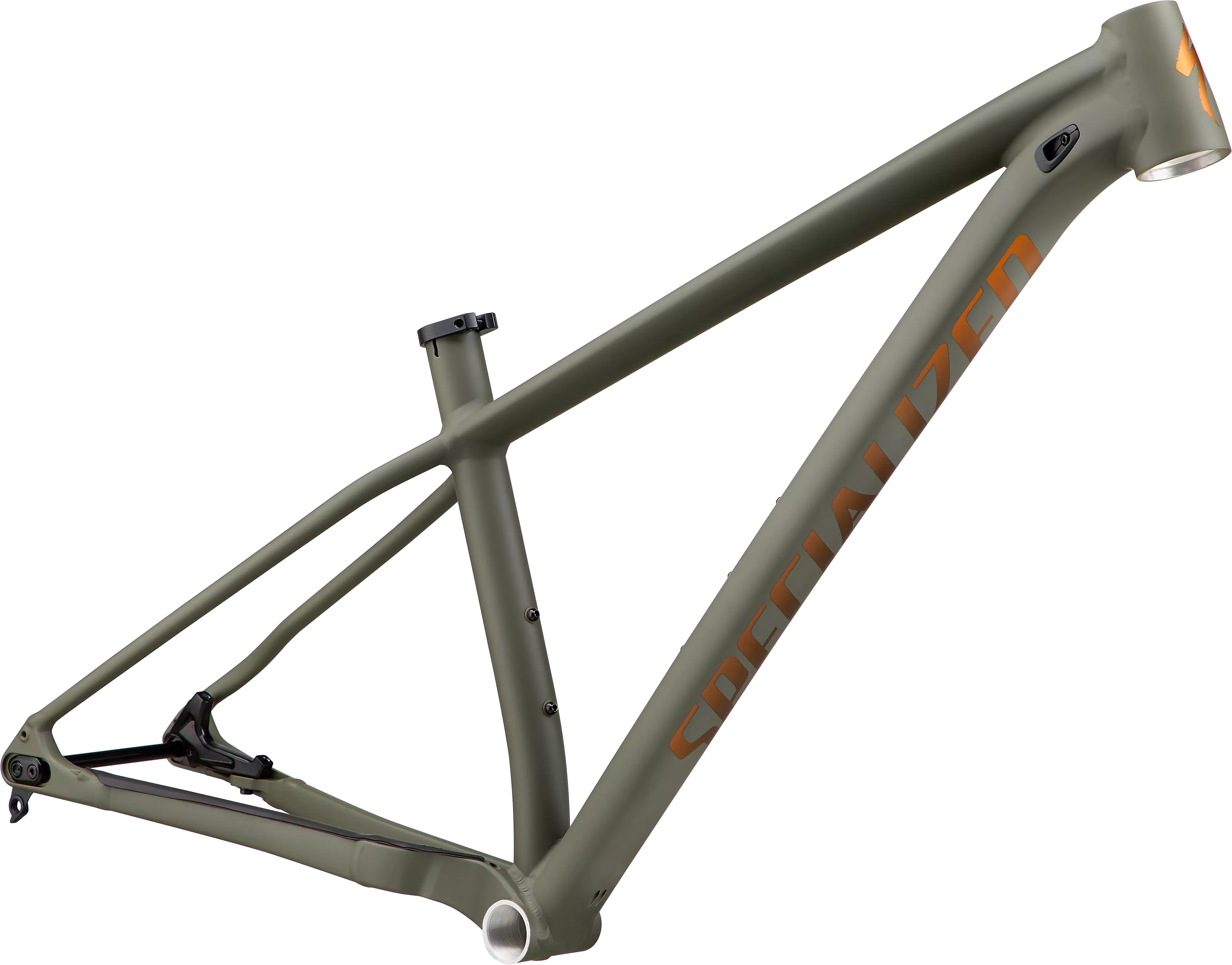

2020 Fuse M4 Frameset

5

1 Reviews

If you’re looking for a frame that’s snappy, confident, and happiest on trails that…

Colour:

Satin Oak Green/Bronze Foil

What's my size?

Enter your height and we'll calculate your size.

Height:

For a more accurate result, include your shin length.

Select a Size

Choose the colour and size you're looking for to search nearby store inventory.

Unavailable

This item is not available for Find Nearby

Product Details

Icon

If you’re looking for a frame that’s snappy, confident, and happiest on trails that make other hardtails cry, you’ve come to the right place.

The Fuse’s M4 aluminum frame is loaded with smart touches. The wide-diameter down tube boosts stiffness. The low-slung top tube gives you the clearance to throw the bike around on tight trails. Adjustable dropouts let you run the Fuse geared or single-speed. Those same dropouts also let you adjust the chainstays by as much as 15 millimeters, lengthening the rear end for more stability or shortening it up for quick, nimble manners.

The Fuse is a piece of rolling art—the kind of functional art that has you dragging handlebars in corners, braking way too late, and making indecent growling noises mid-ride.

0

Technical Specifications

Icon

FRAMESET

FRAME

Specialized M4 Premium Aluminum, 148mm thru-axle, adjustable dropout, SS compatible, tapered head tube, internal cable routing

SEAT BINDER

Alloy, 38.6mm

* Weights based on production painted frames as pictured. Actual weights will vary based on colourway, frame size, and component variation. Specifications are subject to change without notice.

Geometry

Icon
XSSMLXL
Seat-Tube Angle74°74°74°74°74°
Head-Tube Length95mm95mm95mm110mm125mm
Head-Tube Angle66.5°66.5°66.5°66.5°66.5°
Front-Centre698mm718mm738mm764mm790mm
B-B Drop60mm60mm60mm60mm60mm
B-B Height315mm315mm315mm315mm315mm
Bike Stand-Over Height727mm747mm750mm754mm793mm
Fork Length (full)540mm540mm540mm540mm540mm
Top-Tube Length (horizontal)579mm599mm619mm643mm667mm
Seat-Tube Length340mm375mm410mm455mm505mm
Stack625mm625mm625mm639mm652mm
Reach400mm420mm440mm460mm480mm
Trail113mm113mm113mm113mm113mm
Fork Rake/Offset46mm46mm46mm46mm46mm
Wheelbase1122mm1142mm1162mm1188mm1214mm
Geometry

Manual Downloads

Icon

Rider Reviews

5

1 Reviews

Icon


Never thought a HT could be so fast and fun

I ordered the M4 frameset and built it up with a set of roval wheels (butcher and purgatory tires), Sram GX Eagle, and a Rockshox pike in the front (140mm). I love this bike so much and have been taking it out way more than my full suspension the last few weeks. It sticks to corners, can handle the steeps, and climbs like a champ. I do miss having the SWAT box, but it is super easy to hold everything you need on the frame and add a SWAT tool in the stem.
