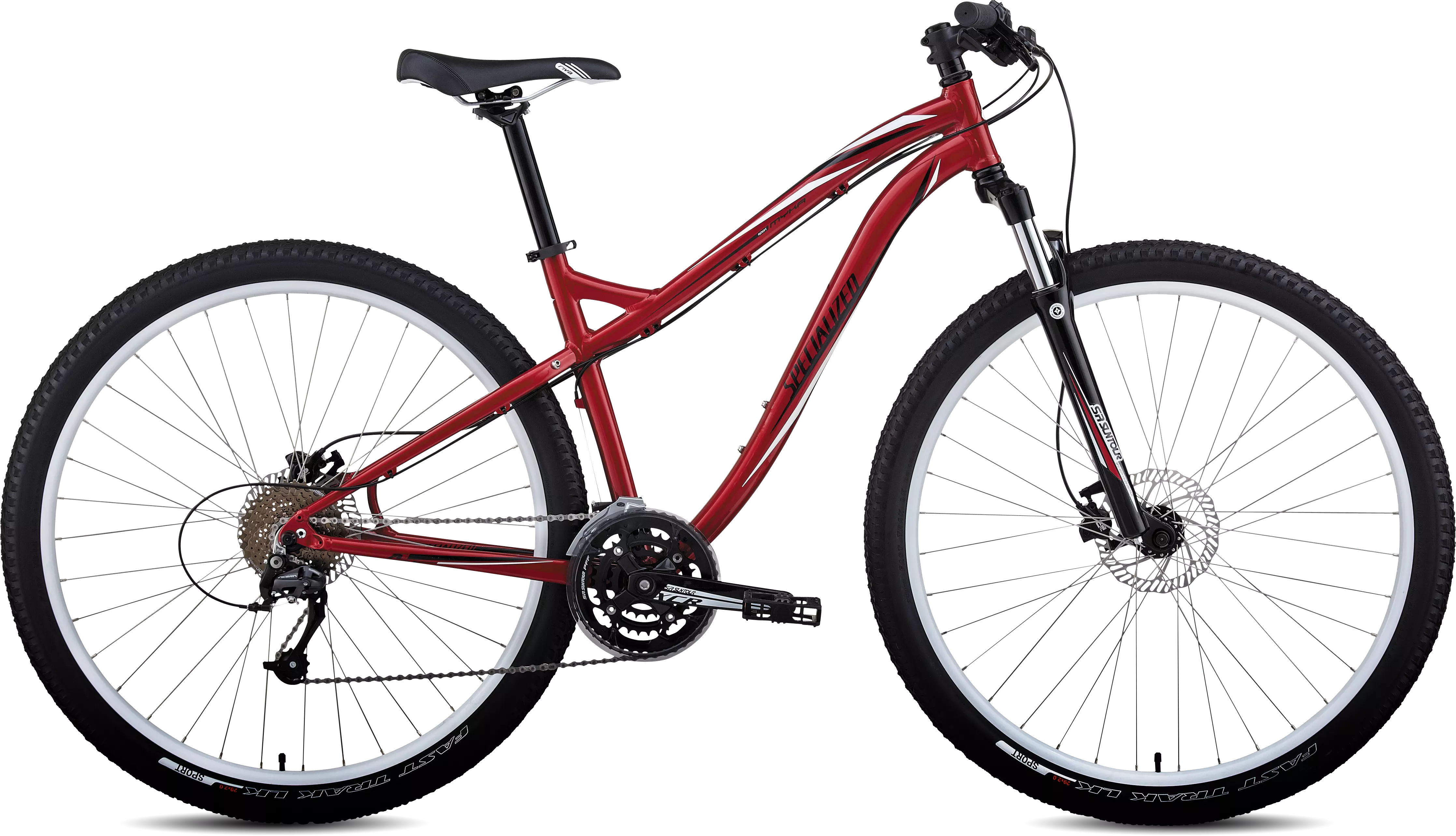

2012 Myka Sport Disc 29

0 Reviews

Built for lightweight efficiency with anatomical engineering and components for women,…

Colour:

Crimson/White/Black

Size:

One Size

Product Details

Built for lightweight efficiency with anatomical engineering and components for women, the Myka is the best performing recreational mountain bike at a value everyone can appreciate. Myka Sport Disc 29er component highlights include an 80mm-travel SR Suntour fork, Avid BB5 disc brakes and Specialized Fast Trak LK Sport tires.

Fully butted A1 Premium Aluminum frame with women's recreational 29er geometry and low standover, stack and reach for a confident and lightweight ride
80mm smooth-travel SR Suntour fork with preload adjustment, lockout, and custom women's spring rates delivers size-appropriate tunability for varying terrain
Light and durable double-walled 29" alloy rims are tough enough to handle the rough stuff
Specialized Fast Trak LK Sport 29" 60 TPI tires use a reduced knob height for lower rolling resistance, but have plenty of grip for confidence on the trail
SR Suntour 9-speed crankset uses Shimano's Octalink-splined BB interface for reliable power transfer, chainguard included
Tektro Draco dual-piston hydraulic disc brakes assure precise braking and durability
Body Geometry Women's Riva 155mm saddle combines generous padding and durable scuff guards for all-day performance and comfort
Shimano Acera 9-speed rear derailleur and Acera Rapidfire trigger shifters are a confidence-inspiring combination

Technical Specifications

FRAMESET

FRAME

A1 Premium Aluminum, fully butted, women's recreational 29"" geometry and tubesets, double ORE DT, externally relieved HT, forged dropouts w/ replaceable alloy hanger

HEADSET

1-1/8"" threadless, loose ball w/ seals

SEAT BINDER

34.9mm, alloy, extruded QR lever/collar

SUSPENSION

FORK

SR Suntour XCM (SF11-XCM-V3-29-DS-MLO), 1pc. alloy lower, 30mm Hi-Ten stanchions, mechanical LO, custom women's coil/mcu spring w/ preload adj., spring assisted seals, 80mm

WHEELS

FRONT TIRE

Specialized Fast Trak LK Sport, 60 TPI, wire bead, 29x2.0""

REAR TIRE

Specialized Fast Trak LK Sport, 60 TPI, wire bead, 29x2.0""

INNER TUBES

Schrader valve

RIMS

Alex HR Disc 29"", alloy double-wall, disc, pin joint, 24mm, 36h

FRONT HUB

Disc hub, high-low flange, sealed loose ball, machined disc mount, 19mm contact, QR, 36h

REAR HUB

Disc hub, cassette, double-sealed loose ball, polished races,machined disc mount and flanges, 19mm contact, QR, 36h

SPOKES

Stainless silver, 2.0mm (14g)

DRIVETRAIN

FRONT DERAILLEUR

Shimano Acera, 9-speed, 34.9mm clamp, top-swing, dual-pull

REAR DERAILLEUR

Shimano Acera, 9-speed, SGS cage

SHIFT LEVERS

Shimano Acera, 9-speed Rapidfire plus, SL type w/ optical display

CASSETTE

Shimano 9-speed, 11-34t

CHAIN

KMC X-9, 9-speed, reusable Missing Link

CRANKSET

SR Suntour, 9-speed, Octalink spline, w/ chainguard

CHAINRINGS

44/32/24, replaceable outer, w/ chainguard

BOTTOM BRACKET

Shimano, Octalink spline, cartridge bearing, 68mm

COCKPIT

STEM

3D forged 6061 alloy, 4 bolt clamp, 10º rise, 25.4mm

HANDLEBARS

Alloy flat bar, 8º backsweep, 4º upsweep, 25.4mm

GRIPS

Women's Myka, dual density Kraton

SADDLE

Women's Body Geometry Riva, 155mm width

SEATPOST

Alloy, 2 bolt head, 30.9mm, 12.5mm offset, micro adjust

BRAKES

FRONT BRAKE

Tektro Draco hydraulic disc brake, post mount, 160mm 6-bolt rotor

REAR BRAKE

Tektro Draco hydraulic disc brake, post mount, 160mm 6-bolt rotor

BRAKE LEVERS

Tektro Draco hydraulic w/ women's specific lever shape

ACCESSORIES

PEDALS

Composite platform w/ molded pins, toe clip compatible, 9/16"" w/ reflectors

* Weights based on production painted frames as pictured. Actual weights will vary based on colourway, frame size, and component variation. Specifications are subject to change without notice.

Geometry

	15.0	17.0	19.0
Top Tube Length (Horizontal)	558mm	575mm	600mm
Seat Tube Angle (Effective)	73.5°	73.5°	73.5°
Top Tube Length (Actual)	572mm	571mm	587mm
Seat Tube Angle (Actual)	73°	73°	73°
Seat Tube Length, Centre to Top	381mm	432mm	483mm
Bottom Bracket Drop	64.5mm	64.5mm	64.5mm
Bottom Bracket Height	309mm	309mm	309mm
Wheel Base	1070mm	1082mm	1108mm
Standover Height	694mm	738mm	762mm
Stack	607mm	618mm	628mm
Reach	378mm	392mm	414mm
Head Tube Length	100mm	110mm	120mm
Head Tube Angle	70°	70.5°	70.5°
Chainstay Length	450mm	450mm	450mm
Crank Length	170mm	170mm	175mm
Handlebar Width	660mm	680mm	680mm
Stem Length	75mm	75mm	90mm
Seatpost Length	350mm	350mm	400mm
