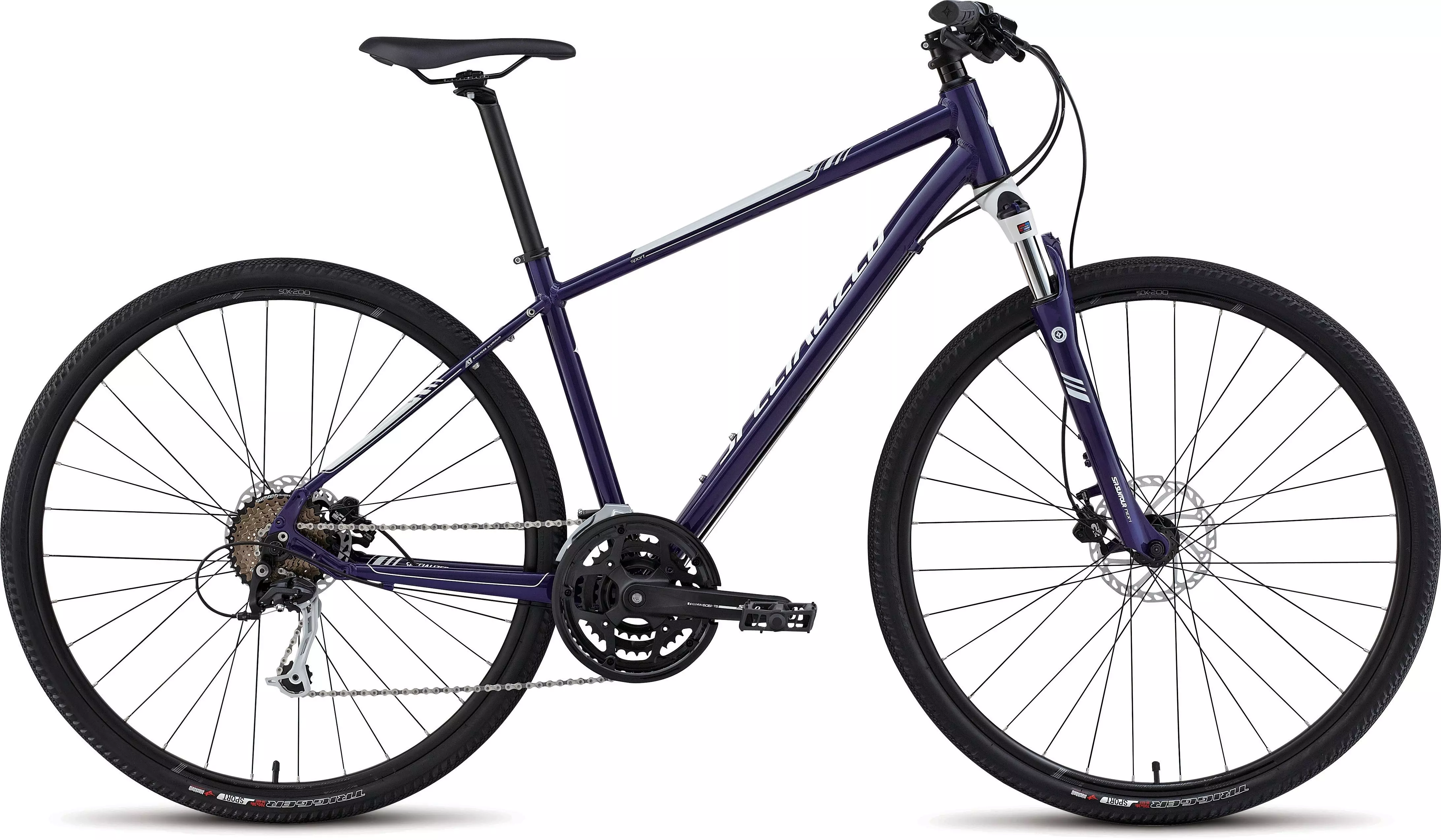

2015 Ariel Sport Disc

0 Reviews

With elements of both a road bike and mountain bike, the Ariel is for the female…

Colour:

Gloss Indigo/White

What's my size?

Imperial

Metric

Enter your height and we'll calculate your size.

Height:

For a more accurate result, include your shin length.

Select a Size

Product Details

With elements of both a road bike and mountain bike, the Ariel is for the female rider looking to zip through the weekday commute and head out for weekend adventure. The Ariel Sport Disc features an A1 Premium Aluminium frame with Women's Fitness Geometry, Tektro Auriga hydraulic disc brakes, and 63mm-travel SR Suntour fork for a plush ride.

Versatile, A1 Premium Aluminium frame w/ Women's Fitness Geometry and rack/fender mounts
Versatile, A1 Premium Aluminium frame w/ Women's Fitness Geometry and rack/fender mounts
Shimano Alivio, 9-speed rear derailleur for crisp, worry-free shifting
Custom SR Suntour NEX 63mm-travel fork w/ exclusive Multi-Circuit Damping and hydraulic lockout
Versatile, A1 Premium Aluminium frame w/ Women's Fitness Geometry and rack/fender mounts
Body Geometry Women's Riva Sport Plus saddle features generous padding for all-day comfort
Versatile, A1 Premium Aluminium frame w/ Women's Fitness Geometry and rack/fender mounts

Technical Specifications

FRAMESET

FRAME

Specialized A1 Premium Aluminium, Women's Fitness Geometry, women's double-butted tubesets, w/ fender/rack braze-ons, forged dropouts, kickstand mount

HEADSET

Ahead, semi-integrated, loose ball, 8mm cone spacer

SEAT BINDER

Alloy, 31.8mm

WHEELS

RIMS

700c disc, alloy double-wall, pin joint, 32h

FRONT HUB

Specialized Hi Lo disc, alloy double-sealed, ground race, QR, 32h

REAR HUB

Specialized Hi Lo disc, alloy, double-sealed, loose ball bearings, QR, 32h

SPOKES

Stainless, 14g, black

FRONT TIRE

Specialized Trigger Sport, 60TPI, wire bead, BlackBelt protection, 700x38c

REAR TIRE

Specialized Trigger Sport, 60TPI, wire bead, BlackBelt protection, 700x38c

INNER TUBES

Standard, Schrader valve

SUSPENSION

FORK

Custom SR Suntour NEX, w/ custom Multi-Circuit Damping, alloy lowers, custom coil spring weights, Hi-Ten 28mm stanchions, 1-1/8"" steerer, hydraulic lockout w/ preload adjust, disc mount, 63mm travel

DRIVETRAIN

FRONT DERAILLEUR

Shimano M390, top swing, dual-pull

REAR DERAILLEUR

Shimano Alivio Shadow, 9-speed, SGS cage

SHIFT LEVERS

Shimano Acera Rapidfire Plus, 9-speed

CASSETTE

Shimano, 9-speed, 11-34

CHAIN

KMC X9, 9-speed w/reusable MissingLink

CRANKSET

Forged alloy, 9-speed, square spindle, w/ chainguard

CHAINRINGS

48/36/26

BOTTOM BRACKET

Square taper, cartridge bearings

COCKPIT

STEM

Specialized 3D forged alloy, 4-bolt, 6-degree rise, anti-corrosion hardware

HANDLEBARS

Specialized, low rise, double butted 6061 alloy, 9-degree backsweep, 5-degree upsweep, 15mm rise, 31.8mm

GRIPS

Specialized Body Geometry XCT Women's, lock-on, closed end

SADDLE

Body Geometry Women's Riva Sport Plus, steel rails, 155mm

SEATPOST

Specialized alloy, 2-bolt, 15mm offset, 27.2mm

BRAKES

FRONT BRAKE

Tektro Auriga, hydraulic disc, resin/metallic pads, tooled women's reach adjust

REAR BRAKE

Tektro Auriga, hydraulic disc, resin/metallic pads, tooled women's reach adjust

BRAKE LEVERS

Tektro Auriga, hydraulic, women's short reach

ACCESSORIES

PEDALS

Composite platform, w/ reflectors, 9/16""

* Weights based on production painted frames as pictured. Actual weights will vary based on colourway, frame size, and component variation. Specifications are subject to change without notice.

Geometry

	XS	S	M	L	XL
Seat-Tube Angle	73°	73°	73°	73°	73°
Head-Tube Length	85mm	105mm	120mm	135mm	160mm
Seat-Post Length	350mm	350mm	350mm	350mm	350mm
Head-Tube Angle	70°	70°	70°	70°	70°
Chain-Stay Length	445mm	445mm	445mm	445mm	445mm
Top-Tube Length, Horizontal	560mm	572mm	585mm	600mm	615mm
Front-Centre	616mm	629mm	643mm	658mm	675mm
Handle-Bar Width	660mm	680mm	680mm	680mm	680mm
Stand-Over Height	699mm	738mm	771mm	804mm	849mm
Seat-Tube Length, B-B Centre to Top	345mm	395mm	440mm	485mm	550mm
Fork Rake	38mm	38mm	38mm	38mm	38mm
B-B Drop	60mm	60mm	60mm	60mm	60mm
Trail	91mm	91mm	91mm	91mm	91mm
Wheelbase	1054mm	1067mm	1081mm	1097mm	1113mm
Crank Length	170mm	175mm	175mm	175mm	175mm
Stem Length	60mm	70mm	70mm	90mm	90mm
