Gallery Image - VADO SL 60 CARBON EQ G2 CARB BLK OBSD

Turbo Vado SL 2 6.0 EQ Carbon

Part No.: 93924-1303

0 리뷰

컬러:

Satin Black Micro Speckle

사이즈:

재고 없음

이 제품은 현재 구매가 불가합니다.

재고 없음

이 제품은 현재 구매가 불가합니다.

불가능합니다

해당 상품은 가까운 보유 대리점 찾기가 불가능 합니다

당신의 라이드를 완성하세요

Calling it an ‘E-Bike’ is an Insult

The All-New Turbo Vado SL 2

Nothing delivers more power, speed, and range at such lightweight than Turbo Vado SL 2 Carbon. It’s a premium, performance machine carefully engineered to make fitness fun, and your commute electric. With a carbon frame inspired by the best bike racers in the world, Future Shock for an ultra-smooth ride, an ergonomic position for telepathic handling, and a super light electric motor with supernatural power, the bike you’ve been dreaming about is here.

한눈에 보기

Use

Fast Commuting, Fitness, and Exploration

E-Bike System

Specialized SL 1.2 / 320 watts / Up to 5 Hours Range

Weight

Ultralight Carbon E-Bike: 17.9kg / 39.7lbs

Suspension

Future Shock 3.2

Equipped

MIK Racks and DryTech Fenders Standard

Personalization and Security

Fitness Metrics, Apple Find My, Turbo System Lock, Lights

기술적 특징

E-Bike

Motor

Specialized 1.2 SL System

Battery

Specialized SL2-520, Fully Integrated, 520Wh

UI/Remote

Mastermind H3, W/Handlebar Remote, Ant+/Bluetooth®, Built-In System Lock Feature, Integrated Apple Find My, Coloured Customizable Display Pages, 2.1"

Charger

Custom charger, 48V System w/ SL system charger plug

Wiring Harness

Custom Specialized wiring harness w/ chargeport

Frameset

Frame

2024 Vado SL

Seat Binder

Specialized integrated

Suspension

Fork

Specialized Vado SL2 Carbon, Tubus front rack mounts up to 14kg

Brakes

Front Brake

TRP HD-R803, hydraulic disc

Rear Brake

TRP HD-R803, hydraulic disc

Drivetrain

Shift Levers

Shimano Deore XT, SL-M8100-IR, Right, 12-Speed Rapidfire, W/O Optical Gear Display, I-Spec

Rear Derailleur

Shimano Deore XT 8100, 12-speed

Cassette

Shimano SLX, CS-M7100, 12-speed, 10-51t

Chain

Shimano SLX, M7100, 12-speed

Crankset

SRAM FC S996 Carbon, S-165mm / M-L-170mm / XL-175mm

Chainrings

Praxis, Cl 49.8mm, NW, 44T, Bcd 104mm

Wheels & Tires

Front Tire

Specialized Hemisphere flat protection, Reflective side walls, Wirebead, All terrain tire, 700x47c

Front Wheel

DT SWISS G540 Disc 24h - 700c X 24mm

Rear Tire

Specialized Hemisphere flat protection, Reflective side walls, Wirebead, All terrain tire, 700x47c

Rear Wheel

DT SWISS G540 Disc 24h - 700c X 24mm

Inner Tubes

Specialized Turbo Tube

Cockpit

Stem

Specialized Stealth Stem, Alloy, 31.8mm, Integrated Display And Light Mount, Size S/M : 60mm 17 Deg, L/XL : 75mm 15.5 Deg

Handlebars

Specialized alloy, rise, 31.8mm, B-SWP 9-degree, rise 15mm, U-SWP 5-degree, 680mm.

Grips

ERGON, GA30-S Custom, 134.8mm Length

Saddle

Bridge Sport, hollow cr-mo rails, 155mm

SeatPost

Carbon Fiber, 30.9 mm, Offset 21mm

Accessories

Pedals

Specialized Commuter w/ grip tape & reflectors

Headlight

Lezyne, Ebike Fusion Stvzo E500+, 500 Lumen, 50Cm Wire, With Reflector

Taillight

Spanninga, Stvzo, Commuter Glow With Brake XEr

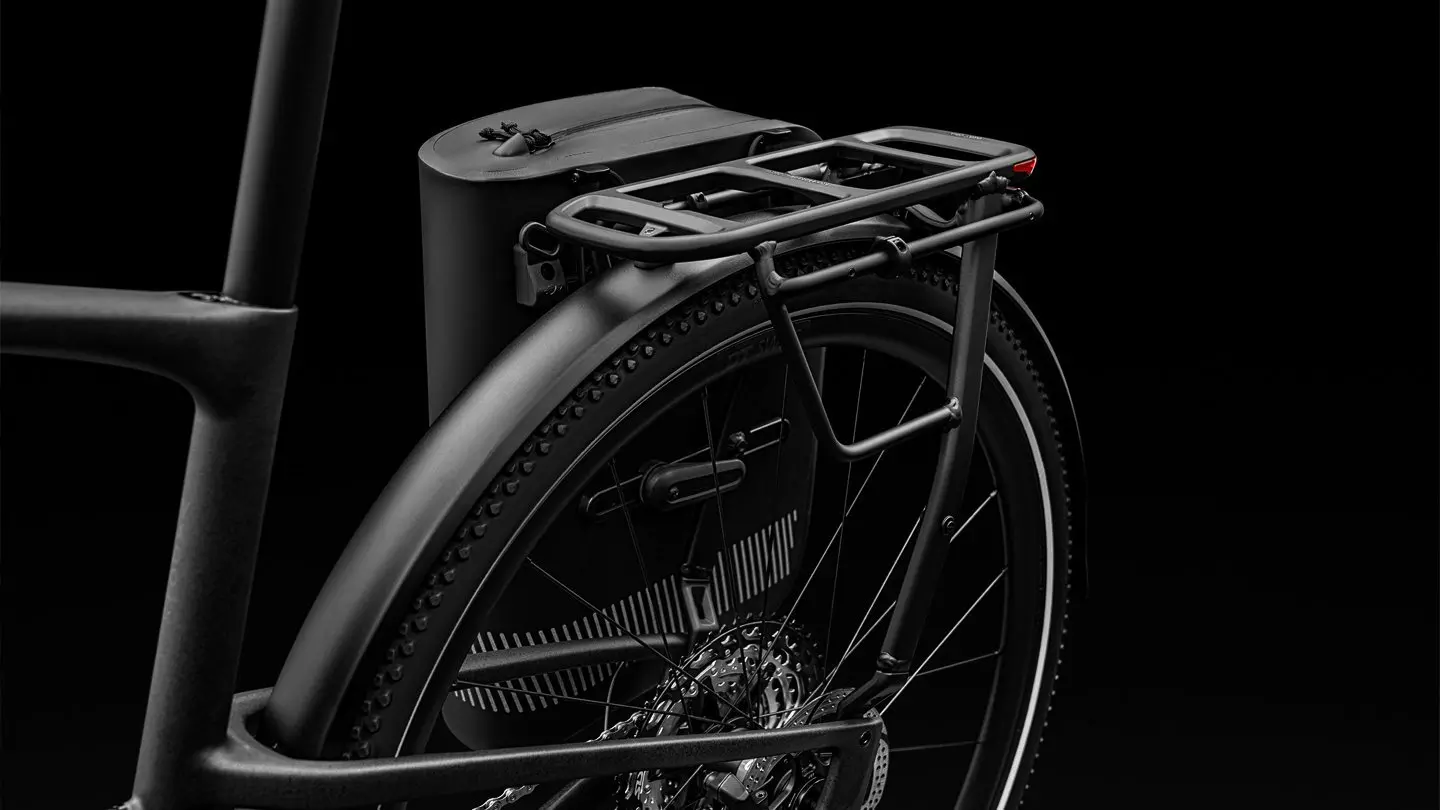

Rack

Turbo SL Rack, MIK HD-Compatible, 27kg

Fenders

Specialized custom alloy Fender, Sandblast anodized black finish, 700c, integrated alloy stay

Kickstand

Specialized kickstand, 40mm mount

Bell

Specialized brass bell

Product Details

Product ID

221979

Compliance Certification

As applicable, certified to UL 2849 (e-system) and/or UL 2271 (battery) by UL Solutions and/or SGS. For information on lithium-ion battery standards and regulations in New York City, visit: www.nyc.gov/fdny/batteries

Weight

17.99 kg (39 lb, 10.6 oz)

Weight Size

* 무게는 그림과 같이 도색된 프레임 기준입니다. 색상, 프레임 크기, 구성 요소의 차이에 따라 실제 무게는 달라질 수 있습니다. 사양은 사전 통보 없이 변경될 수 있습니다.

지오메트리

	S	M	L	XL
Crank Length	165mm	170mm	170mm	175mm
Handlebar Width	680mm	680mm	680mm	680mm
Stem Length	60mm	60mm	75mm	75mm
Saddle Width	155mm	155mm	155mm	155mm
Seatpost Length	350mm	350mm	400mm	400mm
Stack	600mm	628mm	660mm	698mm
Reach	375mm	405mm	430mm	450mm
Head-Tube Length	155.55mm	185.55mm	220.55mm	260.55mm
Head-Tube Angle	69°	69°	69°	69°
B-B Height	291mm	291mm	291mm	291mm
B-B Drop	70mm	70mm	70mm	70mm
Trail	85mm	85mm	85mm	85mm
Fork Length (full)	430mm	430mm	430mm	430mm
Fork Rake/Offset	50mm	50mm	50mm	50mm
Front-Center	635.7mm	676.3mm	713.6mm	747.8mm
Chain-Stay Length	465mm	465mm	465mm	465mm
Wheelbase	1092mm	1132mm	1170mm	1204mm
Top-Tube Length (horizontal)	547mm	585mm	619mm	650mm
Bike Stand-Over Height	755mm	781mm	824mm	869mm
Seat-Tube Length	410mm	440mm	490mm	540mm
Seat-Tube Angle	74°	74°	74°	74°
