    2022 Turbo Levo 3 Comp Alloy

    90Nm Torque, 565W Power, 700Wh Battery

    ₩9,500,000

    4

    1 리뷰

    The Levo delivers the unbelievable power to ride more trails through an unequaled…

    컬러:

    Black / Dove Grey / Black

    나의 사이즈 알아보기

    키를 입력하시면 사이즈를 계산해 드립니다.

    높이:

    정강이 길이 측정

    사이즈 선택

    Don’t Just Take Our Word for It

    Don’t Just Take Our Word for It

    전 세계 라이더들은 꾸준히 스페셜라이즈드를 전기 산악자전거 분야에서 최고의 브랜드로 선정해왔습니다. 타의 추종을 불허하는 파워와 정교한 페달 어시스트 시스템, 완벽한 통합으로 이미 전설이 된 스페셜라이즈드의 산악 자전거는 정말 세상에 없는 최고로 탄생했습니다.

    Supernatural Power

    Supernatural Power

    Unlock superhuman strength at the touch of a button. With 575W of power and 90Nm of torque, the Levo motor offers wildly tame-able power, which can all be adjusted at the touch of your fingertips via the MicroTune from your handlebar.

    Intelligent Range

    Intelligent Range

    The Levo’s 700 Wh battery enables you to venture to the outer limits with range to return home. Spend 5.5+ hours out on the trails by optimizing power usage via MicroTune and the customizable Mastermind Turbo Control Unit (TCU) display.

    Personalized Handling

    Personalized Handling

    The Levo offers 6 varying geometry settings for personalized handling. Utilize the mixed wheel design, 160mm front suspension, and 150mm rear travel to custom tune your ride for maximum versatility, precision, and responsiveness.

    Product Details

    Add Icon

    The Levo delivers the unbelievable power to ride more trails through an unequaled combination of ride quality, usable power, and ride anywhere range. It’s the distillation, application, and amplification of a 40-year obsession with creating the world’s best riding mountain bikes. Since its introduction, Levo has set the bar every other e-MTB aims for, and the new Levo raises that bar again.

    It starts with our Turbo Full Power 2.2 motor and Turbo Connect Unit (TCU), which provide Levo with a smooth and seamless amplification of your efforts—4x you power that lets you choose where to ride, and when you want to do it. Levo also shatters limitations when it comes to range, amplifying your effort for up to five hours of trail time. Now you can ride farther, and explore more, than ever before. And the optimized chassis boasts 150mm of custom-tuned rear suspension and adjustable geometry that delivers a stable and natural ride like no other. Because at the end of the day, it’s the ride that matters. Believe it.

    Take your trail riding to a whole new level with the Turbo Levo Comp. Featuring our all-new M5 alloy chassis, SRAM’s expansive GX Eagle 12-speed drivetrain, and buttery FOX Performance suspension, it’ll have you riding circles around everyone else.

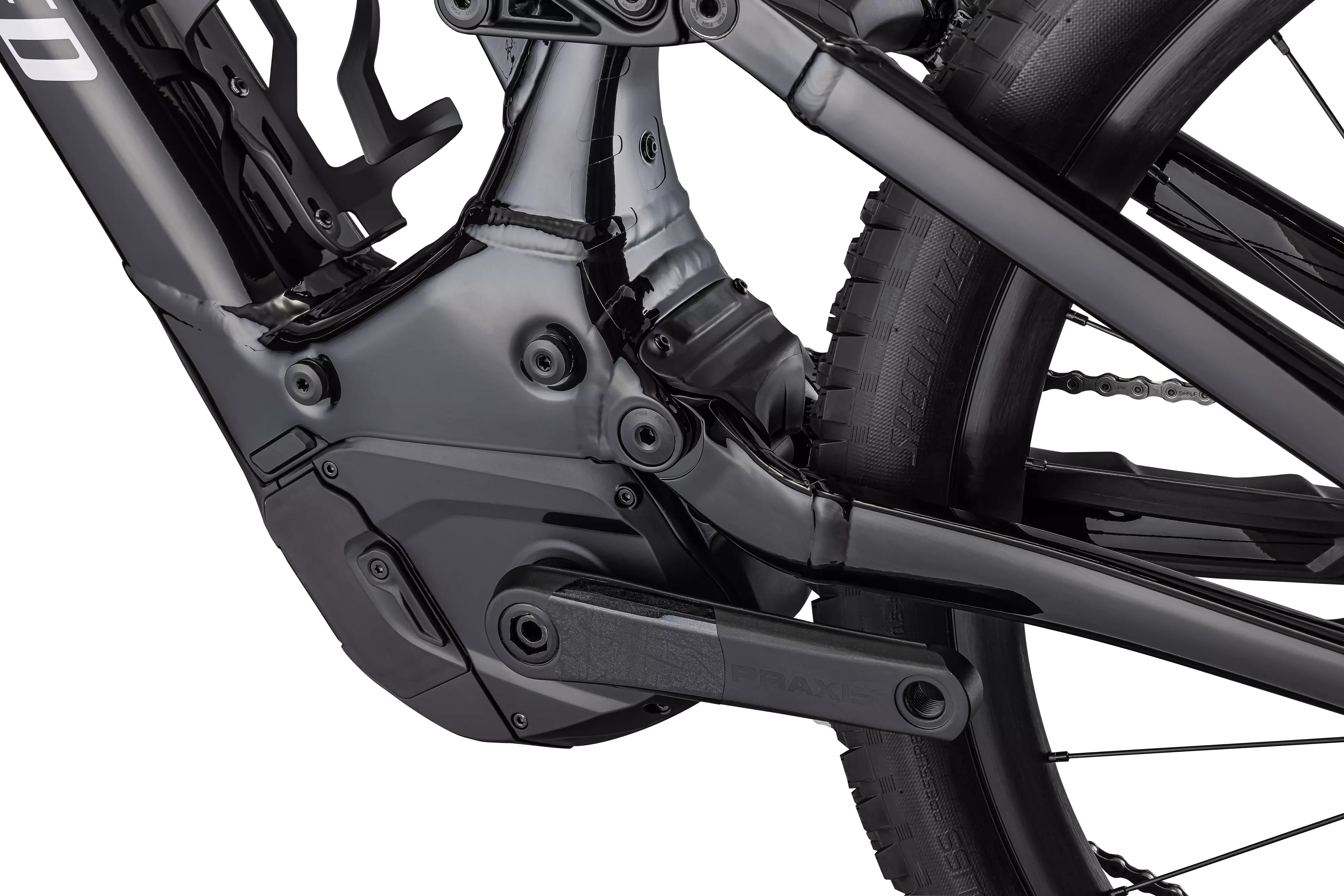

    • Levo’s fully integrated Turbo Full Power 2.2 motor, 700Wh battery, and Turbo Connect Unit deliver category-leading 90 Nm of torque and 565 watts of power for up to five hours of ride time, empowering you to ride farther and faster than ever before.

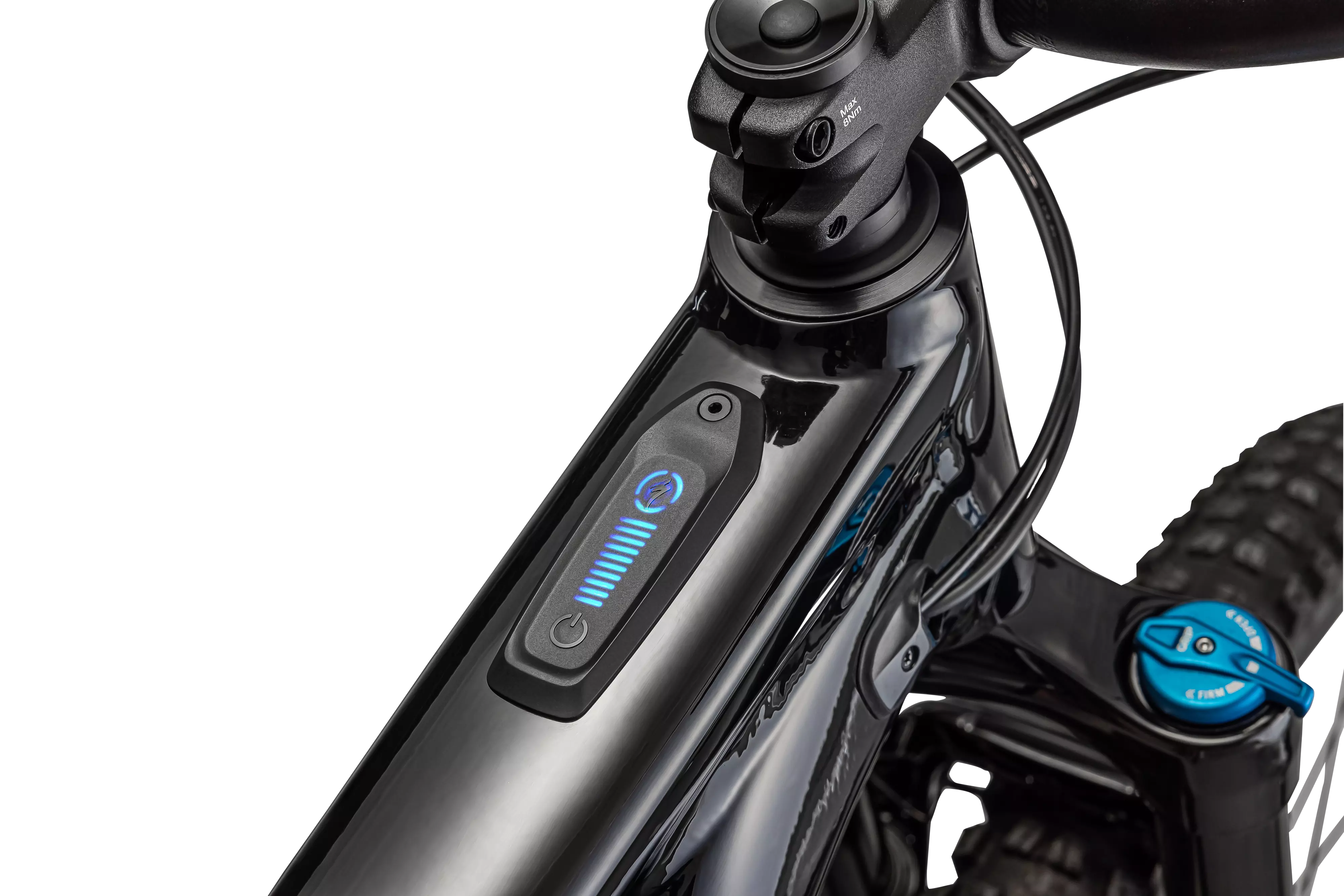

    • The Levo’s Turbo Connect Unit (or “TCU”) is more than an “On-Off” button—it’s the brains of the bike. The TCU shows your battery level and power-assist mode. It also communicates, via ANT+/Bluetooth®, with our optional handlebar display to display even more information about your day’s ride.

    • A dedicated mixed-wheel size design with a 27.5” wheel in the back and 29” up front delivers a nimble ride that carves circles around other full-power e-MTBs. A generous cockpit centers you on the bike, optimizing traction and corner control. The low bottom bracket, slack headtube angle and reduced fork offset keep things stable in the rough.

    • Levo offers six distinct geometry settings, allowing you to easily dial-in its performance for any riding style and any terrain. Head tube angle can be adjusted between 63- and 65.5-degrees. Bottom bracket height can be fine-tuned up or down by 7mm.

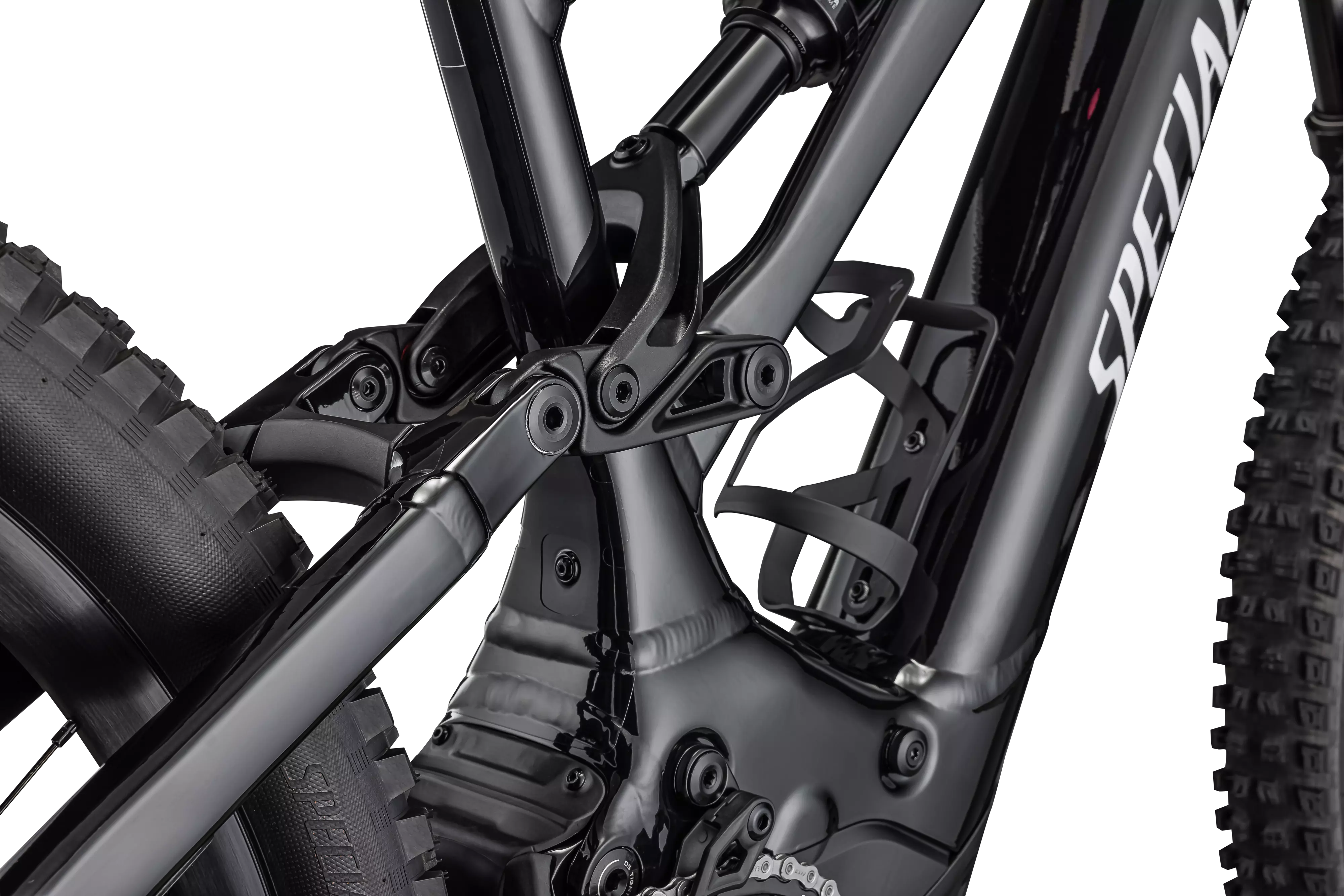

    • Levo’s 150mm of rear travel is supple on small bumps, devours square-edged hits without a twitch, eats massive G-outs for breakfast, yet still offers amazing pedal response and delivers your power to the ground with total efficiency.

    • The Levo’s S-Sizing is based on what matters—rider size and style, not inseam. Six sizes, all with similar headtube lengths and standover, allow you to choose the size that best suits your individual style. Smaller S-Size numbers are going to be nimble and more flickable, while bigger S-Sizes deliver more stability and a roomier ride.

    기술적 특징

    Add Icon

    E-Bike

    Motor

    Specialized 2.2 Custom Rx Trail Tuned Motor, 90Nm Torque, 565W Power

    Battery

    Specialized M3-700, Integrated battery, 700Wh

    UI/Remote

    Specialized TCU, 10-LED State of charge, 3-LED Ride Mode display, ANT+/Bluetooth®, w/Handlebar remote

    Charger

    Custom charger, 42V4A w/ Rosenberger plug, 100-240V

    Wiring Harness

    Custom Specialized wiring harness

    Frameset

    Frame

    Specialized M5 premium alloy, headset adjust, BB height adjust, S-Sizing, internal cable routing, 150mm travel, 148mm spacing

    Seat Binder

    Alloy, 38.6mm

    Suspension

    Rear Shock

    S1: FOX DPS Performance Series, 3-position lever, rebound adjust, 52.5x210mm, S2-S6: FOX FLOAT X Performance, LSR, 2-position lever, 55x210mm

    Fork

    Fox Rhythm 36, S1: 150mm travel, S2-S6: 160mm travel

    Brakes

    Front Brake

    SRAM Code R, 4-piston caliper, hydraulic disc, S1-S3: 200mm, S4-S6: 220mm

    Rear Brake

    SRAM Code R, 4-piston caliper, hydraulic disc, 200mm

    Drivetrain

    Shift Levers

    SRAM GX, trigger, 12-speed

    Rear Derailleur

    SRAM GX Eagle, 12-speed

    Cassette

    Sram XG-1275, 12-speed, 10-52t

    Chain

    SRAM NX Eagle, 12-speed

    Crankset

    Praxis Forged/Custom Offset/ISIS Spindle Interface, 160mm

    Chainrings

    SRAM X-Sync Eagle, 104 BCD, 32T, steel

    Wheels & Tires

    Rims

    Specialized 29/27.5, hookless alloy, 30mm inner width, tubeless ready

    Front Hub

    Alloy, sealed cartridge bearings, 15x110mm thru-axle, 28h

    Rear Hub

    Alloy, sealed cartridge bearings, 148mmx12mm thru-axle, 28h

    Spokes

    DT Swiss Industry

    Front Tire

    Butcher, GRID TRAIL casing, GRIPTON® T9 compound, 2Bliss Ready, 29x2.6"

    Rear Tire

    Eliminator, GRID TRAIL casing, GRIPTON® T7 compound, 2Bliss Ready, 27.5x2.6"

    Inner Tubes

    Standard, Presta Valve

    Cockpit

    Stem

    Alloy Trail Stem, 35mm bar bore

    Handlebars

    Alloy, 35mm diameter, 780mm width, 8-degree backsweep, 6-degree upsweep

    Grips

    Specialized Trail Grips

    Saddle

    Bridge Comp, Hollow Cr-mo rails, 155/143mm

    SeatPost

    X-Fusion Manic, infinite adjustable, two-bolt head, bottom mount cable routing, remote SLR LE lever, 34.9, S1: 100mm, S2: 125mm, S3: 150mm, S4/S5: 170mm, S6: 190mm

    * 무게는 그림과 같이 도색된 프레임 기준입니다. 색상, 프레임 크기, 구성 요소의 차이에 따라 실제 무게는 달라질 수 있습니다. 사양은 사전 통보 없이 변경될 수 있습니다.

    지오메트리

    Add Icon
    S1S2S3S4S5S6
    Crank Length160mm160mm160mm160mm160mm160mm
    Handlebar Width780mm780mm780mm780mm780mm780mm
    Stem Length40mm40mm50mm50mm50mm50mm
    Saddle Width155mm155mm143mm143mm143mm143mm
    Seatpost Length100mm125mm150mm170mm170mm190mm
    Stack605mm617mm626mm635mm644mm653mm
    Reach412mm432mm452mm477mm502mm532mm
    Headtube Length105mm105mm115mm125mm135mm145mm
    Headtube Angle64.5°64.5°64.5°64.5°64.5°64.5°
    BB Height352mm350mm350mm350mm350mm350mm
    BB Drop25mm27mm27mm27mm27mm27mm
    Trail130mm130mm130mm130mm130mm130mm
    Fork Length (full)557mm567mm567mm567mm567mm567mm
    Fork Rake/Offset44mm44mm44mm44mm44mm44mm
    Front Center738mm760mm784mm814mm843mm878mm
    Chainstay Length442mm442mm442mm442mm442mm442mm
    Wheelbase1179mm1200mm1225mm1255mm1284mm1318mm
    Bike Standover Height752mm776mm783mm787mm788mm790mm
    Seat Tube Length380mm390mm405mm425mm445mm465mm
    Seat Tube Angle78°77.2°76.7°76.2°76.2°76.2°
    Max Seatpost Insertion210mm220mm240mm255mm275mm295mm
    Min Seatpost Insertion80mm80mm80mm80mm80mm80mm
