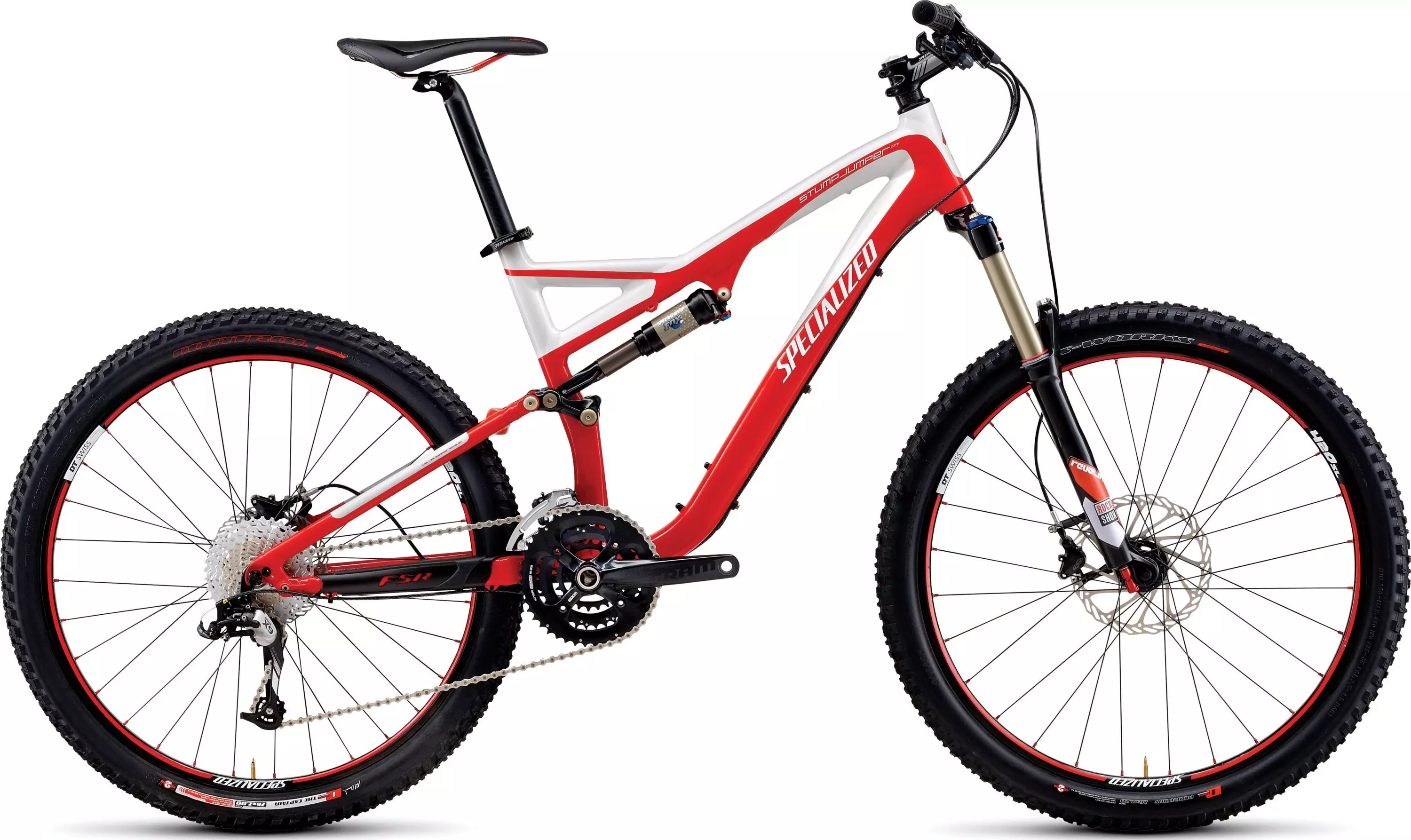

2011 Stumpjumper FSR Comp
0 Anmeldelser
Light on weight but loaded with technology, the Stumpjumper FSR Comp is nimble yet…
Farve:
Flo Red/White
Hvilken er min størrelse?
Vælg en Størrelse
Ikke tilgængelig
Artiklen er ikke tilgængelig for “Find i nærheden”
Produktinformation
Light on weight but loaded with technology, the Stumpjumper FSR Comp is nimble yet stable, efficient but burly, and ready for virtually any trail.
RockShox Revelation RL 140mm Dual Air fork has Motion Control damping, rebound/compression adjustment, and external lockout for endless rock garden bliss
DT Swiss X420SL 24mm-wide rims are sturdy and lightweight - strong enough to handle complex singletrack, yet light enough to make the climb out effortless
Avid Elixir R SL lightweight hydraulic disc brakes/levers with alloy backed semi-metallic pads and tool-free reach adjust for superb control and modulation
Custom Fox Triad II rear shock tackles all trail conditions with its 3-position, on-the-fly adjuster that includes lockout, fully open, and efficient ProPedal settings
Both 2Bliss Ready, the S-Works Purgatory 2.2" front tire works in concert with The Captain Control 2.0" rear tire to deliver exceptional traction for pinpoint cornering and braking in varied conditions
Tekniske specifikationer
FRAMESET
FRAME
M5 manipulated alloy w/ ORE TT/DT, sealed cartridge bearing pivots, replaceable derailleur hanger, 140mm travel
HEADSET
1 1/8"" upper and lower campy style cartridge bearings for integrated alloy HT
SEAT BINDER
34.9mm clamp ID, 7050 hard annodized alloy collar w/ QR, black
SUSPENSION
REAR SHOCK
Custom Fox Triad II for Specialized, custom on-the-fly 3-position switch 1) lock out 2) Open 3) ProPedal pedal assisting damping, rebound adj., 7.875x1.9""
FORK
RockShox Revelation RL, Dual Air, 140mm travel, disc only, alloy steerer, Motion Control damper, rebound and compression adj. w/LO
WHEELS
RIMS
Custom DT Swiss X420SL, 24mm w/ eyelets, 28h
FRONT HUB
Specialized Hi Lo disc, laser-etched logo, OS 28 end caps, sealed cartridge bearing, 28h, 9mm thru-axle QR
REAR HUB
Specialized Hi Lo disc, double sealed cartridge bearing, OS contact side, 32h, QR
SPOKES
DT Swiss Champion 1.8mm (15g) stainless
FRONT TIRE
S-Works Purgatory, 120 TPI, 2Bliss ready aramid bead, dual compound, 26x2.2""
REAR TIRE
Specialized ""The Captain"" Control, 60 TPI, 2Bliss ready aramid bead, dual compound, 26x2.0""
INNER TUBES
Ultralight presta valve
DRIVETRAIN
FRONT DERAILLEUR
SRAM X.7, 10-speed, S1 direct mount for DMD, bottom pull
REAR DERAILLEUR
SRAM X.9, 10-speed, long cage
SHIFT LEVERS
SRAM X.7, 10-speed, aluminum trigger
CASSETTE
Shimano HG81, 10-speed, 11-36t
CHAIN
KMC X10, 10-speed, w/ reuseable Missing Link, nickel plates
CRANKSET
Custom SRAM S-1250, GXP spindle, 10-speed, 7050 alloy arms, S: 170mm, others: 175mm
CHAINRINGS
22A/33A/44A, 4-bolt, 104/64mm
BOTTOM BRACKET
SRAM GXP, outboard bearing
COCKPIT
SEATPOST
2014 butted alloy, single bolt setback, 30.9mm, S/M: 350mm, others: 400mm
STEM
Specialized XC, 3D forged alloy, 4-bolt, 31.8mm clamp, adjustable rise
HANDLEBARS
Specialized XC low-rise bar, 2014 butted alloy, 680mm wide, 8 degree back sweep, 6 degree up, 31.8mm
GRIPS
Specialized lock-on, S/M: Grappler, Other: Rocca
SADDLE
Specialized BG Henge Comp, hollow Cr-Mo rails, 143mm width
BRAKES
FRONT BRAKE
Custom Avid Elixir R SL, hydraulic disc, alloy backed semi-metallic pads, reach adjust, stainless hardware, S/M: 185mm, L/XL: 203mm rotor
REAR BRAKE
Custom Avid Elixir R SL, hydralic disk, alloy backed semi-metallic pads, reach adjust, stainless hardware, S/M: 160mm, L/XL: 185mm
BRAKE LEVERS
Custom Avid Elixir R SL hydraulic, tool-less reach adj.
ACCESSORIES
PEDALS
Resin Test Ride Pedals with toe clips, CEN std.
*Vægte baseret på produktion af malede rammer som afbildet. Faktiske vægte vil variere baseret på farveskema, ramme størrelse og komponent variation. Specifikationer kan ændres uden varsel.
Geometri
| S | M | L | XL | XXL | |
|---|---|---|---|---|---|
| Ground-Top | 900mm | 919mm | 929mm | 938mm | 938mm |
| Bottom Bracket Height - Low Setting | 335mm | 335mm | 335mm | 335mm | 335mm |
| Faktisk overrørslængde, horisontal | 556mm | 587mm | 617mm | 642mm | 665mm |
| Kronrørshøjde | 118mm | 138mm | 148mm | 158mm | 158mm |
| Head Tube Angle - Low Setting | 68.5° | 68.5° | 68.5° | 68.5° | 68.5° |
| Seat Tube Angle (Actual) - Low Setting | 70.5° | 70.5° | 70.5° | 70.5° | 70.5° |
| Seat Tube Angle (Effective) - Low Setting | 74.5° | 74.5° | 74.5° | 74.5° | 74.5° |
| Top Tube Length (Actual) | 523mm | 555mm | 583mm | 608mm | 627mm |
| Seat Tube Length - Center to Top | 406mm | 445mm | 483mm | 533mm | 584mm |
| Wheel Base | 1083mm | 1116mm | 1147mm | 1173mm | 1196mm |
| Overrørshøjde | 741mm | 746mm | 753mm | 766mm | 770mm |
| Stellets stakhøjde | 565mm | 584mm | 594mm | 603mm | 603mm |
| Stellængde (reach) | 398mm | 424mm | 452mm | 474mm | 497mm |
| Kædestagslængde | 420mm | 420mm | 420mm | 420mm | 420mm |
| Pedalarmslængde | 170mm | 175mm | 175mm | 175mm | 175mm |
| Styrbredde | 660mm | 660mm | 660mm | 660mm | 660mm |
| Frempindslængde | 60mm | 75mm | 90mm | 105mm | 105mm |
| Sadelpinds længde | 350mm | 350mm | 400mm | 400mm | 400mm |
