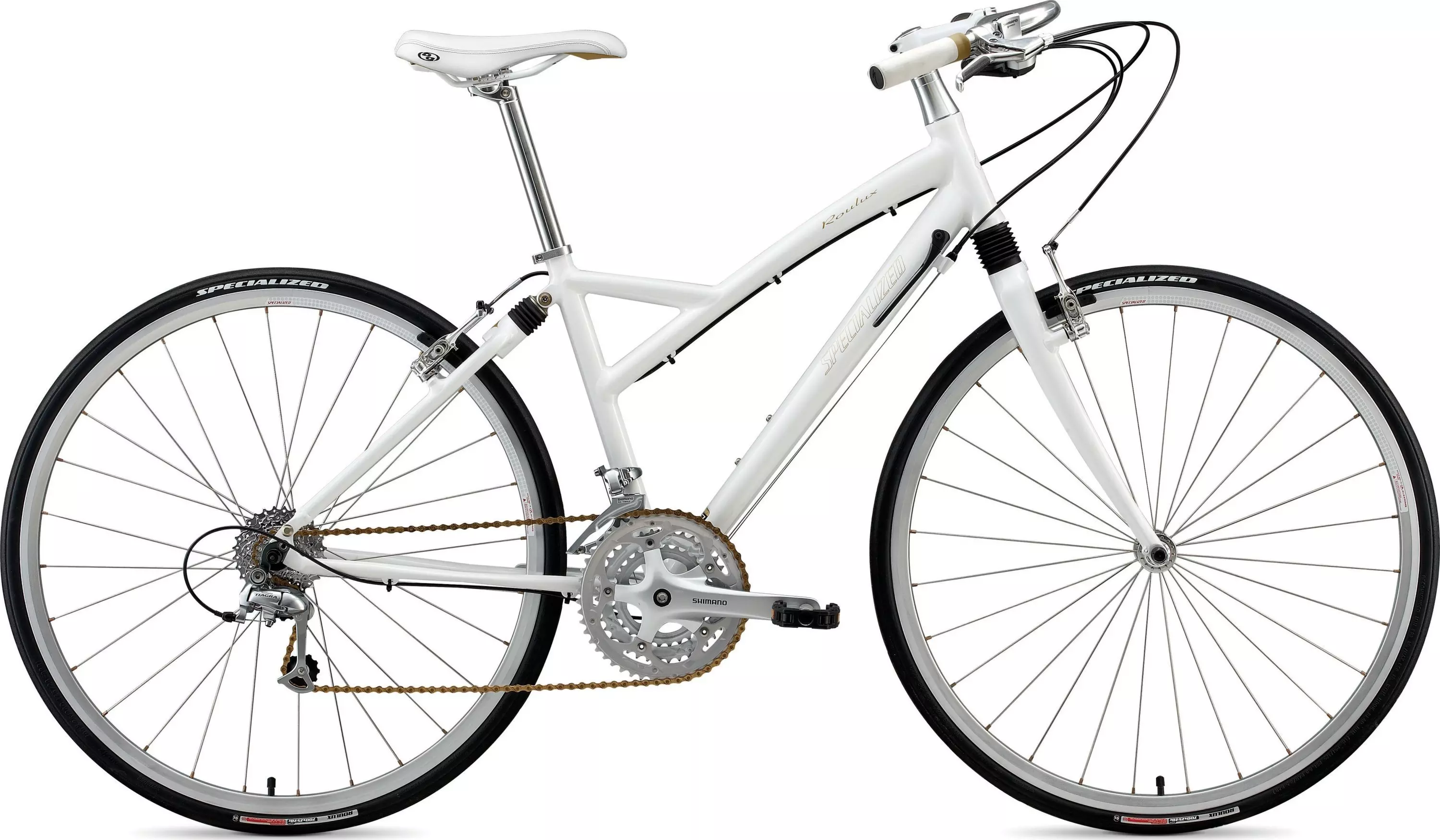

2011 BG Roulux 1 Women's
0 Bewertungen
Ergonomisch optimierte Pedale, Lenker, Griffe und Sattel sorgen zusammen mit Federung…
Farbe:
White
Was ist meine Größe?
Wähle eine Größe
Produktdetails
Ergonomisch optimierte Pedale, Lenker, Griffe und Sattel sorgen zusammen mit Federung vorne und hinten dafür, dass das BG Roulux das komfortabelste und dabei effizienteste Bike ist – ideal für Alltag, gemütliche Touren und auch mal längere Strecken.
Body Geometry ergo handlebars have a wide perch for a natural, comfortable position
35mm-travel suspension fork is tucked under the head tube for clean lines and delivers silky smooth rides on rough roads
Specialized BG Roulux women's saddle for an extra layer of riding comfort in tandem with the bike's plush front/rear suspension
Large-volume Specialized Roulux Sport tires with Flak Jacket protection are stable and lightweight, with textured tread to navigate water and debris
BG Roulux fully butted A1 Premium Aluminum ergonomically designed frame with low standover and soft, pivotless suspension provides all the comfort you need, without the complexity
Technische Spezifikationen
FRAMESET
FRAME
BG Roulux, Specialized A1 Premium Aluminum with ergo road geometry and low standover top tube, pivotless rear elastomer suspension, integrated HS, replaceable hanger
FORK
Alloy aero blades, 35mm travel w/ preload adjust, Cr-Mo steerer, size specific spring rates
HEADSET
Integrated 1 1/8"" threadless, Campy type semi-cartridge bearings
SEAT BINDER
Forged alloy
WHEELS
REAR HUB
Forged alloy, sealed, 28h
SPOKES
2mm (14g) stainless
FRONT TIRE
Specialized Roulux Sport, 700x28c, 60TPI w/ Flak Jacket protection
REAR TIRE
Specialized Roulux Sport, 700x28c, 60TPI w/ Flak Jacket protection
INNER TUBES
Presta valve
RIMS
Alex 700c aero profile, pinned, alloy double wall, 28h w/CNC sidewall
FRONT HUB
Forged alloy, sealed, 28h
DRIVETRAIN
FRONT DERAILLEUR
Shimano FD-R443 for road triple and flat handle bar
REAR DERAILLEUR
Shimano Tiagra
SHIFT LEVERS
Shimano SL-R440-9, rear trigger for flat bar road
CASSETTE
SRAM PG-950-RD, 9-speed, 11-28t
CHAIN
KMC X9 w/ reusable Missing Link
CRANKSET
Shimano FC-R453, Octalink spline
CHAINRINGS
50Ax39Sx30S replaceable
BOTTOM BRACKET
Shimano BB-ES25, Octalink spline, cartridge bearing, 68mm x 113mm
COCKPIT
STEM
3D forged alloy w/ shim, 12 degree rise, 31.8mm clamp
HANDLEBARS
Alloy BG bar, 31.8mm, 610mm wide, 30mm drop, 50 degree back sweep, 8 deg down
TAPE
BG Comfort, dual compound kraton, closed end with bell
SADDLE
Specialized BG Roulux Wmn, Body Geometry, 143mm width, front and rear bumpers
SEATPOST
Alloy two bolt, micro adjust, 27.2mm
BRAKES
FRONT BRAKE
""V"" brake, forged 102mm arm, 70mm pads
REAR BRAKE
""V"" brake, forged 102mm arm, 70mm pads
BRAKE LEVERS
Ergo three-finger women's design for V brake
ACCESSORIES
PEDALS
BG platform, 1pc alloy body w/ kraton top
*Gewichte basieren auf der Produktion lackierter Rahmen, wie abgebildet. Tatsächliche Gewichte variieren je nach Farbgebung, Rahmengröße und Komponentenvariation. Spezifikationen können ohne Vorankündigung geändert werden.
Geometrie
| 450-WS | 490-WM | 530-WL | 500-S | 530-M | 550-L | 590-XL | |
|---|---|---|---|---|---|---|---|
| Sitzrohrwinkel | 76° | 75.5° | 74° | 75.5° | 74.5° | 73.5° | 73° |
| Steuerrohrlänge | 120mm | 140mm | 160mm | 130mm | 165mm | 200mm | 245mm |
| BB to top of Head-Tube, Horizontal (Reach) | 348mm | 351mm | 354mm | 352mm | 358mm | 364mm | 372mm |
| Seat-Post Length | 350mm | 350mm | 350mm | 350mm | 350mm | 400mm | 400mm |
| Steuerrohrwinkel | 69.5° | 70° | 70.5° | 69.5° | 70.5° | 70.5° | 71° |
| Kettenstreben-Länge | 460mm | 460mm | 460mm | 460mm | 460mm | 460mm | 460mm |
| Oberrohrlänge horizontal | 502mm | 512mm | 533mm | 508mm | 533mm | 557mm | 584mm |
| Mitte Tretlager - Mitte V.-Achse | 586mm | 592mm | 594mm | 593mm | 599mm | 614mm | 628mm |
| Lenkwinkel | 630mm | 630mm | 630mm | 630mm | 630mm | 630mm | 630mm |
| Überstandshöhe | 677mm | 684mm | 686mm | 742mm | 765mm | 791mm | 830mm |
| Sitzrohrlänge | 430mm | 430mm | 460mm | 440mm | 460mm | 480mm | 530mm |
| Gabelversatz | 49mm | 49mm | 45mm | 49mm | 45mm | 45mm | 45mm |
| BB to top of Head-Tube, Vertical (Stack) | 558mm | 579mm | 601mm | 567mm | 606mm | 632mm | 680mm |
| Tretlagerabsenkung | 73mm | 73mm | 73mm | 73mm | 73mm | 71.5mm | 70mm |
| Nachlauf | 75mm | 72mm | 73mm | 75mm | 73mm | 73mm | 70mm |
| Radstand | 1036mm | 1042mm | 1043mm | 1043mm | 1048mm | 1064mm | 1079mm |
| Kurbellänge | 170mm | 170mm | 170mm | 170mm | 172.5mm | 172.5mm | 175mm |
| Vorbaulänge | 75mm | 90mm | 90mm | 90mm | 110mm | 110mm | 120mm |
