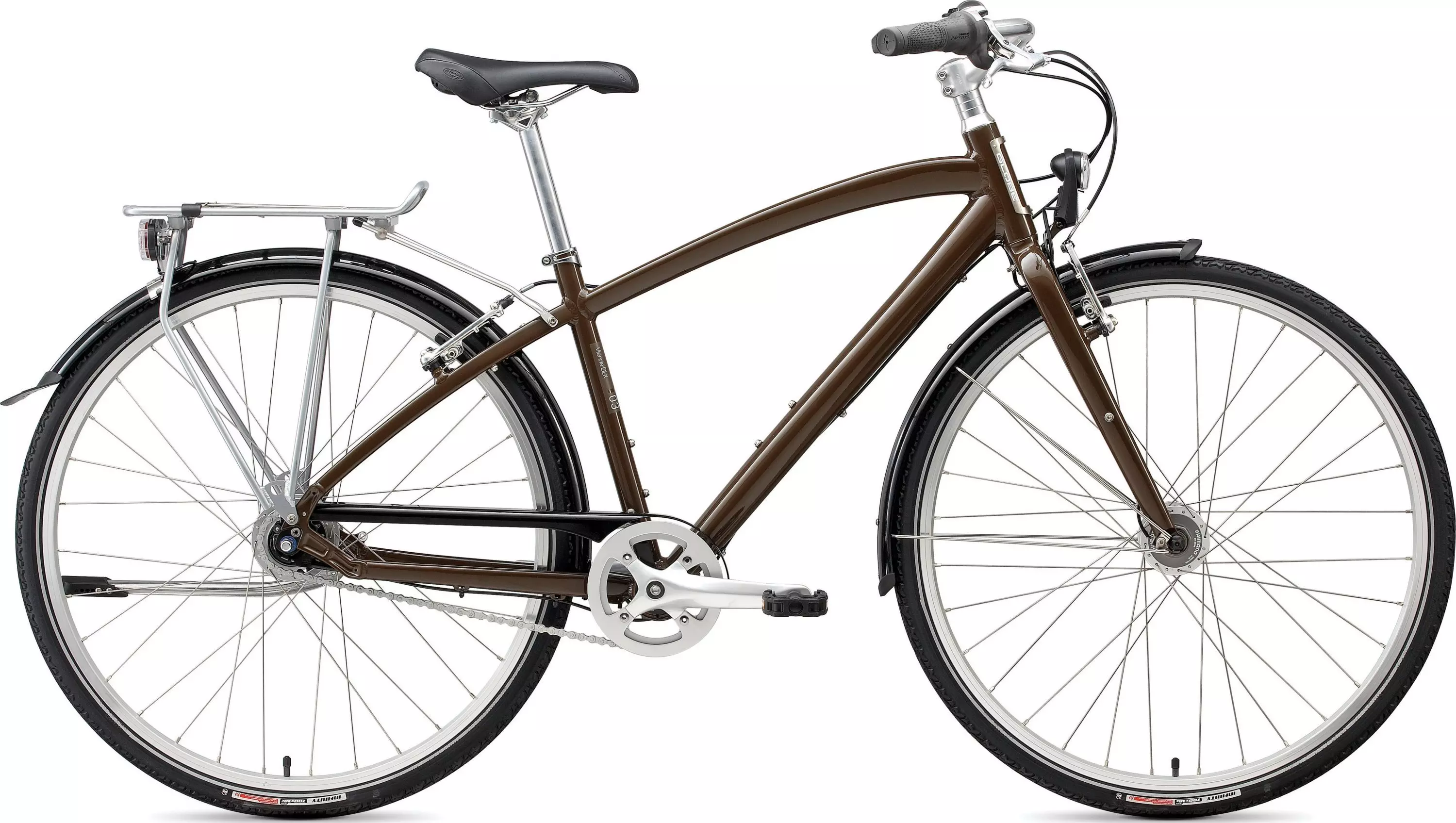

2010 Vienna Deluxe 3
0 Reviews
Vienna Deluxe 3
Color:
Brown
Size:
One Size
Product Details
Vienna Deluxe 3
Aluminum fork is simple, light and durable
Ride safely day or night with an integrated headlight and taillight
Body Geometry Comfort grips alleviate hand pain and tingling fingers
Slim and effective color-matched alloy chainguard and fenders keep your duds clean
Robust Shimano 8-speed internal hub promises care-free maintenance and reliable performance
Body Geometry Sonoma saddle uses a V-groove design and vibration dampers for comfort and support, even on dodgy roads
Globe A1 Premium Aluminum trekking frame with fender/rack braze-ons and kickstand mount is all about versatility and efficiency
Superlight and compact alloy RackTime rear carrier uses Snapit technology for modular use of various aftermarket accessories - 25kg maximum
Safety-reflective and long-wearing Specialized Infinity 700c tires use a deep, recessed tread and Flak Jacket puncture protection to withstand urban wear
Technical Specifications
FRAMESET
FRAME
Globe A1 Premium Aluminum trekking design, fully manipulated tubing w/ fender and rack braze-ons, integrated kickstand mount
FORK
Globe Vienna straight-blade aluminum fork
HEADSET
1-1/8"" threadless, integrated, semi-cartridge campy style bearings
SEAT BINDER
Globe Chevron forged alloy, chrome plated
WHEELS
REAR HUB
Shimano internal 8-speed, 32h
SPOKES
1.8mm (15g) stainless
FRONT TIRE
Specialized Infinity, 700x38c, 60TPI, w/ Flak Jacket protection & reflective strips
REAR TIRE
Specialized Infinity, 700x38c, 60TPI, w/ Flak Jacket protection & reflective strips
INNER TUBES
Schraeder valve
RIMS
Globe 700c, double wall, 32h w/CNC side wall
FRONT HUB
Shimano HD-3N30-QR super low resistance dynamo hub, 32H
DRIVETRAIN
SHIFT LEVERS
8-speed internal twist shifter
CASSETTE
Shimano Nexus single cog
CHAIN
KMC 1/2x1/8""
CRANKSET
Sugino EX-1 aluminum, w/ alloy chainguard
CHAINRINGS
38t w/ chainguard
BOTTOM BRACKET
Cartridge bearing, square spindle with crank stop right side and capless bolts
COCKPIT
STEM
Forged alloy, 2-bolt, 15 degree rise, 25.4mm clamp
HANDLEBARS
Alloy low rise, 25.4mm, 650mm wide, 31 degree front, 24 degree back sweep
TAPE
Body Geometry Comfort w/ integrated bell, closed end, 132/126mm
SADDLE
Specialized BG Sonoma, 155mm width
SEATPOST
Alloy, 2-bolt forged head, 12.5mm offset, 27.2mm
BRAKES
FRONT BRAKE
Alloy linear pull, 1pc. pad
REAR BRAKE
Alloy linear pull, 1pc. pad
BRAKE LEVERS
V-Brake, linear pull
ACCESSORIES
PEDALS
Globe City, Body Geometry, composite w/rubber top, 1.5mm varus wedge
* Weights based on production painted frames as pictured. Actual weights will vary based on colorway, frame size, and component variation. Specifications are subject to change without notice.
Geometry
| SM | MD | LG | XL | XXL | |
|---|---|---|---|---|---|
| Seat-Tube Angle | 74.5° | 74° | 73.5° | 72° | 73° |
| Head-Tube Length | 126mm | 146mm | 166mm | 186mm | 206mm |
| Seat-Post Length | 0mm | 0mm | 0mm | 0mm | 0mm |
| Head-Tube Angle | 69.5° | 69.5° | 70° | 70.5° | 71° |
| Chain-Stay Length | 455mm | 455mm | 455mm | 455mm | 455mm |
| Top-Tube Length, Horizontal | 550mm | 565mm | 580mm | 595mm | 620mm |
| Front-Center | 637mm | 648mm | 654mm | 659mm | 667mm |
| Stand-Over Height | 719mm | 755mm | 792mm | 829mm | 859mm |
| Seat-Tube Length, B-B Center to Top | 385mm | 435mm | 485mm | 535mm | 575mm |
| Fork Rake | 51mm | 51mm | 51mm | 51mm | 51mm |
| B-B Drop | 65mm | 65mm | 65mm | 65mm | 65mm |
| Trail | 78mm | 78mm | 74mm | 68mm | 71mm |
| Wheelbase | 1084mm | 1095mm | 1101mm | 1106mm | 1114mm |
Manual Downloads
For safety warnings please refer to the documentation in the Manual Downloads section of this page.
Rider Reviews
0 Reviews
