2010 Vienna Deluxe 3 Women's

0 Reviews

Color:

Brown

Size:

One Size

Choose the color and size that you are looking for to search nearby store inventory

Unavailable

This item is not available for Find Nearby

Product Details

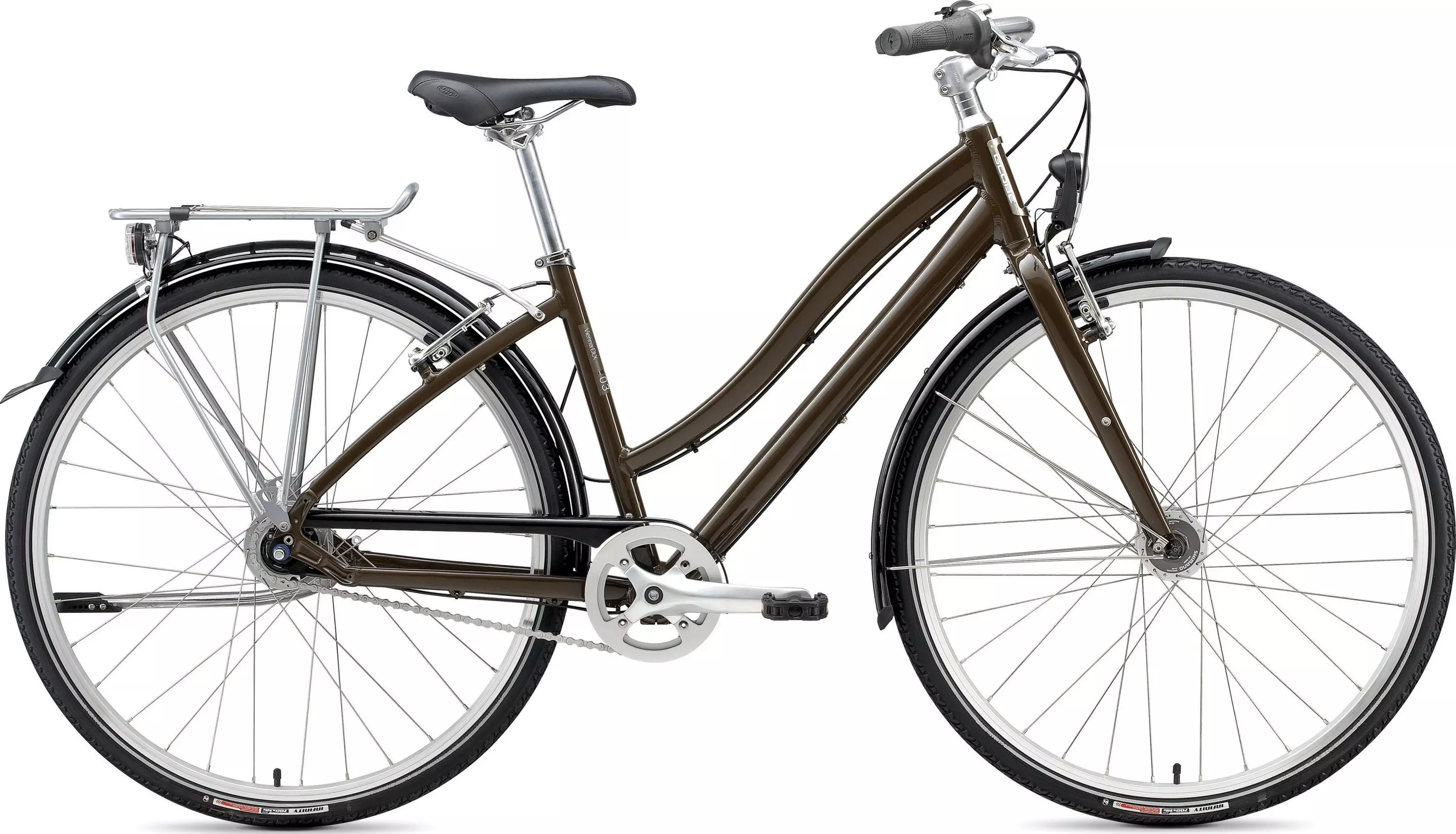

Vienna Deluxe 3 Women's

Aluminum fork is simple, light and durable
Ride safely day or night with an integrated headlight and taillight
Slim and effective color-matched alloy chainguard and fenders keep your duds clean
Robust Shimano 8-speed internal hub promises care-free maintenance and reliable performance
Women's Body Geometry Comfort grips (with integrated bell) alleviate hand pain and tingling fingers
Body Geometry Sonoma saddle uses a V-groove design and vibration dampers for comfort and support, even on dodgy roads
Globe A1 Premium Aluminum trekking frame with fender/rack braze-ons and kickstand mount is all about versatility and efficiency
Superlight and compact alloy RackTime rear carrier uses Snapit technology for modular use of various aftermarket accessories - 25kg maximum
Safety-reflective and long-wearing Specialized Infinity 700c tires use a deep, recessed tread and Flak Jacket puncture protection to withstand urban wear

Technical Specifications

FRAMESET

FRAME

Globe A1 Premium Aluminum trekking design, step through geometry, fully manipulated tubing w/ fender and rack braze-ons, integrated kickstand mount

FORK

Globe Vienna straight-blade aluminum fork

HEADSET

1-1/8"" threadless, integrated, semi-cartridge campy style bearings

SEAT BINDER

Globe Chevron forged alloy, chrome plated

WHEELS

REAR HUB

Shimano internal 8-speed, 32h

SPOKES

1.8mm (15g) stainless

FRONT TIRE

Specialized Infinity, 700x38c, 60TPI, w/ Flak Jacket protection & reflective strips

REAR TIRE

Specialized Infinity, 700x38c, 60TPI, w/ Flak Jacket protection & reflective strips

INNER TUBES

Schraeder valve

RIMS

Globe 700c, double wall, 32h w/CNC side wall

FRONT HUB

Shimano HD-3N30-QR super low resistance dynamo hub, 32H

DRIVETRAIN

SHIFT LEVERS

8-speed internal twist shifter

CASSETTE

Shimano Nexus single cog

CHAIN

KMC 1/2x1/8""

CRANKSET

Sugino EX-1 aluminum, w/ alloy chainguard

CHAINRINGS

38t w/ chainguard

BOTTOM BRACKET

Cartridge bearing, square spindle with crank stop right side and capless bolts

COCKPIT

STEM

Forged alloy, 2-bolt, 15 degree rise, 25.4mm clamp

HANDLEBARS

Alloy low rise, 25.4mm, 650mm wide, 31 degree front, 24 degree back sweep

TAPE

Women's Body Geometry Comfort w/ integrated bell, closed end, 132mm

SADDLE

Specialized BG Sonoma women's, 157mm width

SEATPOST

Alloy, 2-bolt forged head, 12.5mm offset, 27.2mm

BRAKES

FRONT BRAKE

Alloy linear pull, 1pc. pad

REAR BRAKE

Alloy linear pull, 1pc. pad

BRAKE LEVERS

V-Brake, linear pull

ACCESSORIES

PEDALS

Globe City, Body Geometry, composite w/rubber top, 1.5mm varus wedge

* Weights based on production painted frames as pictured. Actual weights will vary based on colorway, frame size, and component variation. Specifications are subject to change without notice.

Geometry

	W-SM	W-MD	W-LG	W-XL
Seat-Tube Angle	74.5°	74°	73.5°	73°
Head-Tube Length	126mm	146mm	166mm	186mm
Seat-Post Length	0mm	0mm	0mm	0mm
Head-Tube Angle	69.5°	69.5°	70°	70.5°
Chain-Stay Length	455mm	455mm	455mm	455mm
Top-Tube Length, Horizontal	540mm	555mm	570mm	585mm
Front-Center	627mm	638mm	644mm	649mm
Stand-Over Height	584mm	578mm	571mm	565mm
Seat-Tube Length, B-B Center to Top	385mm	435mm	485mm	535mm
Fork Rake	51mm	51mm	51mm	51mm
B-B Drop	65mm	65mm	65mm	65mm
Trail	78mm	78mm	74mm	71mm
Wheelbase	1074mm	1085mm	1091mm	1096mm
