Turbo
Overview
Technical Specifications
Geometry

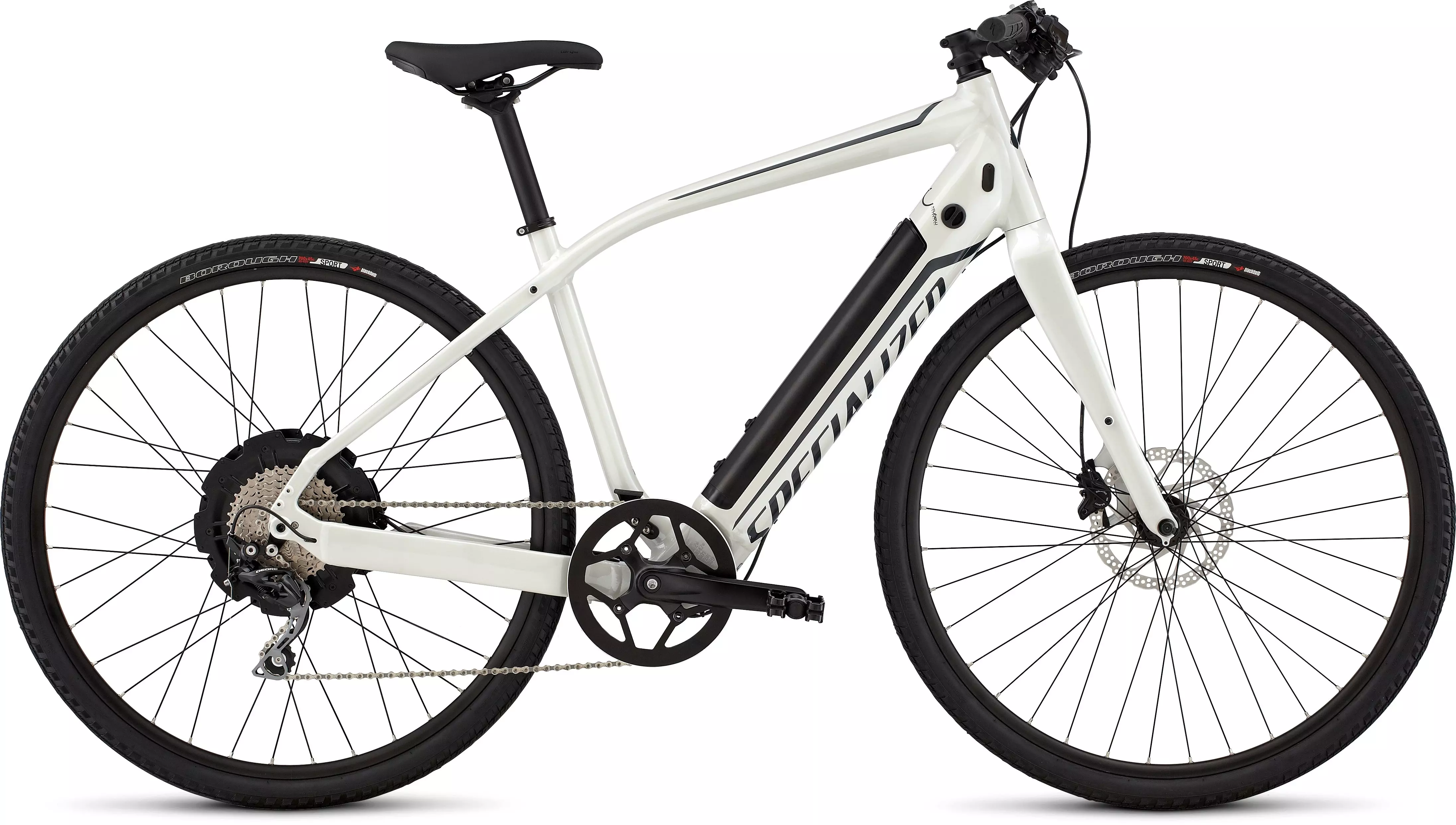

The Turbo has all of the smooth and powerful e-assist acceleration of other models, in a more accessible package. With a motor capable of an easy cruising speed of 28mph, reliable disc brakes, and an integrated, high-capacity down tube battery, the Turbo will quickly broaden your limits of exploration.
  • The Turbo's integrated down tube battery has a self-locking key release to prevent theft as well as handy LED power indicators to give you charge levels at a glance.
  • Its tough and elegant alloy frame with Performance Geometry makes riding at speed feel just as safe and natural as a non electric assist bike.
  • The custom Turbo alloy fork is built tough for the higher speeds and includes fender and rack mounts to make sure you can ride no matter the weather.
  • The custom Turbo motor provides all the smooth and powerful accelerations you need to get off the line at stop lights and to your destination quickly.
  • The Turbo Clean Cockpit puts all the controls at your thumb tips with an illuminated display and regenerative braking options to help keep your battery charged up in a pinch.

Technical Specifications

DRIVETRAIN
CHAIN KMC X10, 10-speed, w/ reusable MissingLink
BOTTOM BRACKET Samox
CRANKSET Specialized Stout, 3 pc., w/ alloy bashguard
SHIFT LEVERS Shimano Deore, 10-speed
CASSETTE Shimano, 10-speed, 11-36t
CHAINRINGS 48T
REAR DERAILLEUR Shimano Deore RD-M610 Shadow, 10-speed
COCKPIT
SADDLE Body Geometry Targa Sport, steel rails, 155mm
SEATPOST Alloy, 2-bolt, micro-adjust, 12.5mm offset, 27.2mm
STEM Specialized, 3D forged alloy, 4-bolt, 7-degree rise
HANDLEBARS Specialized, flat bar, double-butted 6061 alloy, 9-degree backsweep, 31.8mm
GRIPS Specialized Body Geometry XCT, dual compound, lock-on
WHEELS
FRONT HUB Specialized, Hi Lo disc, alloy, RCC bearing system, QR, 36h
SPOKES Stainless, 2.3/2.0/2.0mm
RIMS 700c, disc, alloy, double-wall, pin joint, 36h
FRONT TIRE Specialized Borough, 60TPI, wire bead, BlackBelt protection, 700x45mm
REAR TIRE Specialized Borough, 60TPI, wire bead, BlackBelt protection, 700x45mm
BRAKES
FRONT BRAKE Shimano Deore BR-M506, resin pads, 180mm rotor
REAR BRAKE Shimano Deore BR-M506, resin pads, 180mm rotor
ACCESSORIES
PEDALS Nylon body, alloy cage, low profile bearing system
FRAMESET
HEADSET 1-1/8"" upper/lower, threadless, Campy style, cartridge bearings
SEAT BINDER Alloy, 34.9mm
FORK Custom Turbo alloy, fender eyelets, Low Rider mounts
FRAME Turbo S alloy, smooth welds, speed optimized geometry, fully-integrated down tube battery, internal cable routing, 700c, X12 thru-axle dropout, full fender/rack mounts
E-BIKE
BATTERY Turbo integrated down tube battery, self-locking key release, on-board or off-bike charge capable, LED power indicators, start-up diagnostic feature, magnetic connectors, 396Wh capacity
USER INTERFACE/REMOTE Turbo Clean Cockpit, integrated thumb control, illuminated display
WIRING Wiring harness
CHARGER Custom Specialized, 42V4A, w/ Rosenberger plug
MOTOR Turbo Specialized Motor, 200Watt, X12 axle

Geometry

Geometry Chart

Turbo - Geometry

S M L XL
  S M L XL
Stem Length 70mm 90mm 90mm 100mm
Crank Length 170mm 175mm 175mm 175mm
Seatpost Length 350mm 350mm 350mm 350mm
Handlebar Width 680mm 680mm 680mm 680mm
Reach 380mm 395mm 405mm 422mm
Stack 606mm 616mm 630mm 655mm
Wheelbase 1060mm 1078mm 1093mm 1119mm
Bike Stand-Over Height 743mm 794mm 827mm 866mm
Head-Tube Length 179mm 189mm 204mm 230mm
Front-Center 614mm 632mm 647mm 673mm
Fork Rake/Offset 43mm 43mm 43mm 43mm
Head-Tube Angle 71° 71° 71° 71°
Trail 78mm 78mm 78mm 78mm
B-B Height 289.5mm 289.5mm 289.5mm 289.5mm
Chain-Stay Length 455mm 455mm 455mm 455mm
Fork Length (full) 402mm 402mm 402mm 402mm
Seat-Tube Angle 72° 72° 72° 72°
B-B Drop 70mm 70mm 70mm 70mm
Seat-Tube Length 420mm 460mm 500mm 540mm
Top-Tube Length (horizontal) 577mm 595mm 610mm 635mm
