    S-Works Venge Dura-Ace Di2

    Icon

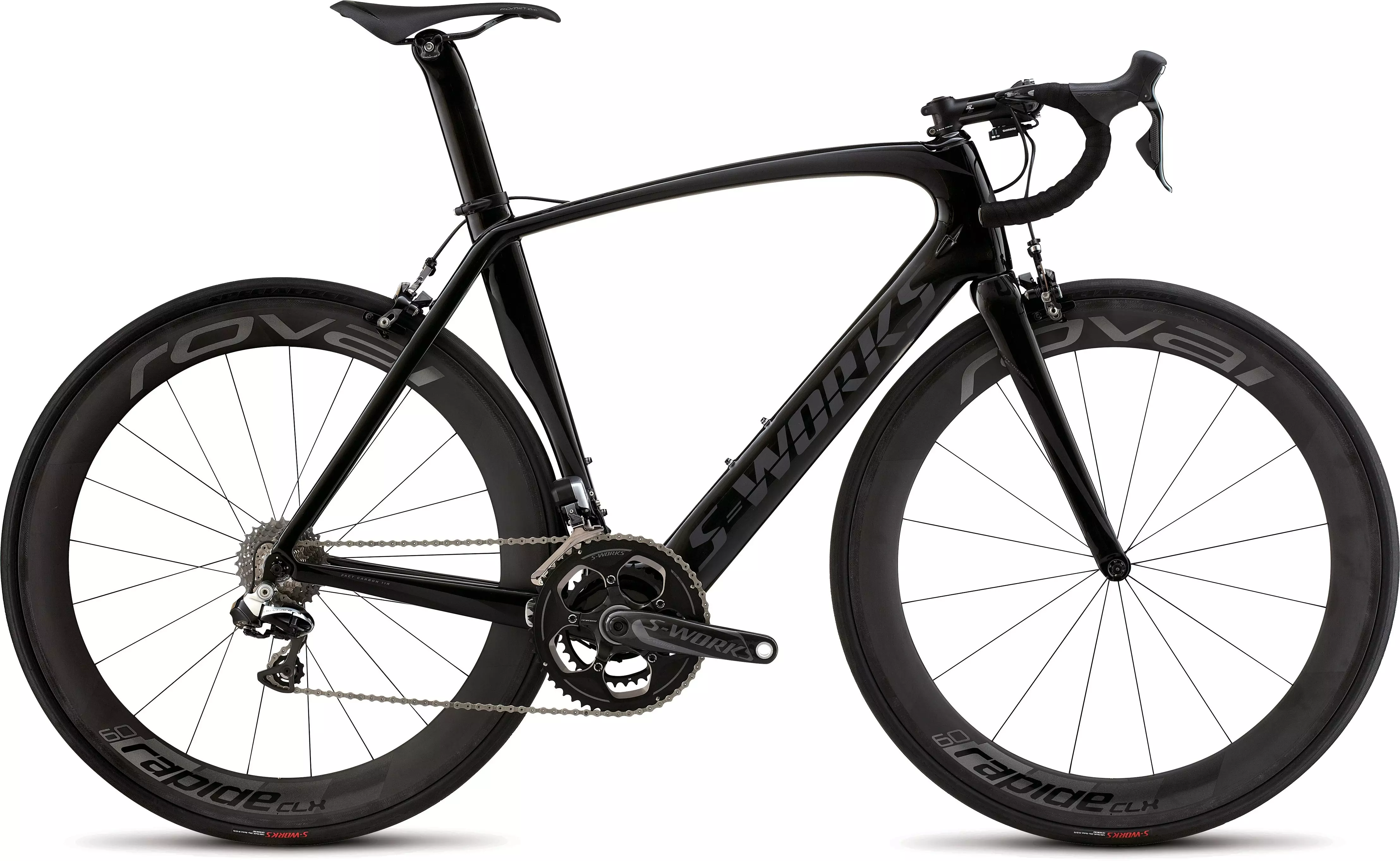

    2015 S-Works Venge Dura-Ace Di2

    The S-Works Venge is fast. Plain and simple. Behind it sits a myriad of science, testing, aerodynamic tweaking and design. What does all this mean for you? A bike that's faster in the flats, faster over rollers, and faster in sprints. The Venge will save you 45 seconds over 40 km compared to a Tarmac. Couple that with FACT carbon that's nearly as light as it is stiff and the only excuse you have for going slower are those things you're standing on.

    Technical Specifications

    Add Icon

    FRAMESET

    FRAME

    S-Works FACT 11r carbon, FACT construction, aero-shaped tubing, compact race design, tapered 1-1/8"" to 1-3/8"" headtube, internal cable routing, carbon OSBB

    FORK

    S-Works FACT carbon, full monocoque, Team Issue Layup

    HEADSET

    1-1/8"" upper, 1-3/8"" lower, hybrid cartridge lightweight bearings, w/ custom 15mm Venge top cap

    SEAT BINDER

    Specialized Venge

    WHEELS

    FRONT WHEEL

    Roval Rapide CLX 60, w/ CeramicSpeed ceramic bearings

    REAR WHEEL

    Roval Rapide CLX 60, w/ CeramicSpeed ceramic bearings

    FRONT TIRE

    S-Works Turbo, 220TPI, folding bead, BlackBelt protection, 700x24c

    REAR TIRE

    S-Works Turbo, 220TPI, folding bead, BlackBelt protection, 700x24c

    INNER TUBES

    Standard, presta valve

    DRIVETRAIN

    FRONT DERAILLEUR

    Shimano Dura-Ace Di2, 11-speed, braze-on

    REAR DERAILLEUR

    Shimano Dura-Ace Di2, 11-speed

    SHIFT LEVERS

    Shimano Dura-Ace Di2, 11-speed

    CASSETTE

    Shimano Dura-Ace, 11-speed, 11-28

    CHAIN

    Shimano Dura-Ace, 11-speed

    CRANKSET

    S-Works FACT carbon, OSBB, 52/36

    COCKPIT

    STEM

    S-Works SL, alloy, 4-bolt

    HANDLEBARS

    S-Works Aerofly

    TAPE

    Specialized Roubaix

    SADDLE

    Body Geometry Romin EVO Pro, carbon rails, 143mm

    SEATPOST

    S-Works Venge, FACT carbon, flippable 20/0mm offset

    BRAKES

    FRONT BRAKE

    Shimano Dura-Ace

    REAR BRAKE

    Shimano Dura-Ace

    ACCESSORIES

    PEDALS

    Nylon flat test ride, loose-ball, w/ reflectors

    * Weights based on production painted frames as pictured. Actual weights will vary based on colorway, frame size, and component variation. Specifications are subject to change without notice.

    Geometry

    Add Icon
    495254565861
    Seat-Tube Angle75.5°74°73.5°73.25°73°72.5°
    Head-Tube Length100mm120mm140mm160mm190mm210mm
    Seat-Post Length300mm300mm300mm350mm350mm350mm
    Head-Tube Angle72.25°73°73°73.5°73.5°74°
    Chain-Stay Length405mm405mm405mm405mm407mm410mm
    Top-Tube Length, Horizontal518mm537mm548mm565mm582mm600mm
    Front-Center576mm576mm583mm590mm605mm612mm
    Handle-Bar Width400mm420mm420mm420mm440mm440mm
    Stand-Over Height741mm766mm789mm809mm834mm860mm
    Seat-Tube Length, B-B Center to Top467mm487mm507mm527mm547mm577mm
    Fork Rake45mm45mm45mm43mm43mm43mm
    B-B Drop71.5mm71.5mm69mm69mm67.5mm67.5mm
    Stack506mm528mm544mm566mm593mm614mm
    Reach385mm385mm386mm395mm401mm407mm
    Trail62mm57mm57mm56mm56mm53mm
    Wheelbase970mm970mm978mm986mm1003mm1013mm
    Crank Length170mm170mm172.5mm172.5mm175mm175mm
    Stem Length75mm90mm100mm100mm110mm110mm
    Geometry
