Pure class. Pure speed. The SPECIALIZED EDITION S-Works Venge frameset pays homage…
Color:
Cavendish

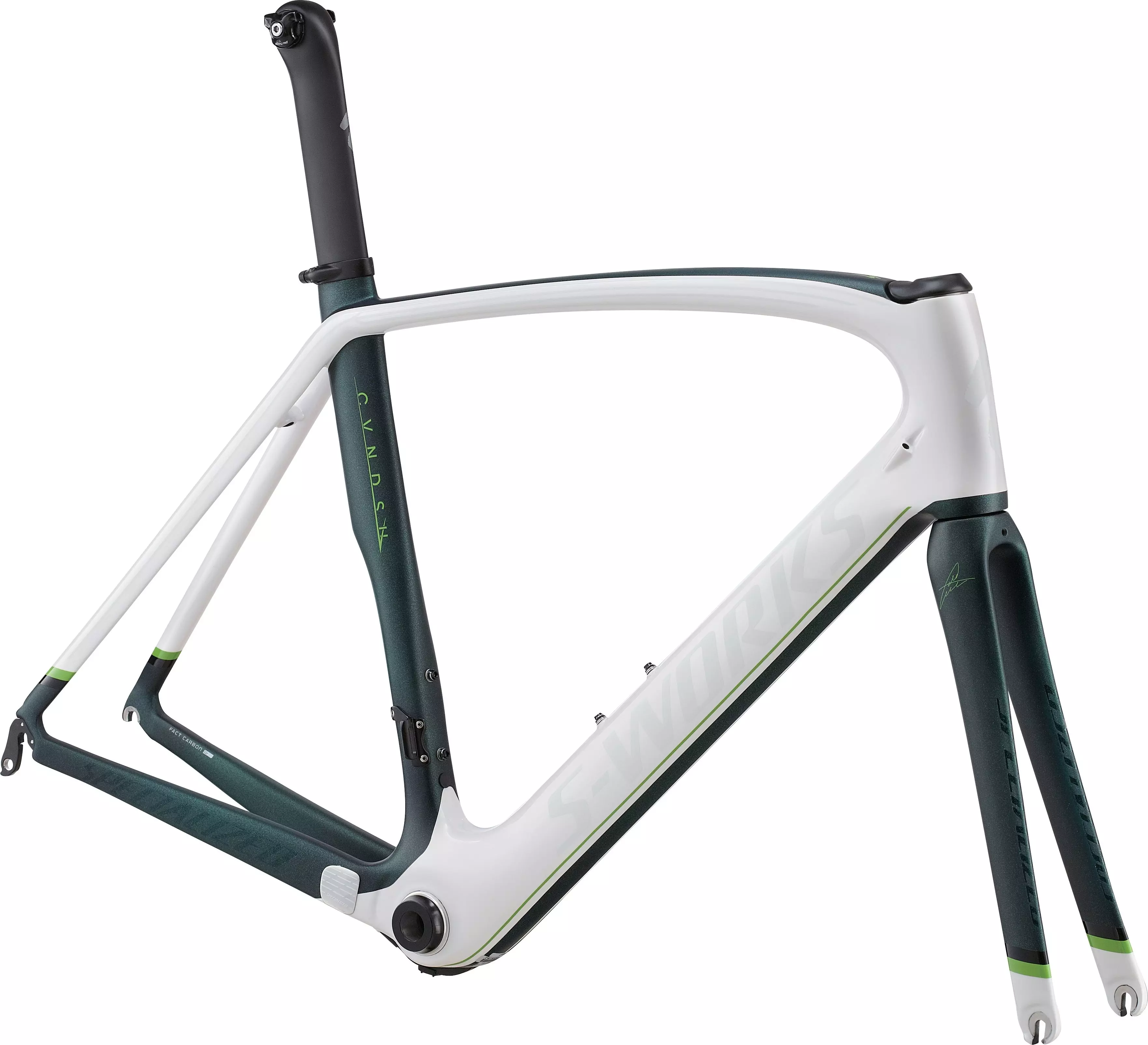

Pure class. Pure speed. The SPECIALIZED EDITION S-Works Venge frameset pays homage to the fastest man on two wheels, Mark Cavendish. Its gorgeous design, coupled with the aerodynamic awesomeness and speed that the Venge is known for, makes this frameset a truly lust-worthy object. Faster in the flats, faster over rollers, and faster in sprints, the Venge will save you 45 seconds over 40 km compared to a Tarmac. Couple that with FACT carbon that's nearly as light as it is stiff and the only excuse you have for going slower are those things you're standing on. Build it up in the spec you want and race everyone you see. It's what Cav would want.
Stiff, light, UCI-legal, bladed carbon seatpost flips between 20mm and 0mm setback
1-1/8" upper and 1-3/8" lower, ultra-light, hybrid bearings integrated w/ headset
UCI-legal, S-Works FACT 11r carbon frame w/ one-piece OSBB/chainstay and tapered headtube
New Team Issue Layup, UCI-legal, full carbon monocoque fork with 3:1 airfoil shaping is stiff and aerodynamic
FRAME
S-Works FACT 11r carbon, FACT construction, aero-shaped tubing, compact race design, tapered 1-1/8"" to 1-3/8"" headtube, internal cable routing, carbon OSBB
FORK
S-Works FACT carbon, full monocoque, Team Issue Layup
HEADSET
1-1/8"" upper, 1-3/8"" lower, hybrid cartridge lightweight bearings, w/ custom 15mm Venge top cap
SEAT BINDER
Specialized Venge
BOTTOM BRACKET
CeramicSpeed, ceramic bearings
SEATPOST
Specialized Venge, FACT carbon, flippable 20/0mm offset
* Weights based on production painted frames as pictured. Actual weights will vary based on colorway, frame size, and component variation. Specifications are subject to change without notice.
49 | 52 | 54 | 56 | 58 | 61 | |
---|---|---|---|---|---|---|
Seat-Tube Angle | 75.5° | 74° | 73.5° | 73.25° | 73° | 72.5° |
Head-Tube Length | 100mm | 120mm | 140mm | 160mm | 190mm | 210mm |
Seat-Post Length | 300mm | 300mm | 300mm | 350mm | 350mm | 350mm |
Head-Tube Angle | 72.25° | 73° | 73° | 73.5° | 73.5° | 74° |
Chain-Stay Length | 405mm | 405mm | 405mm | 405mm | 407mm | 410mm |
Top-Tube Length, Horizontal | 518mm | 537mm | 548mm | 565mm | 582mm | 600mm |
Front-Center | 576mm | 576mm | 583mm | 590mm | 605mm | 612mm |
Handle-Bar Width | 400mm | 420mm | 420mm | 420mm | 440mm | 440mm |
Stand-Over Height | 741mm | 766mm | 789mm | 809mm | 834mm | 860mm |
Seat-Tube Length, B-B Center to Top | 467mm | 487mm | 507mm | 527mm | 547mm | 577mm |
Fork Rake | 45mm | 45mm | 45mm | 43mm | 43mm | 43mm |
B-B Drop | 71.5mm | 71.5mm | 69mm | 69mm | 67.5mm | 67.5mm |
Stack | 506mm | 528mm | 544mm | 566mm | 593mm | 614mm |
Reach | 385mm | 385mm | 386mm | 395mm | 401mm | 407mm |
Trail | 62mm | 57mm | 57mm | 56mm | 56mm | 53mm |
Wheelbase | 970mm | 970mm | 978mm | 986mm | 1003mm | 1013mm |
Crank Length | 170mm | 170mm | 172.5mm | 172.5mm | 175mm | 175mm |
Stem Length | 75mm | 90mm | 100mm | 100mm | 110mm | 110mm |
For safety warnings please refer to the documentation in the Manual Downloads section of this page.
