    S-Works Tarmac SL3 Super Light

    Icon

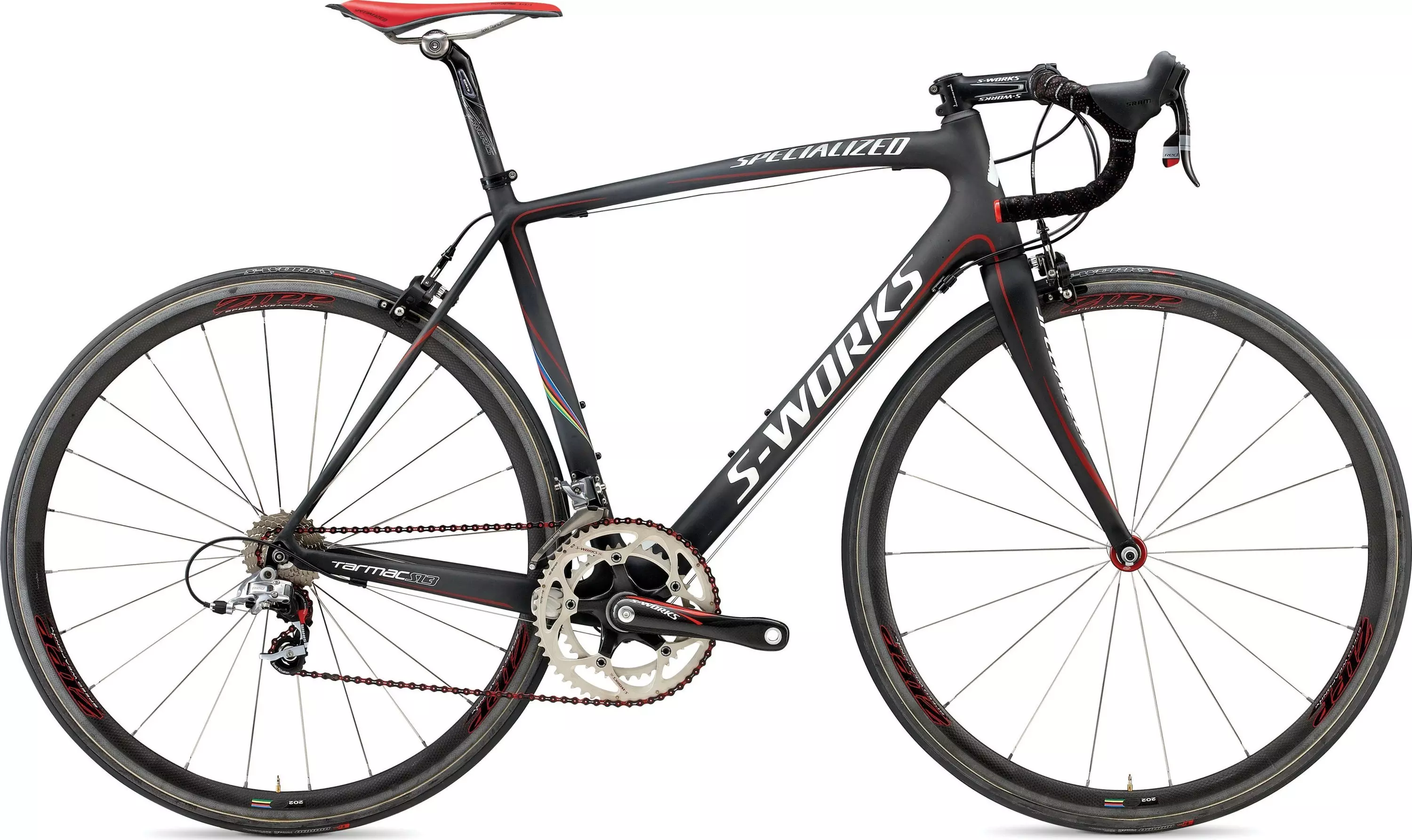

    2010 S-Works Tarmac SL3 Super Light

    Leading our pros to victory at races like Liège-Bastogne-Liège, Tour of Flanders, and countless others, the Tarmac® proves itself to be the best handling, most high-performance bike on the road. Thanks to the integration of critical components, an extremely rigid FACT carbon frame, and proprietary Body Geometry extras, we can proudly say that nothing is lighter and stiffer.

    Technical Specifications

    Add Icon

    FRAMESET

    FRAME

    S-Works Tarmac SL3 FACT 11r, FACT IS construction, compact race design, 1.5"" lower HS bearing, OS carbon BB shell

    FORK

    S-Works Tarmac SL3 FACT carbon, Uni-weave, monocoque construction, OS race for 1.5"" bearing, full carbon legs, crown and steerer

    HEADSET

    Aheadset Stainless Race Steel Balls w/ top cap w/ 20mm of spacers

    SEAT BINDER

    S-Works alloy, 32.6mm clamp

    WHEELS

    FRONT WHEEL

    Zipp 202

    REAR WHEEL

    Zipp 202

    FRONT TIRE

    S-Works Mondo Tubular, 700x23c, 290TPI

    REAR TIRE

    S-Works Mondo Tubular, 700x23c, 290TPI

    INNER TUBES

    Super Light Turbo, presta valve

    DRIVETRAIN

    SHIFT LEVERS

    SRAM RED

    FRONT DERAILLEUR

    SRAM RED

    REAR DERAILLEUR

    SRAM RED

    CASSETTE

    SRAM RED, 10-speed, 11-25t

    CRANKSET

    S-Works Superlight w/ Ceramic bearings, 53x39

    CHAINRINGS

    53 x 39T

    BOTTOM BRACKET

    Ceramic bearings

    CHAIN

    KMC X10 Superlight

    COCKPIT

    HANDLEBARS

    S-Works SL Carbon, classic bend

    STEM

    S-Works Super Light

    TAPE

    Specialized S-Wrap Super Light

    SADDLE

    Specialized BG Toupe Team 14mm w/ hollow Ti rails

    SEATPOST

    S-Works FACT carbon w/ Zertz insert, 27.2mm

    BRAKES

    FRONT BRAKE

    Tektro R970E Magnesium

    REAR BRAKE

    Tektro R970E Magnesium

    BRAKE LEVERS

    SRAM RED

    ACCESSORIES

    PEDALS

    Silver cage/black body, w/ black toe clips and strap

    * Weights based on production painted frames as pictured. Actual weights will vary based on colorway, frame size, and component variation. Specifications are subject to change without notice.

    Geometry

    Add Icon
    495254565861
    Seat-Tube Angle75.5°74°73.5°73.25°73°72.5°
    Head-Tube Length100mm120mm130mm150mm170mm175mm
    Seat-Post Length0mm0mm0mm0mm0mm0mm
    Head-Tube Angle72.25°73°73°73.5°73.5°73.5°
    Chain-Stay Length405mm405mm405mm405mm407mm410mm
    Top-Tube Length, Horizontal518mm537mm548mm565mm582mm595mm
    Front-Center576mm576mm583mm591mm605mm612mm
    Stand-Over Height730mm755mm768mm789mm809mm826mm
    Seat-Tube Length, B-B Center to Top460mm490mm510mm530mm550mm580mm
    Fork Rake45mm45mm45mm43mm43mm43mm
    B-B Drop71.5mm71.5mm69mm69mm67.5mm67.5mm
    Trail62mm57mm57mm56mm56mm56mm
    Wheelbase970mm970mm978mm986mm1003mm1013mm
