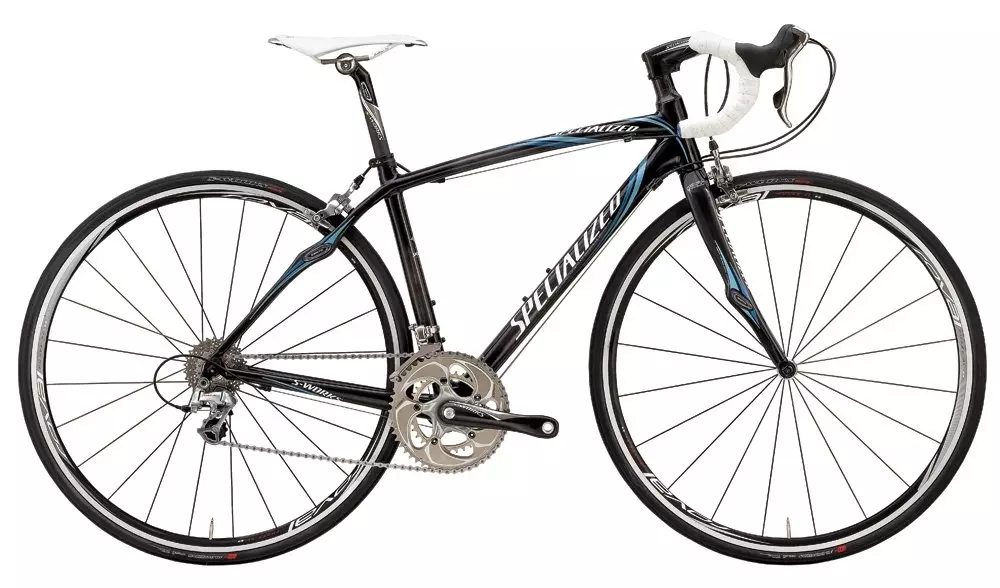

2008 S-Works Ruby SL

0 Reviews

Women's Performance Road PLAY LIKE THE PROS The Ruby is a pure performance racehorse,…

Color:

Carbon w/ Blue and White

What's my size?

Imperial

Metric

Enter your height and we'll calculate your size.

Height:

For a more accurate result, include your shin length.

Select a Size

Product Details

Women's Performance Road PLAY LIKE THE PROS The Ruby is a pure performance racehorse, engineered for women who like to fly. Performance optimized for speed-hungry riders and racers looking for the lightest, fastest and best fitting partner on the road, the Ruby® will satisfy your addiction for brutal climbs, thrilling descents and high mileage. Inside Tech Specially-tuned tubing dimensions and geometry (to fit female anatomies) yields a super lightweight, smooth riding chassis of superior caliber. Not to mention, unheard of strength and stiffness-toweight ratios. You're allowed to geek out on this kind of technology! Useful Links www.D4WGear.com FACT Carbon Roval Wheels Manuals/Tech Bulletins

S-Works FACT 10r carbon frame, Az1 construction, Designs for Women compact design, Zertz inserts
S-Works FACT monocoque carbon fork, full carbon legs, crown and steerer w/ Zertz inserts
Shimano Dura-Ace 10-speed STI shifters and rear derailleur, short cage
S-Works FACT carbon crankset, integrated oversize design
Roval Fusee SL wheelset
S-Works All-Condition 700x23c Tyres
Body Geometry Ruby Women's saddle

Technical Specifications

FRAMESET

FRAME

S-Works FACT 10r carbon, Az-1 construction, Designs for Women compact design, Zertz inserts

HEADSET

S-Works Mindset, 1 1/8"" integrated threadless, sealed cartridge ceramic bearings w/ stainless steel races, carbon 20mm cone w/ one 10mm and two 5mm carbon spacers

SEAT BINDER

S-Works CNC alloy binder, 32.6mm clamp

FORK

S-Works FACT monocoque carbon fork, full carbon legs, crown and steerer w/ Zertz inserts

WHEELS

RIMS

Roval Fusee SL, E5 Alloy, offset rear rim

FRONT HUB

Roval Fusee SL, carbon hub body, Roval Ti QR

REAR HUB

Roval Fusee, alloy cassette, Roval Ti QR

SPOKES

DT Stainless 14/15g Butted Aero

FRONT TIRE

S-Works All-Condition 700x23c, dual-compound tread, aramid bead, 127TPI

REAR TIRE

S-Works All-Condition 700x23c, dual-compound tread, aramid bead, 127TPI

DRIVETRAIN

SHIFT LEVERS

Shimano Dura-Ace, 10-speed STI, flight deck compatible

FRONT DERAILLEUR

Shimano Dura-Ace, 34.9mm clamp, bottom pull

REAR DERAILLEUR

Shimano Dura-Ace, short cage

CRANKSET

S-Works FACT carbon crankset, integrated oversize design

CHAINRINGS

50x34T

BOTTOM BRACKET

S-Works, oversized integrated

CHAIN

Shimano Dura-Ace, 10-speed

COCKPIT

STEM

S-Works Rubymac, carbon bar/stem combo, superlight integrated carbon design, adjustable stem angle

SADDLE

Body Geometry Ruby Women's, carbon reinfoced base, hollow Ti rails, microfiber cover

HANDLEBARS

S-Works Ruby Mac, carbon bar/stem combo, superlight integrated carbon design, women's-specific drop shaping

BRAKES

FRONT BRAKE

Shimano Dura-Ace

REAR BRAKE

Shimano Dura-Ace

BRAKE LEVERS

Shimano Dura-Ace, 10-speed STI, flight deck compatible

ACCESSORIES

PEDALS

Composite body test ride pedals

* Weights based on production painted frames as pictured. Actual weights will vary based on colorway, frame size, and component variation. Specifications are subject to change without notice.

Geometry

	44	48	51	54	56
Ground-Top	73mm	73mm	73mm	73mm	71.5mm
Seat-Tube Angle	66°	62°	59°	59°	59°
Head-Tube Length	167.5mm	167.5mm	170mm	170mm	172.5mm
Head-Tube Angle	574°	579°	582°	588°	595°
Chain-Stay Length	51mm	51mm	49mm	49mm	49mm
Top-Tube Length, Horizontal	76mm	75.75mm	75.5mm	74mm	73.5mm
Front-Center	105mm	115mm	125mm	145mm	165mm
Handle-Bar Width	300mm	300mm	350mm	350mm	350mm
Stand-Over Height	75mm	75mm	90mm	100mm	100mm
Seat-Tube Length, B-B Center to Top	405mm	405mm	405mm	405mm	408mm
Fork Rake	967mm	973mm	976mm	982mm	993mm
B-B Drop	70.5mm	71.25mm	72mm	72mm	72mm
Stack	400mm	430mm	450mm	480mm	500mm
Reach	496mm	506mm	518mm	537mm	548mm
Trail	693mm	718mm	735mm	758mm	778mm
Wheelbase	380mm	380mm	400mm	400mm	420mm
