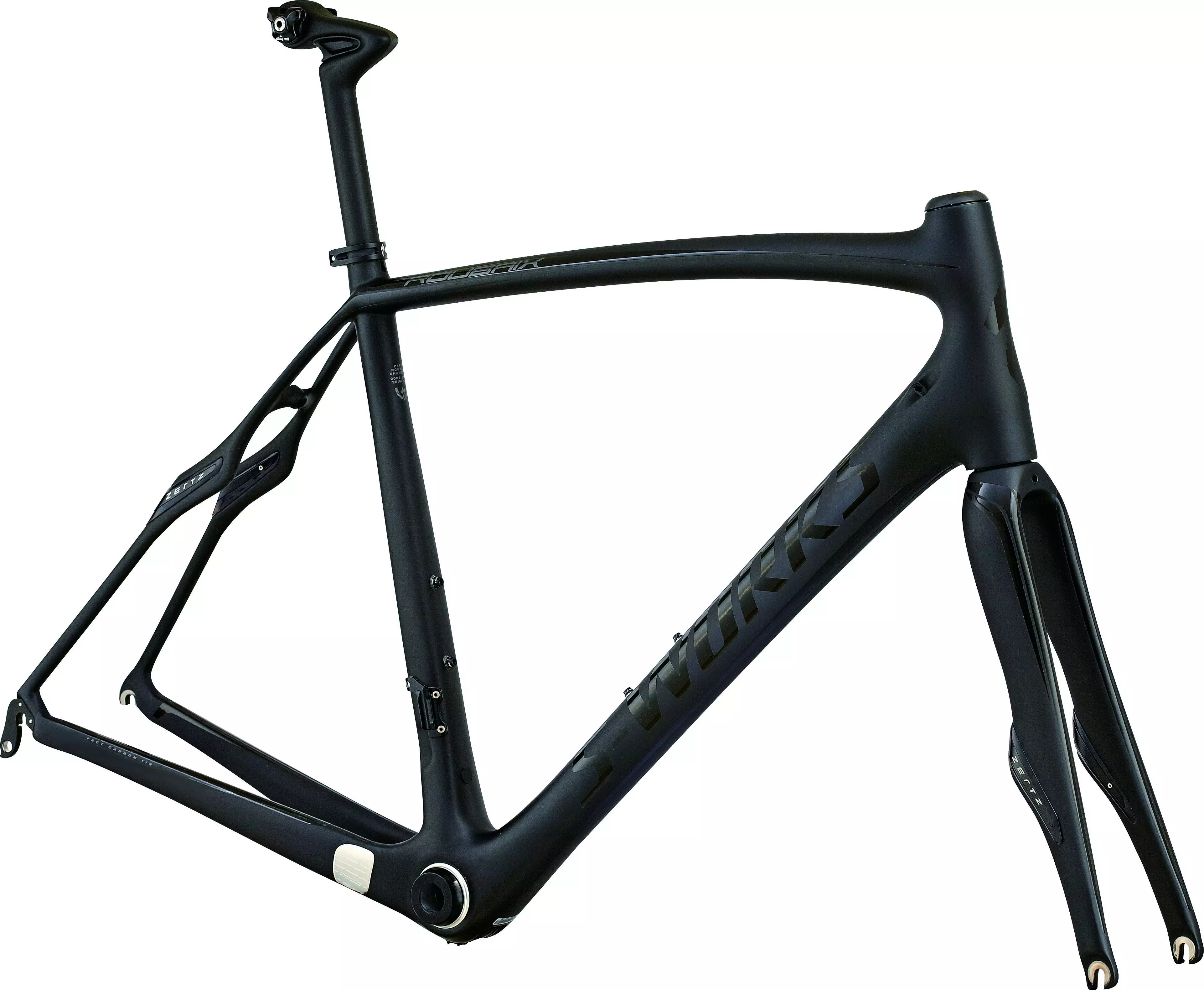

2015 S-Works Roubaix SL4 Frameset

0 Reviews

Color:

Satin/Gloss Carbon

What's my size?

Imperial

Metric

Enter your height and we'll calculate your size.

Height:

For a more accurate result, include your shin length.

Select a Size

Choose the color and size that you are looking for to search nearby store inventory

Unavailable

This item is not available for Find Nearby

Shipping to -----

Product Details

Smoother is faster. The more comfortable and less fatigued you are at the end of a 4-hour ride, the stronger you'll be. Like shocks on a race car, the Zertz vibration damping inserts on the Roubaix SL4 help absorb road impact and keep power planted firmly on the road—couple that with a FACT carbon 11r frame and it's still plenty stiff to thrash around in a sprint. Just ask 2014 Paris-Roubaix champion, Niki Terpstra. Build it up in the spec of your choice.

Lightweight S-Works SL4 FACT 11r frame w/ Zertz offers smooth, uncompromising ride quality
Lightweight and efficient, FACT carbon CG-R seatpost w/ Zertz vibration damping
1-1/8" upper and 1-3/8" lower, stainless steel bearings integrated w/ headset
S-Works FACT carbon monocoque fork w/ Zertz and size-specific taper for steering precision
Pro-quality, long-lasting and lightweight CeramicSpeed bottom bracket w/ ceramic bearings

Geometry

	49	52	54	56	58	61
Seat-Tube Angle	75.5°	74°	73.5°	73.25°	73°	72.5°
Head-Tube Length	125mm	145mm	165mm	190mm	225mm	245mm
Seat-Post Length	300mm	300mm	350mm	350mm	350mm	350mm
Head-Tube Angle	72°	72°	72°	72.5°	72.5°	73°
Chain-Stay Length	412mm	412mm	415mm	415mm	418mm	420mm
Top-Tube Length, Horizontal	518mm	537mm	548mm	565mm	582mm	600mm
Front-Center	582mm	588mm	595mm	606mm	621mm	628mm
Handle-Bar Width	400mm	420mm	420mm	420mm	440mm	440mm
Stand-Over Height	730mm	756mm	776mm	798mm	829mm	851mm
Seat-Tube Length, B-B Center to Top	445mm	475mm	495mm	515mm	540mm	565mm
Fork Rake	49mm	49mm	49mm	49mm	49mm	49mm
B-B Drop	73mm	73mm	71.5mm	71.5mm	70mm	70mm
Stack	527mm	546mm	563mm	589mm	621mm	642mm
Reach	378mm	379mm	380mm	387mm	392mm	398mm
Trail	59mm	59mm	59mm	56mm	56mm	53mm
Wheelbase	983mm	989mm	1000mm	1010mm	1029mm	1038mm
Crank Length	170mm	170mm	172.5mm	172.5mm	175mm	175mm
Stem Length	75mm	90mm	100mm	100mm	110mm	110mm
