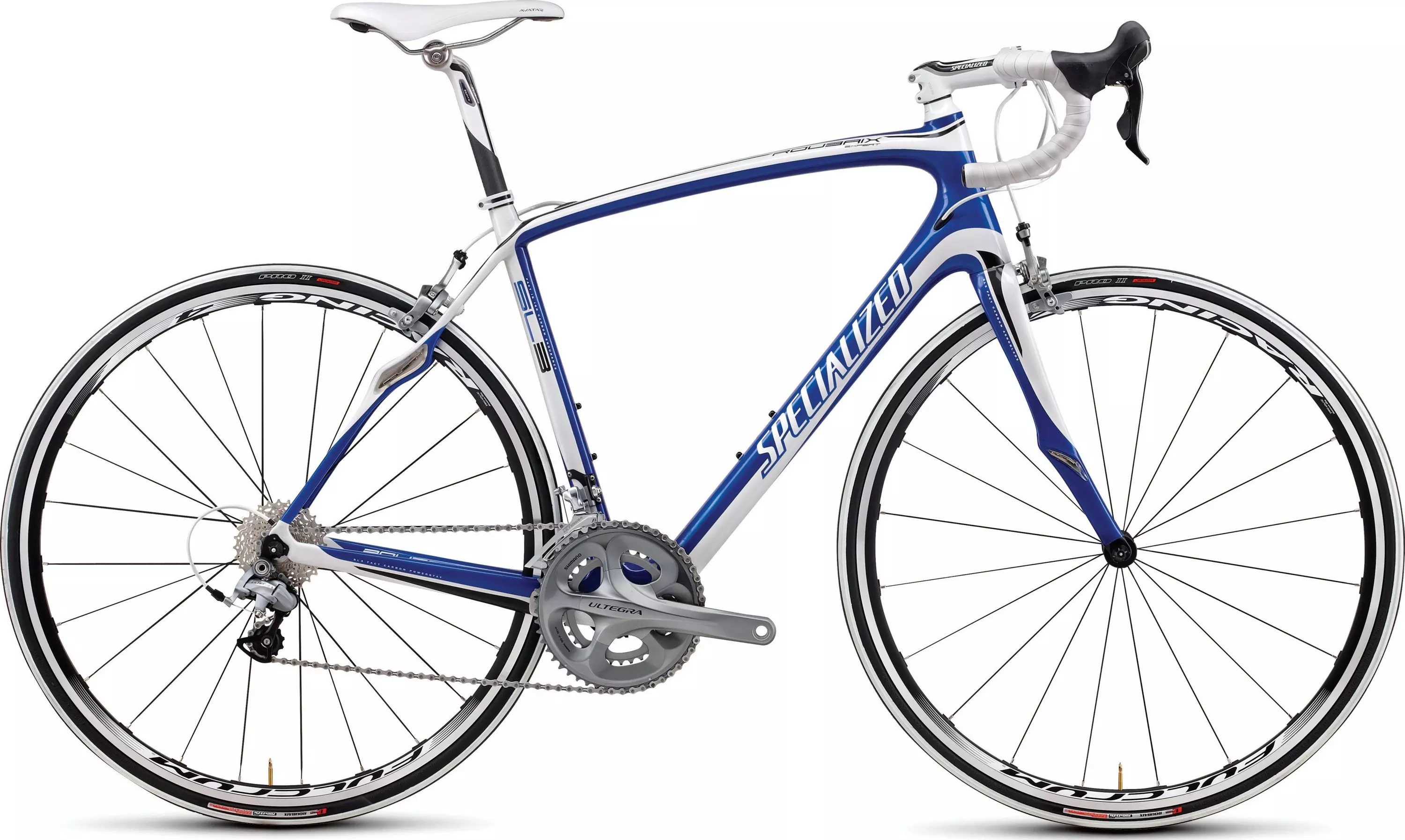

Roubaix SL3 Expert Compact
2011 Roubaix SL3 Expert Compact
Roubaix SL3 Expert Compact
Technical Specifications
COCKPIT
SEAT BINDER
Specialized, alloy, 27.2mm
WHEELS & TIRES
INNER TUBES
Standard presta valve
DRIVETRAIN
CRANKSET
Shimano Ultegra
CHAINRINGS
48/38/28, w/ chainguard
* Weights based on production painted frames as pictured. Actual weights will vary based on colorway, frame size, and component variation. Specifications are subject to change without notice.
Geometry
| 49 | 52 | 54 | 56 | 58 | 61 | 64 | |
|---|---|---|---|---|---|---|---|
| Seat-Tube Angle | 75.5° | 74° | 73.5° | 73.25° | 73° | 72.5° | 72.5° |
| Head-Tube Length | 125mm | 145mm | 165mm | 190mm | 225mm | 245mm | 260mm |
| Seat-Post Length | 0mm | 0mm | 0mm | 0mm | 0mm | 0mm | 0mm |
| Head-Tube Angle | 72° | 72° | 72° | 72.5° | 72.5° | 73° | 73° |
| Chain-Stay Length | 412mm | 412mm | 415mm | 415mm | 418mm | 420mm | 420mm |
| Top-Tube Length, Horizontal | 518mm | 537mm | 548mm | 565mm | 582mm | 600mm | 615mm |
| Front-Center | 582mm | 588mm | 595mm | 606mm | 621mm | 628mm | 643mm |
| Stand-Over Height | 730mm | 756mm | 776mm | 798mm | 829mm | 851mm | 877mm |
| Seat-Tube Length, B-B Center to Top | 445mm | 475mm | 495mm | 515mm | 540mm | 565mm | 600mm |
| Fork Rake | 49mm | 49mm | 49mm | 49mm | 49mm | 49mm | 49mm |
| B-B Drop | 73mm | 73mm | 71.5mm | 71.5mm | 70mm | 70mm | 70mm |
| Trail | 59mm | 59mm | 59mm | 56mm | 56mm | 53mm | 53mm |
| Wheelbase | 983mm | 989mm | 1000mm | 1010mm | 1029mm | 1038mm | 1053mm |
