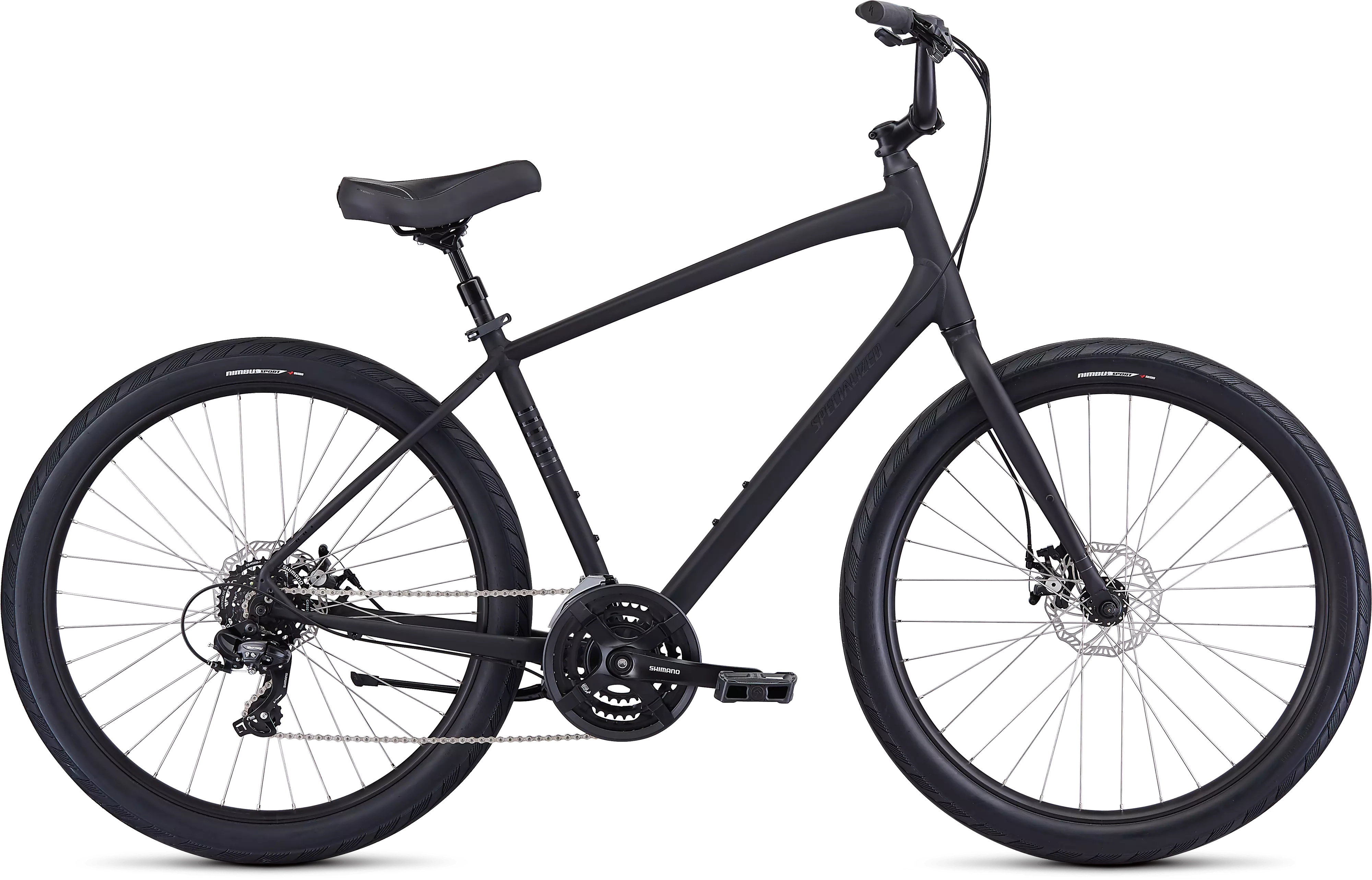

Roll Sport
2019 Roll Sport
Have you ever been described as having caviar taste on a hotdog budget? We've all been there, but we don't think you should have to sacrifice on any of the bells and whistles that get you excited to ride along your path to personal fitness. Meet the Roll Sport.
It has everything you need to help achieve your goals, like a wide range of Shimano gears, a comfortable, upright geometry, wide and grippy 650b tires, hassle-free mechanical disc brakes, and a whole host of other components that are built to withstand years of riding.
You don't have to sacrifice, you just need the Roll Sport.
Technical Specifications
FRAMESET
FRAME
Specialized A1 Premium Aluminum, Ground Control Positioning, formed tubes, post-mount disc, fender/rack mounts
SUSPENSION
FORK
Steel, IS mount disc, fender/rack mounts
COCKPIT
STEM
Forged alloy, 17-degree rise
GRIPS
Specialized Body Geometry Contour, lock-on
SADDLE
Body Geometry "The Cup," 6-degree rise, steel rails, 245mm
SEATPOST
Spring suspension, alloy, 27.2mm, 2-bolt clamp
SEAT BINDER
Quick-release clamp, 31.8mm
HANDLEBARS
Specialized Roll, 6061 alloy, 15-degree backsweep, 125mm rise, 31.8mm
BRAKES
FRONT BRAKE
Promax mechanical disc, post-mount, 160mm
REAR BRAKE
Promax mechanical disc, post-mount, 160mm
DRIVETRAIN
SHIFT LEVERS
Shimano EF500, 7-speed
FRONT DERAILLEUR
Shimano Tourney, top-swing, 31.8mm band clamp
REAR DERAILLEUR
Shimano Tourney, 7-speed
CASSETTE
Shimano HG200, 7-speed, 12-32t
CRANKSET
Shimano Tourney, 3-piece, square taper
CHAINRINGS
48/38/28T w/ chainguard
BOTTOM BRACKET
68mm, square taper, 124.5mm length
CHAIN
KMC Z7, 7-speed
WHEELS & TIRES
RIMS
Double-wall, disc-specific, 32h front/ 36h rear
FRONT HUB
Alloy, 6-bolt disc, loose ball bearing, quick-release, 32h
REAR HUB
Alloy, 6-bolt disc, 7-speed freehub, loose ball bearing, quick-release, 36h
SPOKES
Stainless, 14g
FRONT TIRE
Nimbus II Sport, 650b x 2.3"
REAR TIRE
Nimbus II Sport, 650b x 2.3"
INNER TUBES
Schrader valve
ACCESSORIES
PEDALS
Specialized City, platform
* Weights based on production painted frames as pictured. Actual weights will vary based on colorway, frame size, and component variation. Specifications are subject to change without notice.
Geometry
| S | M | L | XL | |
|---|---|---|---|---|
| Crank Length | 165mm | 170MM | 175MM | 175MM |
| Handlebar Width | 680mm | 680mm | 680mm | 680mm |
| Stem Length | 60mm | 60mm | 60mm | 60mm |
| Saddle Width | 245mm | 245mm | 245mm | 245mm |
| Seatpost Length | 350mm | 350mm | 350mm | 350mm |
| Stack | 583mm | 616mm | 644mm | 667mm |
| Reach | 346mm | 352mm | 370mm | 392mm |
| Head Tube Length | 155mm | 185mm | 215mm | 240mm |
| Head Tube Angle | 68° | 69° | 69° | 69° |
| BB Height | 285mm | 285mm | 285mm | 285mm |
| BB Drop | 70mm | 70mm | 70mm | 70mm |
| Trail | 84mm | 77mm | 77mm | 77mm |
| Fork Length, Full | 420mm | 420mm | 420mm | 420mm |
| Fork Rake/Offset | 55mm | 55mm | 55mm | 55mm |
| Front Center | 617mm | 624mm | 653mm | 684mm |
| Chainstay Length | 480mm | 480mm | 480mm | 480mm |
| Wheelbase | 1088mm | 1095mm | 1124mm | 1155mm |
| Top Tube Length, Horizontal | 594mm | 613mm | 643mm | 675mm |
| Bike Standover Height | 801mm | 850mm | 881mm | 911mm |
| Seat Tube Length | 375mm | 440mm | 480mm | 520mm |
| Seat Tube Angle | 67° | 67° | 67° | 67° |
