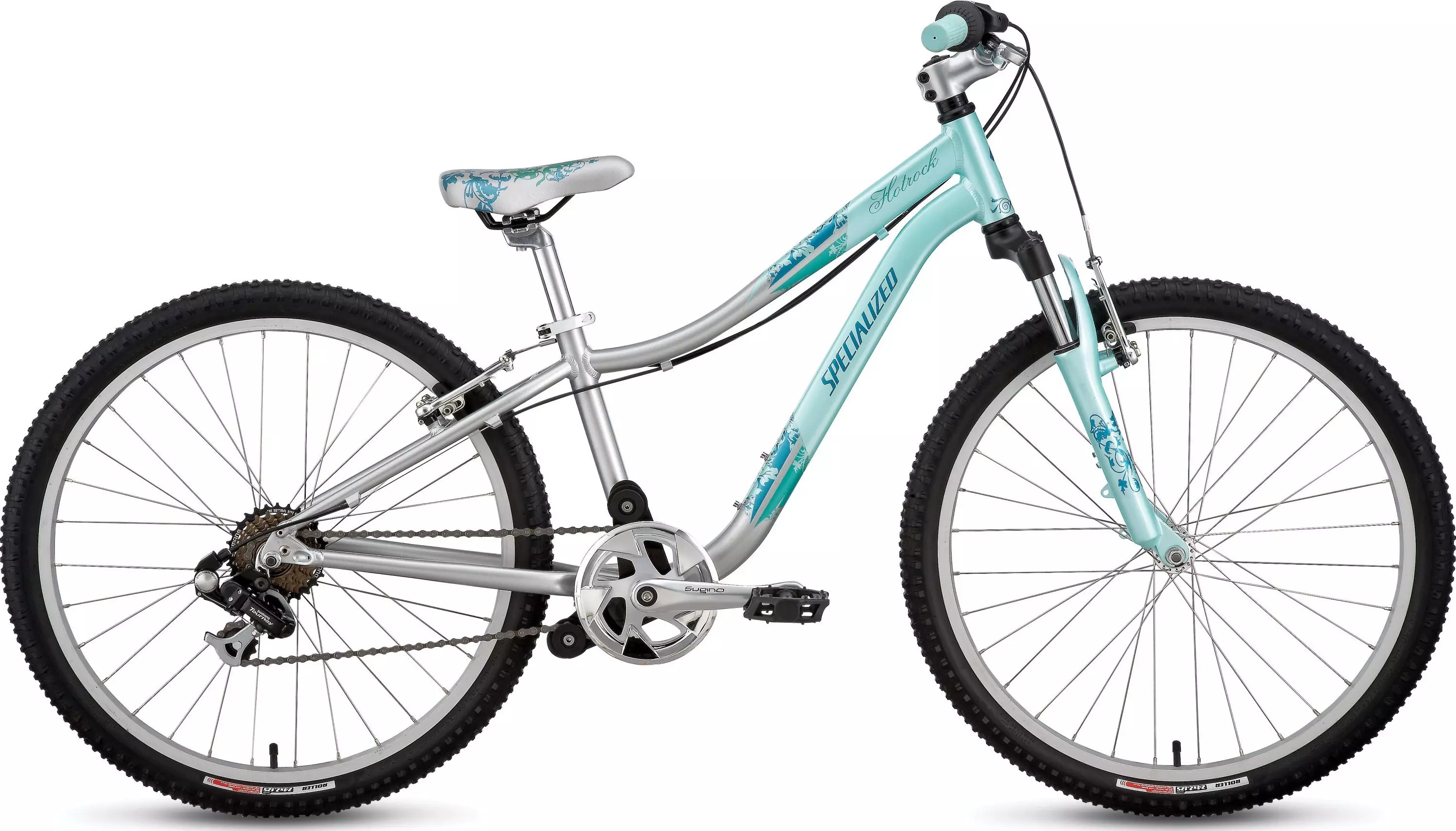

Hotrock 24 7-Speed Girls
2010 Hotrock 24 7-Speed Girls
Technical Specifications
FRAMESET
FRAME
Specialized A1 Premium Aluminum, 24"" frame w/ low standover TT, formed DT, forged dropouts w/ replaceable hanger
FORK
RST Capa C24, 50mm, forged alloy crown, 1pc. alloy lower, soft coil spring, spring seal
HEADSET
1-1/8"" threadless
SEAT BINDER
Alloy collar w/ QR
WHEELS
REAR TIRE
Specialized Roller, 20 x 2.125"", 30TPI, wire bead
INNER TUBES
Schraeder valve
RIMS
Alex C-1000, alloy single wall, 32h
FRONT HUB
Forged alloy, 32h with 3/8"" axle, nutted
REAR HUB
Forged alloy, 32h, nutted
SPOKES
2mm 14g stainless
FRONT TIRE
Specialized Roller, 20 x 2.125"", 30TPI, wire bead
DRIVETRAIN
CHAIN
KMC Z-50, 1/2"" x 3/32""
CRANKSET
Sugino 7-speed, forged alloy arms, chain guide, 152mm
CHAINRINGS
36t w/ outer guard
BOTTOM BRACKET
VP, water sealed, 68mm x 128mm
COCKPIT
STEM
Alloy A-Head, melt forged, 60mm, 15 degree rise
HANDLEBARS
Hi-Ten, 600mm wide, 40mm rise, 10 degree back sweep, 6 degree up
GRIPS
Kraton, Revo type
SADDLE
Specialized 1pc., 7mm rail w/ clamp
SEATPOST
Alloy, 27.2mm, microadjust
BRAKES
BRAKE
Alloy linear pull
ACCESSORIES
PEDALS
Composite platform, 9/16""
* Weights based on production painted frames as pictured. Actual weights will vary based on colorway, frame size, and component variation. Specifications are subject to change without notice.
Geometry
| 20 | 24 | |
|---|---|---|
| Top Tube Length (Horizontal) | 464in | 507in |
| Rake | 38in | 37in |
| Top Tube Length (Actual) | 447in | 498in |
| Seat Tube Length, Center to Top | 279in | 312in |
| Bottom Bracket Height | 237in | 262in |
| Wheel Base | 913in | 978in |
| Standover Height | 688in | 586in |
| Head Tube Length | 100in | 120in |
| Head Tube Angle | 69in | 69in |
| Front Center | 524in | 572in |
| Chainstay Length | 390in | 410in |
| Seat Tube Angle | 72in | 73in |
| Seatpost Length | 0in | 0in |
