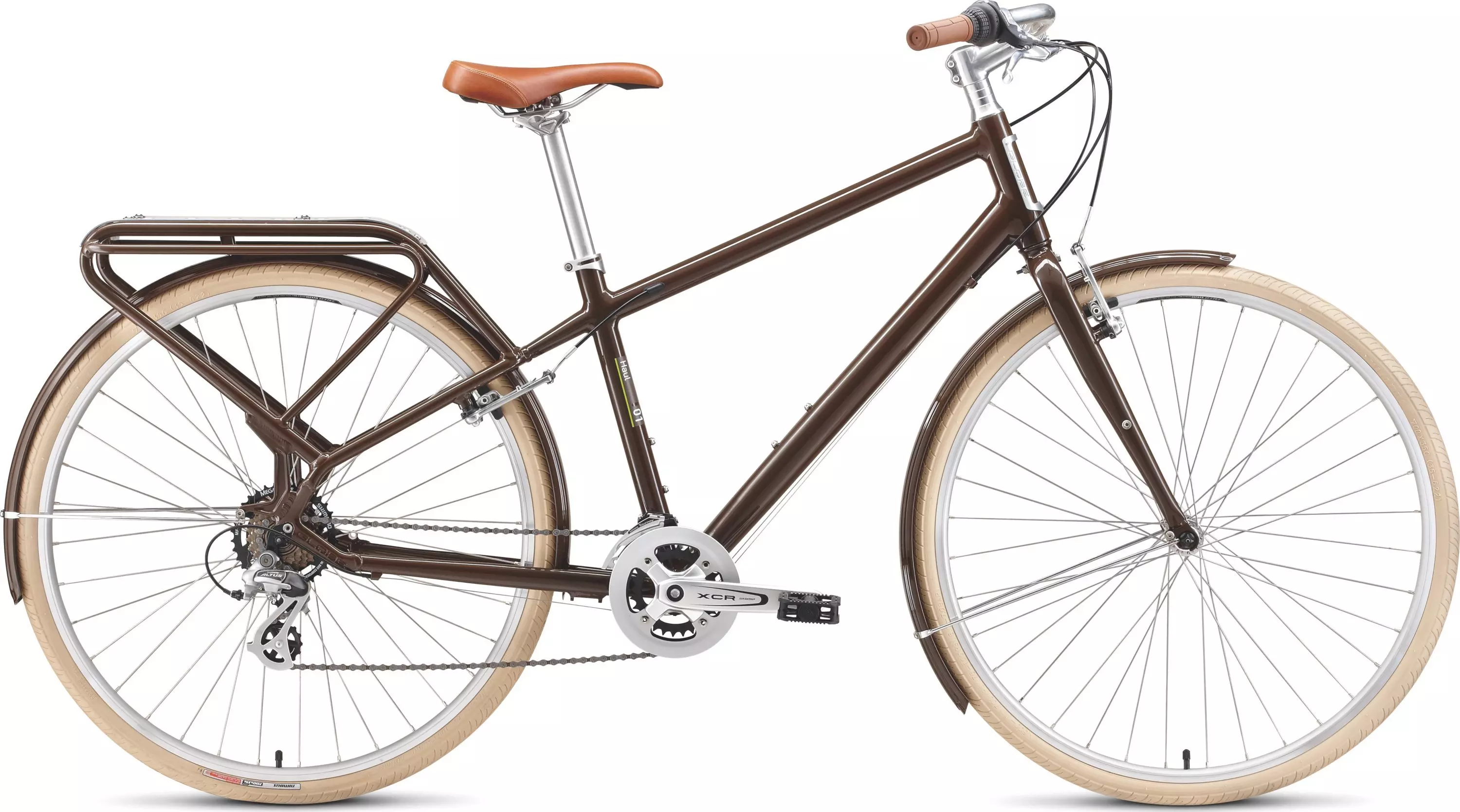

2011 Haul 1
0 Reviews
With a rack that holds up to 50kg (110lbs) and wide range 14-speed gearing, keep…
Color:
Dark Brown
Size:
One Size
Unavailable
This item is not available for Find Nearby
Product Details
With a rack that holds up to 50kg (110lbs) and wide range 14-speed gearing, keep the car parked in the garage and Haul in style.
City grips look stylish and keep hands comfortably and safely in place
Shimano Altus 7-speed rear derailleur provides sure-fire shifts every time
Globe A1 Premium Aluminum frame with integrated rack makes loaded transport simple and easy
Double walled 32-hole rims with high-flange, phone dial hubs for timeless look and smooth ride
Classic BG saddle is soft and supportive for efficient comfort, with center groove for those sensitive areas, and bumpers for durability
Technical Specifications
FRAMESET
FRAME
Globe A1 Premium Aluminum trekking design, fully manipulated tubing w/ fender and rack braze-ons, integrated kickstand mount, fully integrated rear rack w/ forged dropout and pannier hook
FORK
Globe Hi-Ten straight-blade steel fork with classic design
HEADSET
1 1/8"" threadless, integrated, semi-cartridge campy style bearings
SEAT BINDER
Globe forged alloy extra slim clamp, 31.8mm
WHEELS
REAR HUB
Free-wheel hub w/ loose ball bearings, ground race, QR, 32h
SPOKES
2mm (14g) stainless
FRONT TIRE
Specialized Nimbus Sport, 700x35c, 60TPI, w/ Flak Jacket protection
REAR TIRE
Specialized Nimbus Sport, 700x35c, 60TPI, w/ Flak Jacket protection
INNER TUBES
Schraeder valve
RIMS
Globe 700c, double wall, pin joint, 36h w/CNC side wall
FRONT HUB
Forged alloy, double sealed, ground race, QR
DRIVETRAIN
FRONT DERAILLEUR
Shimano FD-C051, 31.8mm clamp, top swing, dual pull
REAR DERAILLEUR
Shimano Altus, 7/8-speed, top normal pull
SHIFT LEVERS
Shimano Revo 7-speed, twist shifter
CASSETTE
Shimano 7-speed, 13-34t Mega Range
CHAIN
KMC Z8, 8-speed w/ reusable Missing Link
CRANKSET
SR SunTour Double ring w/ alloy crank arm, 170mm
CHAINRINGS
38 x 28s, w/alloy guard
BOTTOM BRACKET
Cartridge bearing, square spindle w/ crank stop right side, capless bolts
COCKPIT
STEM
Forged alloy, 4-bolt, 25.4mm, 1 1/8"" w/ 15 degree rise
HANDLEBARS
Alloy, 25.4mm, 650mm wide, 31 degree up, 24 degree back sweep
TAPE
Globe City 140mm close type
SADDLE
Globe Haul men's, 155mm width
SEATPOST
Alloy, 2-bolt forged head, 30.9mm, 12.5mm offset
BRAKES
FRONT BRAKE
Alloy linear pull, 1pc. pad
REAR BRAKE
Alloy linear pull, 1pc. pad
BRAKE LEVERS
V-brake, Linear pull
ACCESSORIES
PEDALS
Composite platform body, sealed loose ball bearings, w/ reflectors
* Weights based on production painted frames as pictured. Actual weights will vary based on colorway, frame size, and component variation. Specifications are subject to change without notice.
Geometry
| SM | MD | LG | XL | |
|---|---|---|---|---|
| Seat-Tube Angle | 74.5° | 74° | 73.5° | 73° |
| Head-Tube Length | 140mm | 170mm | 200mm | 230mm |
| Seat-Post Length | 350mm | 350mm | 350mm | 350mm |
| Head-Tube Angle | 69.5° | 69.5° | 70° | 70.5° |
| Chain-Stay Length | 500mm | 500mm | 500mm | 500mm |
| Top-Tube Length, Horizontal | 550mm | 565mm | 580mm | 595mm |
| Front-Center | 638mm | 650mm | 656mm | 661mm |
| Handle-Bar Width | 650mm | 650mm | 650mm | 650mm |
| Stand-Over Height | 711mm | 747mm | 773mm | 818mm |
| Seat-Tube Length, B-B Center to Top | 385mm | 435mm | 460mm | 510mm |
| Fork Rake | 51mm | 51mm | 51mm | 51mm |
| B-B Drop | 65mm | 65mm | 65mm | 65mm |
| Trail | 78mm | 78mm | 74mm | 71mm |
| Wheelbase | 1131mm | 1143mm | 1149mm | 1154mm |
| Crank Length | 170mm | 170mm | 175mm | 175mm |
| Stem Length | 90mm | 90mm | 110mm | 110mm |
