Enduro Pro Carbon 650b

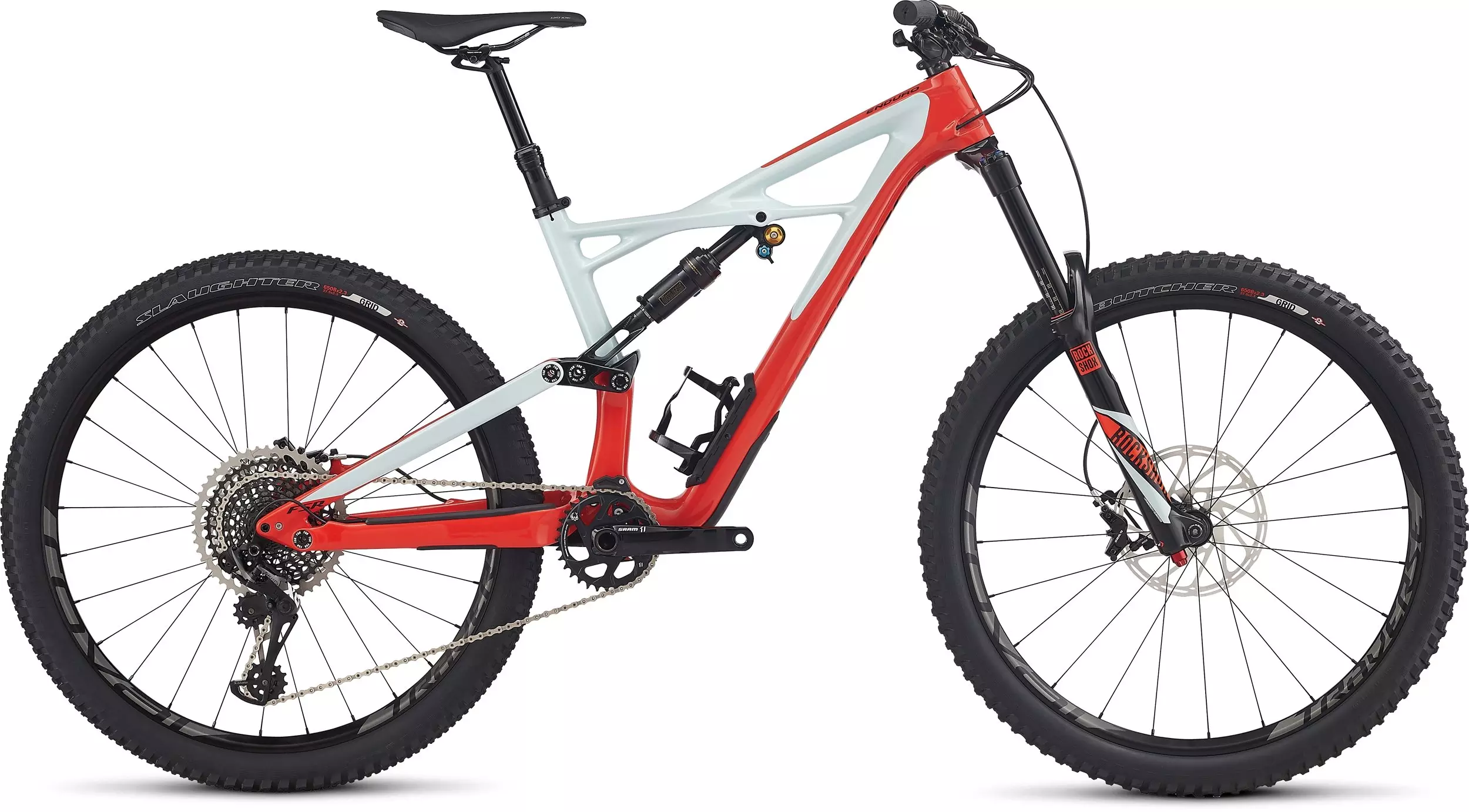

2017 Enduro Pro Carbon 650b
Technical Specifications
FRAMESET
FRAME
FACT 11m, X-Wing layout, full carbon chassis and rear end, All-Mountain Geometry, SWAT™ Door integration, threaded BB, fully enclosed internal cable routing, ManFu link, oversized pivot bearings, 12x148mm dropouts, replaceable derailleur hanger, 170mm of travel
SEAT BINDER
Specialized, alloy, 2-bolt, 27.2mm
SUSPENSION
REAR SHOCK
Custom Öhlins STX, Single Tube design, Rx All-Mountain Tune, 3rd Chamber air spring technology, AUTOSAG, adjustable compression & rebound damping, 216x57mm
FORK
RockShox Lyrik RC 27.5, Solo Air, compression and rebound adjust, tapered steerer, 15x110mm Maxle Stealth thru-axle, 46mm offset, 170mm travel
WHEELS
RIMS
Roval Traverse 650, hookless alloy, 29mm inner width, 24/28h, tubeless ready
FRONT HUB
Roval Traverse, sealed cartridge bearings, 15mm thru-axle, 110mm spacing, 24h
REAR HUB
Roval Traverse, DT Swiss internals, sealed cartridge bearings, SRAM XD driver body, 12mm thru-axle, 148mm spacing, 28h
SPOKES
DT Swiss Revolution
FRONT TIRE
Butcher, GRID casing, 650x2.3"", 60TPI, Aramid folding bead, 2Bliss Ready
REAR TIRE
Slaughter, GRID casing, 650x2.3"", 60TPI, Aramid folding bead, 2Bliss Ready
INNER TUBES
650bx1.75/2.4mm, 40mm Presta valve
DRIVETRAIN
REAR DERAILLEUR
SRAM X01 Eagle, 12-speed
SHIFT LEVERS
SRAM X01 Eagle, 12-speed, trigger
CASSETTE
SRAM XG-1295, 12-speed, 10-50t
CHAIN
SRAM X01 Eagle, silver, 12-speed w/PowerLink
CRANKSET
Custom SRAM X01 Eagle, alloy, 24mm spindle, 52mm chainline
BOTTOM BRACKET
SRAM GXP XR, 73mm
COCKPIT
STEM
Specialized Trail, 3D forged alloy, 4-bolt, 6-degree rise
HANDLEBARS
Specialized DH, 7050 alloy, 8-degree backsweep, 6-degree upsweep, 27mm rise, 780mm, 31.8mm
GRIPS
Specialized Sip Grip, half-waffle, S/M: regular thickness, L/XL: XL thickness
SADDLE
Body Geometry Henge Expert, hollow titanium rails, 143mm
SEATPOST
Command Post IRcc, 12 position micro-height adjustable, alien head design, bottom mount cable routing, remote adjust SRL lever, 30.9mm, S: 100mm, M/L/XL: 125mm travel
BRAKES
FRONT BRAKE
SRAM Guide RS, hydraulic disc, organic pads, Guide S4 4-piston caliper, 200mm rotor
REAR BRAKE
SRAM Guide RS, hydraulic disc, organic pads, Guide S4 4-piston caliper, 180mm rotor
ACCESSORIES
PEDALS
Resin Test Ride w/toe clips
* Weights based on production painted frames as pictured. Actual weights will vary based on colorway, frame size, and component variation. Specifications are subject to change without notice.
Geometry
| S | M | L | XL | |
|---|---|---|---|---|
| Crank Length | 170mm | 170mm | 170mm | 170mm |
| Handlebar Width | 780mm | 780mm | 780mm | 780mm |
| Stem Length | 45mm | 45mm | 60mm | 60mm |
| Saddle Width | 143mm | 143mm | 143mm | 143mm |
| Seatpost Length | 390mm | 430mm | 430mm | 430mm |
| Seat-Tube Angle | 76.5° | 76° | 76° | 75° |
| Head-Tube Length | 95mm | 100mm | 115mm | 125mm |
| Head-Tube Angle | 65.5° | 65.5° | 65.5° | 65.5° |
| Chain-Stay Length | 425mm | 425mm | 425mm | 425mm |
| Front-Center | 728mm | 750mm | 776mm | 801mm |
| B-B Drop | 10.5mm | 10.5mm | 10.5mm | 10.5mm |
| Bike Stand-Over Height | 761mm | 771mm | 782mm | 796mm |
| Fork Length (full) | 559mm | 559mm | 559mm | 559mm |
| Top-Tube Length (horizontal) | 551mm | 576mm | 604mm | 632mm |
| Seat-Tube Length | 396mm | 430mm | 467mm | 521mm |
| B-B Height (650x2.3) | 345mm | 345mm | 345mm | 345mm |
| B-B Height (650x2.6) | 350mm | 350mm | 350mm | 350mm |
| Stack | 585mm | 590mm | 604mm | 613mm |
| Reach | 410mm | 430mm | 450mm | 470mm |
| Trail | 106mm | 106mm | 106mm | 106mm |
| Fork Rake/Offset | 51mm | 51mm | 51mm | 51mm |
| Wheelbase | 1153mm | 1175mm | 1201mm | 1225mm |
