Demo Race 29

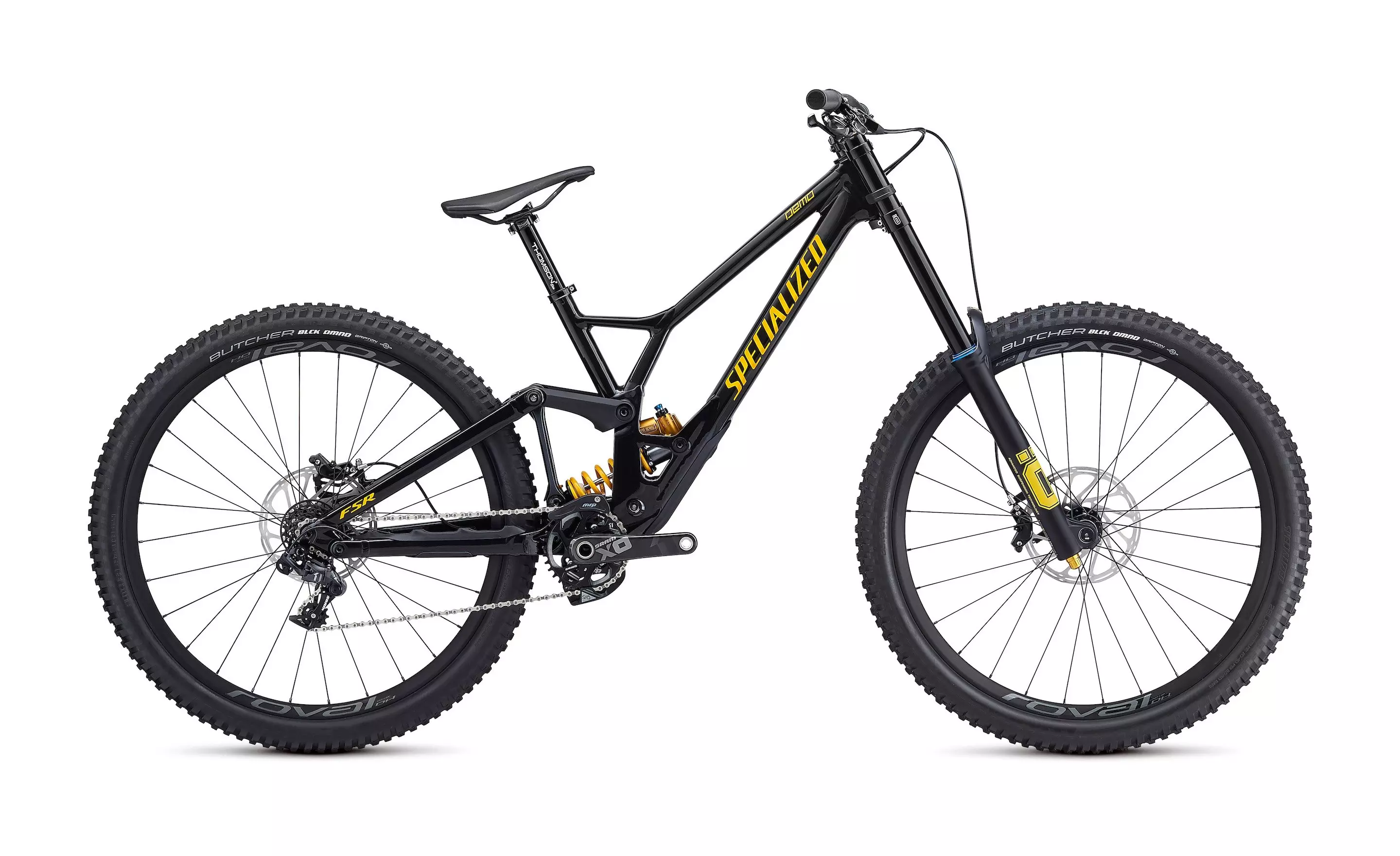

2019 Demo Race 29
The new Demo 29 comes roaring comes roaring out of the gates with multiple World Cup wins already under its belt. New chassis, new suspension kinematics, new geometry, and, yeah, new wheel size. We’ve hung the Race model with the best gravity kit available. Full gas. Full fast.
SMOOTH AND CONTROLLED
The new Demo 29’s is blazing fast on tough tracks thanks to an axle path that reduces rear wheel hang up. And during moments when you do need to grab the brakes, the Demo 29 stays planted—with plenty of traction—we’ve added just the right amount of anti-rise to the mix.
FAST ON THE GAS
When every second counts, every pedal stroke counts. The Demo 29’s new design allows for just the right amount of anti-squat. Or to put a finer point on it, you crank on the pedals and the Demo 29 rips forward instead of bobbing around uncontrollably and slowing you down.
WORLD CUP-PROVEN COMPONENTS
• All-new Demo design is faster, smoother, and more controlled on the toughest tracks.
• Öhlins DH 29 fork and TTX rear shock provide stellar adjustability and control.
• SRAM’s 4-piston Code RSC disc brak es are powerful yet offer plenty of modulation.
Technical Specifications
FRAMESET
FRAME
M5 alloy, Style-Specific DH Geometry, BSA threaded BB, full internal cable routing with option for full external brake, 148mm rear spacing, sealed cartridge bearing pivots, replaceable derailleur hanger, 200mm of travel
SUSPENSION
FORK
Öhlins DH 29, Twin-Tube design, air spring w/ adjustable 3rd chamber, adjustable high- & low-speed compression, adjustable rebound, 20x110mm thru-axle, 58mm offset, 200mm of travel
REAR SHOCK
Öhlins TTX, Twin-Tube design, high- & low-speed compression adjust, external rebound adjust, Trunnion mount, 225x75
COCKPIT
HANDLEBARS
Specialized DH, FACT carbon, 6-degree upsweep, 8-degree backsweep, 27mm rise, 800mm, 31.8mm
STEM
Specialized Direct Mount DH Stem, two-piece, forged alloy, 45mm
GRIPS
Deity, Knuckleduster, Black
SADDLE
Body Geometry Henge DH, hollow titanium rails, 130mm
SEATPOST
Thomson, alloy, straight, 12-degree clamp
SEAT BINDER
Alloy, 34.9mm
BRAKES
FRONT BRAKE
SRAM Code RSC, 4-piston caliper, hydraulic disc, 200mm
REAR BRAKE
SRAM Code RSC, 4-piston caliper, hydraulic disc, 200mm
DRIVETRAIN
SHIFT LEVERS
SRAM X01 DH, trigger, 7-speed
REAR DERAILLEUR
SRAM X01 DH, 7-speed, trigger
CASSETTE
SRAM X01 DH, 7-speed, 10-24t
CRANKSET
SRAM X01 DH, DUB, carbon, Direct mount ring, 165mm
CHAINRINGS
Steel, 30T
BOTTOM BRACKET
SRAM DUB, 83mm
CHAIN
Sram PC1130 w/ Powerlink, 11-speed
WHEELS & TIRES
RIMS
Roval 29" Alloy DH, 28mm internal width, 28h, tubeless ready
FRONT HUB
Specialized disc, alloy flange & disc mount, sealed cartridge bearings, 20x110mm thru-axle, 28h
REAR HUB
DT Swiss 350, SRAM XD freehub, 6-bolt disc, high-low flange, sealed cartridge bearings, 12x148mm spacing, 28h
SPOKES
DT Swiss Competition, stainless steel, 14g
FRONT TIRE
Butcher BLCK DMND, 2Bliss Ready, 29x2.6"
REAR TIRE
Butcher BLCK DMND, 2Bliss Ready, 29x2.3"
INNER TUBES
Standard, Presta valve
* Weights based on production painted frames as pictured. Actual weights will vary based on colorway, frame size, and component variation. Specifications are subject to change without notice.
Geometry
| S2 | S3 | S4 | |
|---|---|---|---|
| Crank Length | 165mm | 165mm | 165mm |
| Handlebar Width | 800mm | 800mm | 800mm |
| Stem Length | 45mm | 45mm | 45mm |
| Saddle Width | 143mm | 143mm | 143mm |
| Seatpost Length | 367mm | 367mm | 367mm |
| Stack | 633mm | 633mm | 633mm |
| Reach | 425mm | 445mm | 465mm |
| Head Tube Length | 105mm | 105mm | 105mm |
| Head Tube Angle | 62.7° | 62.7° | 62.7° |
| BB Height | 350mm | 350mm | 350mm |
| BB Drop | 25mm | 25mm | 25mm |
| Trail | 128mm | 128mm | 128mm |
| Fork Length, Full | 608mm | 608mm | 608mm |
| Fork Rake/Offset | 58mm | 58mm | 58mm |
| Front Center | 804mm | 824mm | 844mm |
| Chainstay Length | 450mm | 450mm | 450mm |
| Wheelbase | 1253mm | 1273mm | 1293mm |
| Top Tube Length, Horizontal | 563mm | 600mm | 620mm |
| Bike Standover Height | 760mm | 760mm | 760mm |
| Seat Tube Length | 394mm | 420mm | 420mm |
| Seat Tube Angle | 77.7° | 76.3° | 76.3° |
