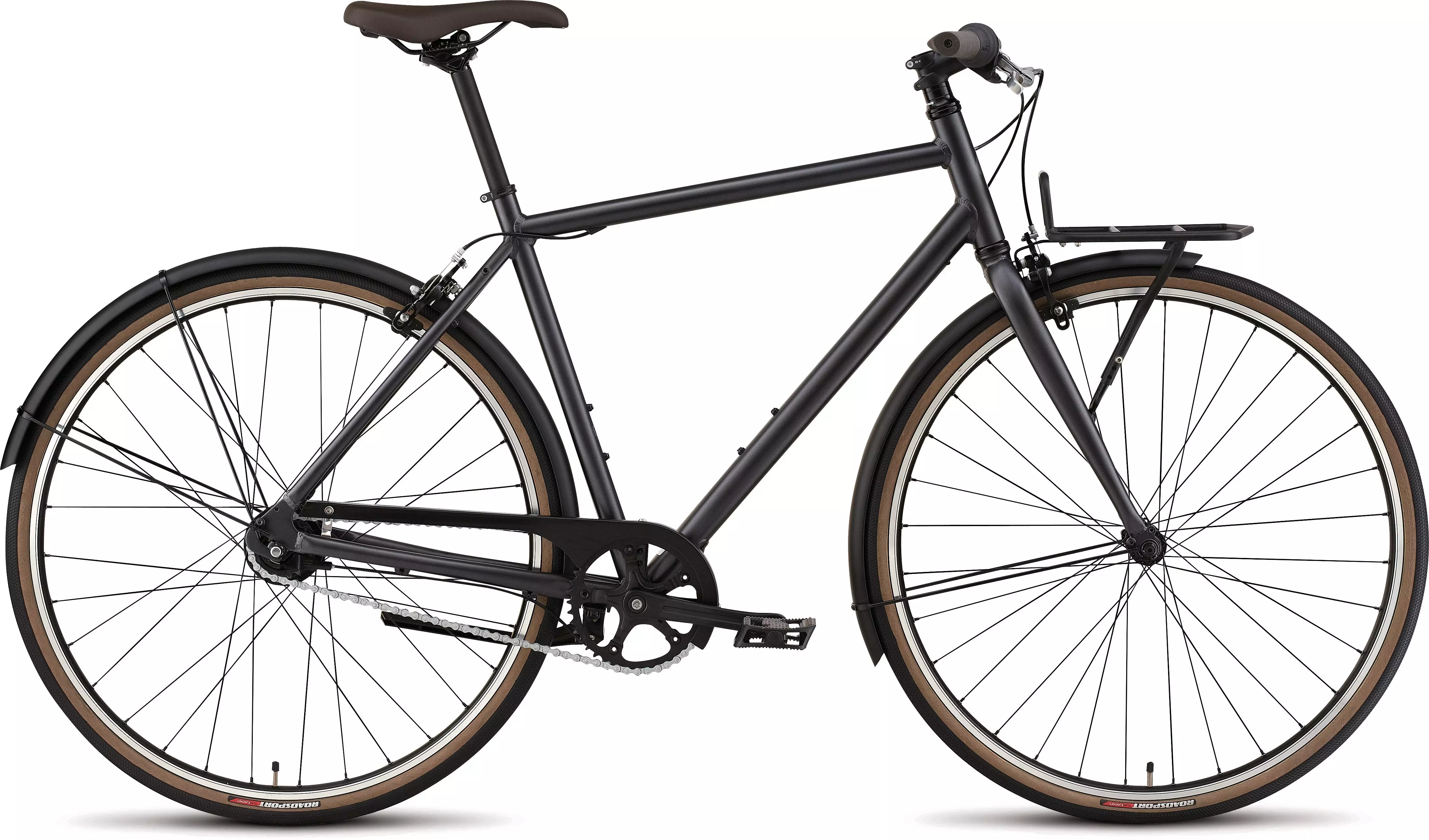

2015 Daily Elite
0 Reviews
Trouble-free Shimano Nexus 7-speed internal hub, integrated lights, rack, and fenders,…
Color:
Raw / Satin Tinted Light Graphite
What's my size?
Select a Size
Product Details
Trouble-free Shimano Nexus 7-speed internal hub, integrated lights, rack, and fenders, plus reflective tires give the Daily Elite everything you need for your daily rides in any weather, night or day. Low-standover, step-through frame improves convenience and confidence.
Simple and durable Hi-Ten steel fork with bent legs to smooth out the road
A1 Premium Aluminum classic city frame is stylish and lightweight w/ fender/rack mounts
Steel fenders keep you dry and clean from road debris
Specialized Infinity 700x38c tires w/ Flak Jacket puncture protection and reflective strip
Classic men’s saddle w/ steel rails for all-day comfort
Specialized Body Geometry Contour, lock-on grips for comfort and safety
Shimano Nexus, 7-speed internal hub for maintenance free, accurate shifting
Technical Specifications
FRAMESET
FRAME
Specialized A1 Premium Aluminum, w/ fender/rack braze-ons, integrated kickstand mount
FORK
Steel, straight blade, w/ accessory mounting eyelets
HEADSET
1-1/8"" Ahead, loose ball, cold-forged Cr-Mo cups
SEAT BINDER
Alloy, 31.8mm
WHEELS
REAR TIRE
Specialized Roadsport, 60TPI, wire bead, Flak Jacket protection, 700x35c
RIMS
700c, alloy double-wall, CNC sidewalls, pin joint, 24mm inner width, 32h
FRONT HUB
Double-sealed, QR, 32h
SPOKES
Stainless, 14g
INNER TUBES
Standard, Schrader valve
REAR HUB
Shimano Nexus, 7-speed internal, for Roller Brake, 32h
FRONT TIRE
Specialized Roadsport, 60TPI, wire bead, Flak Jacket protection, 700x35c
DRIVETRAIN
SHIFT LEVERS
Shimano Nexus Revo-Shift, 7-speed
CASSETTE
Shimano Nexus, 19T
CHAIN
KMC Z510X, single speed, 1/2""x1/8"", anti-rust finish, w/ 3 pc. connector
CRANKSET
Forged alloy
CHAINRINGS
42T, forged alloy
BOTTOM BRACKET
Square taper, cartridge bearings, 68mm
COCKPIT
HANDLEBARS
Pencil Moustache, alloy, 10-degree backsweep, 0mm rise, 31.8mm
STEM
Specialized 3D forged alloy, 4-bolt, 6-degree rise, anti-corrosion hardware
TAPE
Specialized Body Geometry Contour, lock-on
SADDLE
Classic Men’s, steel rails, 152mm
SEATPOST
Alloy, 2-bolt, micro-adjust, 12.5mm offset, 27.2mm, anti-corrosion hardware
BRAKES
FRONT BRAKE
Tektro, caliper, dual pivot, tooled reach adjust
REAR BRAKE
Tektro, caliper, dual pivot, tooled reach adjust
BRAKE LEVERS
Die-cast alloy, Kraton pad
ACCESSORIES
PEDALS
Comfort, composite body w/ rubber top, sealed loose ball bearings
* Weights based on production painted frames as pictured. Actual weights will vary based on colorway, frame size, and component variation. Specifications are subject to change without notice.
Geometry
| S | M | L | XL | |
|---|---|---|---|---|
| Top Tube Length (Horizontal) | 560mm | 575mm | 600mm | 615mm |
| Rake | 60mm | 60mm | 51mm | 51mm |
| Seat Tube Length, Center to Top | 490mm | 530mm | 570mm | 610mm |
| Bottom Bracket Drop | 70mm | 70mm | 70mm | 70mm |
| Wheel Base | 1056mm | 1056mm | 1055mm | 1070mm |
| Standover Height | 752mm | 771mm | 801mm | 825mm |
| Stack | 579mm | 592mm | 611mm | 620mm |
| Reach | 372mm | 377mm | 396mm | 407mm |
| Head Tube Length | 155mm | 165mm | 175mm | 185mm |
| Head Tube Angle | 70° | 71° | 72.5° | 72.5° |
| Trail | 62mm | 56mm | 56mm | 56mm |
| Front Center | 625mm | 624mm | 624mm | 638mm |
| Chainstay Length | 441mm | 441mm | 441mm | 441mm |
| Seat Tube Angle | 72° | 71.5° | 71.5° | 71.5° |
| Crank Length | 170mm | 170mm | 175mm | 175mm |
| Handlebar Width | 680mm | 680mm | 680mm | 680mm |
| Stem Length | 70mm | 70mm | 80mm | 80mm |
| Seatpost Length | 350mm | 350mm | 350mm | 350mm |
Manual Downloads
For safety warnings please refer to the documentation in the Manual Downloads section of this page.
