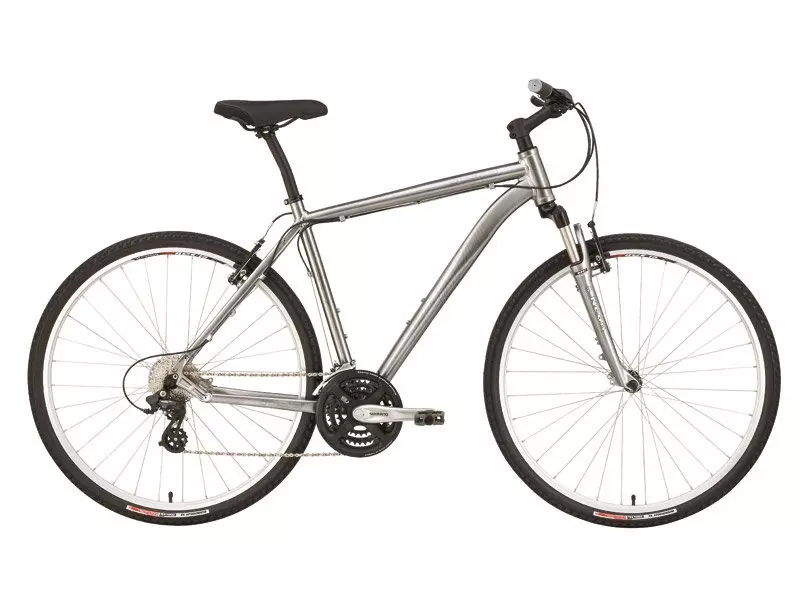

2008 Crosstrail

0 Reviews

Performance All-Road CHANGING LANES For the casual rider looking for a little…

Color:

Dream Silver

What's my size?

Imperial

Metric

Enter your height and we'll calculate your size.

Height:

For a more accurate result, include your shin length.

Select a Size

Product Details

Performance All-Road CHANGING LANES For the casual rider looking for a little departure from a well-worn commute, the Crosstrail™ is the perfect hybrid for mixing off-road exploits and smooth-rolling fun.Inside Tech The Crosstrail has a little Jekyll and Hyde syndrome—mountain aggressor one day and road lover the next, it's equipped with road geometry and 700c Borough tires for easy-rolling on the black top, but a suspension fork and MTB drivetrain to tackle off-roadobstacles. To suit whichever mood you're in.

Technical Specifications

FRAMESET

FRAME

Specialized A1 Premium Aluminum, fully manipulated 700c sloping commuter frame, integrated headset, forged drop outs w/ replaceable hanger

FORK

RST Neon TnL8, alloy lower, coil spring

HEADSET

1 1/8"" threadless, integrated

SEAT BINDER

Specialized forged alloy

WHEELS

FRONT TIRE

Borough XC Sport 700x45c, 60TPI, wire bead

REAR TIRE

Borough XC Sport 700x45c, 60TPI, wire bead

RIMS

Alex Z-1000, 700c, alloy

FRONT HUB

Specialized, forged alloy, 32h, polished races, steel QR

REAR HUB

Shimano FH-RM30, forged, 32h, cassette, double sealed, QR

SPOKES

1.8mm (15g) stainless

DRIVETRAIN

FRONT DERAILLEUR

Shimano C-102, dual swing, 31.8mm clamp

REAR DERAILLEUR

Shimano Altus RD-M310

SHIFT LEVERS

Shimano EF-50

CHAIN

KMC X8, 1/2"" x 3/32"" w/ reusable Missing Link

CRANKSET

Shimano FCM-191, alloy outer ring

CHAINRINGS

48Sx36Sx26S, Super Shifter III, w/ chainguard

BOTTOM BRACKET

Shimano BB-UN-25, cartridge bearing, 68 x 113mm

COCKPIT

STEM

Specialized forged alloy, 15 degree rise

HANDLEBARS

Specialized low rise, 25.4mm, 620mm wide, 6066 butted alloy, 8 degree back, 6 degree up sweep

SADDLE

Specialized Body Geometry, 155mm width, black

BRAKES

FRONT BRAKE

Specialized V-Brakes

REAR BRAKE

Specialized V-Brakes

BRAKE LEVERS

Shimano EF-50 integrated

ACCESSORIES

PEDALS

Alloy w/ Kraton contact

* Weights based on production painted frames as pictured. Actual weights will vary based on colorway, frame size, and component variation. Specifications are subject to change without notice.

Geometry

	45	49	52	55	58	61
Ground-Top	65mm	65mm	65mm	65mm	65mm	65mm
Seat-Tube Angle	96°	96°	92°	92°	92°	92°
Head-Tube Length	170mm	170mm	170mm	175mm	175mm	175mm
Head-Tube Angle	641°	645°	649°	651°	651°	657°
Chain-Stay Length	43mm	43mm	43mm	43mm	43mm	43mm
Top-Tube Length, Horizontal	74mm	74mm	73.5mm	72.5mm	71.5mm	71mm
Front-Center	110mm	120mm	120mm	130mm	160mm	185mm
Handle-Bar Width	350mm	350mm	350mm	350mm	350mm	350mm
Stand-Over Height	90mm	90mm	90mm	105mm	105mm	105mm
Seat-Tube Length, B-B Center to Top	450mm	450mm	450mm	450mm	450mm	450mm
Fork Rake	1083mm	1087mm	1091mm	1093mm	1093mm	1099mm
B-B Drop	69mm	69mm	69.5mm	69.5mm	69.5mm	69.5mm
Stack	432mm	460mm	495mm	535mm	575mm	610mm
Reach	575mm	575mm	585mm	595mm	605mm	615mm
Trail	793mm	809mm	829mm	844mm	876mm	901mm
Wheelbase	620mm	620mm	620mm	620mm	620mm	620mm
