Camber Comp Carbon 650b

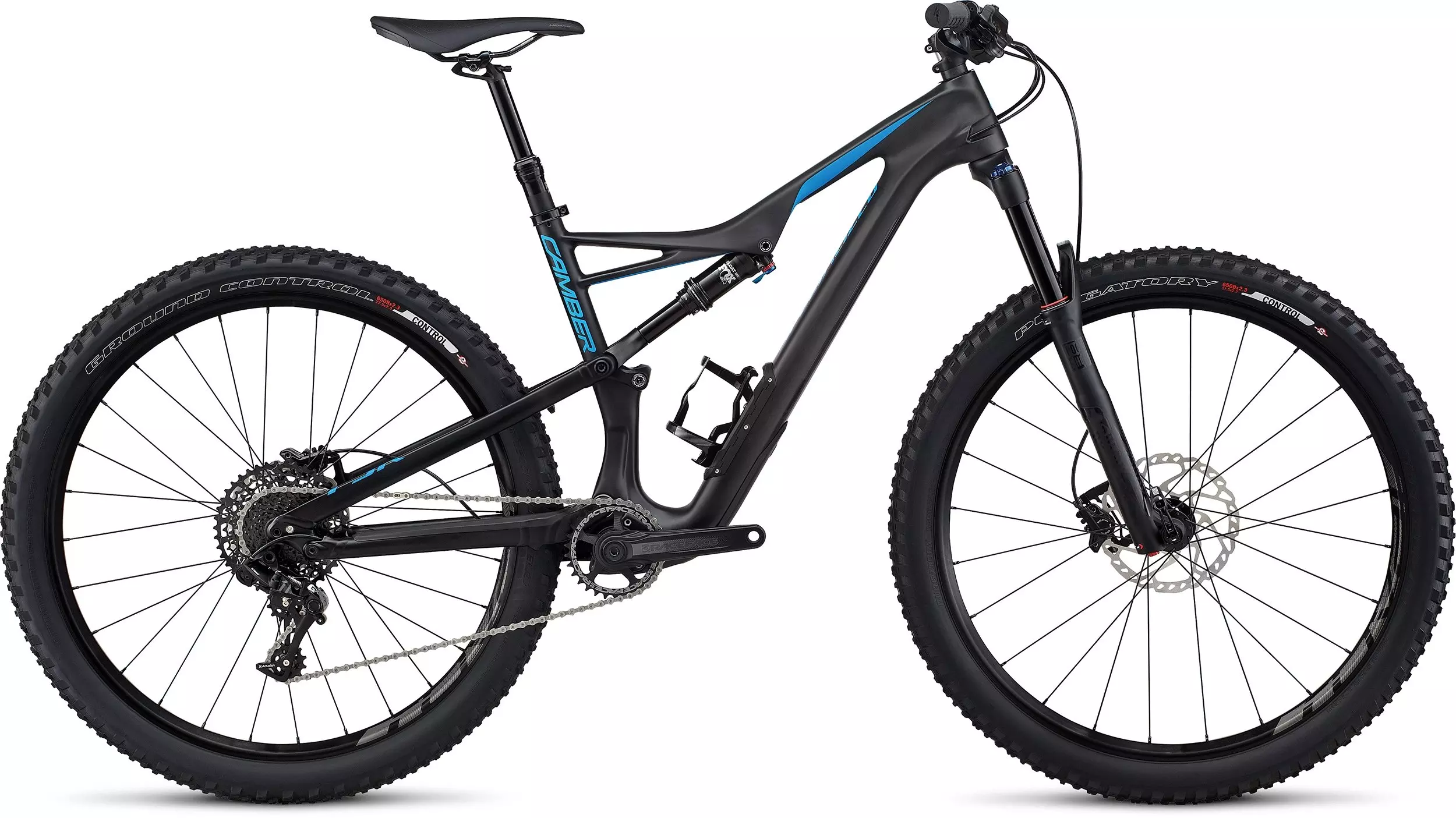

2017 Camber Comp Carbon 650b

Life is full of choices, but choosing the right trail bike isn't an easy one. If you value efficiency and playful trail manners, however, the Camber Comp Carbon 650b is for you. It blends all of the trail bike characteristics that you want with the XC climbing prowess that you need. This is achieved by thoughtfully combining our FACT 9m carbon fiber Trail Chassis with a M5 alloy Camber FSR rear end. The combination results in blending light weight, rigidity, and durability in one package. At both ends of the bike, you'll find a little extra travel to deliver 130mm of plush suspension—all without going overboard on big hit capability. This means that you don't have to sacrifice efficiency, weight, or sheer speed to ride how you want. And with our Trail 650b Geometry and lightweight, stiff, and smooth Concentric Pivot at the rear, we can guarantee it. The other trail component of the Camber is utility, and along these lines, it features our fully integrated SWAT Door at the down tube of the frame. Open it up, and you're able to safely and securely house your ride essentials right where you want them—on the bike. For the build, we selected components that focus on strength and performance, like a SRAM S-1000 one-by drivetrain, powerful Shimano hydraulic disc brakes, and our all-new Command Post IRcc dropper with up to 10 mid positions. However you ride, the Camber is ready for it.

Technical Specifications

FRAMESET

FRAME

FACT 9m, carbon front chassis, M5 alloy rear end, Trail Geometry, SWAT™ Door integration, PF30 BB, fully enclosed internal cable routing, Concentric Pivot link, 12x148mm dropouts, sealed cartridge bearing pivots, replaceable derailleur hanger, 130mm of travel

SEAT BINDER

Alloy, 34.9mm

SUSPENSION

REAR SHOCK

FOX FLOAT Performance, Rx Trail Tune, AUTOSAG, DPS damper, rebound and 3-position compression adjust, 205x53mm

FORK

RockShox Revelation RL 27.5, Solo Air spring, lockout and rebound adjust, 15x110mm Maxle Lite thru-axle, 46mm offset, 130mm travel

WHEELS

RIMS

Roval Traverse 650b, hookless alloy, 29mm inner width, 24/28h, tubeless ready

FRONT HUB

Specialized disc, alloy, sealed cartridge bearings,15x110mm thru-axle, 24h

REAR HUB

Specialized disc, alloy, sealed cartridge bearings, 12x148mm thru-axle, 28h

SPOKES

DT Swiss Industry, stainless, 3x, 2.0""

FRONT TIRE

Purgatory, Control casing, 650bx2.3"", 60TPI, Aramid folding bead, 2Bliss Ready

REAR TIRE

Ground Control, Control casing, 650bx2.3"", 60TPI, Aramid folding bead, 2Bliss Ready

INNER TUBES

650bx1.75/2.4mm, 40mm Presta valve

DRIVETRAIN

REAR DERAILLEUR

SRAM GX, long cage, 11-speed

SHIFT LEVERS

SRAM NX, 11-speed, trigger

CASSETTE

SRAM PG-1130, 11-speed, 11-42t

CHAIN

SRAM PC-1110, 11-speed w/PowerLink

CRANKSET

RaceFace Aeffect, 6000-series alloy, 24mm spindle, 52mm chainline, 30T

CHAINRINGS

Race Face, 30T

BOTTOM BRACKET

PF30

COCKPIT

STEM

Specialized Trail, 3D forged alloy, 4-bolt, 6-degree rise

HANDLEBARS

Specialized, 6061 alloy, 6-degree upsweep, 8-degree backsweep, 27mm rise, 750mm width

GRIPS

Specialized Sip Grip, half-waffle, S/M: regular thickness, L/XL: XL thickness

SADDLE

Body Geometry Henge Comp, hollow Cr-Mo rails, 143mm

SEATPOST

Command Post IRcc, 12 position micro-height adjustable, alien head design, bottom mount cable routing, remote SRL lever, 30.9mm, S: 100mm, M/L/XL: 125mm travel

BRAKES

FRONT BRAKE

Shimano M506, hydraulic disc, resin pad, 200/180mm rotor

REAR BRAKE

Shimano M506, hydraulic disc, resin pad, 180/160mm rotor

ACCESSORIES

PEDALS

Resin Test Ride w/toe clips

* Weights based on production painted frames as pictured. Actual weights will vary based on colorway, frame size, and component variation. Specifications are subject to change without notice.

Geometry

	S	M	L	XL
Crank Length	170MM	175MM	175MM	175MM
Handlebar Width	750mm	750mm	750mm	750mm
Stem Length	60mm	60mm	75mm	90mm
Saddle Width	143mm	143mm	143mm	143mm
Seatpost Length	390mm	430mm	430mm	430mm
Seat-Tube Angle	75°	75°	75°	75°
Head-Tube Length	95mm	105mm	115mm	125mm
Head-Tube Angle	68°	68°	68°	68°
Chain-Stay Length	420mm	420mm	420mm	420mm
Front-Center	670mm	700mm	732mm	757mm
B-B Drop	23mm	23mm	23mm	23mm
Bike Stand-Over Height	725mm	730mm	743mm	752mm
Fork Length (full)	522mm	522mm	522mm	522mm
Top-Tube Length (horizontal)	554mm	583mm	614mm	638mm
Seat-Tube Length	396mm	430mm	468mm	523mm
B-B Height (650x2.3)	329mm	329mm	329mm	329mm
B-B Height (650x2.6)	334mm	334mm	334mm	334mm
Stack	580mm	590mm	599mm	608mm
Reach	399mm	425mm	454mm	475mm
Trail	97mm	97mm	97mm	97mm
Fork Rake/Offset	42mm	42mm	42mm	42mm
Wheelbase	1089mm	1119mm	1151mm	1176mm
