Roll Elite

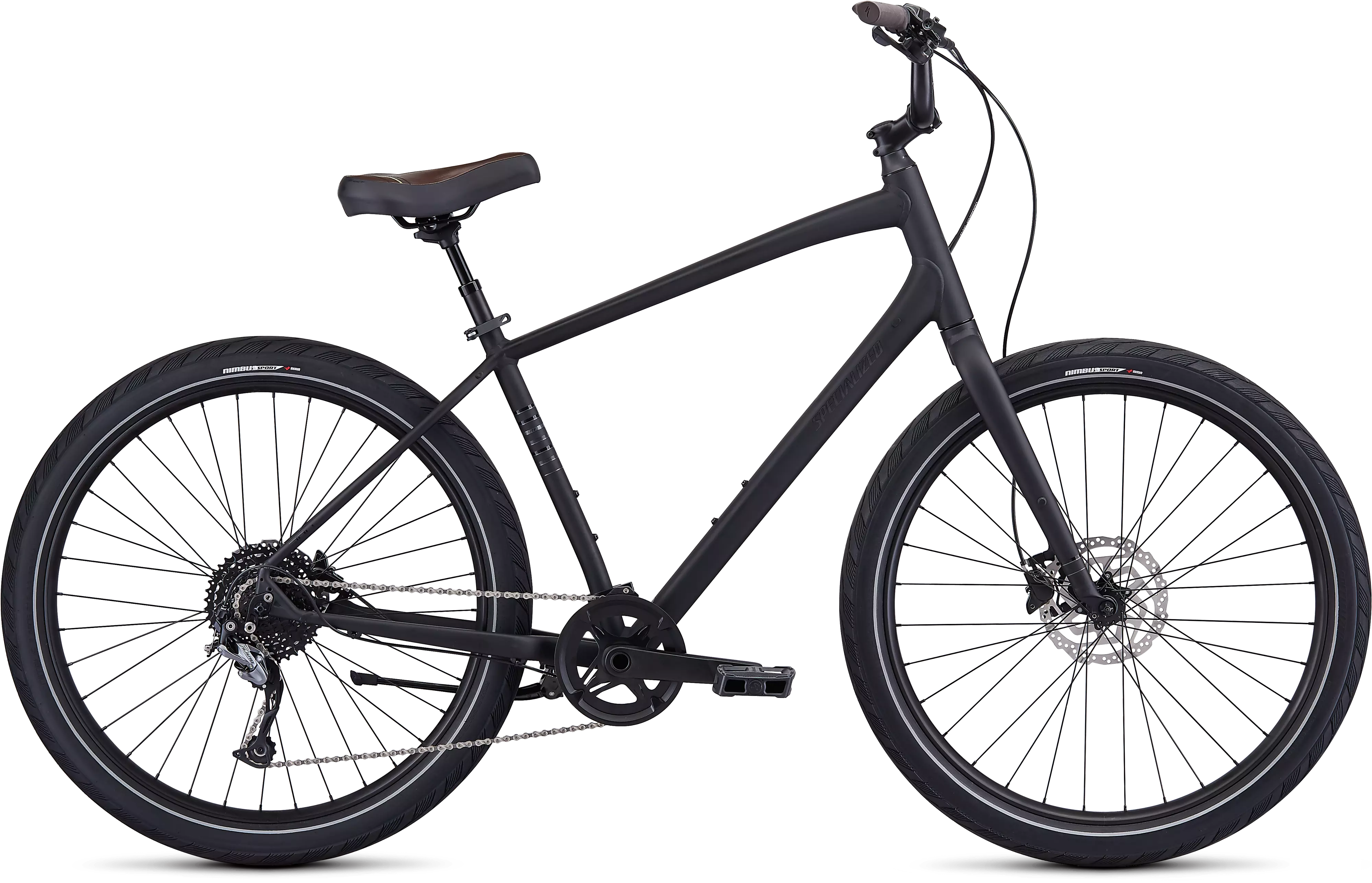

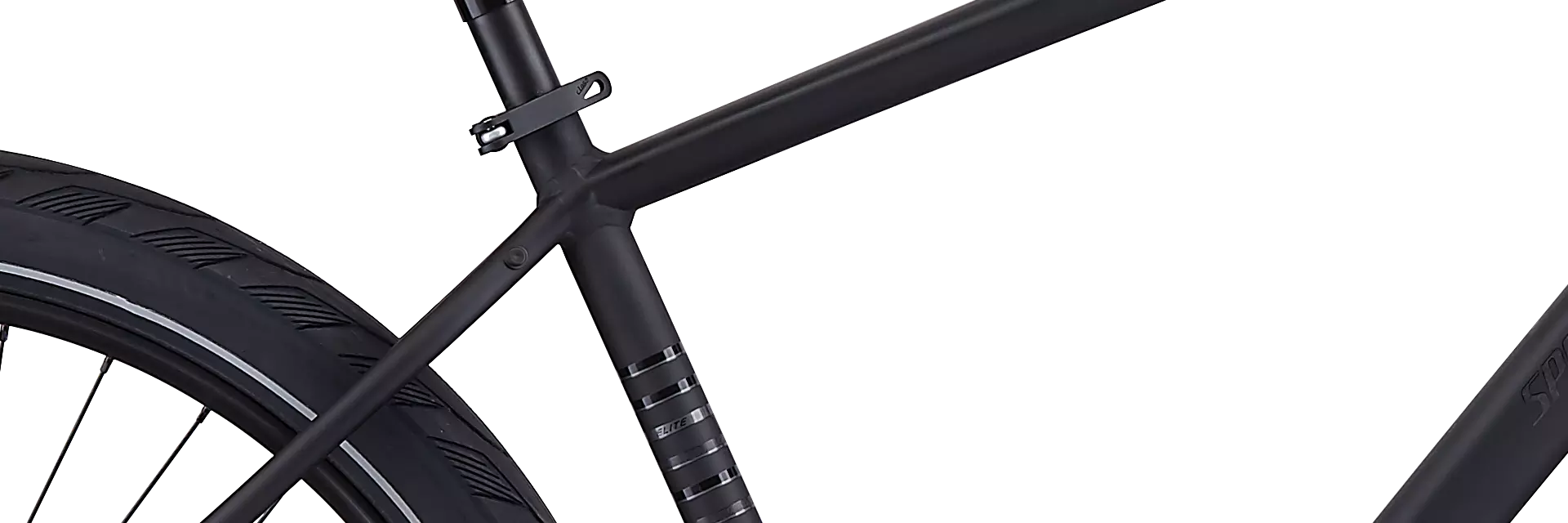

2019 Roll Elite
There are two types of personal trainers in the world—drill sergeants and cheerleaders. The Roll Elite is the latter kind, in bicycle form—kindly inspiring you to get out and break a sweat.
With its lightweight alloy frame and fork, nine speeds of "go fast" gearing, stable and wide 650b tires, and powerful hydraulic disc brakes, the Roll does everything in its power to encourage and motivate you to keep fit in comfortable, efficient style.
Technical Specifications
FRAMESET
FRAME

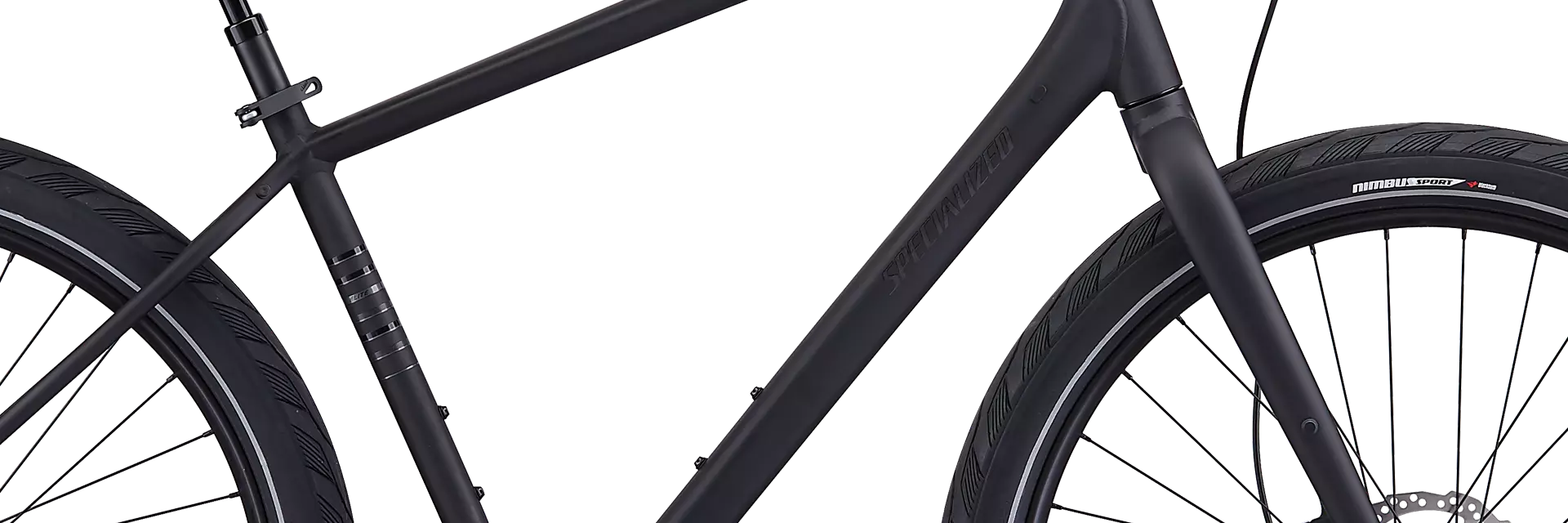

Specialized A1 Premium Aluminum, Ground Control Positioning, formed tubes, post-mount disc, fender/rack mounts
COCKPIT

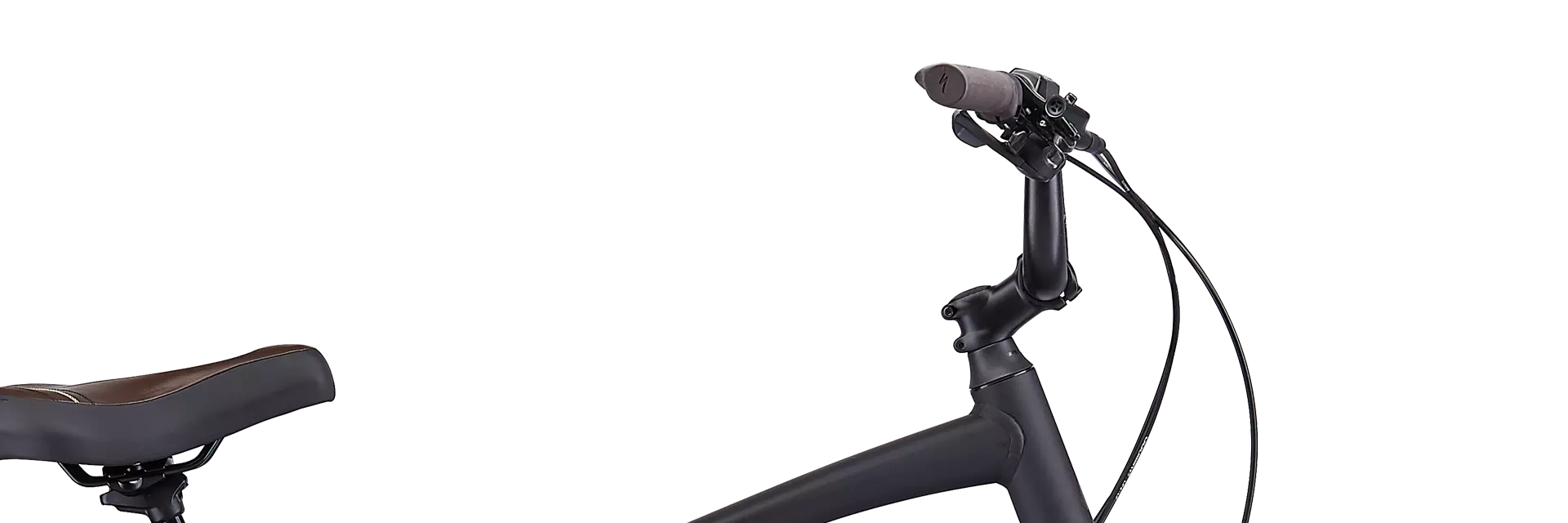

STEM
Forged alloy, 17-degree rise
GRIPS
Specialized Body Geometry Contour, lock-on
SADDLE
Specialized Body Geometry "The Cup," Gel, steel rails, 245mm
SEATPOST
Suspension seatpost, 27.2mm
SEAT BINDER
Quick-release clamp, 31.8mm
HANDLEBARS
Specialized Roll, 6061 alloy, 4 times butted, 15-degree backsweep, 125mm rise, 31.8mm
SUSPENSION

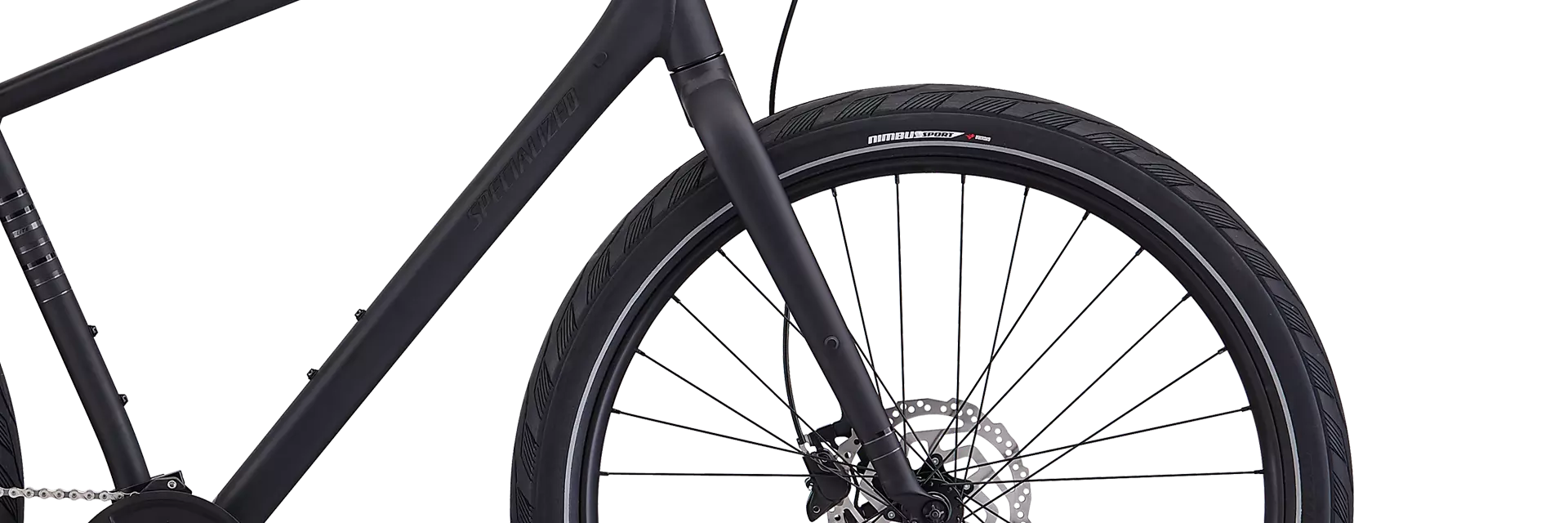

FORK
A1 Premium Aluminum, Cr-Mo steerer, post-mount disc, fender/rack mounts
BRAKES

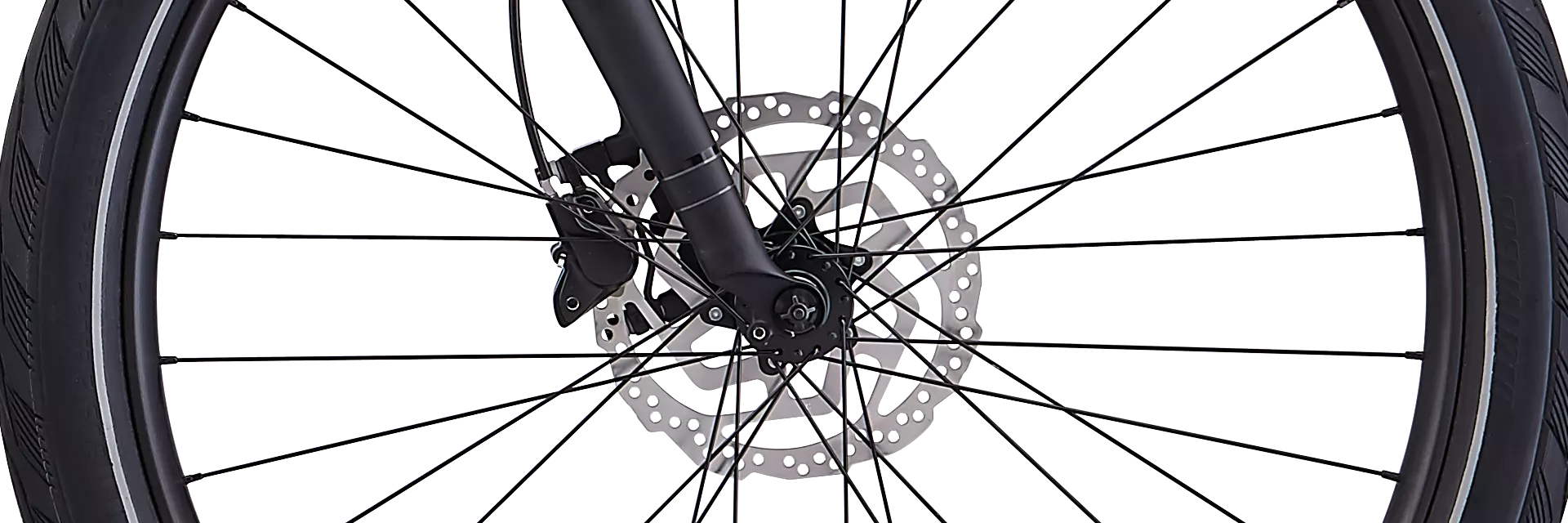

FRONT BRAKE
Shimano BR-MT200, hydraulic disc, post-mount, 180mm
REAR BRAKE
Shimano BR-MT200, hydraulic disc, post-mount, 160mm
DRIVETRAIN
SHIFT LEVERS
Shimano Altus, 9-speed w/ optical gear display

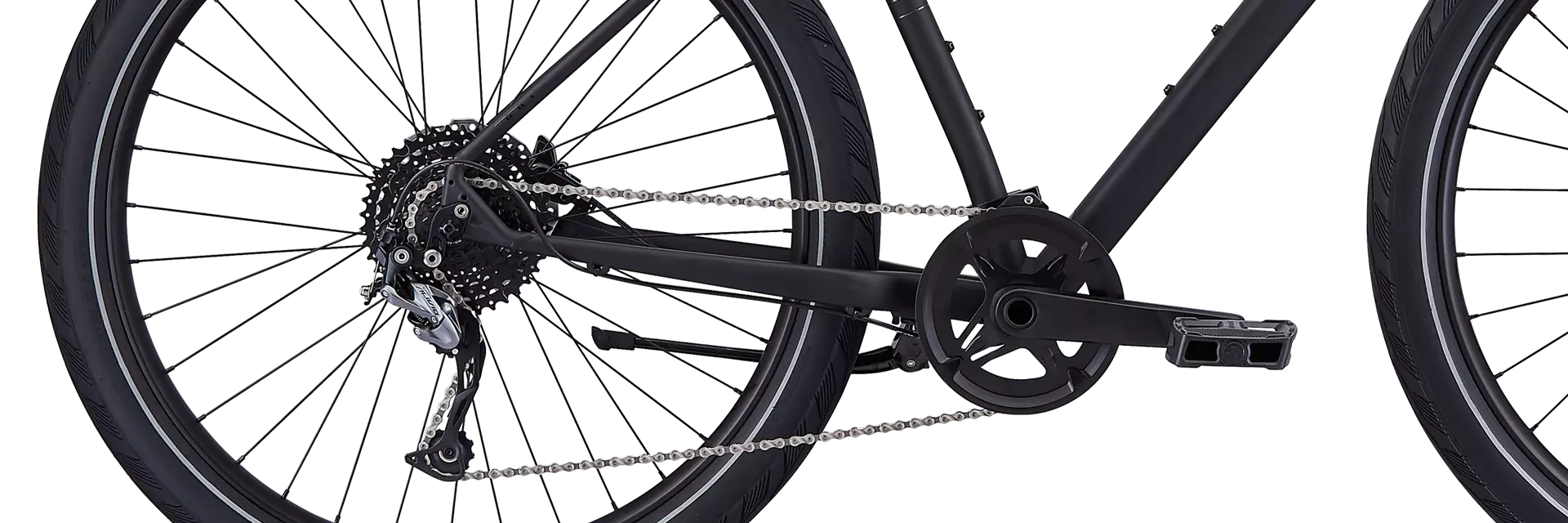

REAR DERAILLEUR
Shimano Alivio, Shadow Design, SGS cage, 9-speed

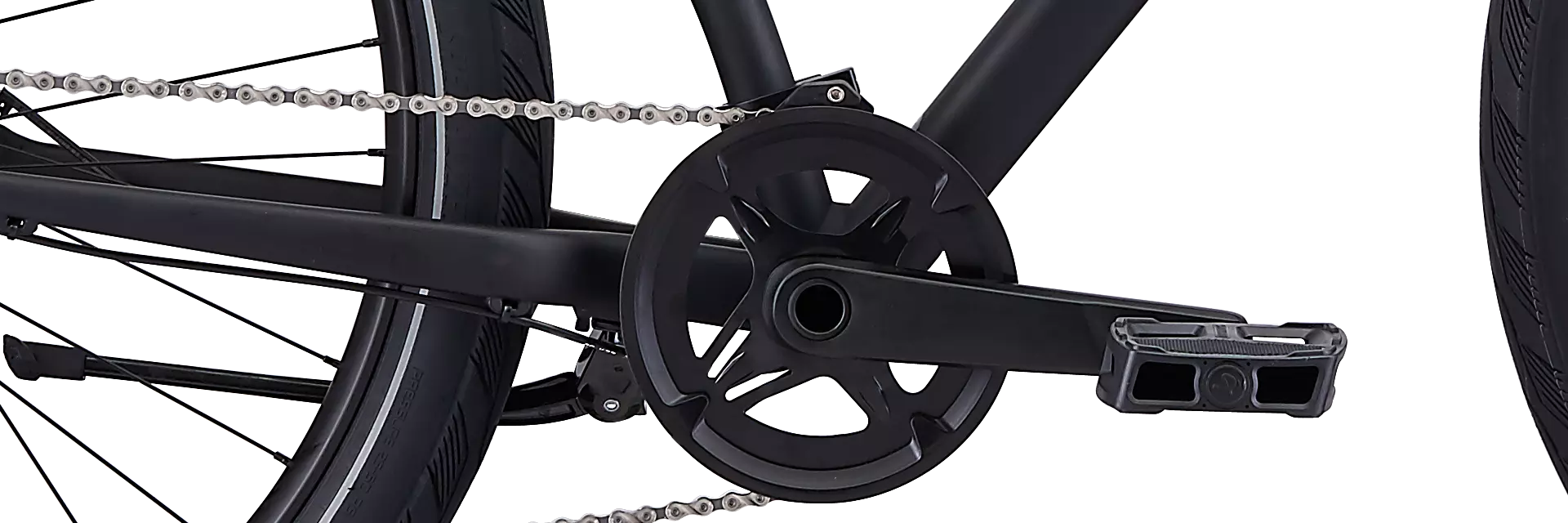

CRANKSET
Forged alloy, 2-piece w/ chainguard
CASSETTE
SunRace, 9-speed, 11-40t
CHAINRINGS
40T
BOTTOM BRACKET
BSA for 24mm spindle
CHAIN
KMC X9, 9-speed w/ Missing Link™
WHEELS & TIRES
RIMS
Double-wall, disc-specific, 32h front/ 36h rear
FRONT HUB
Shimano HB-MT200, 9x100mm QR, Center Lock™ disc, 32h
REAR HUB
Shimano, 8-/9-/10-speed freehub, Center Lock™ disc, 135mm spacing, quick-release, 36h
SPOKES
Stainless, 14g, black
REAR TIRE
Nimbus II Sport Reflect, 60 TPI, 650b x 2.3"
FRONT TIRE

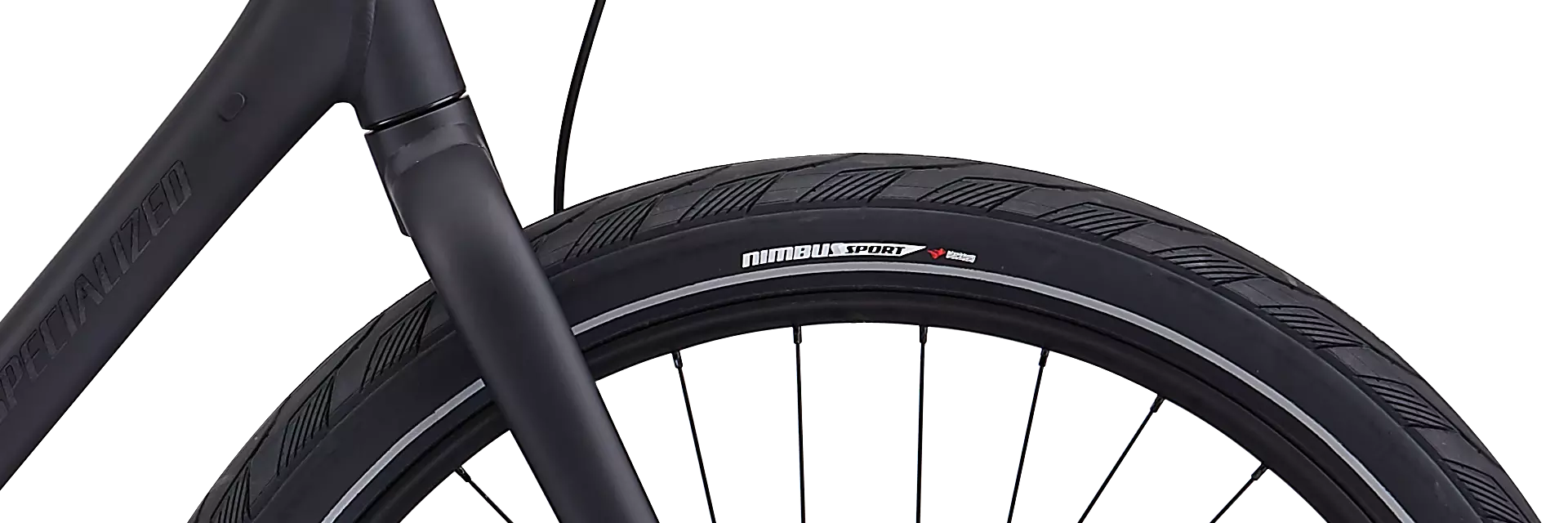

Nimbus II Sport Reflect, 60 TPI, 650b x 2.3"
INNER TUBES
Schrader valve
ACCESSORIES
PEDALS
Specialized City, platform
* Weights based on production painted frames as pictured. Actual weights will vary based on colorway, frame size, and component variation. Specifications are subject to change without notice.
Geometry
| S | M | L | XL | |
|---|---|---|---|---|
| Crank Length | 165mm0000101651 | 170mm | 175mm | 175mm |
| Handlebar Width | 680mm | 680mm | 680mm | 680mm |
| Stem Length | 60mm | 60mm | 60mm | 60mm |
| Saddle Width | 245mm | 245mm | 245mm | 245mm |
| Seatpost Length | 350mm | 350mm | 350mm | 350mm |
| Stack | 583mm | 616mm | 644mm | 667mm |
| Reach | 346mm | 352mm | 370mm | 392mm |
| Head Tube Length | 155mm | 185mm | 215mm | 240mm |
| Head Tube Angle | 68° | 69° | 69° | 69° |
| BB Height | 285mm | 285mm | 285mm | 285mm |
| BB Drop | 70mm | 70mm | 70mm | 70mm |
| Trail | 84mm | 77mm | 77mm | 77mm |
| Fork Length, Full | 420mm | 420mm | 420mm | 420mm |
| Fork Rake/Offset | 55mm | 55mm | 55mm | 55mm |
| Front Center | 617mm | 624mm | 653mm | 684mm |
| Chainstay Length | 480mm | 480mm | 480mm | 480mm |
| Wheelbase | 1088mm | 1095mm | 1124mm | 1155mm |
| Top Tube Length, Horizontal | 594mm | 613mm | 643mm | 675mm |
| Bike Standover Height | 801mm | 850mm | 881mm | 911mm |
| Seat Tube Length | 375mm | 440mm | 480mm | 520mm |
| Seat Tube Angle | 67° | 67° | 67° | 67° |
