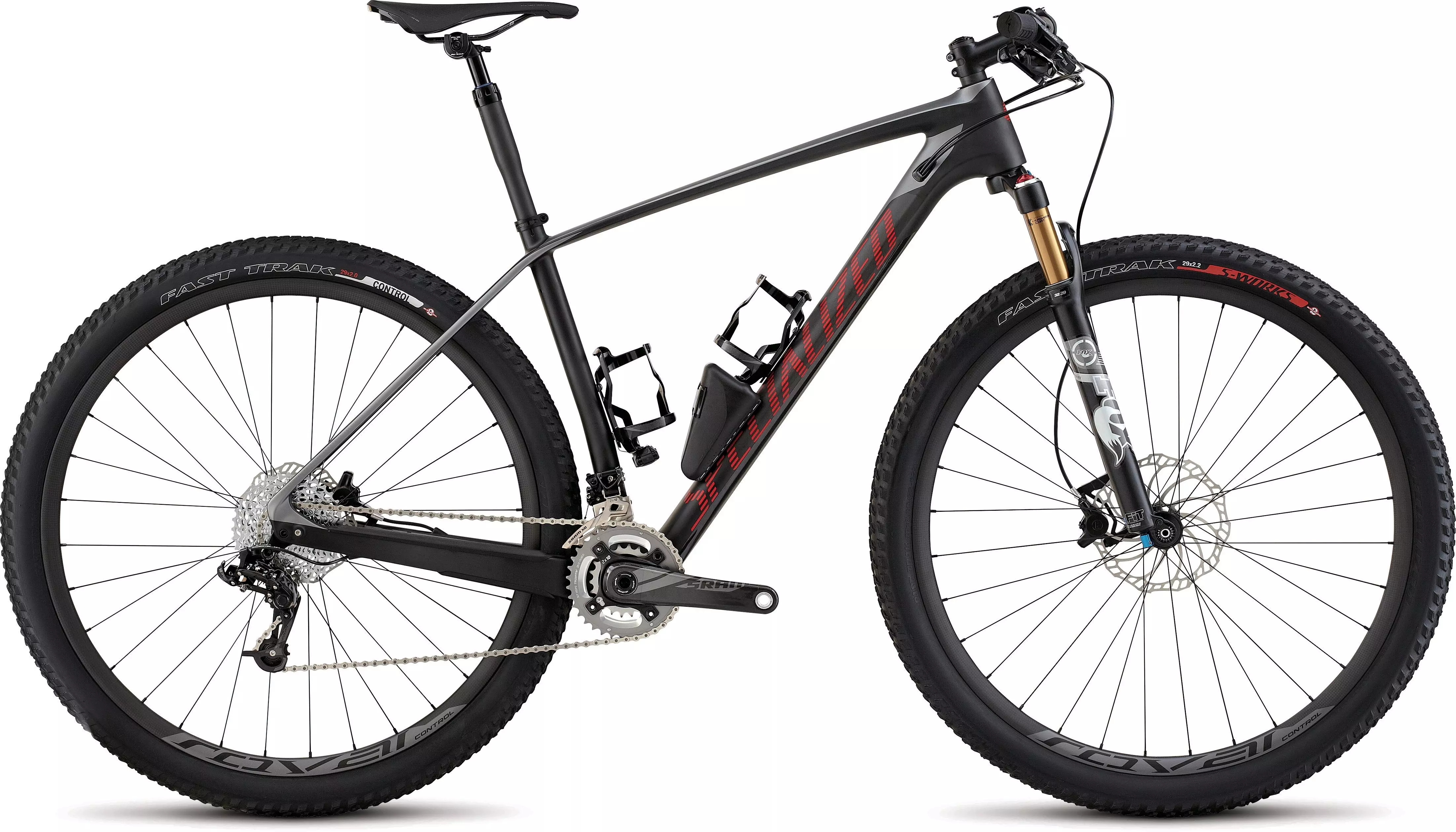

2015 Stumpjumper Marathon Carbon 29
0 Reviews
The Stumpjumper Marathon Carbon with 90mm-travel is built for speed and efficiency,…
Colour:
Satin Carbon/Red/Dream Silver
What's my size?
Select a Size
Product Details
The Stumpjumper Marathon Carbon with 90mm-travel is built for speed and efficiency, and is competition-ready off the showroom floor.
SRAM X0 Type 2, 10-speed, mid-cage rear derailleur for lightweight, pinpoint shifts
Roval Control Carbon 29 wheelset w/ Zero Bead Hook and 142+ spacing for greater control
FACT 10m carbon frame w/ 29er geometry, SWAT compatibility, and PF30 BB for efficient XC performance
FACT 10m carbon frame w/ 29er geometry, SWAT compatibility, and PF30 BB for efficient XC performance
Command Post XCP dropper post with carbon lower is engineered for XC racing
Command Post XCP dropper post with carbon lower is engineered for XC racing
FACT 10m carbon frame w/ 29er geometry, SWAT compatibility, and PF30 BB for efficient XC performance
Fox Float 32 90mm-travel fork w/ Terra Logic damping and Kashima coating for XC terrain
Technical Specifications
FRAMESET
FRAME
FACT 10m carbon, 29"" geometry, FACT IS construction, tapered headtube, carbon PF30 BB, full internal shift/brake routing, 142mm dropouts, PM 160 rear brake, replaceable alloy rear derailleur hanger
SWAT
SWAT MTB XC Kit w/ bottle cages, EMT Tool, and Top Cap Chain Tool
HEADSET
1-1/8 and 1-1/2"" threadless, Campy style upper with 1-1/2"" lower, cartridge bearings
SEAT BINDER
Alloy, 31.8mm
SUSPENSION
FORK
FOX Float 32 Factory Terra Logic, Kashima coating, tapered steerer, rebound adj., 15mm thru-axle, S: 80mm travel, Others: 90mm
WHEELS
RIMS
Roval Control Carbon 29, carbon disc, hookless bead, 22mm internal width, 32h
FRONT HUB
Roval Control Carbon 29, 15mm thru-axle, 32h
REAR HUB
Roval Control Carbon 29 142+, DT Swiss Star Ratchet, 12mm thru-axle, 32h
SPOKES
DT Swiss Revolution
FRONT TIRE
S-Works Fast Trak Control, 120TPI, 2Bliss Ready, folding bead, 29x2.2""
REAR TIRE
Specialized Fast Trak Control, 60TPI, 2Bliss Ready, folding bead, 29x2.0""
DRIVETRAIN
FRONT DERAILLEUR
SRAM X0, 10-speed, 2x10, dual-pull
REAR DERAILLEUR
SRAM X0 Type 2, 10-speed, mid cage
SHIFT LEVERS
SRAM X0, 10-speed, trigger
CASSETTE
SRAM PG 1050, 10-speed, 11-36
CHAIN
SRAM PC 1051, 10-speed, w/ PowerLink
CRANKSET
Custom SRAM S-2200, carbon, PF30 spindle, 36/22, 104/64mm BCD spider
BOTTOM BRACKET
SRAM PF30, OS press-in bearings
COCKPIT
SEATPOST
Command Post XCP, carbon lower tube, 2-position height adjustable, internal routing, 35mm travel, 27.2mm
STEM
Specialized, 3D-forged alloy, 4-bolt, 6-degree rise
HANDLEBARS
Specialized flat, carbon, 8-degree backsweep, 31.8mm
GRIPS
Specialized Sip Grip, half-waffle, S/M: regular thickness, L/XL: XL thickness
SADDLE
Body Geometry Phenom Expert, hollow Ti rails, 143mm
BRAKES
FRONT BRAKE
Magura MT6, hydraulic disc, Hi Friction pad, carbon master cylinder, alloy caliper, 180mm Storm SL rotor
REAR BRAKE
Magura MT6, hydraulic disc, Hi Friction pad, carbon master cylinder, alloy caliper, 160mm Storm SL rotor
BRAKE LEVERS
Magura MT6, alloy lever
ACCESSORIES
PEDALS
Resin Test Ride Pedals with toe clips, CEN std.
* Weights based on production painted frames as pictured. Actual weights will vary based on colourway, frame size, and component variation. Specifications are subject to change without notice.
Geometry
| S | M | L | XL | |
|---|---|---|---|---|
| Ground-Top | 902mm | 920mm | 935mm | 949mm |
| Top Tube Length (Horizontal) | 565mm | 593mm | 620mm | 643mm |
| Seat Tube Angle (Effective) | 73.5° | 73.5° | 73.5° | 73.5° |
| Head Tube Height | 90mm | 100mm | 115mm | 130mm |
| Top Tube Length (Actual) | 551mm | 574mm | 598mm | 622mm |
| Seat Tube Length - Centre to Top | 394mm | 434mm | 470mm | 505mm |
| Bottom Bracket Drop | 61mm | 61mm | 61mm | 61mm |
| Bottom Bracket Height | 310mm | 310mm | 310mm | 310mm |
| Wheel Base | 1047mm | 1078mm | 1105mm | 1131mm |
| Standover Height | 760mm | 799mm | 826mm | 849mm |
| B-B Height | 0mm | 0mm | 0mm | 0mm |
| Stack | 592mm | 610mm | 625mm | 639mm |
| Reach | 390mm | 414mm | 437mm | 458mm |
| Head Tube Angle | 71° | 71° | 71° | 71° |
| Chainstay Length | 430mm | 430mm | 430mm | 430mm |
| Crank Length | 170mm | 175mm | 175mm | 175mm |
| Handlebar Width | 700mm | 700mm | 700mm | 700mm |
| Stem Length | 75mm | 90mm | 105mm | 105mm |
