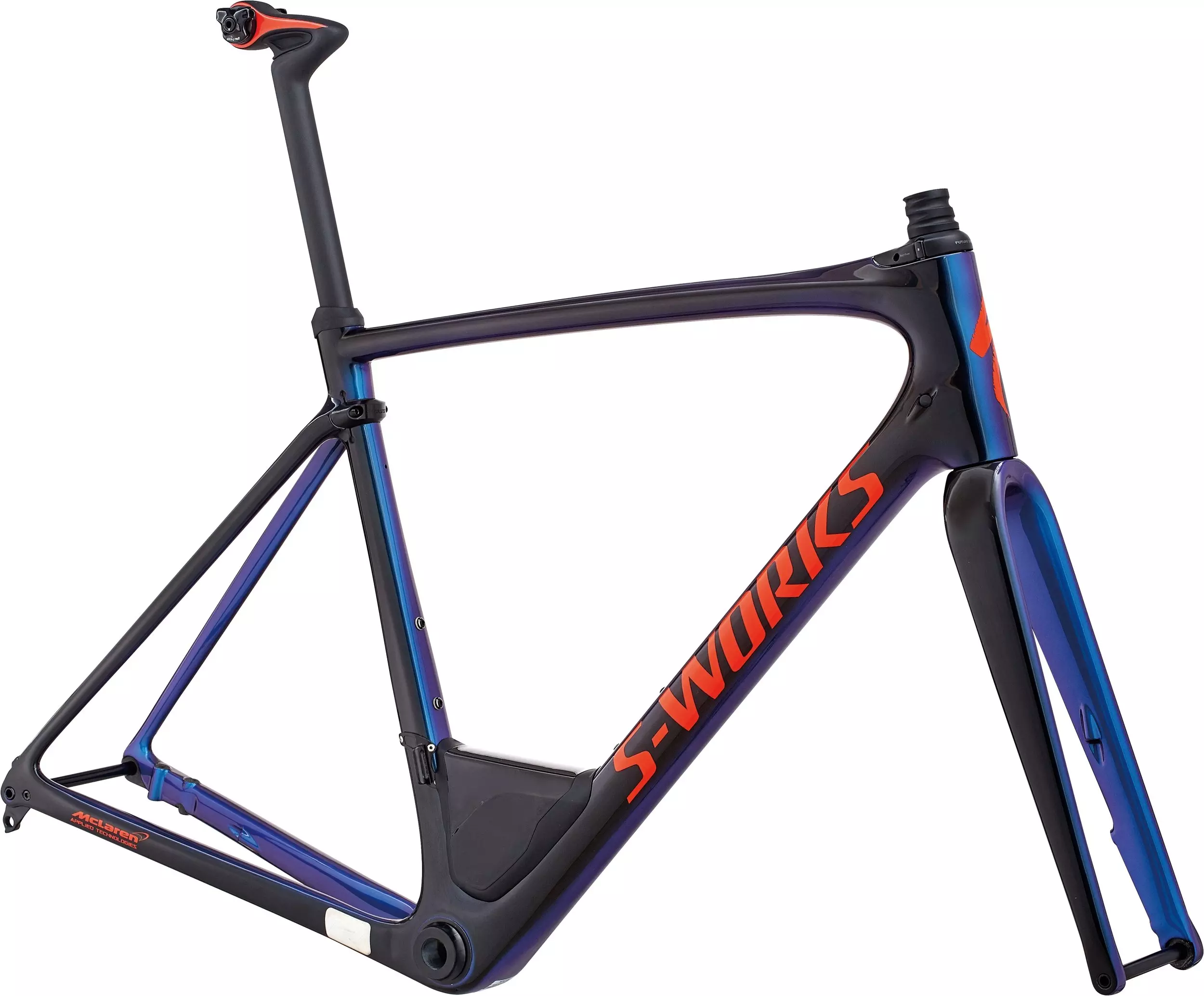

S-Works Roubaix Frameset
Coming fully equipped with the Future Shock, a CeramicSpeed bottom bracket, CG-R seatpost, and a full SWAT™ box, the S-Works Roubaix frameset is the perfect start to your cobble-crushing dream build.
The frame is one of the lightest that we've ever made, and it's been constructed from our top-tier FACT 11r carbon fibre. Its stiffness levels are also off the charts, and compared to the SL4 iteration of yesteryear, you'll experience a whole new, faster, and more efficient geometry. Through some engineering sorcery, however, we've managed to keep the same fit, feel, and position that we've all come to love from the SL4, and kept it consistent throughout the size- range due to our Rider-First Engineered™ construction.
Of course, you're probably thinking, "get on to the suspension thing up front." We call it Future Shock, and essentially, it's a piston in the head tube with 20mm of travel. We developed this technology in partnership with McLaren Applied Technologies, and the result of this are a host of drastic performance improvements, namely in the vertical compliance department. Without giving a physics lecture, we found that focusing on vertical compliance, instead of fork splay, meant that we could improve smoothness, speed, and comfort in one fell swoop. And of all the bikes that we've tested with our Rolling Efficiency Model, the new Roubaix outperforms anything on the market.
S-Works FACT 11r carbon, Endurance Geometry, Rider-First Engineered™, 12x142mm thru-axle, Future Shock suspension, 20mm of travel, flat disc mounts
S-Works FACT carbon, 12x100mm thru-axle
OSBB, CeramicSpeed bearings
Specialized CG-R, FACT carbon, single-bolt, 27.2mm
* Weights based on production painted frames as pictured. Actual weights will vary based on colourway, frame size, and component variation. Specifications are subject to change without notice.
|Seat Tube Length, BB Centre to Top||425mm||462mm||481mm||501mm||522mm||563mm|
|Head Tube Length||90mm||110mm||125mm||150mm||185mm||205mm|
|Head Tube Angle||72°||72.25°||72.75°||73.5°||73.5°||74°|
|Top Tube Length, Horizontal||527mm||534.9mm||545mm||561.8mm||576.3mm||588.5mm|
|Seat Tube Angle||74°||74°||74°||73.5°||73.5°||73.5°|
