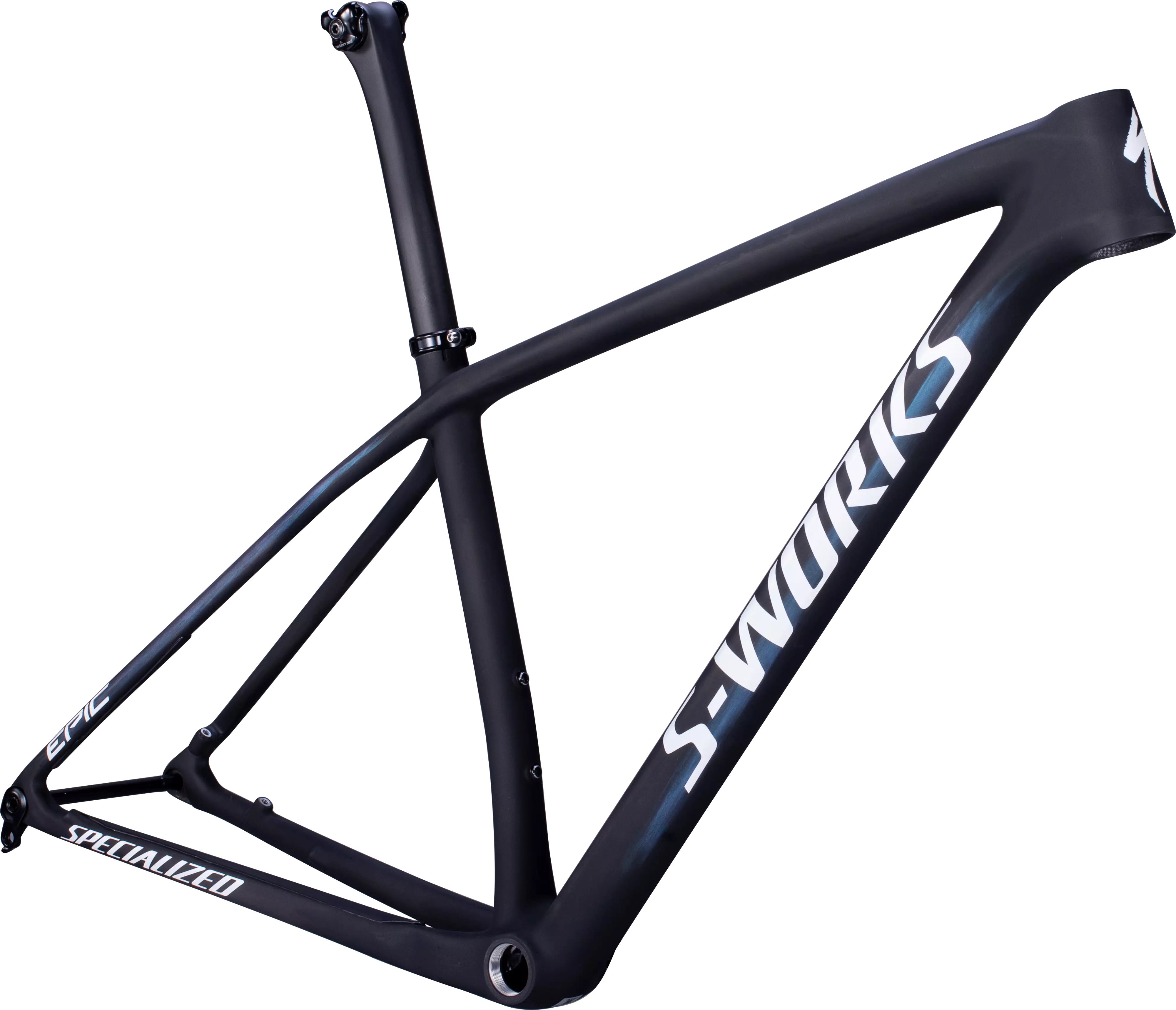

2022 S-Works Epic Hardtail Frameset

5

3 Reviews

The S-Works Epic Hardtail is the lightest and most capable carbon hardtail frame…

Product Details

Add Icon

The S-Works Epic Hardtail is the lightest and most capable carbon hardtail frame ever created. Need we say more?

While that does a great job of summing things up, if we’re being honest, we’re still a bit too proud to leave it at that. An impressive 140 grams lighter than the already ‘how’d they do that’-light Epic Hardtail frame, the S-Works frame makes use of our FACT 12m carbon to cut a figure that’ll make any gram-counter swoon, while still offering riders enough capability and composure to wring out extra seconds on any section of course, not just the groomed bits.

Working towards the lightest bike possible has long been the race within the race, but at what cost? The battle of the grams certainly hasn’t been without its casualties, with hardtail XC race bikes coming to stand for a harsh, twitchy ride at the expense of capability and versatility.

But who said fatigue from fighting against your own bike makes you any faster? Instead, recognizing that the fastest bike is more than simply the lightest bike, we said out with the jarred-to-death tail, the measure-your-posterior’s-sorrows-by-the-yard tail and in with the avant-garde tail. The ridiculously capable, mystifyingly comfortable, head-shakingly light and all-around fast, Epic Hardtail.

Sure, we optimized every inch of the Epic Hardtail frame to achieve the lightest production hardtail frame in the world anyway, but we also prioritized our commitment to creating an Epic Hardtail that’s as capable as it is comfortable with aggressive singletrack-inspired geometry, increased tire clearance and a frame obsessively engineered for increased vertical compliance, all while creating a bike that lives and breathes the fundamentals of fast.

  • Ridiculously capable and refreshingly compliant with a weight that'll make most road frames jealous, the FACT 12m carbon S-Works Epic Hardtail frame isn't just light, it's the lightest production hardtail frame ever produced.

Technical Specifications

Add Icon

Frameset

Frame

S-Works FACT 12m, Progressive XC Geometry, Rider-First Engineered™, threaded BB, 12x148mm rear spacing, internal cable routing,

Seat Binder

Specialized Alloy, 34.9mm, Titanium bolt

Cockpit

SeatPost

S-Works FACT carbon, 10mm offset, 30.9mm

* Weights based on production painted frames as pictured. Actual weights will vary based on colourway, frame size, and component variation. Specifications are subject to change without notice.

Geometry

Add Icon
XSSMLXL
Seatpost Length350mm350mm400mm400mm400mm
Head Tube Length95mm95mm95mm110mm125mm
Fork Rake/Offset44mm44mm44mm44mm44mm
Seat Tube Angle74°74°74°74°74°
Reach385mm405mm430mm455mm480mm
Head Tube Angle68.5°68.5°68.5°68.5°68.5°
Seat Tube Length367mm400mm430mm470mm520mm
BB Height309mm309mm309mm309mm309mm
Top Tube Length, Horizontal555mm579mm604mm633mm662mm
Bike Standover Height732mm762mm792mm816mm847mm
Stack594mm608mm608mm622mm636mm
BB Drop63mm63mm63mm63mm63mm
Wheelbase1064mm1092mm1117mm1148mm1178mm
Front Centre643mm670mm695mm725mm755mm
Chainstay Length430mm430mm430mm430mm430mm
Trail101mm101mm101mm101mm101mm
Fork Length, Full486mm506mm506mm506mm506mm
Geometry

Manual Downloads

Add Icon
Download Icon
Specialized Bicycle Owner's Manual (All Languages)
Download Icon
Epic HT User Manual
Download Icon
2022 Rider/Bike Weight Limits and Terrain Conditions
Download Icon
Specialized Bicycle Owner's Manual (Chinese Simplified)
Download Icon
Specialized Bicycle Owner's Manual (Dutch)
Download Icon
Specialized Bicycle Owner's Manual (English)
Download Icon
Specialized Bicycle Owner's Manual (Finnish)
Download Icon
Specialized Bicycle Owner's Manual (French)
Download Icon
Specialized Bicycle Owner's Manual (German)
Download Icon
Specialized Bicycle Owner's Manual (Greek)
Download Icon
Specialized Bicycle Owner's Manual (Hungarian)
Download Icon
Specialized Bicycle Owner's Manual (Italian)
Download Icon
Specialized Bicycle Owner's Manual (Japanese)
Download Icon
Specialized Bicycle Owner's Manual (Japanese)
Download Icon
Specialized Bicycle Owner's Manual (Korean)
Download Icon
Specialized Bicycle Owner's Manual (Latvian)
Download Icon
Specialized Bicycle Owner's Manual (Norwegian)
Download Icon
Specialized Bicycle Owner's Manual (Polish)
Download Icon
Specialized Bicycle Owner's Manual (Portuguese)
Download Icon
Specialized Bicycle Owner's Manual (Romanian)
Download Icon
Specialized Bicycle Owner's Manual (Russian)
Download Icon
Specialized Bicycle Owner's Manual (Slovakian)
Download Icon
Specialized Bicycle Owner's Manual (Slovenian)
Download Icon
Specialized Bicycle Owner's Manual (Spanish)
Download Icon
Specialized Bicycle Owner's Manual (Turkish)
Download Icon
Specialized Bicycle Owner's Manual (All Languages)
Download Icon
Dodatek - POUŽITÍ TRENAŽÉRU
Download Icon
Specialized Bicycle Owner's Manual Addendum: Riding With Kids
Download Icon
Trainer Usage Addendum to the Bicycle Owner's Manual

Rider Reviews

5

3 Reviews



Leve, muito muito leve.

O quadro é extremamente leve, pesa menos de 900g com eixo traseiro e abraçadeira de canote. E, com o selo S-Works, dá pra confiar na qualidade. Ideal pra montar uma HT de competição. A geometria é muito balanceada. Perfeito!


Name:
Eduardo R.

Helpful?

Light weight piece of art

Light weight piece of art 😍. Only wish the blue showed up better in the paint- Geometry is Snappy and aggressive for a HT. Super fun to ride.

Would Recommend?
Yes!

Verified Buyer
Icon
Name:
Kyle N.

Helpful?

So light so beautiful color

So light so beautiful color I’m in love I love hard rock tails

Would Recommend?
Yes!

Verified Buyer
Icon
Name:
Alessandro C.

Helpful?
