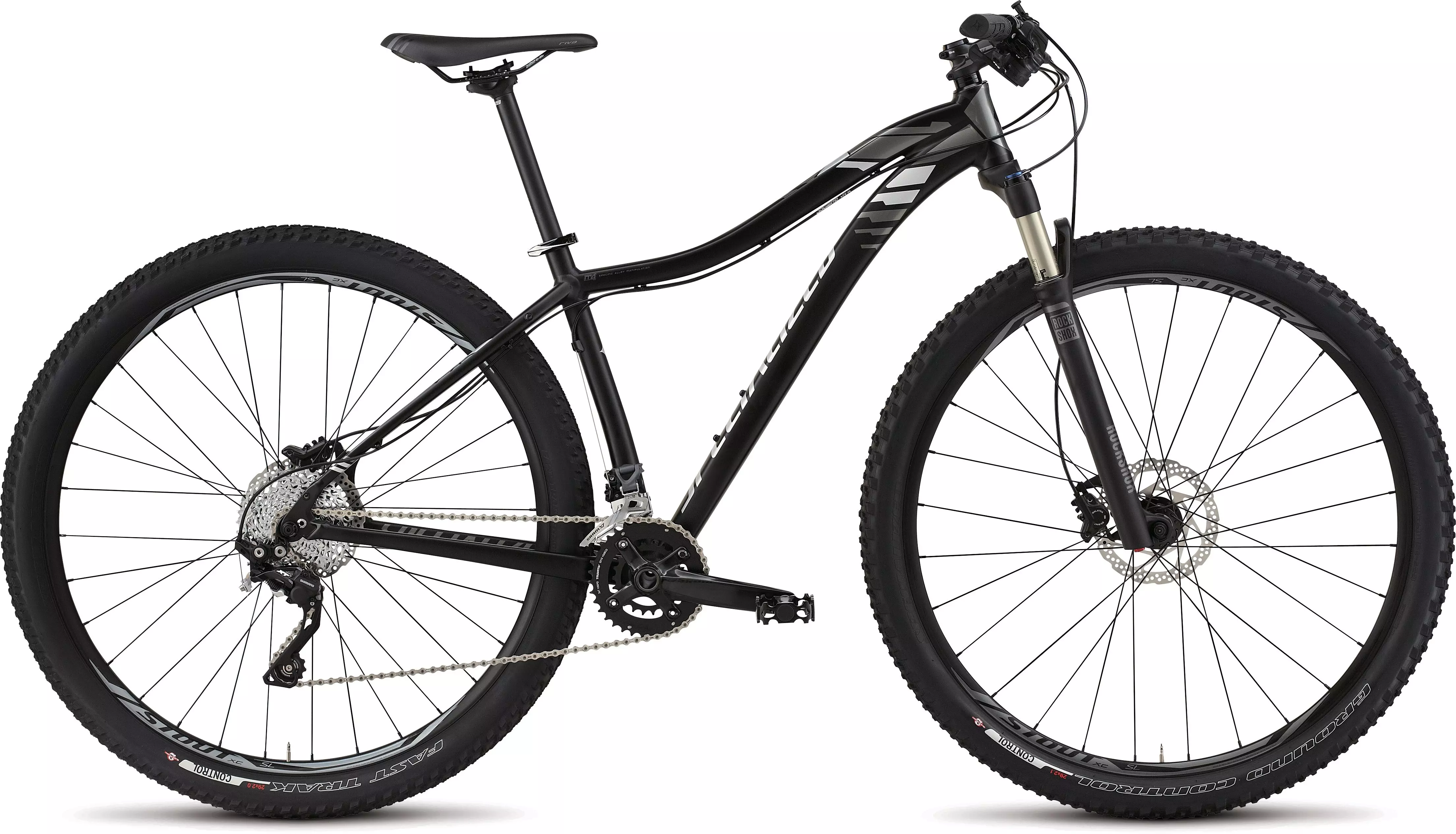

2015 Jett LTD

0 Reviews

Jett provides the smooth ride and improved handling of 29" wheels in an M4 aluminium…

Colour:

Satin Black/Gloss Black/Dream Silver

What's my size?

Enter your height and we'll calculate your size.

Height:

For a more accurate result, include your shin length.

Select a Size

Product Details

Add Icon

Jett provides the smooth ride and improved handling of 29" wheels in an M4 aluminium XC trail bike for women. The Jett LTD features Women's XC 29er Geometry, RockShox Reba RL 29 fork, and Shimano Deore hydraulic disc brakes.

  • M4 Premium Aluminium frame w/ Women's XC 29er Geometry is super-lightweight and stiff

  • M4 Premium Aluminium frame w/ Women's XC 29er Geometry is super-lightweight and stiff

  • RockShox Reba RL 29 Solo Air 80mm-travel fork w/ remote lockout for plush performance

  • M4 Premium Aluminium frame w/ Women's XC 29er Geometry is super-lightweight and stiff

  • Women's Body Geometry XC Contour, lock-on grips provide slip-free bar control

  • Body Geometry Women's Riva Comp saddle features generous padding for all-day comfort

  • RockShox Reba RL 29 Solo Air 80mm-travel fork w/ remote lockout for plush performance

Technical Specifications

Add Icon

FRAMESET

FRAME

Specialized M4 Aluminium, Women's XC 29er Geometry, women's fully butted tubesets w/ smooth welds, integrated headtube forged post-mount 160mm dropouts, replaceable hanger

HEADSET

1-1/8"" sealed Cr-Mo cartridge bearings integrated w/ headset

SEAT BINDER

Forged alloy, extruded lever, brass washer, 31.8mm

SUSPENSION

FORK

RockShox Reba RL 29, Solo Air spring, TurnKey damping w/ PushLoc remote lockout, tapered alloy steerer, 32mm alloy stanchions, external rebound adjust, size-specific 80/100mm travel

WHEELS

RIMS

Specialized Stout XC SL, 29"" disc, alloy double-wall, sleeve joint, 26mm inner width, 28/32h

FRONT HUB

Specialized Hi Lo disc, alloy, RCC bearing system, QR, 28h

REAR HUB

Specialized Hi Lo disc, alloy, RCC bearing system, QR, 32h

SPOKES

Stainless, 14g, black

FRONT TIRE

Specialized Ground Control, 60TPI, folding bead, 29x2.1""

REAR TIRE

Specialized Fast Trak Control, 60TPI, 2Bliss Ready, folding bead, 29x2.0""

INNER TUBES

Standard, presta valve

DRIVETRAIN

FRONT DERAILLEUR

SRAM X7, 10-speed, 2x10, high mount

REAR DERAILLEUR

Shimano Deore XT Shadow Plus, 10-speed, SGS cage

SHIFT LEVERS

Shimano Deore, RapidFire, I-spec, 10-speed

CASSETTE

SRAM PG 1030, 10-speed, 11-36

CHAIN

KMC X10L, 10-speed, reusable Missing Link

CRANKSET

Custom SRAM S-1255, 2 pc., 10-speed XC double

BOTTOM BRACKET

SRAM GXP, 73mm

COCKPIT

STEM

Specialized Stout, 3D-forged alloy, 4-bolt, 6-degree rise, anti-corrosion hardware

HANDLEBARS

Specialized flat, 6061 double butted alloy, 9-degree backsweep, 31.8mm

GRIPS

Specialized Body Geometry XC Contour Women's, Kraton w/ gel, lock-on, closed end

SADDLE

Body Geometry Women's Riva Comp, hollow Cr-Mo rails, 155mm

SEATPOST

Alloy, 2-bolt clamp, 12.5mm offset, 30.9mm, anti-corrosion hardware

BRAKES

FRONT BRAKE

Shimano M506, hydraulic disc, resin pad, 180/160mm rotor

REAR BRAKE

Shimano BR-M506, hydraulic disc, resin pads, 160mm

BRAKE LEVERS

Shimano BL-M506, hydraulic, w/ reach adjust

ACCESSORIES

PEDALS

Composite platform, w/ reflectors, 9/16""

* Weights based on production painted frames as pictured. Actual weights will vary based on colourway, frame size, and component variation. Specifications are subject to change without notice.

Geometry

Add Icon
SML
Top Tube Length (Horizontal)552mm575mm595mm
Seat Tube Angle (Effective)73.5°73.5°73.5°
Top Tube Length (Actual)530mm549mm570mm
Seat Tube Angle (Actual)71°71°71°
Seat Tube Length, Centre to Top381mm431.8mm482.6mm
Bottom Bracket Drop63.5mm63.5mm63.5mm
Bottom Bracket Height305mm305mm305mm
Wheel Base1056mm1068mm1089mm
Standover Height710mm741mm775mm
Stack590mm604mm618mm
Reach377mm396mm412mm
Head Tube Length90mm100mm115mm
Head Tube Angle70.5°71°71°
Chainstay Length442mm442mm442mm
Crank Length170mm170mm175mm
Handlebar Width660mm660mm660mm
Stem Length60mm70mm70mm
Seatpost Length350mm350mm350mm
