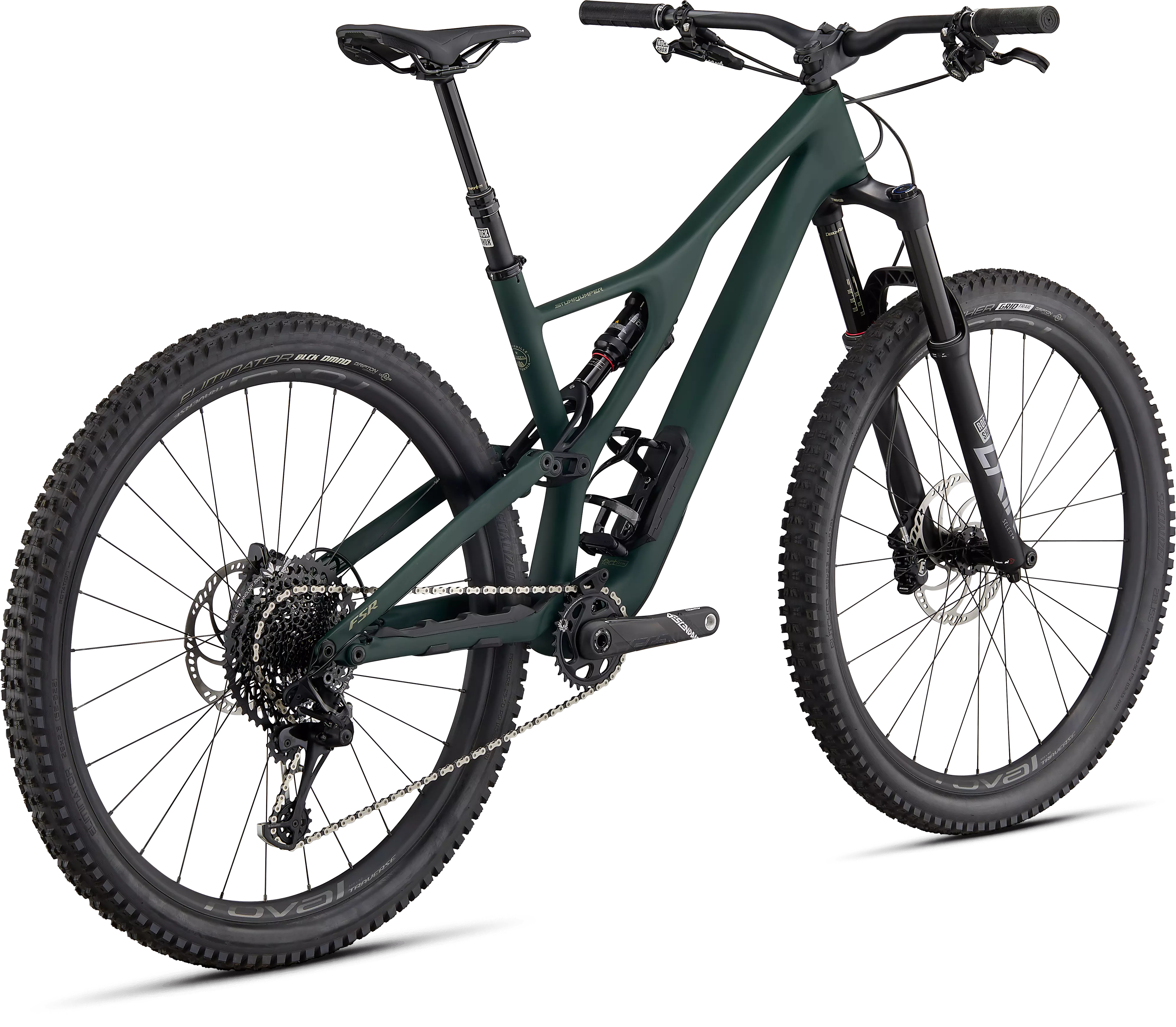

Stumpjumper ST LTD Downieville Carbon 29
Our ode to Downieville—one of the greatest riding spots on earth. This limited-edition ST model is the perfect choice for long, grueling rides that demand a quick, efficient—and burly—machine. Lightweight carbon 29er chassis, custom suspension, powerful disc brakes, and more. Since the trails around Downieville inspired this limited-edition model, we're donating a portion of the proceeds from every one of these bikes to the Sierra Buttes Trail Stewardship, a group whose tireless work has made Downieville and the surrounding area such an amazing place to ride.
THE ULTIMATE TRAIL BIKE
The innovative sidearm frame design makes a lighter, better-handling bike. By directly connecting all three mounting points of the rear-end and shock to the frame, we've increased both stiffness and performance over bumps. End result? Total control.
A FEATHERWEIGHT BRAWLER
This limited-edition ST model combines the nimble, carbon Stumpjumper ST chassis with longer-travel, RockShox suspension, precise SRAM XX1/X01 Eagle drivetrain, and massive stopping power. It's a very cool, and very rare, flavor of Stumpjumper.
• A bomber RockShox Lyrik Select Plus fork dishes out 140 millimeters of travel.
• 130-millimeters of supple rear suspension via a RockShox Super Deluxe Select Plus.
• Big stopping power courtesy of Magura MT5 4-piston discs and massive rotors.
|FRAME||FACT 11m, full carbon chassis and rear end, asymmetrical design, 29 Trail Geometry, SWAT™ Door integration, threaded BB, fully enclosed internal cable routing, 12x148mm dropouts, sealed cartridge bearing pivots, replaceable derailleur hanger, 120mm of travel|
|SEAT BINDER||Specialized bolt-type, alloy, 38.6mm|
|REAR SHOCK||RockShox Super Deluxe Select Plus, Rx Trail Tune, 3-position low-speed compression adjust, rebound adjust, 190x45mm|
|FORK||RockShox Lyrik Select Plus, DebonAir, rebound adjust, low-speed compression adjust, tapered steerer, 51mm offset, 15mm Maxle® Stealth thru-axle, 15x110mm Boost™, 140mm of travel|
|STEM||Specialized Trail, forged alloy, 4-bolt, 5mm rise, 40mm|
|HANDLEBARS||Specialized Trail, 7050 alloy, 8-degree backsweep, 6-degree upsweep, 27mm rise, 780mm, 31.8mm clamp|
|GRIPS||Deity, Knuckleduster, Black|
|SADDLE||Body Geometry Henge Comp, hollow Cr-Mo rails, 143mm|
|SEATPOST||RockShox Reverb Stealth, 30.9, 1X remote, (S: 125mm, M: 150mm, L/XL:175mm)|
|FRONT BRAKE||Magura MT5, 4-piston caliper, hydraulic disc, 200mm|
|REAR BRAKE||Magura MT5, 4-piston caliper, hydraulic disc, 180mm|
|REAR DERAILLEUR||SRAM X01 Eagle, 12-speed|
|SHIFT LEVERS||SRAM X01 Eagle, trigger, 12-speed|
|CASSETTE||SRAM XG-1275 Eagle, 12-speed, 10-50t|
|CHAIN||SRAM GX Eagle, 12-speed|
|CRANKSET||SRAM Decsendant Carbon, Boost™ 148, DUB, 170mm crankarm|
|BOTTOM BRACKET||SRAM DUB, BSA 73mm, Threaded|
|RIMS||Roval Traverse 29, hookless alloy, 30mm inner width, 2Bliss Ready|
|FRONT HUB||Roval Traverse, sealed cartridge bearings, 15mm thru-axle, 110mm spacing, 28h|
|REAR HUB||Roval Traverse, DT Swiss 3-Pawl System, SRAM XD driver body, 12mm thru-axle, 148mm spacing, 28h|
|SPOKES||DT Competition Race|
|FRONT TIRE||Butcher, GRID TRAIL casing, GRIPTON® compound, 29x2.3"|
|REAR TIRE||Eliminator, BLCK DMND Casing, 2Bliss Ready, 29x2.3"|
|INNER TUBES||Standard, Presta valve|
Stumpjumper ST - Geometry
|Top Tube Length, Horizontal||570mm||594mm||626mm||660mm|
|Seat Tube Angle||75.3°||75°||74.6°||74.2°|
|Head Tube Angle||67°||67°||67°||67°|
|Seat Tube Length||380mm||410mm||455mm||505mm|
|Head Tube Length||95mm||95mm||125mm||140mm|
|Bike Standover Height||372mm||782mm||372mm||372mm|
|Fork Length, Full||550mm||550mm||550mm||550mm|
