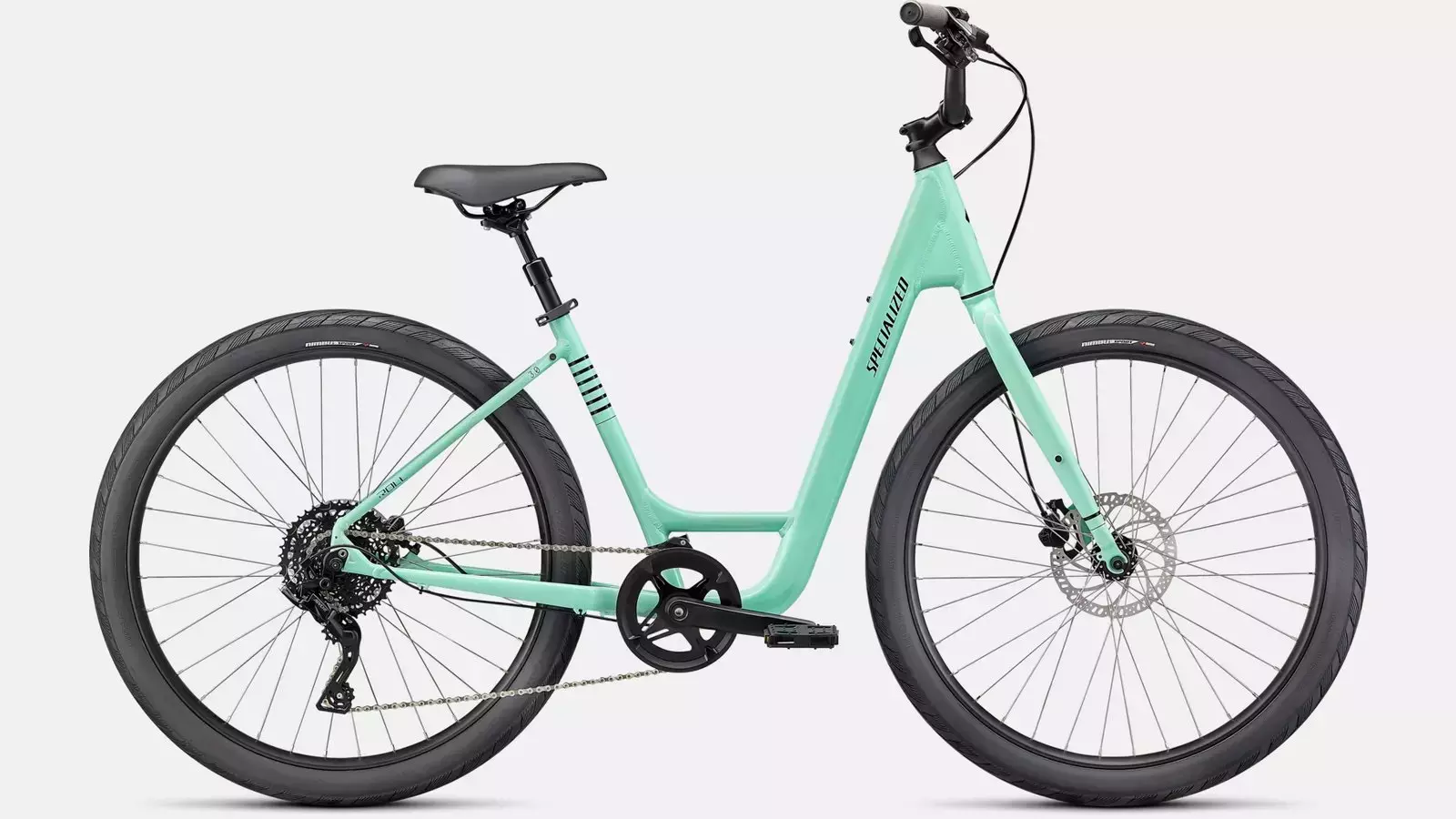

Roll 3.0 Low Entry
Roll 3.0 Low Entry
¡Nosotros entregamos! Solo dinos cuándo y dónde.
Especificaciones técnicas
FRAMESET
Frame
Specialized A1 Premium Aluminum, Ground Control Positioning, formed tubes, post-mount disc, fender/rack mounts
Seat Binder
Quick-release clamp, 31.8mm
Suspension
Fork
Steel formed tubes, post-mount disc, fender/rack mounts
COCKPIT
SeatPost
Spring suspension, alloy, 27.2mm, 2-bolt clamp
Stem
3D-forged alloy, 31.8mm, 7-degree rise
Handlebars
Specialized Roll, 6061 alloy, Double butted, 15-degree backsweep, 136mm rise, 31.8mm
Saddle
Specialized Body Geometry Comfort Gel
Grips
Slip-on, Closed End Grips
BRAKES
Front Brake
Tektro HD-T275, hydraulic disc, 180mm
Rear Brake
Tektro HD-T275, hydraulic disc, 160mm
DRIVETRAIN
Shift Levers
MicroSHIFT, 8-speed
Rear Derailleur
MicroSHIFT Advent 8-Speed, W/O Clutch
Cassette
MicroSHIFT, 8-Speed, 12-42t
Crankset
3 pc, Alloy Forged Arms
Chainrings
40T
Bottom Bracket
68mm, square taper, 124.5mm length
Chain
KMC X8 w/ Missing Link™, 8-speed
ACCESSORIES
Pedals
Specialized Body Geometry Fitness, platform, plastic
WHEELS
Rims
650b disc, double-wall alloy, pinned, 36h
Front Hub
Alloy, 6-bolt disc, loose ball bearing, quick-release, 36h
Rear Hub
Alloy, 6-bolt disc, Shimano, 8/9-speed freehub, 135mm spacing, quick-release, 36h
Spokes
Stainless, 14g
Front Tire
Nimbus II Sport, 650b x 2.3"
Rear Tire
Nimbus II Sport, 650b x 2.3"
Inner Tubes
Schrader, 40mm valve
* Pesos basados en cuadros pintados de producción como se muestra en la imagen. Los pesos reales variarán en función del color, tamaño del cuadro y variación de componentes. Las especificaciones están sujetas a cambios sin previo aviso.
Geometría
| S | M | L | |
|---|---|---|---|
| Largo de biela | 165mm | 170mm | 175mm |
| Ancho de manubrio | 680mm | 680mm | 680mm |
| Largo de avance | 70mm | 70mm | 70mm |
| Saddle Width | 200mm | 200mm | 200mm |
| Largo de poste de asiento | 350mm | 350mm | 350mm |
| Stack | 538mm | 621mm | 644mm |
| Alcance | 346mm | 352mm | 370mm |
| Largo de tubo de dirección | 155mm | 190mm | 215mm |
| Ángulo de tubo de dirección | 68° | 69° | 69° |
| BB Height | 285mm | 285mm | 285mm |
| BB Drop | 70mm | 70mm | 70mm |
| Trail | 84mm | 77mm | 77mm |
| Fork Length, Full | 420mm | 420mm | 420mm |
| Fork Rake/Offset | 55mm | 55mm | 55mm |
| Distancia | 617mm | 626mm | 653mm |
| Largo de vaina inferior | 480mm | 480mm | 480mm |
| Distancia entre ejes | 1088mm | 1097mm | 1124mm |
| Largo de tubo superior, Horizontal | 594mm | 615mm | 643mm |
| Bike Standover Height | 495mm | 495mm | 495mm |
| Seat Tube Length | 370mm | 450mm | 500mm |
| Ángulo de tubo de asiento | 67° | 67° | 67° |
