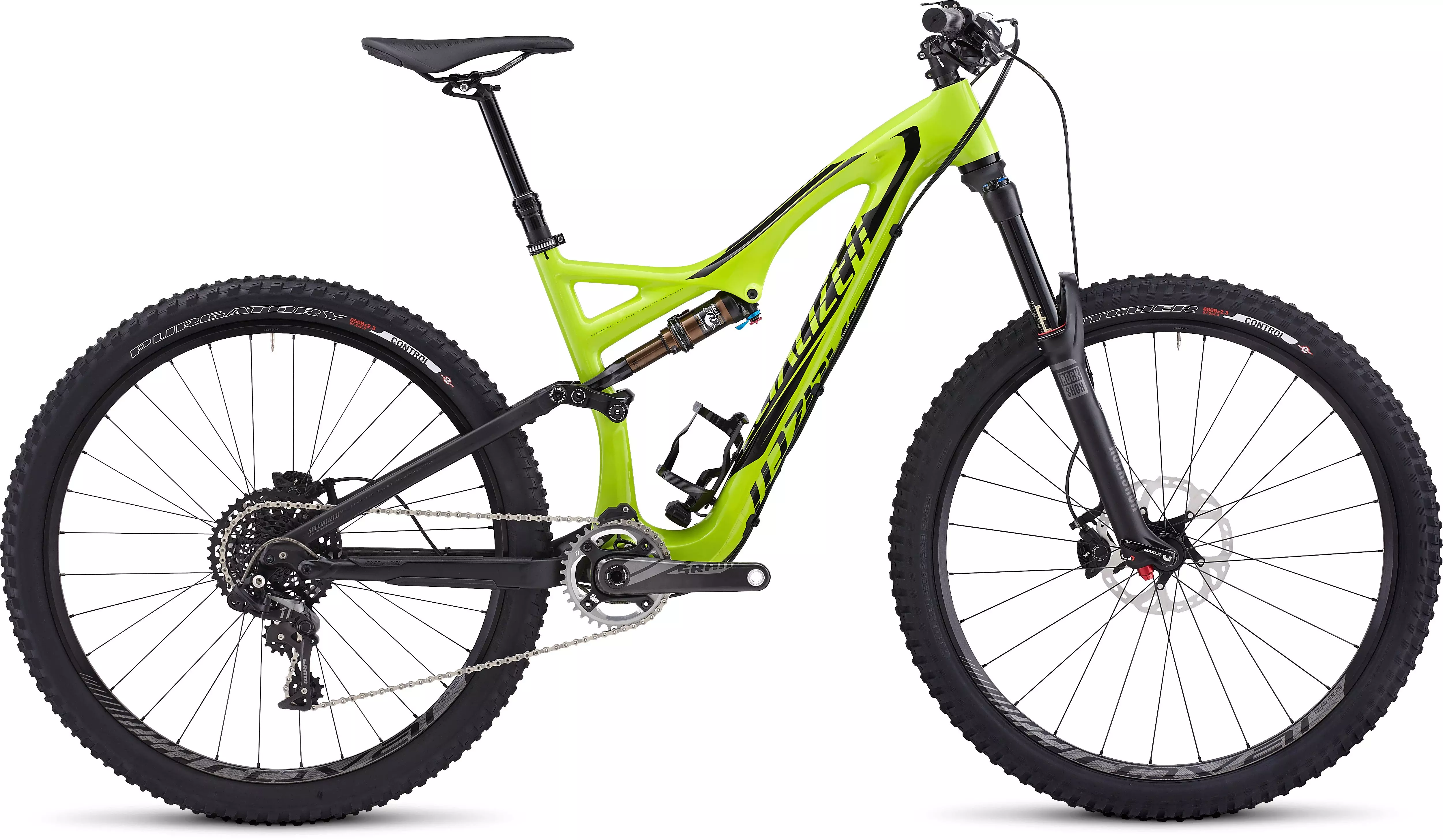

2015 Stumpjumper FSR Expert Carbon EVO 650b

0 Anmeldelser

The Stumpjumper FSR Expert Carbon EVO 650b is purpose-built for the aggressive trail…

Farve:

GLOSS HYPER/BLACK

Hvilken er min størrelse?

Imperial

Metrisk

Indtast din højde, så beregner vi din størrelse

Højde:

For et mere præcist resultat, så inkluder din skinnebenslængde

Vælg en Størrelse

Vælge farve og størrelse for at se lagerstatus hos forhandler

Ikke tilgængelig

Artiklen er ikke tilgængelig for “Find i nærheden”

Produktinformation

The Stumpjumper FSR Expert Carbon EVO 650b is purpose-built for the aggressive trail rider. It separates itself from other carbon Stumpjumpers with a slacker head angle and 150mm of front and rear travel. The Expert Carbon EVO features a custom FOX Float CTD Factory shock with AUTOSAG, a Custom RockShox Pike RC 650b fork, custom SRAM carbon S-2200, 11-speed AM crankset and a 2.3" Specialized Butcher Control and Slaughter Control tire combination.

Specialized Butcher Control 2.3" tire features a DH-inspired tread for rough singletrack
FACT 9m carbon EVO 650b frame w/ 150mm of smooth FSR travel for charging technical singletrack
Roval Traverse 650b wheels are 24mm wide for maximum stability
Internally routed Specialized Command Post IR w/ remote adjusts saddle height on-the-fly
Custom RockShox Pike RC 650b fork smooths the trail with 150mm of plush suspension
Specialized All-Mountain alloy bar is 750mm wide for stable handling on rough terrain
SRAM X01, 11-speed, carbon rear derailleur for simple and precise shifting
SRAM X01, 11-speed, trigger for precise shifting and improved efficiency
Specialized Slaughter Control, 2Bliss Ready, 2.3" tire for fast-rolling performance with bite
Shimano XT Trail hydraulic disc brakes w/ Ice Tech rotors are lightweight and powerful
Custom FOX Float CTD Factory shock w/ AUTOSAG, Climb, Trail, Descend tunes for total control

Tekniske specifikationer

FRAMESET

FRAME

FACT 9m carbon, EVO 650b geometry, FACT IS construction, FACT carbon front triangle, M5 alloy rear triangle, tapered headtube, carbon PF30 BB, ISCG ’05, internal Command Post IR routing, 142mm dropouts, sealed cartridge bearing pivots, replaceable derailleur hanger, 150mm travel

SWAT

Bottle cage w/ SWAT Technology

HEADSET

1-1/8"" and 1-1/2"" threadless, Campy style upper with 1-1/2"" lower, cartridge bearings

SEAT BINDER

Specialized 7050 alloy, single bolt, 34.9mm

SUSPENSION

FORK

RockShox Pike RC 650b, Solo Air spring, tapered alloy steerer, w/ compression, rebound adjust, 15mm thru-axle, 150mm travel

REAR SHOCK

Custom FOX Float CTD Factory w/ AUTOSAG and Boost Valve, Kashima coating, Climb, Trail, Descend settings and rebound adjust, 194x51mm

WHEELS

RIMS

Roval Traverse 650b, alloy disc, 24mm wide, 27/32h

FRONT HUB

Roval Traverse 650b, 15/20mm thru-axle, 24h

REAR HUB

Roval Traverse 650b 142+, XX1 driver body, 12mm thru-axle, 32h

SPOKES

DT Swiss Super Comp, stainless, 2.0/1.65/1.8mm

FRONT TIRE

Specialized Butcher Control, 60TPI, 2Bliss Ready, folding bead, 650bx2.3""

REAR TIRE

Specialized Slaughter Control, 60TPI, 2Bliss Ready, folding bead, 650bx2.3""

INNER TUBES

Standard, presta valve

DRIVETRAIN

REAR DERAILLEUR

SRAM X01, 11-speed, carbon cage

SHIFT LEVERS

SRAM X01, 11-speed, trigger

CASSETTE

SRAM XG-1195, 11-speed, 10-42

CHAIN

SRAM PC-X1, 11-speed

CRANKSET

Custom SRAM S-2200, carbon, PF30 spindle, 34T, 94mm BCD spider

BOTTOM BRACKET

SRAM, PF30, OS press-in bearings, sealed cartridge

COCKPIT

STEM

Specialized XC, 3D forged alloy, 4-bolt, 6-degree rise

HANDLEBARS

Specialized All-Mountain, low rise bar, 7050 alloy, 8-degree backsweep, 6-degree upsweep, 31.8mm

GRIPS

Specialized Sip Grip, light lock-on, half-waffle, S/M: regular thickness, Others: XL

SADDLE

Body Geometry Henge Comp, hollow Cr-Mo rails, 143mm

SEATPOST

Command Post IR, 3-position height adjustable, alien head design, bottom mount cable routing, w/ remote adjust standard lever, 30.9mm, S: 100mm travel, Others: 125mm

BRAKES

FRONT BRAKE

Shimano XT BR-M785, hydraulic disc, Ice Tech metallic pads, S/M: 180mm rotor, Others: 200mm

REAR BRAKE

Shimano XT BR-M785, hydraulic disc, Ice Tech metallic pads, S/M: 160mm rotor, Others: 180mm

BRAKE LEVERS

Shimano XT BL-M785, hydraulic, alloy lever

ACCESSORIES

PEDALS

Resin test ride, w/ toe clips, CEN std.

*Vægte baseret på produktion af malede rammer som afbildet. Faktiske vægte vil variere baseret på farveskema, ramme størrelse og komponent variation. Specifikationer kan ændres uden varsel.

Geometri

	S	M	L	XL
Faktisk overrørslængde, horisontal	568mm	595mm	620mm	643mm
Seat Tube Angle (Effective)	74°	74°	74°	74°
Kronrørshøjde	100mm	110mm	135mm	155mm
Top Tube Length (Actual)	530mm	555mm	579mm	603mm
Seat Tube Angle (Actual)	68.4°	68.8°	69.2°	69.7°
Seat Tube Length - Center to Top	396mm	430mm	468mm	523mm
Bottom Bracket Height	327mm	327mm	327mm	327mm
Wheel Base	1107mm	1137mm	1165mm	1193mm
Overrørshøjde	738mm	729mm	738mm	754mm
Stellets stakhøjde	602mm	619mm	642mm	661mm
Stellængde (reach)	401mm	426mm	445mm	467mm
Kronrørsvinkel	68°	68°	68°	68°
Kædestagslængde	435mm	435mm	435mm	435mm
Pedalarmslængde	170mm	175mm	175mm	175mm
Styrbredde	750mm	750mm	750mm	750mm
Frempindslængde	60mm	60mm	75mm	75mm
Sadelpinds længde	380mm	430mm	430mm	430mm
