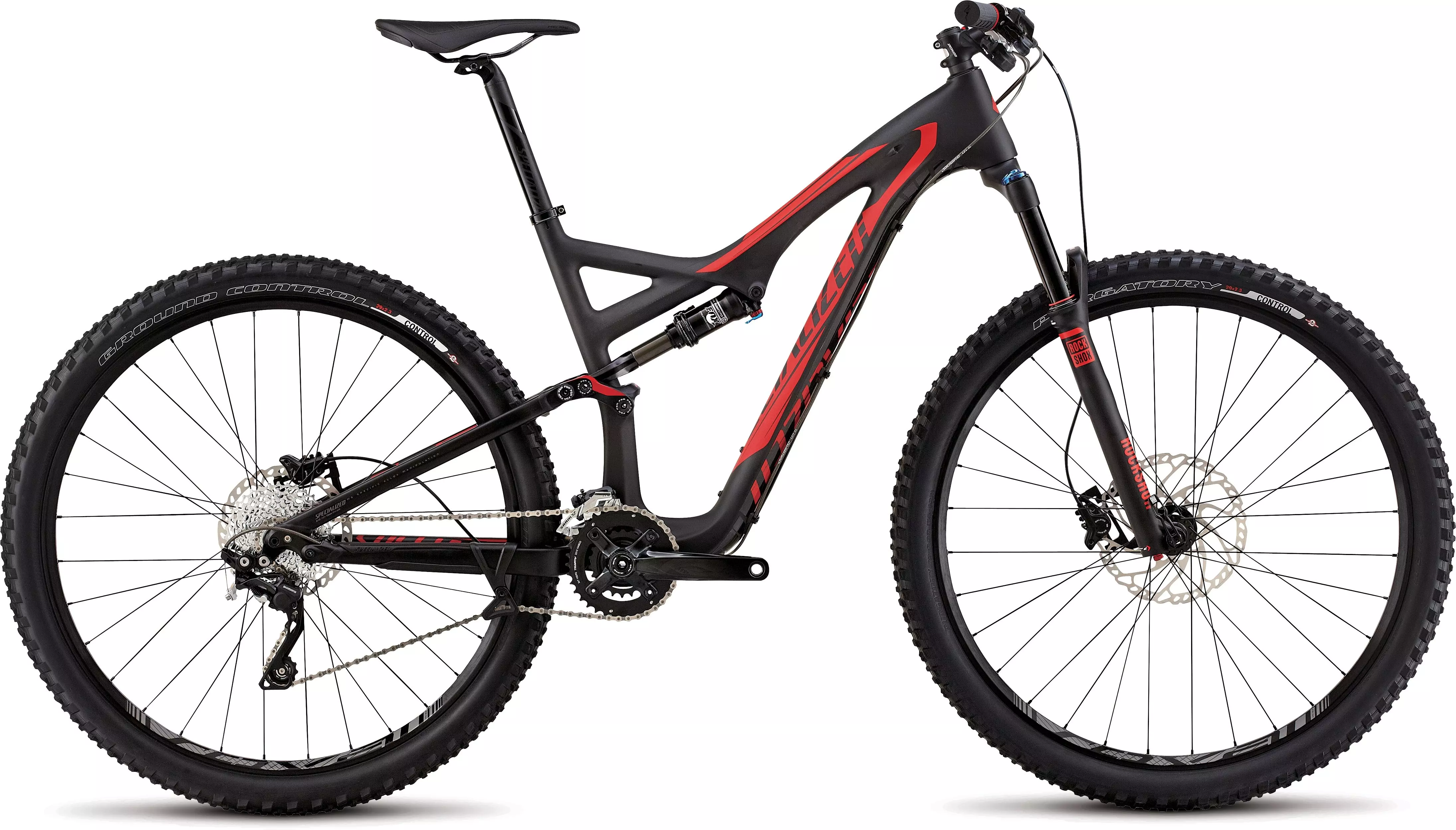

2015 Stumpjumper FSR Comp Carbon 29
0 Anmeldelser
The FACT carbon Stumpjumper FSR Comp Carbon 29 has 130mm of plush FSR suspension,…
Farve:
SATIN CARB/RED
Hvilken er min størrelse?
Vælg en Størrelse
Ikke tilgængelig
Artiklen er ikke tilgængelig for “Find i nærheden”
Produktinformation
The FACT carbon Stumpjumper FSR Comp Carbon 29 has 130mm of plush FSR suspension, a RockShox Revelation RC air-sprung fork, powerful Shimano Deore hydraulic disc brakes, and custom FOX Float CTD Evolution shock with AUTOSAG.
Custom SRAM 10-speed Trail double-ring w/ PF30 spindle makes an efficient, stiff crankset
Shimano SLX, 10-speed, trigger for precise shifting and proven reliability
Shimano XT Shadow Plus, 10-speed derailleur w/ Clutch technology for shifting precision
FACT 9m carbon frame w/ 130mm of smooth FSR travel for the sport's most-versatile trail 29er
Roval 29 rims mated to Specialized Hi Lo hubs for increased stiffness and confident riding
Custom FOX Float CTD Evolution shock w/ AUTOSAG, Climb, Trail, Descend tunes for total control
RockShox Revelation RC 130mm fork w/ 15mm thru-axle ideal for ripping technical descents
Tekniske specifikationer
FRAMESET
FRAME
FACT 9m carbon, 29"" Trail Geometry, FACT IS construction, tapered headtube, PF30 BB, internal Command Post IR routing, 142mm dropouts, sealed cartridge bearing pivots, replaceable derailleur hanger, 130mm travel
HEADSET
1-1/8"" and 1-1/2"" threadless, Campy style upper with 1-1/2"" lower, cartridge bearings
SEAT BINDER
Specialized 7050 alloy, single bolt, 34.9mm
SUSPENSION
REAR SHOCK
Custom FOX Float CTD Evolution w/ AUTOSAG, Climb, Trail, Descend settings and rebound adj., 195x48mm
FORK
RockShox Revelation RC 29, tapered alloy steerer, w/ lockout, compression, rebound adjust, 15mm thru-axle, 130mm travel
WHEELS
RIMS
Roval 29, alloy disc, 21mm internal width, 32h
FRONT HUB
Specialized Hi Lo disc, sealed cartridge bearings, 15mm thru-axle, 32h
REAR HUB
Specialized Hi Lo disc, 4 sealed cartridge bearings, 12mm thru-axle, 32h
SPOKES
DT Swiss Industry, stainless
DRIVETRAIN
FRONT DERAILLEUR
SRAM X7, 10-speed, S3 direct mount for DMD, bottom pull
REAR DERAILLEUR
Shimano XT Shadow Plus, 10-speed, SGS long cage
SHIFT LEVERS
Shimano SLX, 10-speed, trigger
CASSETTE
SRAM PG 1030, 10-speed, 11-36
CHAIN
SRAM PC 1031, 10-speed, w/ PowerLink, nickel finish
CRANKSET
Custom SRAM S-1250, 7050 alloy arms, 10-speed Trail double, PF30 spindle, 36/22, 104/64mm BCD spider
BOTTOM BRACKET
SRAM, PF30, OS press-in bearings, sealed cartridge
COCKPIT
SEATPOST
Specialized alloy, single bolt, 30.9mm
STEM
Specialized XC, 3D forged alloy, 4-bolt, 6-degree rise
HANDLEBARS
Specialized XC, mini rise, 6000 butted alloy, 8-degree backsweep, 6-degree upsweep, 10mm rise, 31.8mm
GRIPS
Specialized Sip Grip, light lock-on, half-waffle, S/M: regular thickness, Others: XL
SADDLE
Body Geometry Henge Comp, hollow Cr-Mo rails, 143mm
BRAKES
FRONT BRAKE
Shimano Deore BR-M506, hydraulic disc, dual piston, resin pads, S/M: 180mm rotor, Others: 200mm
REAR BRAKE
Shimano Deore BR-M506, hydraulic disc, dual piston, resin pads, S/M: 160mm rotor, Others: 180mm
BRAKE LEVERS
Shimano Deore BL-M506, hydraulic, alloy lever
ACCESSORIES
PEDALS
Resin test ride, w/ toe clips, CEN std.
*Vægte baseret på produktion af malede rammer som afbildet. Faktiske vægte vil variere baseret på farveskema, ramme størrelse og komponent variation. Specifikationer kan ændres uden varsel.
Geometri
| S | M | L | XL | |
|---|---|---|---|---|
| Sadelrørslængde, Center til top | 396mm | 430mm | 468mm | 523mm |
| Top Tube Length, Actual | 530mm | 555mm | 579mm | 603mm |
| Bottom Bracket Drop | 34mm | 34mm | 34mm | 34mm |
| Bottom Bracket Height | 338mm | 338mm | 338mm | 338mm |
| Sadelrørsvinkel, aktuel | 69° | 69.4° | 69.8° | 70.3° |
| Sadelrørsvinkel, effektiv | 74.5° | 74.5° | 74.5° | 74.5° |
| Wheel Base | 1117mm | 1147mm | 1175mm | 1203mm |
| Overrørshøjde | 750mm | 741mm | 750mm | 764mm |
| Stellets stakhøjde | 605mm | 614mm | 638mm | 656mm |
| Stellængde (reach) | 399mm | 427mm | 445mm | 466mm |
| Kronrørslængde | 90mm | 100mm | 125mm | 145mm |
| Kronrørsvinkel | 69° | 69° | 69° | 69° |
| Kædestagslængde | 450mm | 450mm | 450mm | 450mm |
| Faktisk overrørslængde, horisontal | 567mm | 596mm | 622mm | 648mm |
| Pedalarmslængde | 170mm | 175mm | 175mm | 175mm |
| Styrbredde | 720mm | 720mm | 720mm | 720mm |
| Frempindslængde | 60mm | 75mm | 90mm | 90mm |
| Sadelpinds længde | 380mm | 430mm | 430mm | 430mm |
Download af manualer
For sikkerhedsadvarsler henvises til dokumentationen i afsnittet Download af manualer, som findes på denne side.
Anmeldelser fra ryttere
0 Anmeldelser
