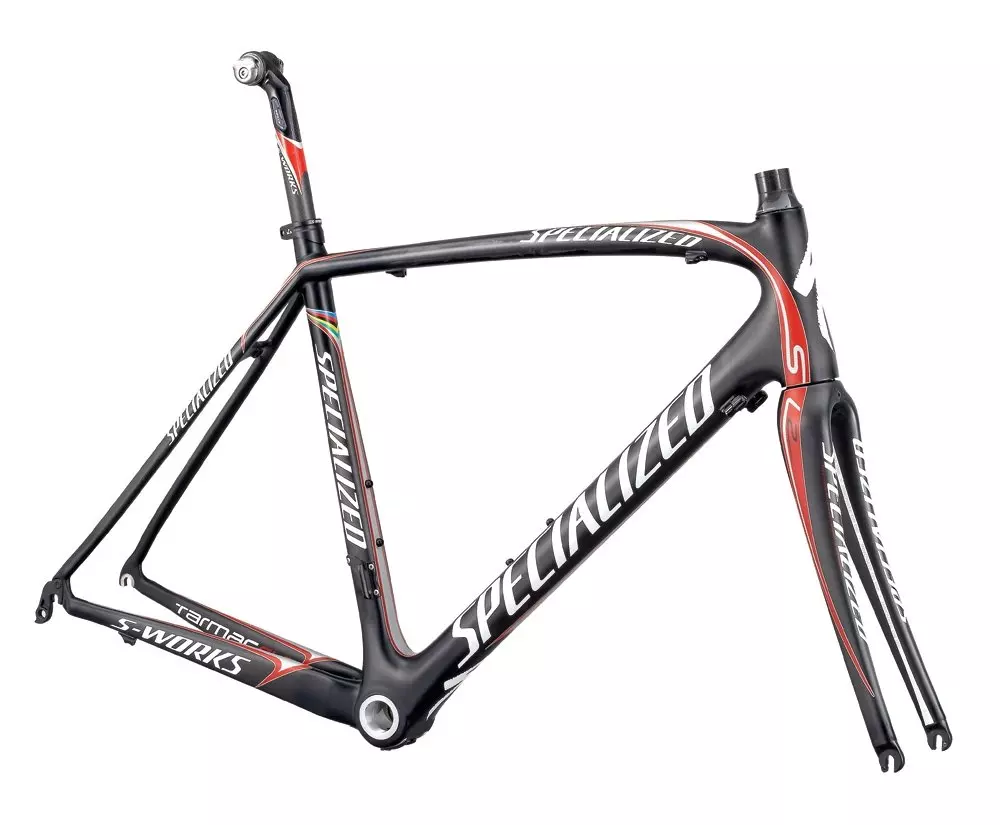

2009 S-Works Tarmac SL2 Frameset

0 Anmeldelser

FROM THE SPRING CLASSICS to the Grand Tours, the Tarmac has proven itself to be the…

Farve:

Gloss Carbon/Red

Hvilken er min størrelse?

Imperial

Metrisk

Indtast din højde, så beregner vi din størrelse

Højde:

For et mere præcist resultat, så inkluder din skinnebenslængde

Vælg en Størrelse

Vælge farve og størrelse for at se lagerstatus hos forhandler

Ikke tilgængelig

Artiklen er ikke tilgængelig for “Find i nærheden”

Produktinformation

FROM THE SPRING CLASSICS to the Grand Tours, the Tarmac has proven itself to be the professional rider's bike of choice. A world championship and a Tour de France green jersey lend proof to our claim that no frame is lighter andstiffer.

The S-Works Tarmac SL2 (with standard geometry) features our top-of-the-line, superlight and strong 11r carbon, with our FACT IS construction for a super-efficient frame that simply exudes speed.
The S-Works FACT carbon monocoque fork has an oversized race for incredible strength and precision.
The S-Works Mindset headset comes with ceramic cartridge bearings for the smoothest action imaginable.
The S-Works SL FACT carbon seatpost features an integrated Zertz insert for a seatpost that’s light and stiff, but forgiving.

Tekniske specifikationer

FRAMESET

FRAME

S-Works FACT 11r carbon, FACT IS construction, compact race design, 1.5"" lower HS bearing, threaded BB

FORK

S-Works FACT carbon, monocoque construction, OS race for 1.5"" bearing, full carbon legs, crown and steerer

HEADSET

S-Works Campy style, 1-1/8"" to 1.5"" lower bearing, integrated threadless, sealed cartridge ceramic bearings w/ stainless steel races, 8mm carbon cone w/ one 10mm and two 5mm carbon spacers

SEAT BINDER

S-Works CNC alloy, 32.6mm

COCKPIT

SEATPOST

S-Works SL, FACT carbon w/ Zertz insert, 27.2mm

*Vægte baseret på produktion af malede rammer som afbildet. Faktiske vægte vil variere baseret på farveskema, ramme størrelse og komponent variation. Specifikationer kan ændres uden varsel.

Geometri

	49	52	54	56	58	61
Ground-Top	71.5mm	71.5mm	69mm	69mm	67.5mm	67.5mm
Sadelrørsvinkel	57°	62°	57°	56°	53°	56°
Kronrørsvinkel	576°	576°	583°	591°	605°	612°
Kædestagslængde	45mm	45mm	45mm	43mm	43mm	43mm
Top-Tube Length, Horizontal	74mm	75.5mm	73.5mm	73.25mm	72.5mm	73mm
Krankboks – Fornavs afstand	100mm	120mm	145mm	170mm	205mm	230mm
Handle-Bar Width	0mm	0mm	0mm	0mm	0mm	0mm
Seat-Tube Length, B-B Center to Top	405mm	405mm	405mm	405mm	407mm	410mm
Forgaflens fremløb	970mm	970mm	978mm	986mm	1003mm	1013mm
Krankboksens drop	72.25mm	73mm	73mm	73.5mm	73.5mm	74mm
Stellets stakhøjde	460mm	490mm	510mm	530mm	550mm	580mm
Stellængde (reach)	518mm	537mm	548mm	565mm	582mm	600mm
Efterløb	730mm	755mm	777mm	800mm	828mm	857mm
