2015 S-Works Shiv Module

0 Anmeldelser

The S-Works Shiv Module is the ultimate triathlon weapon, delivering the perfect…

Farve:

Gloss Cyan / Blue / Red / White

Hvilken er min størrelse?

Imperial

Metrisk

Indtast din højde, så beregner vi din størrelse

Højde:

For et mere præcist resultat, så inkluder din skinnebenslængde

Vælg en Størrelse

Vælge farve og størrelse for at se lagerstatus hos forhandler

Ikke tilgængelig

Artiklen er ikke tilgængelig for “Find i nærheden”

Produktinformation

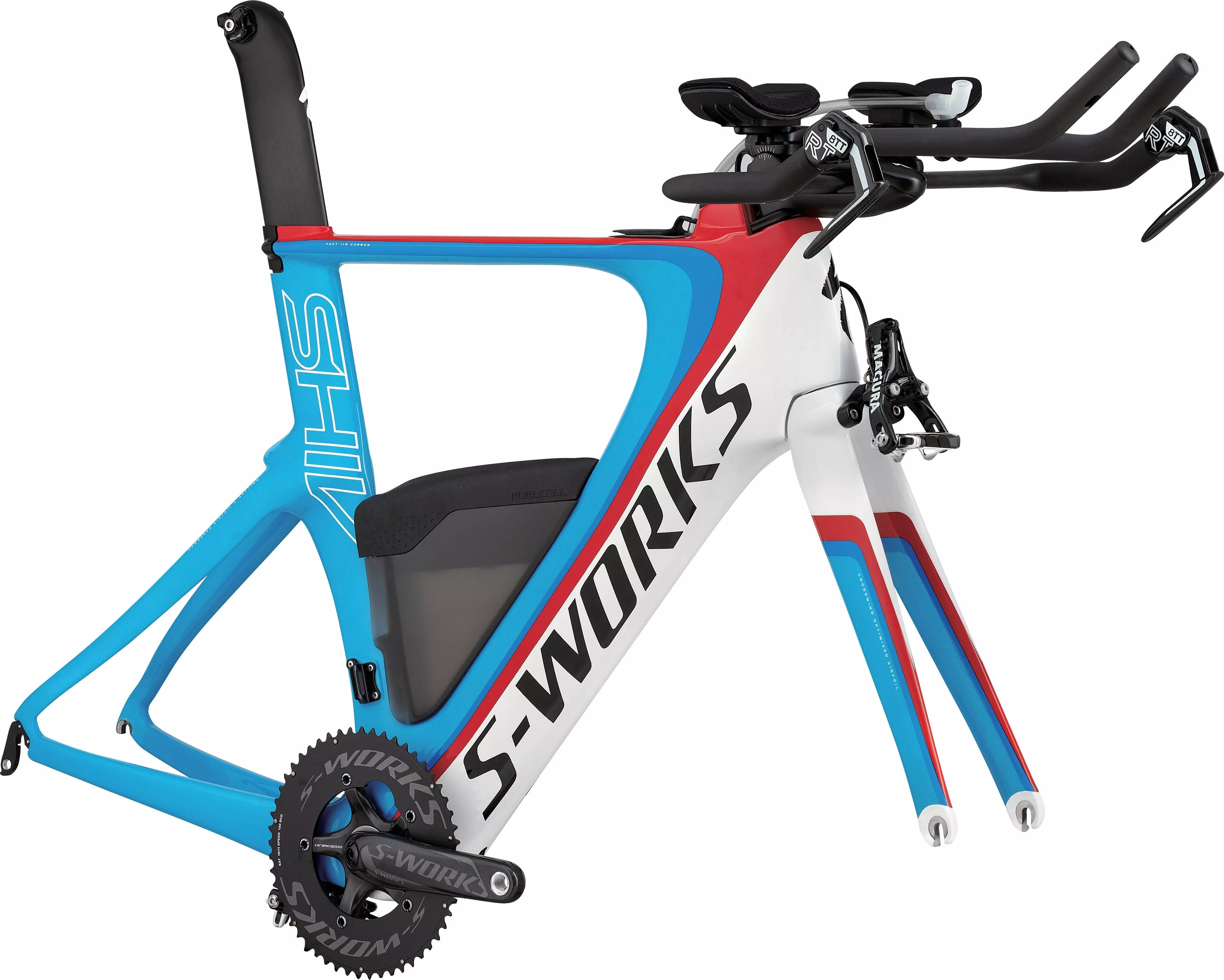

The S-Works Shiv Module is the ultimate triathlon weapon, delivering the perfect blend of stealthy power, drag-defying aerodynamics, and tailored fit options. Build your custom dream machine with one of the fastest frames around.

Magura RT8TT hydraulic caliper brakes offer maximum braking power
S-Works 11r carbon FACT IS frame with OSBB is optimized for crosswinds and speed
Dual-compartment Fuelcell provides a place for flat repair and nutrition storage
Fully-adjustable Specialized Carbon Aerobar w/ semi-integrated aero stem for multiple fits
Shiv Aero, FACT carbon seatpost w/ 12.5mm and 37.5mm offset options for aero efficiency

Tekniske specifikationer

FRAMESET

FRAME

S-Works FACT 11r carbon, FACT IS construction, crosswind-optimized airfoils, 1-1/8"" lower bearing, OSBB, Control Tower Fit System, Fuelselage Integrated Hydration System

FORK

Specialized FACT Aero carbon

HEADSET

1-1/8"" upper/lower, hybrid cartridge bearings

DRIVETRAIN

CRANKSET

S-Works FACT carbon, w/ TT chainrings

CHAINRINGS

53/39 TT

COCKPIT

HANDLEBARS

Specialized Carbon Aerobar

STEM

Shiv Aerostem

SEATPOST

Shiv Aero, FACT Carbon, +/-12.5mm and +/-37.5mm setback

BRAKES

FRONT BRAKE

Magura RT8TT

REAR BRAKE

Magura RT8TT

BRAKE LEVERS

Magura RT8TT

*Vægte baseret på produktion af malede rammer som afbildet. Faktiske vægte vil variere baseret på farveskema, ramme størrelse og komponent variation. Specifikationer kan ændres uden varsel.

Geometri

	XS	S	M	L	XL
Sadelrørsvinkel	77°	77°	77°	77°	77°
Kronrørslængde	99mm	115mm	139mm	163mm	189mm
Seat-Post Length	350mm	350mm	350mm	350mm	350mm
Seat Post Setback	12.5mm	12.5mm	12.5mm	12.5mm	12.5mm
Kronrørsvinkel	70.25°	71.5°	72°	72.5°	72.5°
Kædestagslængde	395mm	395mm	395mm	395mm	395mm
Top-Tube Length, Horizontal	481mm	504mm	530mm	557mm	582mm
Krankboks – Fornavs afstand	573mm	589mm	608mm	631mm	659mm
Stand-Over Height	752mm	772mm	797mm	822mm	847mm
Seat-Tube Length, B-B Center to Top	505mm	525mm	551mm	577mm	603mm
Forgaflens fremløb	50mm	50mm	45mm	45mm	45mm
Krankboksens drop	72mm	72mm	72mm	72mm	72mm
Stellets stakhøjde	495mm	515mm	540mm	565mm	590mm
Stellængde (reach)	365mm	385mm	405mm	425mm	445mm
Efterløb	69mm	61mm	63mm	60mm	60mm
Akselafstand	957mm	973mm	992mm	1016mm	1043mm
Pedalarmslængde	167.5mm	170mm	172.5mm	172.5mm	175mm
Frempindslængde	90mm	90mm	90mm	90mm	90mm
