2018 P.3

Part No.: 91918-7022

0 Anmeldelser

The P.Series P.3 doesn't put out fluff and sparkly stuff. It simply delivers a bombproof…

Farve:

Satin Gloss Black/Black

Størrelse:

22.5" TT

Vælge farve og størrelse for at se lagerstatus hos forhandler

Ikke på lager online

This item is unavailable

Ikke på lager online

This item is unavailable

Ikke tilgængelig

Artiklen er ikke tilgængelig for “Find i nærheden”

Ring nu

Produktinformation

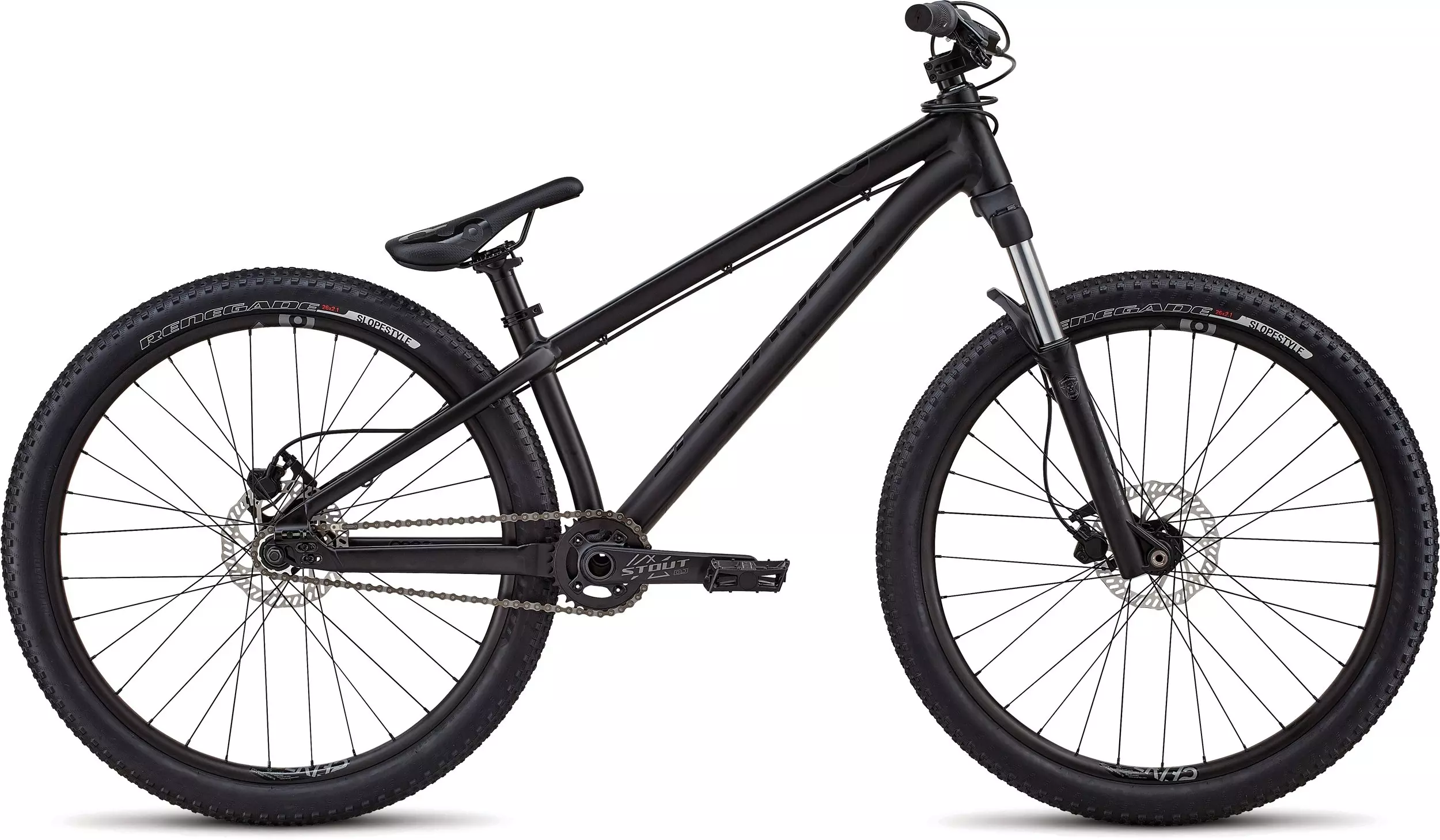

The P.Series P.3 doesn't put out fluff and sparkly stuff. It simply delivers a bombproof ride quality that mixes advanced technology and top-shelf materials with geometry that's proven in the street, park, and dirt.

It comes equipped with a Manitou Circus Sport fork up front, beefy Stout DJ cranks, powerful Tektro hydraulic brakes, and a construction that leaves no precaution unchecked.

The P.3 can ride it all, from dirt to street.

The frame is constructed from A1 premium aluminum in order to keep the overall weight at a minimum, while also ensuring that the bike is plenty tough to take a hit. And when it comes to cool features that make the difference, you get forged horizontal dropouts and integrated chain tensioners to keep the rear wheel locked in place, ISCG 05 to run chainguides, and a tough, forged shell surrounding the PF30 bottom bracket.
Manitou Circus Expert features 100mm of air-sprung travel and stiff 32mm stanchions. You also get Manitou's acclaimed TPC rebound damper and a stiff, sturdy 15mm thru-axle.
The Tektro hydraulic disc brakes slow you down when you need it most, but stay out of the way for even them most creative tricks.

Tekniske specifikationer

FRAMESET

FRAME

Specialized A1 Premium Aluminum, fully butted tubing, tapered head tube, BB30 forged BB shell, integrated ISCG 05 tabs, forged horizontal dropouts, integrated chain tensioners

SEAT BINDER

Alloy, single-bolt, 34.9mm

SUSPENSION

FORK

Manitou Circus Sport, Firm spring, FFD damping, TPC rebound damping, 32mm stanchions, 15mm thru-axle, 100mm of travel

WHEELS

RIMS

P. Series 26 disc, 18mm rim depth, 26.4mm internal width, 32h

FRONT HUB

P. Series Dirt Jump, alloy disc hub, sealed cartridge bearings,15x100mm thru-axle, 32h

REAR HUB

P. Series Dirt Jump, alloy disc hub, sealed cartridge bearings, single speed w/ 14t 3/32" cog, 10mm Cr-Mo axle, 32h

SPOKES

Stainless, 14g, black

FRONT TIRE

Renegade Slopestyle, 60 TPI, wire bead, 26x2.1"

REAR TIRE

Renegade Slopestyle, 60 TPI, wire bead, 26x2.1"

INNER TUBES

Schrader valve

DRIVETRAIN

CHAIN

KMC Z610, single speed, 1/2x3/32"

CRANKSET

Stout DJ cranks, 30mm Cr-Mo spindle, 170mm

CHAINRINGS

30T

BOTTOM BRACKET

BB30 BB, 2-piece, 73mm shell

COCKPIT

STEM

Forged Alloy, 31.8mm clamp, 40mm

HANDLEBARS

Specialized P.Series MTB Dirt, 6061 alloy, 9-degree backsweep, 6-degree upsweep, 38mm rise, 750mm width, 31.8mm clamp

GRIPS

Specialized P.Grip, lock-on

SADDLE

P.Series Dirt, steel rails

SEATPOST

Specialized, 6061 alloy, 2-bolt clamp, 0mm setback, 30.9mm

BRAKES

REAR BRAKE

Tektro HD-M285, hydraulic disc brake, 160mm rotors

FRONT BRAKE

Tektro HD-M285, hydraulic disc brake, 160mm rotors

ACCESSORIES

PEDALS

Specialized Platform, Cr-Mo, 9/16" spindle

*Vægte baseret på produktion af malede rammer som afbildet. Faktiske vægte vil variere baseret på farveskema, ramme størrelse og komponent variation. Specifikationer kan ændres uden varsel.

Geometri

	22.5" TT
Pedalarmslængde	170mm
Styrbredde	750mm
Frempindslængde	40mm
Sadelpinds længde	200mm
Stellets stakhøjde	546mm
Stellængde (reach)	413mm
Kronrørslængde	128mm
Kronrørsvinkel	70.5°
Krankbokshøjde	331mm
Krankboksens drop	7mm
Efterløb	77mm
Forgaffel Længde	457mm
Forgaflens fremløb	40mm
Krankboks – Fornavs afstand	646mm
Kædestagslængde	383mm
Akselafstand	1029mm
Faktisk overrørslængde, horisontal	570mm
Skridthøjde	338mm
Sadelrørslængde	304mm
Sadelrørsvinkel	74°
