    Men's S-Works Epic XTR Di2

    Icon

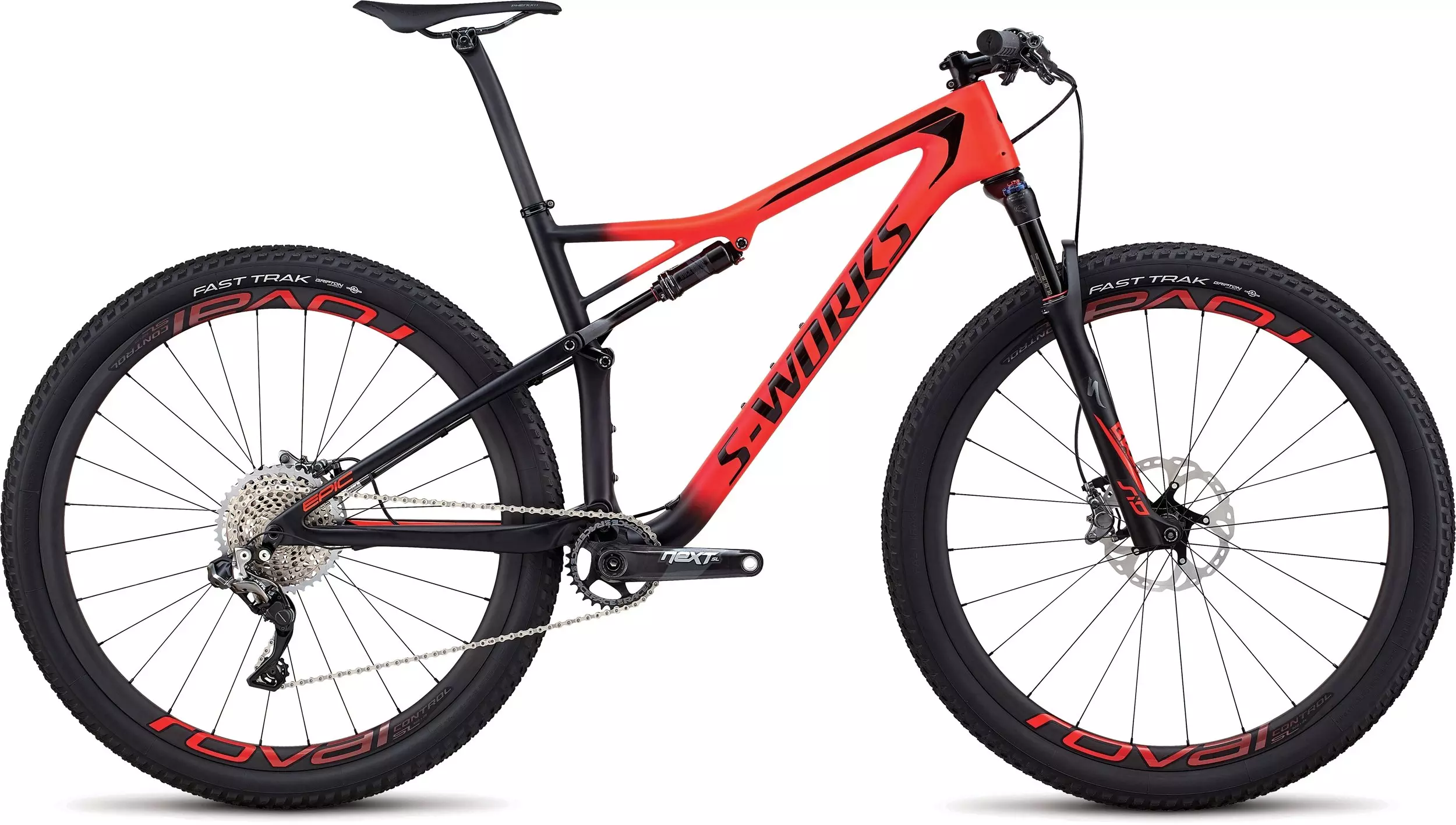

    2018 Men's S-Works Epic XTR Di2

    With more World Championship titles, Olympic medals, and Cape Epic wins than you can count, you may be wondering, "Can the Epic really get any better?" Well, we're glad you asked, because with a completely new geometry, redesigned Brain, and a new frame layup, the all-new S-Works Epic goes from jet fighter to rocket ship—making it the fastest XC bike on the planet.

    Race courses have evolved over the past few years. They're more technical, steeper, and simply more challenging to ride. But instead of quivering in our boots, we saw this as an opportunity to make something special—something that both World Cup athletes and XC riders alike can instantly feel the benefit from. We looked at the sum of parts that make a bike handle well, like the head angle, reach, stack, chainstay length, fork offset, etc., and reevaluated all of it. Increasing the reach made a bike that was more stable at speed and generally more comfortable to ride. Dropper posts? Yep, those fit, and not just a short-travel XC option, but full-length droppers that fit in the 30.9mm seat tube. Head angle? We slacked that out, but not without evaluating the overall handling package. It now lands on a custom offset, 42mm fork that works with the slacker head angle in order to behave itself in tight corners and through switchbacks.

    Next comes the redesigned Brain technology, Brain 2.0. The Brain changed the way the bike world looked at suspension, both its inefficiencies and benefits alike. And oh was it good. It won races and put a flag in the ground for us as a true leader in innovation and suspension development, but we knew that we could make it better. Simple physics told us that, by moving the Brain closer to the rear axle, it would be in the most sensitive spot. And after countless hours with the RockShox team, the new Brain became more than just a slight upgrade. It's totally new. Now, it reacts seamlessly to bump forces, it has much more consistent damping performance, and finally, it integrates the hoses into the suspension links. This, in turn, improves oil paths, and it creates an incredibly sleek package that outperforms anything on the market.

    The new Epic also gets a serious upgrade in the stiffness department. The Rider-First Engineered™ tubes place complex carbon pieces in all the right places, which greatly increases stiffness in the front end for a vast improvement in ride quality and control. To go along with this, each frame size has size-specific tubes that result in the stiffest, best riding XC bike we've ever developed—no matter the frame size.

    And while stiffness, Brain technology, and geometry features are cool and all, we know what you're thinking, "What about weight?" We're glad you asked. With the goal of the new Epic to be the fastest XC mountain bike we've ever made, weight was at the top of our priorities list. We started with an efficient frame layout and tube shapes that feature clean cable routing, integrated channels through the shock extension, straight tubes with less curves, and optimized torsion profiles in every section. And, if you're curious, this weight savings is equivalent to shedding a chainstay and shock extension from the previous Epic—nearly 350 grams.

    For this S-Works model, the build spares no expense with a custom RockShox SID World Cup fork, Shimano XTR Di2 shifting, a Race Face Next SL G4 crankset, and hand-built, featherweight Roval Control SL wheels.

    Tekniske specifikationer

    Add Icon

    FRAMESET

    FRAME

    S-Works FACT 12m, XC Geometry, threaded BB, 12x148mm rear spacing, internal cable routing, 100mm of travel

    SEAT BINDER

    Specialized Alloy 34.9mm, Ti bolt

    SUSPENSION

    REAR SHOCK

    RockShox/Specialized Micro Brain shock w/ Spike Valve, AUTOSAG, 51x257mm

    FORK

    RockShox SID WC Brain 29, top-adjust Brain Fade, Solo Air, tapered carbon crown and steerer, 15x110mm Maxle® Stealth thru-axle, 100mm of travel, 42mm offset

    WHEELS

    REAR HUB

    Roval Control SL, DT Swiss Star Ratchet, 54t engagement, SRAM XD driver body, 12mm thru-axle, 148mm spacing, 28h

    FRONT HUB

    Roval Control SL, sealed cartridge bearings, 15mm thru-axle, 110mm spacing, 24h

    RIMS

    Roval Control SL, hookless carbon, 25mm internal width, tubeless-ready, hand-built

    INNER TUBES

    29x1.75/2.4", 60mm Presta valve

    REAR TIRE

    Fast Trak, GRIPTON compound, 2Bliss Ready, 29 x 2.1"

    FRONT TIRE

    Fast Trak, GRIPTON compound, 2Bliss Ready, 29 x 2.3"

    SPOKES

    DT Swiss Competition Race

    DRIVETRAIN

    CHAIN

    SRAM XX1, 11-speed w/ PowerLink

    CASSETTE

    SRAM XG 1199 X-DOME, 11-speed, 10-42t

    SHIFT LEVERS

    Shimano XTR Di2, 11-speed

    REAR DERAILLEUR

    Shimano XTR M9050 Di2, Shadow Plus, GS cage, 11-speed

    BOTTOM BRACKET

    Threaded BB, 24mm spindle

    CHAINRINGS

    Alloy 30T

    CRANKSET

    Race Face Next SL G4, Boost™

    COCKPIT

    STEM

    S-Works SL, alloy, titanium bolts, 6-degree rise

    SEATPOST

    S-Works FACT carbon, 10mm setback, 30.9mm

    GRIPS

    Specialized Sip Grip, half-waffle, S/M: regular thickness, L/XL: XL thickness

    SADDLE

    Body Geometry S-Works Phenom, carbon rails, 143mm

    HANDLEBARS

    S-Works Carbon Mini Rise, 6-degree upsweep, 8-degree backsweep, 10mm rise, 720mm, 31.8mm

    BRAKES

    FRONT BRAKE

    Shimano XTR M9000, hydraulic disc, post mount, metallic pads, 160/180mm rotors

    REAR BRAKE

    Shimano XTR M9000, hydraulic disc, post mount, metallic pads, 160mm rotors

    ACCESSORIES

    PEDALS

    Specialized Platform, 9/16" spindle

    * Vægte baseret på produktion af malede rammer som afbildet. Faktiske vægte vil variere baseret på farveskema, ramme størrelse og komponent variation. Specifikationer kan ændres uden varsel.

    Geometri

    Add Icon
    SMLXL
    Pedalarmslængde170mm175mm175mm175mm
    Styrbredde720mm720mm720mm720mm
    Frempindslængde60mm75mm90mm100mm
    Sadelbredde143mm143mm143mm143mm
    Sadelpinds længde350mm400mm400mm400mm
    Stellets stakhøjde588mm597mm611mm630mm
    Stellængde (reach)408mm433mm456mm475mm
    Kronrørslængde95mm105mm120mm140mm
    Kronrørsvinkel69.5°69.5°69.5°69.5°
    Krankbokshøjde332.6mm332.6mm332.6mm332.6mm
    Krankboksens drop38.9mm38.9mm38.9mm38.9mm
    Efterløb94mm94mm94mm94mm
    Forgaffel Længde506mm506mm506mm506mm
    Forgaflens fremløb42mm42mm42mm42mm
    Krankboks – Fornavs afstand659mm688mm716mm742mm
    Kædestagslængde438mm438mm438mm438mm
    Akselafstand1095mm1123mm1152mm1178mm
    Faktisk overrørslængde, horisontal568mm595mm623mm649mm
    Skridthøjde764mm770mm776mm799mm
    Sadelrørslængde400mm434mm470mm520mm
    Sadelrørsvinkel74.75°74.75°74.75°74.75°
