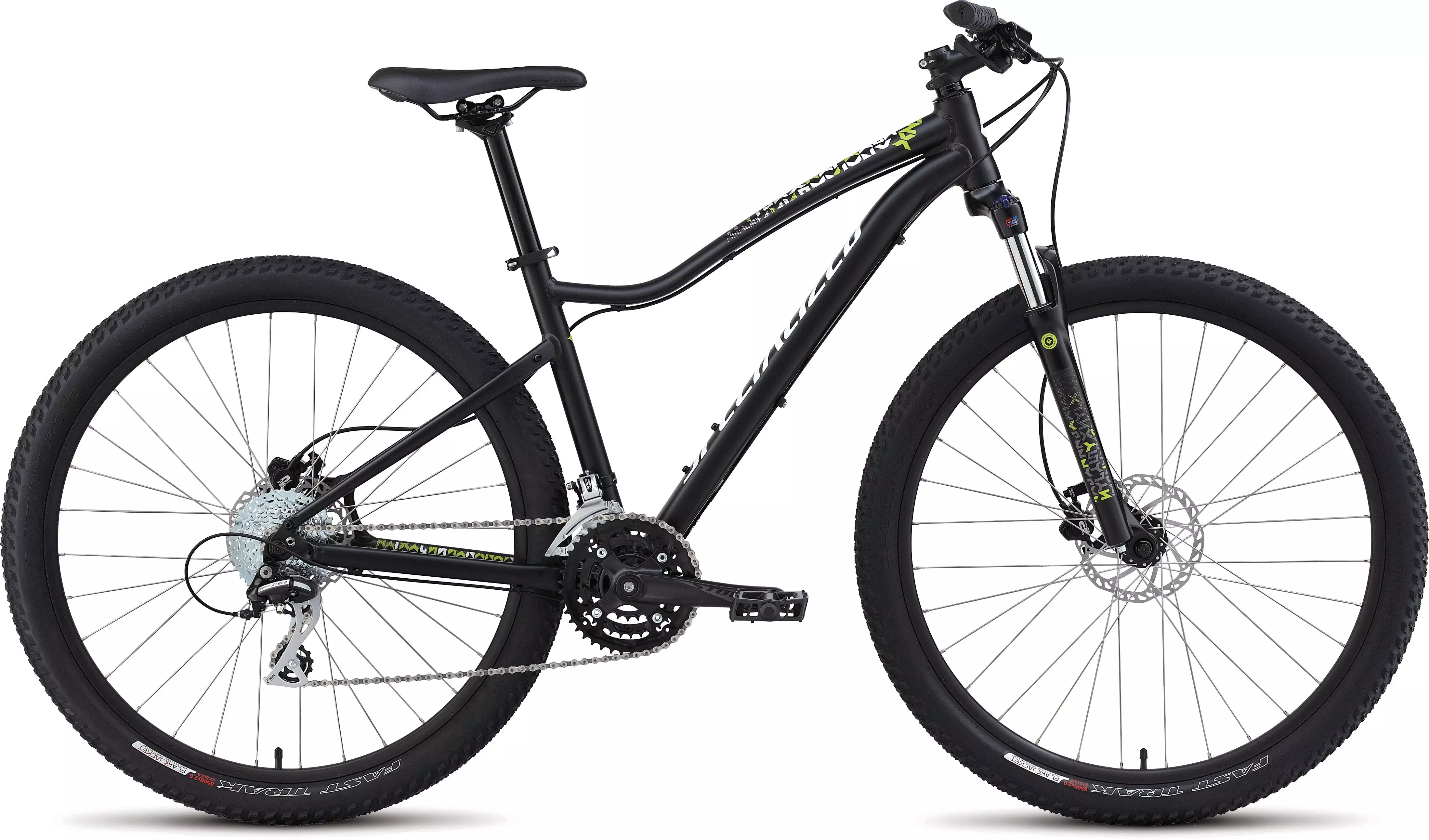

2015 Jynx Sport 650b

0 Anmeldelser

The Jynx is an all-new 650b hardtail mountain bike anatomically engineered for women,…

Farve:

Satin Black/Hyper Green/White

Hvilken er min størrelse?

Imperial

Metrisk

Indtast din højde, så beregner vi din størrelse

Højde:

For et mere præcist resultat, så inkluder din skinnebenslængde

Vælg en Størrelse

Vælge farve og størrelse for at se lagerstatus hos forhandler

Ikke tilgængelig

Artiklen er ikke tilgængelig for “Find i nærheden”

Produktinformation

The Jynx is an all-new 650b hardtail mountain bike anatomically engineered for women, equipped for trail and neighborhood adventures. The Jynx Sport features a custom-tuned 80mm-travel SR Suntour fork, Tektro Auriga hydraulic disc brakes, and fast-rolling Specialized Fast Trak tires.

Women's Body Geometry XCT, lock-on grips provide reliable bar control
Tektro Auriga, hydraulic disc brakes w/ women's short-reach levers for maximum stopping power
Body Geometry Women's Riva Sport Plus saddle features generous padding for all-day comfort
Specialized Stout, disc brake-specific wheels are strong and durable
Shimano Acera, 8-speed rear derailleur for reliable, crisp shifting
Custom SR Suntour XCT 80mm-travel fork w/ exclusive Multi-Circuit Damping
Specialized Stout, 8-speed crankset for efficient and precise shifting
A1 Premium Aluminum frame w/ Women's Recreational XC Geometry for stability and control

Tekniske specifikationer

FRAMESET

FRAME

Specialized A1 Premium Aluminum, Women's Recreational XC Geometry, women's butted tubesets, forged dropouts, replaceable derailleur hanger, kickstand mount

HEADSET

1-1/8"" upper/lower, Zerostack 44, steel cups, loose ball bearings

SEAT BINDER

Alloy, nylon/glass fiber washer, QR, 34.9mm

SUSPENSION

FORK

Custom SR Suntour XCT 650b, w/ custom Multi-Circuit Damping, alloy lowers, custom coil/MCU spring weights, Hi-Ten 28mm stanchions, 1-1/8"" steerer, hydraulic lockout w/ preload adjust, disc mount, 80mm travel

WHEELS

RIMS

Specialized Stout, 650b disc, alloy double-wall, pin joint, 25mm inner width, 32h

FRONT HUB

Specialized Hi Lo disc, alloy double-sealed, ground race, QR, 32h

REAR HUB

Specialized Hi Lo disc, alloy, double-sealed, loose ball bearings, QR, 32h

SPOKES

Stainless, 14g, w/ brass nipple

FRONT TIRE

Specialized Fast Trak Sport, 40TPI, wire bead, Flak Jacket protection, 650bx2.0""

REAR TIRE

Specialized Fast Trak Sport, 40TPI, wire bead, Flak Jacket protection, 650bx2.0""

INNER TUBES

Standard, Schrader valve

DRIVETRAIN

FRONT DERAILLEUR

Shimano Altus, high mount, bottom swing, dual-pull

REAR DERAILLEUR

Shimano Acera, 8-speed, SGS cage

SHIFT LEVERS

Shimano Altus Rapidfire Plus, SL type, w/ optical display

CASSETTE

Sunrace, 8-speed, 11-34

CHAIN

KMC X8, 8-speed, reusable Missing Link

CRANKSET

Specialized Stout, forged alloy, 8-speed, square taper spindle

BOTTOM BRACKET

Square taper, cartridge bearings

COCKPIT

STEM

Specialized 3D forged alloy, 4-bolt, 7-degree rise, anti-corrosion hardware

HANDLEBARS

Specialized, low rise, double butted 6061 alloy, 9-degree backsweep, 5-degree upsweep, 15mm rise, 31.8mm

GRIPS

Specialized Body Geometry XCT Women's, Kraton w/ gel, lock-on, closed end, 121.5mm

SADDLE

Body Geometry Women's Riva Sport Plus, steel rails, 155mm

SEATPOST

Alloy, 2-bolt, micro-adjust, 12.5mm offset, 30.9mm, anti-corrosion hardware

BRAKES

FRONT BRAKE

Tektro Auriga, hydraulic disc, resin/metallic pads, tooled women's reach adjust

REAR BRAKE

Tektro Auriga, hydraulic disc, resin/metallic pads, tooled women's reach adjust

BRAKE LEVERS

Tektro Auriga, hydraulic, women's short reach

ACCESSORIES

PEDALS

Composite platform, w/ reflectors, 9/16""

*Vægte baseret på produktion af malede rammer som afbildet. Faktiske vægte vil variere baseret på farveskema, ramme størrelse og komponent variation. Specifikationer kan ændres uden varsel.

Geometri

	XS	SM	MD	LG
Faktisk overrørslængde, horisontal	527mm	547mm	569mm	589mm
Top Tube Length (Actual)	527mm	537mm	548mm	565mm
Sadelrørslængde, Center til top	330mm	371mm	417mm	463mm
Bottom Bracket Drop	48mm	48mm	48mm	48mm
Bottom Bracket Height	301mm	301mm	301mm	301mm
Wheel Base	1027mm	1047mm	1054mm	1075mm
Overrørshøjde	668mm	686mm	715mm	745mm
Stellets stakhøjde	576mm	576mm	587mm	597mm
Stellængde (reach)	362mm	382mm	390mm	407mm
Kronrørslængde	100mm	100mm	110mm	120mm
Kronrørsvinkel	69.5°	69.5°	70°	70°
Krankboks – Fornavs afstand	606mm	626mm	633mm	653mm
Kædestagslængde	426mm	426mm	426mm	426mm
Sadelrørsvinkel	74°	74°	73°	73°
Pedalarmslængde	170mm	170mm	170mm	175mm
Styrbredde	640mm	640mm	660mm	660mm
Frempindslængde	60mm	60mm	80mm	80mm
Sadelpinds længde	350mm	350mm	350mm	350mm
