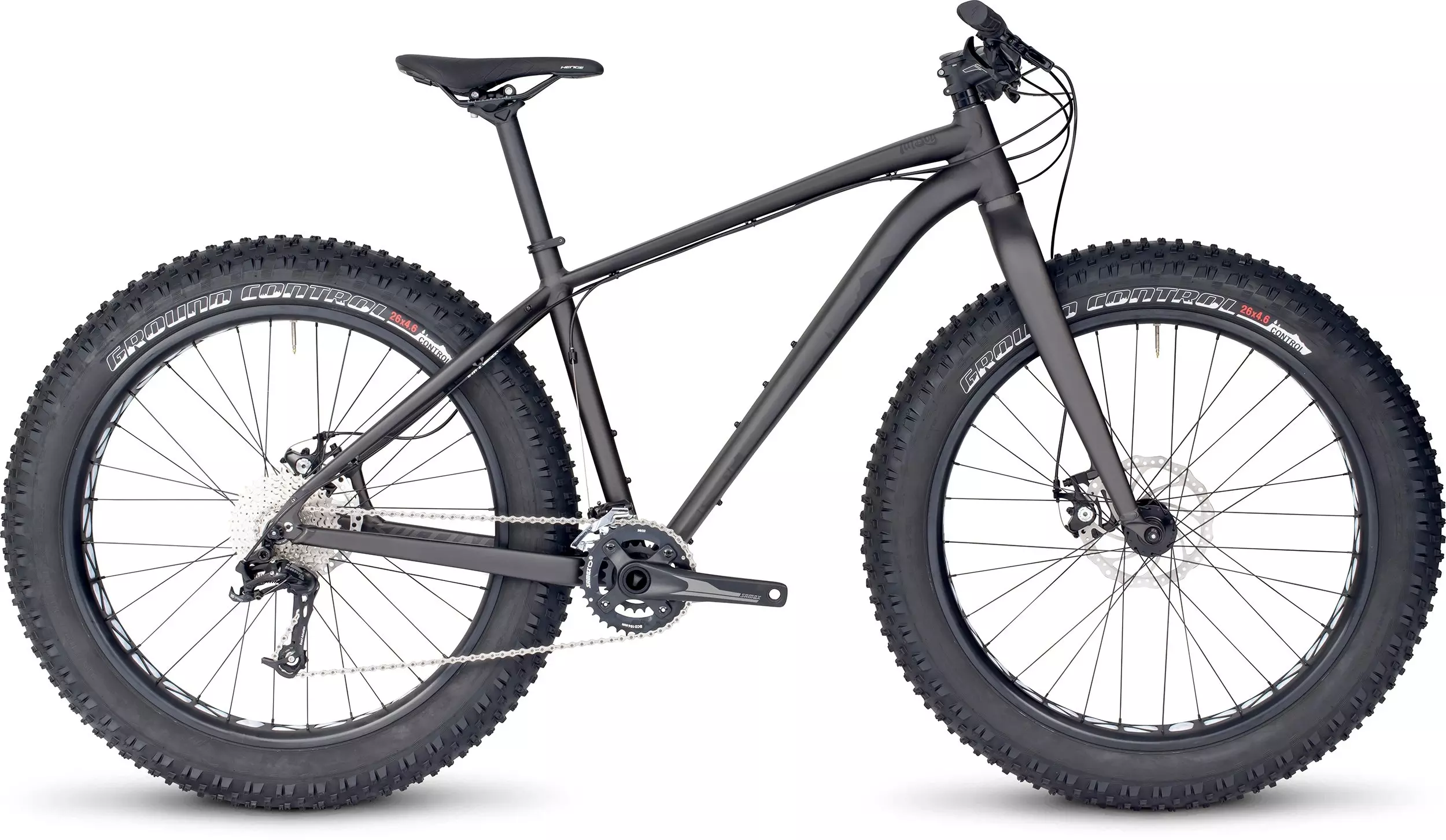

2017 Fatboy SE

0 Anmeldelser

Farve:

Satin Warm Charcoal / Black

Hvilken er min størrelse?

Imperial

Metrisk

Indtast din højde, så beregner vi din størrelse

Højde:

For et mere præcist resultat, så inkluder din skinnebenslængde

Vælg en Størrelse

Vælge farve og størrelse for at se lagerstatus hos forhandler

Levering til -----

Ikke tilgængelig

Artiklen er ikke tilgængelig for “Find i nærheden”

Produktinformation

If having fun for the sake of having fun sounds appealing to you, "going fat" will change the way you ride forever. The security and control that the wheel system found here on our Fatboy SE provides is unparalleled. You get dramatically more traction, grip, and floatation than with traditional mountain tires, all without sacrificing much to climbing efficiency. The end result is easy to explain—you have way more fun. And to make sure of it, we built the Fatboy with a durable, no-nonsense list of components that are low-maintenance and eager to perform season after season.

The frame features an M4 alloy construction that provides the ideal blend of efficiency and durability, while the geometry creates a roomy top tube and short chainstays for easy climbing and confident descending.
Our alloy fork with air-formed legs is lightweight and pairs up perfectly with the fat wheel system to soak up trail chatter and bumps.
Durable alloy rims have been laced to Stout XC hubs to form a wheelset that's dependable, rugged, and efficient. So whether you're trail riding or plowing through the snow, these wheels will be the perfect mix of performance and strength.

Tekniske specifikationer

FRAMESET

FRAME

Specialized M4 aluminum, fully-butted tubing w/smooth welds, tapered head tube, post-mount disc dropouts, 190mm rear hub spacing, replaceable alloy derailleur hanger

SEAT BINDER

Alloy, 31.8mm

SUSPENSION

FORK

Specialized, alloy, air-formed legs, tapered alloy steererer, 135mm hub spacing, open quick-release dropouts

WHEELS

RIMS

Specialized 26"" disc front, 21mm depth, 86mm internal width, 32h

FRONT HUB

Specialized Stout XC 135, disc alloy, loose ball bearings, bolt-on axle, 32h

REAR HUB

Specialized disc, sealed cartridge bearings, alloy body cassette, 10mm steel QR, 32h

SPOKES

Stainless, black, 14g

FRONT TIRE

Ground Control Fat, 60 TPI, wire bead, 26x4.6""

REAR TIRE

Ground Control Fat, 26x4.6"", 60TPI, wire bead

INNER TUBES

Standard, Presta valve

DRIVETRAIN

FRONT DERAILLEUR

SRAM X5, low direct-mount, 2x10

REAR DERAILLEUR

SRAM X5, long cage, 10-speed

SHIFT LEVERS

SRAM X5, 10-speed, trigger

CASSETTE

Sunrace, 10-speed, 11-36t

CHAIN

KMC X10EPT Anti-Rust, 10-speed, w/reusable MissingLink

CRANKSET

Custom Samox, forged alloy, 2x10, Cr-Mo spindle, 104mm BCD spider

BOTTOM BRACKET

BB30, sealed cartridge bearings

COCKPIT

STEM

Ahead 3D-forged alloy, 31.8mm clamp, 6-degree rise

HANDLEBARS

Double-butted alloy, 9-degree backsweep, 5-degree upsweep, 15mm rise, 750mm width, 31.8mm

GRIPS

Specialized MTB Grip, lock-on

SADDLE

Body Geometry Henge Sport, steel rails, 143mm

SEATPOST

Alloy, 12.5mm offset, 2-bolt clamp, 27.2mm

BRAKES

REAR BRAKE

Tektro Aries, mechanical disc, organic pads, 160mm rotor

FRONT BRAKE

Tektro Aries, mechanical disc, organic pads, 160mm rotor

ACCESSORIES

PEDALS

Specialized Dirt Pedals

*Vægte baseret på produktion af malede rammer som afbildet. Faktiske vægte vil variere baseret på farveskema, ramme størrelse og komponent variation. Specifikationer kan ændres uden varsel.

Geometri

	S	M	L	XL
Pedalarmslængde	170mm	175mm	175mm	175mm
Styrbredde	750mm	750mm	750mm	750mm
Frempindslængde	60mm	60mm	70mm	70mm
Sadelbredde	143mm	143mm	143mm	143mm
Sadelpinds længde	350mm	350mm	400mm	400mm
Sadelrørsvinkel	73°	73°	73°	73°
Kronrørslængde	110mm	120mm	135mm	150mm
Kronrørsvinkel	70.5°	70.5°	70.5°	70.5°
Kædestagslængde	455mm	455mm	455mm	455mm
Krankboks – Fornavs afstand	634mm	663mm	685mm	711mm
Krankboksens drop	60mm	60mm	60mm	60mm
Krankbokshøjde	316mm	316mm	316mm	316mm
Skridthøjde	754mm	786mm	812mm	840mm
Forgaffel Længde	467mm	467mm	467mm	467mm
Faktisk overrørslængde, horisontal	576mm	603mm	625mm	650mm
Sadelrørsvinkel	394mm	445mm	483mm	533mm
Stellets stakhøjde	590mm	600mm	614mm	628mm
Stellængde (reach)	395mm	420mm	437mm	458mm
Efterløb	84mm	84mm	84mm	84mm
Forgaflens fremløb	46mm	46mm	46mm	46mm
Akselafstand	1083mm	1111mm	1133mm	1159mm
