Enduro Pro 29/6Fattie

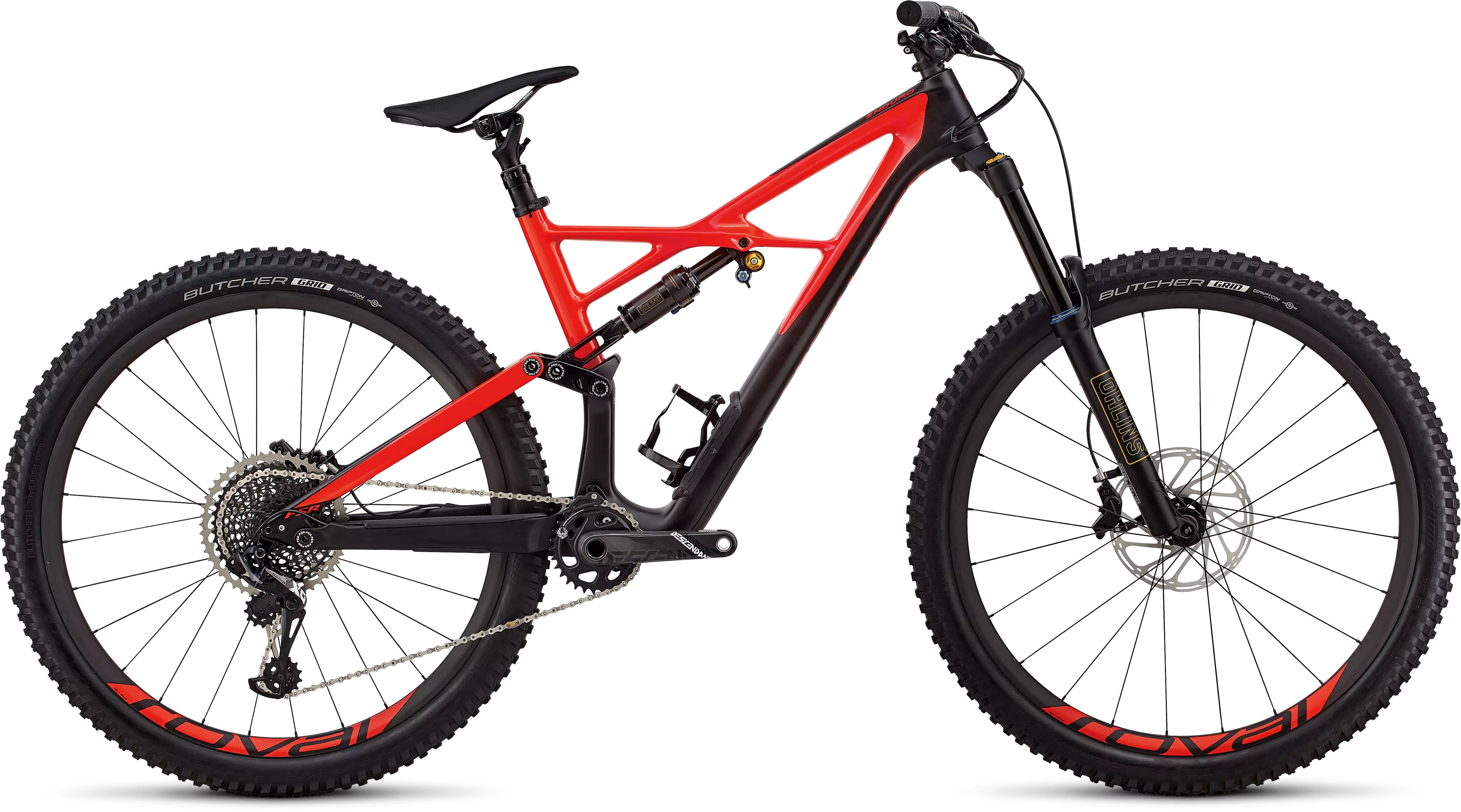

2018 Enduro Pro 29/6Fattie

"Big wheels" have gotten somewhat of a bad rap as of late, but when paired with the correct geometry, they make for a pretty amazing experience. So, when all-out speed up, down, and all over the trail is what you're after, the Enduro Pro 29/6Fattie will be waiting to answer the call.

We gave it a geometry that features a slacker front end, a longer top tube, short chainstays, and a lower bottom bracket. All of this together makes the bike truly feel glued to the ground, and the platform is more responsive and capable then ever. We even added some bits, like integrated storage with a SWAT™ Door at the down tube, and made "old" new again by making a triumphant return to a threaded bottom bracket. To keep the weight down, the frame is constructed from our top-tier FACT IS-X 11m carbon fiber. And to ensure top-level performance on the descents, this material choice is greeted by 160mm of plush rear and 160mm front travel, plus a geometry that can be "adjusted" via a shock extension with a "low/high" setting.

Handling suspension duties out back is the revolutionary Öhlins single-tube rear shock. And we even made this Enduro to be compatible with our 6Fattie Wheel/Tire system (wheels/tires not included), so you'll always be ready for the trail ahead.

For the build, this Enduro spares no expense at hitting the pinnacle of performance, with a full SRAM X01 Eagle 12-speed groupset, powerful SRAM Code R brakes, stupid-fast Roval carbon wheels, a Command Post IRcc Wu dropper post, and an Öhlins RXF 36 fork up front.

Tekniske specifikationer

FRAMESET

FRAME

FACT 11m, X-Wing layout, full carbon chassis and rear end, All Mountain Geometry, SWAT™ Door integration, threaded BB, fully enclosed internal cable routing, ManFu link, oversized pivot bearings, alloy link & adjustable shock extension, 12x148mm dropouts, replaceable derailleur hanger, 160mm of travel

SEAT BINDER

Alloy, 38.6mm

SUSPENSION

REAR SHOCK

Custom Öhlins STX, Single-Tube design, Rx All Mountain Tune, AUTOSAG, adjustable compression & rebound damping, 216x57mm

FORK

Öhlins RXF 36, 29/6Fattie, Single-Tube design, air spring w/ adjustable 3rd chamber, adjustable low-speed compression, adjustable rebound, 15x110mm thru-axle, 51mm offset, 160mm of travel

WHEELS

RIMS

Roval Traverse Carbon 29, hookless carbon, 30mm inner width, 24/28h, tubeless ready, hand-built

FRONT HUB

Specialized, sealed cartridge bearings, 15x110mm spacing, 24h

REAR HUB

DT Swiss 350, Star Ratchet, 36t engagement, SRAM XD driver body, 12mm thru-axle, 148mm spacing, 28h

SPOKES

DT Swiss Revolution

FRONT TIRE

Butcher, GRID casing, Gripton compound, 2Bliss Ready, 29 x 2.3"

REAR TIRE

Butcher, GRID casing, Gripton compound, 2Bliss Ready, 29 x 2.3"

INNER TUBES

Standard, Presta valve

DRIVETRAIN

REAR DERAILLEUR

SRAM X01 Eagle, 12-speed

SHIFT LEVERS

SRAM X01 Eagle, trigger, 12-speed

CASSETTE

SRAM X01 Eagle, 12-speed, 10-50t

CHAIN

SRAM X01 Eagle, 12-speed w/ PowerLock

CRANKSET

Truvativ Descendant, carbon, Boost™ 148, 170mm crankarm, 24mm spindle

CHAINRINGS

Steel, 30T

BOTTOM BRACKET

SRAM GXP, XR 73

COCKPIT

STEM

Specialized Trail, 3D forged alloy, 4-bolt, 6-degree rise

HANDLEBARS

Specialized DH, 7050 alloy, 8-degree backsweep, 6-degree upsweep, 27mm rise, 800mm, 31.8mm clamp

GRIPS

Specialized Sip Grip, half-waffle, S/M: regular thickness, L/XL: XL thickness

SADDLE

Body Geometry Henge Comp, hollow Cr-Mo rails, 143mm

SEATPOST

Command Post IRcc WU, 12-position micro-height adjustable, alien head design, bottom mount cable routing, remote adjust SRL lever, 34.9mm, 150mm of travel

ACCESSORIES

PEDALS

Specialized Platform, Cr-Mo, 9/16" spindle

BRAKES

FRONT BRAKE

SRAM Code R, 4-piston caliper, hydraulic disc, metallic pads, 200mm rotor

REAR BRAKE

SRAM Code R, 4-piston caliper, hydraulic disc, metallic pads, 180mm rotor

* Vægte baseret på produktion af malede rammer som afbildet. Faktiske vægte vil variere baseret på farveskema, ramme størrelse og komponent variation. Specifikationer kan ændres uden varsel.

Geometri

	S	M	L	XL
Pedalarmslængde	170mm	170mm	170mm	170mm
Styrbredde	800mm	800mm	800mm	800mm
Frempindslængde	45mm	45mm	45mm	60mm
Sadelbredde	143mm	143mm	143mm	143mm
Sadelpinds længde	395mm	420mm	420mm	420mm
Stellets stakhøjde	606mm	606mm	619mm	633mm
Stellængde (reach)	415mm	440mm	462mm	483mm
Kronrørslængde	95mm	95mm	110mm	125mm
Kronrørsvinkel	66°	66°	66°	66°
Head Tube Angle, Low Setting	65.5mm	65.5mm	65.5mm	65.5mm
Krankbokshøjde	354mm	354mm	354mm	354mm
BB Height, Low Setting	346mm	346mm	346mm	346mm
Krankboksens drop	19mm	19mm	19mm	19mm
Efterløb	107mm	107mm	107mm	107mm
Forgaffel Længde	569mm	569mm	569mm	569mm
Forgaflens fremløb	51mm	51mm	51mm	51mm
Krankboks – Fornavs afstand	732mm	757mm	785mm	812mm
Kædestagslængde	433mm	433mm	433mm	433mm
Akselafstand	1165mm	1190mm	1218mm	1245mm
Faktisk overrørslængde, horisontal	559mm	584mm	611mm	637mm
Skridthøjde	763mm	769mm	781mm	799mm
Sadelrørslængde	396mm	430mm	467mm	521mm
Sadelrørsvinkel	76.7°	76.7°	76.5°	76.3°
