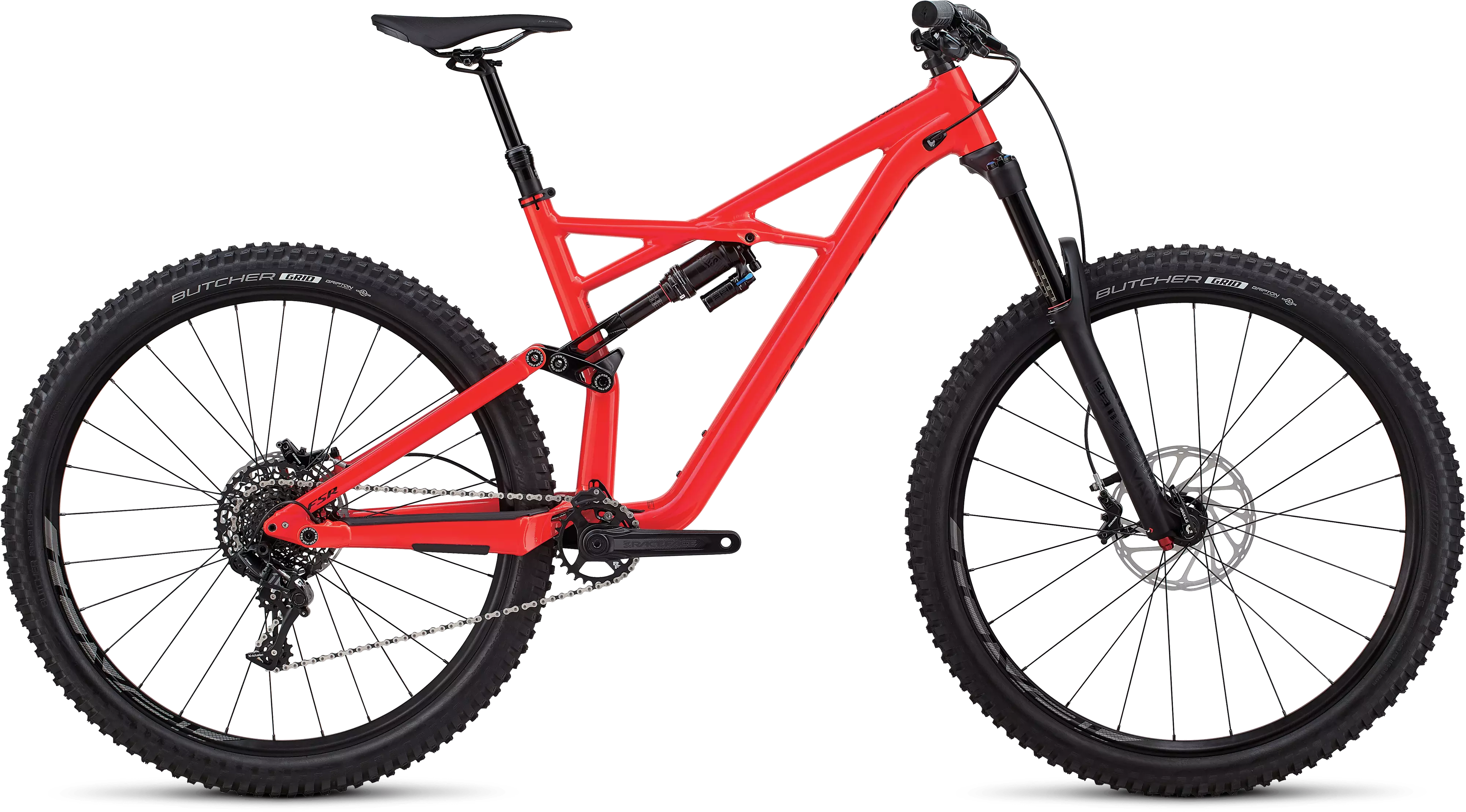

2018 Enduro Comp 29/6Fattie
Who says that carbon should have all the fun? Not us. Our Enduro Comp 29/6Fattie…
Produktinformation
Who says that carbon should have all the fun? Not us. Our Enduro Comp 29/6Fattie flies in the face of this sentiment, with a ground-up redesign that'll have you saying "woah" like Keanu all over the trail.
We gave it a geometry features a slacker front end, a longer top tube, short chainstays, and a lower bottom bracket. All of this together makes the bike truly feel glued to the ground, and the platform is more responsive and capable then ever.
We even made "old" new again by making a triumphant return to a threaded bottom bracket. To make the Enduro capable of standing up to any trail, the frame is constructed with our legendary X-Wing layout and M5 alloy. And to ensure top-level performance on the descents, this material choice is greeted by 160mm of plush rear and 160mm front travel, plus a geometry that can be "adjusted" via a shock extension with a "low/high" setting.
Handling suspension duties out back, meanwhile, is the talk of the town rear shock, the RockShox Monarch Plus with our Rx All Mountain Tune. And for the icing on the trail cake, we even made this bike to be compatible with our 6Fattie Wheel/Tire system (wheels and tires not included), so you'll always be ready for the trail ahead.
For the build, this Enduro is packed with send-it-ready gear, like SRAM one-by 11-speed shifting, powerful Guide R brakes, crazy-strong Roval wheels, and a RockShox Yari fork up front.
- The frame has an X-Wing layout with an M5 alloy construction. Together, these elements combine to form the perfect balance of efficiency, weight savings, and unparalleled strength. It's also been built off our 29 Geometry, which lends itself to running 6Fattie wheels and tires (only a 7mm BB drop), in order to provide an aggressive, well-rounded ride. And with internal routing and a return to a threaded bottom bracket, you get a bike that's clean, dependable, and ready for anything that the trail has to offer.
- RockShox Yari RC fork features a 15x110mm Maxle Ultimate thru-axle, a Solo Air™ spring, and 160mm of plush travel to take on big hits and bumpy terrain with supreme speed and efficiency.
- SRAM's 11-speed GX rear derailleur serves up powerful and precise one-by shifting, so you can say goodbye to dropped chains and unnecessary grams.
Tekniske specifikationer
FRAMESET
FRAME
M5 alloy, X-wing layout, All Mountain Geometry, threaded BB, internal cable routing, ManFu link, oversized pivot bearings, alloy link and adjustable shock extension, 12x148mm dropouts, replaceable derailleur hanger, 160mm of travel
SEAT BINDER
Alloy, 38.6mm
WHEELS
RIMS
Roval Traverse 29, hookless alloy, 29mm internal width, tubeless-ready, 24/28h
FRONT HUB
Specialized, sealed cartridge bearings, 15x110mm spacing, 24h
REAR HUB
Specialized, sealed cartridge bearings, 12x148mm thru-axle, 28h
SPOKES
DT Swiss Industry, stainless, 3-cross, 2.0"
FRONT TIRE
Butcher, GRID casing, Gripton compound, 2Bliss Ready, 29 x 2.3"
REAR TIRE
Butcher, GRID casing, Gripton compound, 2Bliss Ready, 29 x 2.3"
INNER TUBES
Standard, Presta valve
SUSPENSION
REAR SHOCK
RockShox Monarch Plus w/ AUTOSAG, 3-position compression adjust, rebound adjust, custom tune, 57.1x215.9mm
FORK
RockShox Yari RC 6Fattie, tapered steerer, 51mm offset, rebound / compression adust, 15x110mm Maxle® Ultimate thru-axle, Boost™ spacing, 160mm of travel
DRIVETRAIN
REAR DERAILLEUR
SRAM GX, long cage, 11-speed
SHIFT LEVERS
SRAM GX, trigger, 11-speed
CASSETTE
SRAM XG 1150, 11-speed, 10-42t
CHAIN
KMC X11, 11-speed w/ Missing Link™
CRANKSET
RaceFace Aeffect alloy crank, 24mm spindle, 28t direct mount ring, 6000 series alloy
CHAINRINGS
Steel, 28T
BOTTOM BRACKET
Threaded BB, 24mm spindle
COCKPIT
STEM
Specialized Trail, 3D forged alloy, 4-bolt, 6-degree rise
HANDLEBARS
Specialized DH, 7050 alloy, 8-degree backsweep, 6-degree upsweep, 27mm rise, 800mm, 31.8mm clamp
GRIPS
Specialized Sip Grip, half-waffle, S/M: regular thickness, L/XL: XL thickness
SADDLE
Body Geometry Henge Comp, hollow Cr-Mo rails, 143mm
SEATPOST
Command Post IRcc, 12-position micro-height adjustable, alien head design, bottom mount cable routing, remote adjust SRL lever, 30.9mm, S: 100mm, M/L/XL: 125mm of travel
BRAKES
FRONT BRAKE
SRAM Guide R, hydraulic disc, organic pads, Guide S4 4-piston caliper, 200/180mm rotor
REAR BRAKE
SRAM Guide R, hydraulic disc, organic pads, Guide S4 4-piston caliper, 180/160mm rotor
ACCESSORIES
PEDALS
Specialized Platform, Cr-Mo, 9/16" spindle
* Vægte baseret på produktion af malede rammer som afbildet. Faktiske vægte vil variere baseret på farveskema, ramme størrelse og komponent variation. Specifikationer kan ændres uden varsel.
Geometri
| S | M | L | XL | |
|---|---|---|---|---|
| Pedalarmslængde | 170mm | 170mm | 170mm | 170mm |
| Styrbredde | 800mm | 800mm | 800mm | 800mm |
| Frempindslængde | 45mm | 45mm | 45mm | 60mm |
| Sadelbredde | 143mm | 143mm | 143mm | 143mm |
| Sadelpinds længde | 390mm | 430mm | 430mm | 430mm |
| Stellets stakhøjde | 606mm | 606mm | 619mm | 633mm |
| Stellængde (reach) | 415mm | 440mm | 462mm | 483mm |
| Kronrørslængde | 95mm | 95mm | 110mm | 125mm |
| Kronrørsvinkel | 66° | 66° | 66° | 66° |
| Head Tube Angle, Low Setting | 65.5mm | 65.5mm | 65.5mm | 65.5mm |
| Krankbokshøjde | 354mm | 354mm | 354mm | 354mm |
| BB Height, Low Setting | 346mm | 346mm | 346mm | 346mm |
| Krankboksens drop | 19mm | 19mm | 19mm | 19mm |
| Efterløb | 107mm | 107mm | 107mm | 107mm |
| Forgaffel Længde | 569mm | 569mm | 569mm | 569mm |
| Forgaflens fremløb | 51mm | 51mm | 51mm | 51mm |
| Krankboks – Fornavs afstand | 732mm | 757mm | 785mm | 812mm |
| Kædestagslængde | 433mm | 433mm | 433mm | 433mm |
| Akselafstand | 1165mm | 1190mm | 1218mm | 1245mm |
| Faktisk overrørslængde, horisontal | 559mm | 584mm | 611mm | 637mm |
| Skridthøjde | 763mm | 769mm | 781mm | 799mm |
| Sadelrørslængde | 396mm | 430mm | 467mm | 521mm |
| Sadelrørsvinkel | 76.7° | 76.7° | 76.5° | 76.3° |
