2011 Demo 8 I

0 Anmeldelser

The Demo is a full-fledged downhill race sled loaded with advanced FSR suspension…

Farve:

Black/Red

Hvilken er min størrelse?

Imperial

Metrisk

Indtast din højde, så beregner vi din størrelse

Højde:

For et mere præcist resultat, så inkluder din skinnebenslængde

Vælg en Størrelse

Produktinformation

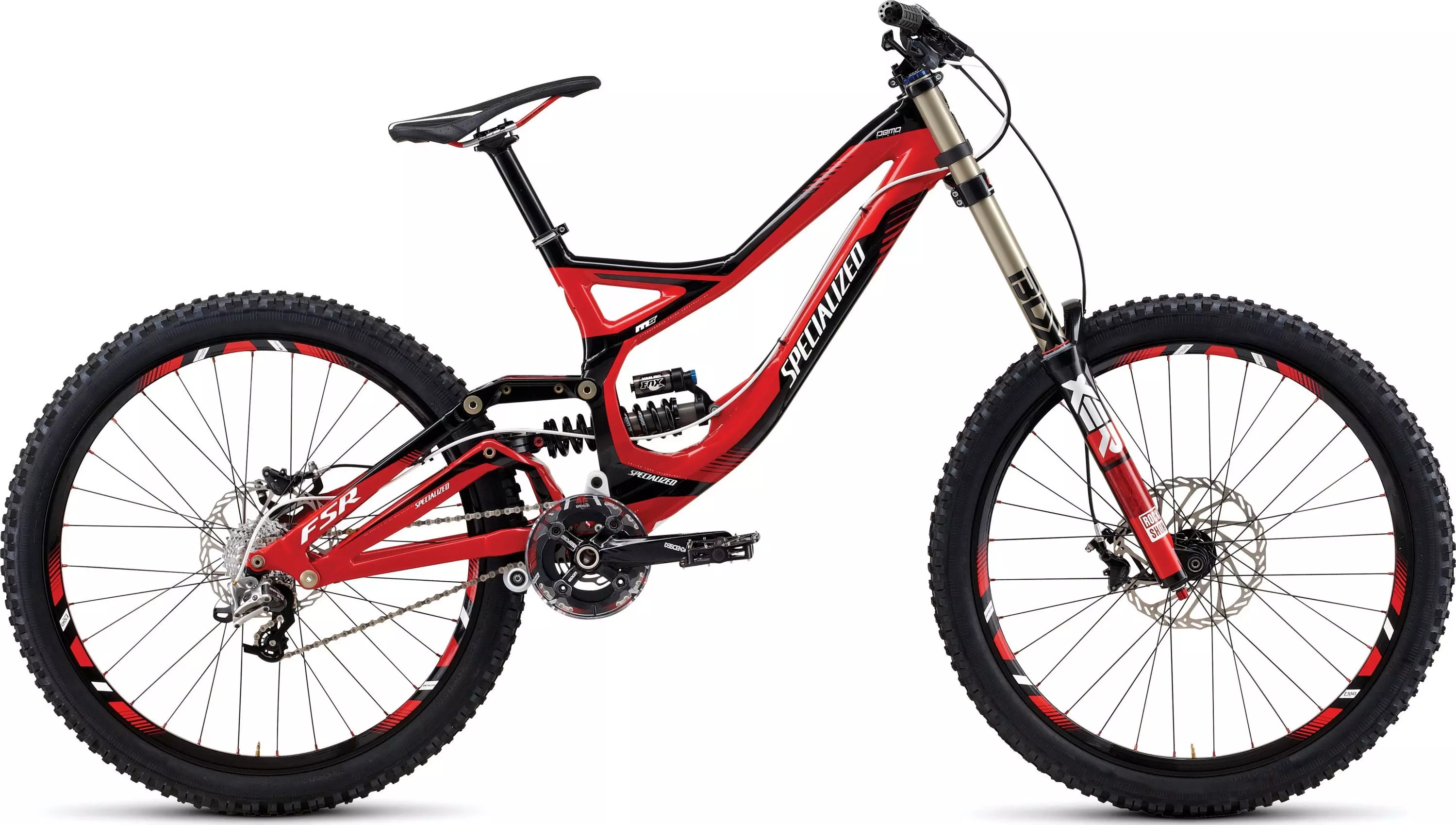

The Demo is a full-fledged downhill race sled loaded with advanced FSR suspension and bombproof components for DH riders aiming for the World Cup.

Custom SRAM Descendant 36t crankset with alloy arms and Gamut bash guard is tough enough for the most bomber descents
200mm-travel RockShox BoXXer Race fork with 20mm Maxle thru-axle delivers complete tunability through external compression and rebound adjusters
Specialized Butcher DH 26 x 2.3" soft dual compound front and rear tires off great traction with Monster Team approved tread, with a light and bombproof casing
Tough and agile M5 alloy FSR frame with 8" of front and rear wheel travel, oversized forged head tube, and uber-stout Fox shock is engineered for DH domination
DT Swiss rims and spokes, paired with Specialized Hi Lo disc hubs with 20mm front thru-axle, create a reliable, fast, and super strong wheelset that easily handles the biggest hits

Tekniske specifikationer

FRAMESET

FRAME

M5 manipulated alloy, compact race design, 1.5"" forged HT, Magnesium link, ISCG 05 mount, cartridge bearing rear shock mount, rear derailleur protector, 8"" travel

HEADSET

1.5"" integrated for 1 1/8"" steerer, cartridge bearings

SEAT BINDER

34.9mm clamp ID, 7050 hard annodized alloy collar, black

SUSPENSION

REAR SHOCK

Custom Fox Van RC, coil over w/piggy back, compression and rebound adj., 9.5x3"", XS: 300, S:350, M:400, L:450

FORK

RockShox Boxxer RC, alloy steerer, external compression and rebound adj., 20mm Maxle DH thru-axle, 200mm travel

WHEELS

RIMS

Custom DT Swiss F550, 30mm wide, 32h

FRONT HUB

Specialized Hi Lo disc, laser-etched logo, sealed cartridge bearing, 20mm thru-axle, 32h

REAR HUB

Specialized Hi Lo disc, 150mm, hollow 12mm Cr-Mo axle w/ RD guard, 32h

SPOKES

DT Swiss Champion 2.0mm (14g) stainless

FRONT TIRE

Specialized Butcher DH, DH casing, wire bead, soft dual compound, 26x2.3""

REAR TIRE

Specialized Butcher DH, DH casing, wire bead, soft dual compound, 26x2.3""

INNER TUBES

Schraeder valve 26x2.4/2.75, 2.25mm thick

DRIVETRAIN

REAR DERAILLEUR

SRAM X.9, 9-speed, short cage

SHIFT LEVERS

SRAM X.7, 9-speed, aluminum trigger

CASSETTE

SRAM PG-970, 12-26t

CHAIN

SRAM PC-971, 9-speed w/Power Link

CRANKSET

BlackBox SRAM Descendant, 7050 alloy arms, GXP spindle, custom 36t ring, Gamut bash guard

BOTTOM BRACKET

Custom SRAM PF-30 DH, 83mm shell

COCKPIT

SEATPOST

6061 alloy, two bolt micro adjust, no offset, 30.9mm, 300mm

STEM

Specialized direct mount stem, laser-etched, 31.8mm clamp, 4-bolt, forged

HANDLEBARS

Specialized Demo low-rise bar, 7050 alloy, 750mm wide, 8 degree backsweep, 6 degree up, 31.8mm

GRIPS

Specialized Grappler lock-on

SADDLE

Specialized Demo, 7mm hollow Cr-Mo rails

BRAKES

FRONT BRAKE

Custom Avid Elixir R, hydraulic disc, reach adjust, metallic pads, 203mm rotor

REAR BRAKE

Custom Avid Elixir R, hydraulic disc, reach adjust, metallic pads, 185mm rotor

BRAKE LEVERS

Custom Avid Elixir R hydraulic, tool-less reach adj.

ACCESSORIES

PEDALS

Specialized Lo-Pro alloy, removeable pins, 9/16""

*Vægte baseret på produktion af malede rammer som afbildet. Faktiske vægte vil variere baseret på farveskema, ramme størrelse og komponent variation. Specifikationer kan ændres uden varsel.

Geometri

	XS	S	M	L
Ground-Top	936mm	936mm	936mm	936mm
Bottom Bracket Height - Low Setting	343mm	343mm	343mm	343mm
Faktisk overrørslængde, horisontal	540mm	560mm	580mm	597mm
Kronrørshøjde	112mm	112mm	112mm	112mm
Head Tube Angle - Low Setting	64°	64°	64°	64°
Seat Tube Angle (Actual) - Low Setting	62°	62°	62°	62°
Seat Tube Angle (Effective) - Low Setting	76°	76°	76°	76°
Top Tube Length (Actual)	485mm	504mm	517mm	530mm
Head Tube Angle - High Setting	64.8°	64.8°	64.8°	64.8°
Bottom Bracket Height - High Setting	353mm	353mm	353mm	353mm
Seat Tube Angle (Actual) - High Setting	62.8°	62.8°	62.8°	62.8°
Seat Tube Angle (Effective) - High Setting	76.8°	76.8°	76.8°	76.8°
Seat Tube Length - Center to Top	394mm	394mm	419mm	458mm
Wheel Base	1151mm	1171mm	1191mm	1208mm
Overrørshøjde	717mm	717mm	722mm	731mm
Stellets stakhøjde	593mm	593mm	593mm	593mm
Stellængde (reach)	390mm	410mm	430mm	447mm
Kædestagslængde	421mm	421mm	421mm	421mm
Pedalarmslængde	165mm	165mm	165mm	165mm
Styrbredde	750mm	750mm	750mm	750mm
Frempindslængde	50mm	50mm	50mm	50mm
Sadelpinds længde	300mm	300mm	300mm	300mm
