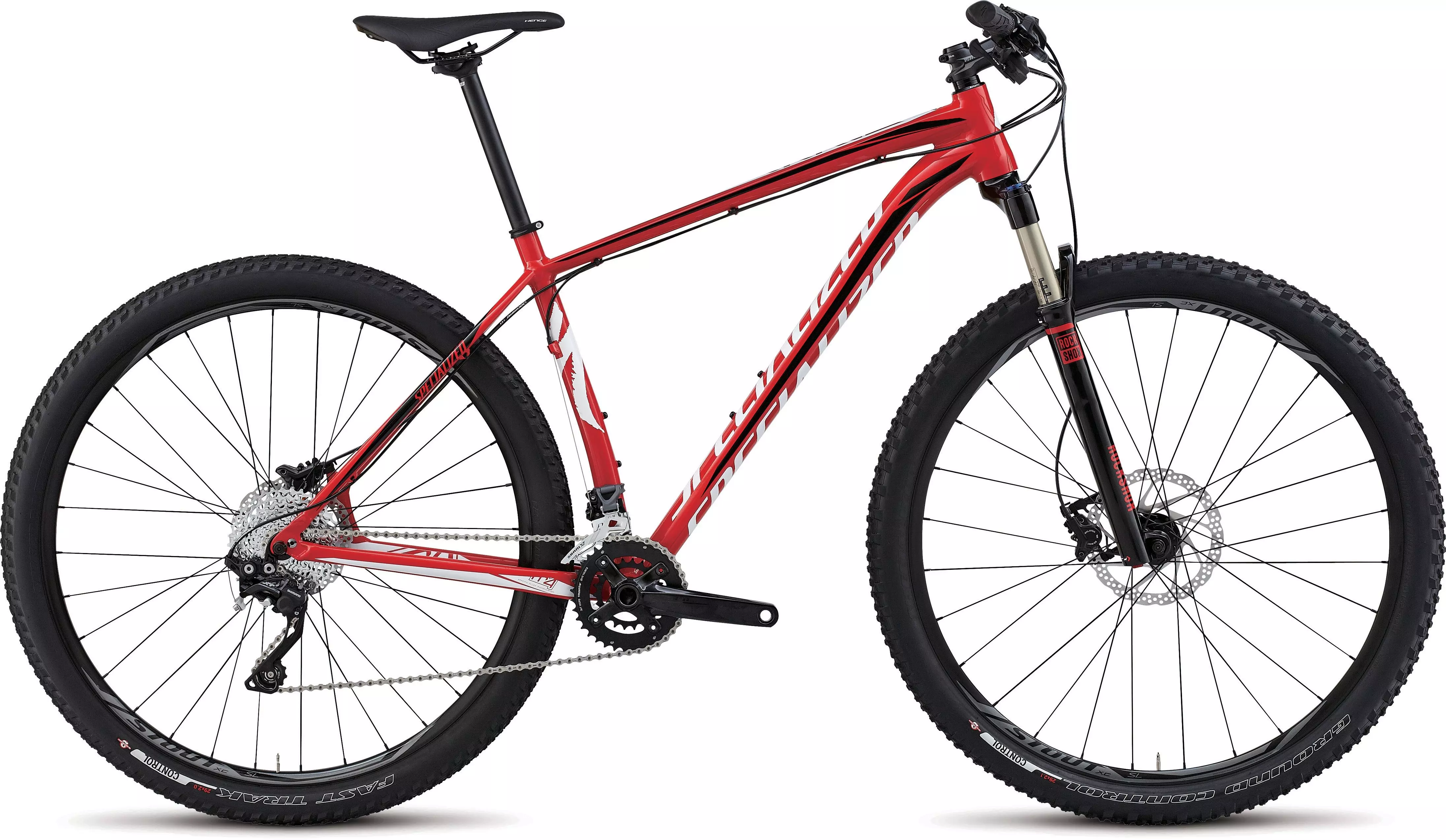

2015 Crave Expert

0 Anmeldelser

The Crave Expert is designed for fast cross-country racers. It delivers great performance…

Farve:

Gloss Red/White/Black

Hvilken er min størrelse?

Imperial

Metrisk

Indtast din højde, så beregner vi din størrelse

Højde:

For et mere præcist resultat, så inkluder din skinnebenslængde

Vælg en Størrelse

Vælge farve og størrelse for at se lagerstatus hos forhandler

Ikke tilgængelig

Artiklen er ikke tilgængelig for “Find i nærheden”

Produktinformation

The Crave Expert is designed for fast cross-country racers. It delivers great performance with the help of a RockShox Reba RL 29 fork, a Shimano Deore XT rear derailleur, and Shimano Deore hydraulic disc brakes provide confidence to attack each corner.

Shimano hydraulic disc brakes for dialed modulation and stopping power
Custom SRAM 10-speed XC double for ideal 29er gearing
Shimano XT Shadow Plus, 10-speed derailleur w/ Clutch technology for shifting precision
100mm-travel RockShox Reba RL 29 Solo Air fork w/ remote lockout for plush performance
Stout XC SL aluminum with 21mm inner width hookless 29” rims are dialed for the XC course
Specialized Hi Lo disc hubs with reliable and smooth sealed cartridge bearings
Specialized Ground Control 2.1"/Fast Trak Control 2.0" tires with race-proven performance
M4 Premium Aluminum frame is super-lightweight, stiff, and features XC 29er Geometry

Tekniske specifikationer

FRAMESET

FRAME

Specialized M4 Premium Aluminum, XC 29er Geometry, fully butted w/ smooth welds, tapered headtube and seat tube, forged post-mount 160mm disc dropouts, replaceable alloy derailleur hanger

HEADSET

1-1/8"" upper, 1-1/2"" lower, Campy style, integrated sealed cartridge bearings

SEAT BINDER

Alloy, 31.8mm

SUSPENSION

FORK

RockShox Reba RL 29, Solo Air spring, TurnKey damping w/ PushLoc remote lockout, tapered alloy steerer, 32mm alloy stanchions, external rebound adjust, size-specific 80/100mm travel

WHEELS

RIMS

Specialized Stout XC SL, 29"" disc, alloy double-wall, sleeve joint, 26mm inner width, 28/32h

FRONT HUB

Specialized Hi Lo disc, alloy, RCC bearing system, QR, 28h

REAR HUB

Specialized Hi Lo disc, alloy, RCC bearing system, QR, 32h

SPOKES

Stainless, 14g

FRONT TIRE

Specialized Ground Control, 60TPI, 2Bliss Ready, folding bead, 29x2.1""

REAR TIRE

Specialized Fast Trak Control, 60TPI, 2Bliss Ready, folding bead, 29x2.0""

INNER TUBES

Standard, presta valve

DRIVETRAIN

FRONT DERAILLEUR

SRAM X7, 10-speed, 2x10, high mount

REAR DERAILLEUR

Shimano Deore XT Shadow Plus, 10-speed, SGS cage

SHIFT LEVERS

Shimano Deore, 10-speed Rapidfire Plus, SL type, I-spec

CASSETTE

SRAM PG 1030, 10-speed, 11-36

CHAIN

KMC X10L, 10-speed, reusable Missing Link

CRANKSET

Custom SRAM S-1255, 2 pc., 10-speed XC double, 104/64mm BCD spider

BOTTOM BRACKET

SRAM GXP, 73mm

COCKPIT

STEM

Specialized, 3D forged alloy, 4-bolt, 6-degree rise, anti-corrosion hardware

HANDLEBARS

Specialized flat, 6061 double butted alloy, 9-degree backsweep, 31.8mm

GRIPS

Specialized Body Geometry XC Contour, Kraton w/ gel, lock-on, closed end

SADDLE

Body Geometry mountain, steel rails, 143mm

SEATPOST

Alloy, 2-bolt, 12.5mm offset, 27.2mm, anti-corrosion hardware

BRAKES

FRONT BRAKE

Shimano BR-M506, hydraulic disc, dual piston, resin pads

REAR BRAKE

Shimano BR-M506, hydraulic disc, dual piston, resin pads

BRAKE LEVERS

Shimano BL-M506, hydraulic, w/ reach adjust

*Vægte baseret på produktion af malede rammer som afbildet. Faktiske vægte vil variere baseret på farveskema, ramme størrelse og komponent variation. Specifikationer kan ændres uden varsel.

Geometri

	S	M	L	XL	XXL
Faktisk overrørslængde, horisontal	577mm	604mm	626mm	650mm	670mm
Top Tube Length (Actual)	572mm	584mm	601mm	622mm	642mm
Sadelrørslængde, Center til top	394mm	445mm	483mm	533mm	584mm
Bottom Bracket Drop	63.5mm	63.5mm	63.5mm	63.5mm	63.5mm
Bottom Bracket Height	306.5mm	306.5mm	306.5mm	306.5mm	306.5mm
Wheel Base	1071mm	1086mm	1109mm	1134mm	1154mm
Overrørshøjde	758.3mm	790.5mm	818.9mm	853.2mm	887.8mm
Stellets stakhøjde	617mm	626mm	641mm	655mm	674mm
Stellængde (reach)	400mm	412mm	430mm	450mm	464mm
Kronrørslængde	110mm	100mm	115mm	130mm	150mm
Kronrørsvinkel	71.5°	71.5°	71.5°	71.5°	71.5°
Kædestagslængde	442mm	442mm	442mm	442mm	442mm
Sadelrørsvinkel	74°	73°	73°	73°	73°
Pedalarmslængde	170mm	175mm	175mm	175mm	175mm
Styrbredde	720mm	740mm	740mm	740mm	740mm
Frempindslængde	60mm	70mm	70mm	90mm	90mm
Sadelpinds længde	350mm	350mm	400mm	400mm	400mm
