2017 Ariel INT

0 Anmeldelser

Farve:

TARMAC BLACK/NEARLY BLACK/RAINBOW FLAKE PINK

Hvilken er min størrelse?

Indtast din højde, så beregner vi din størrelse

Højde:

For et mere præcist resultat, så inkluder din skinnebenslængde

Vælg en Størrelse

Vælge farve og størrelse for at se lagerstatus hos forhandler

Ikke tilgængelig

Artiklen er ikke tilgængelig for “Find i nærheden”

Produktinformation

Icon

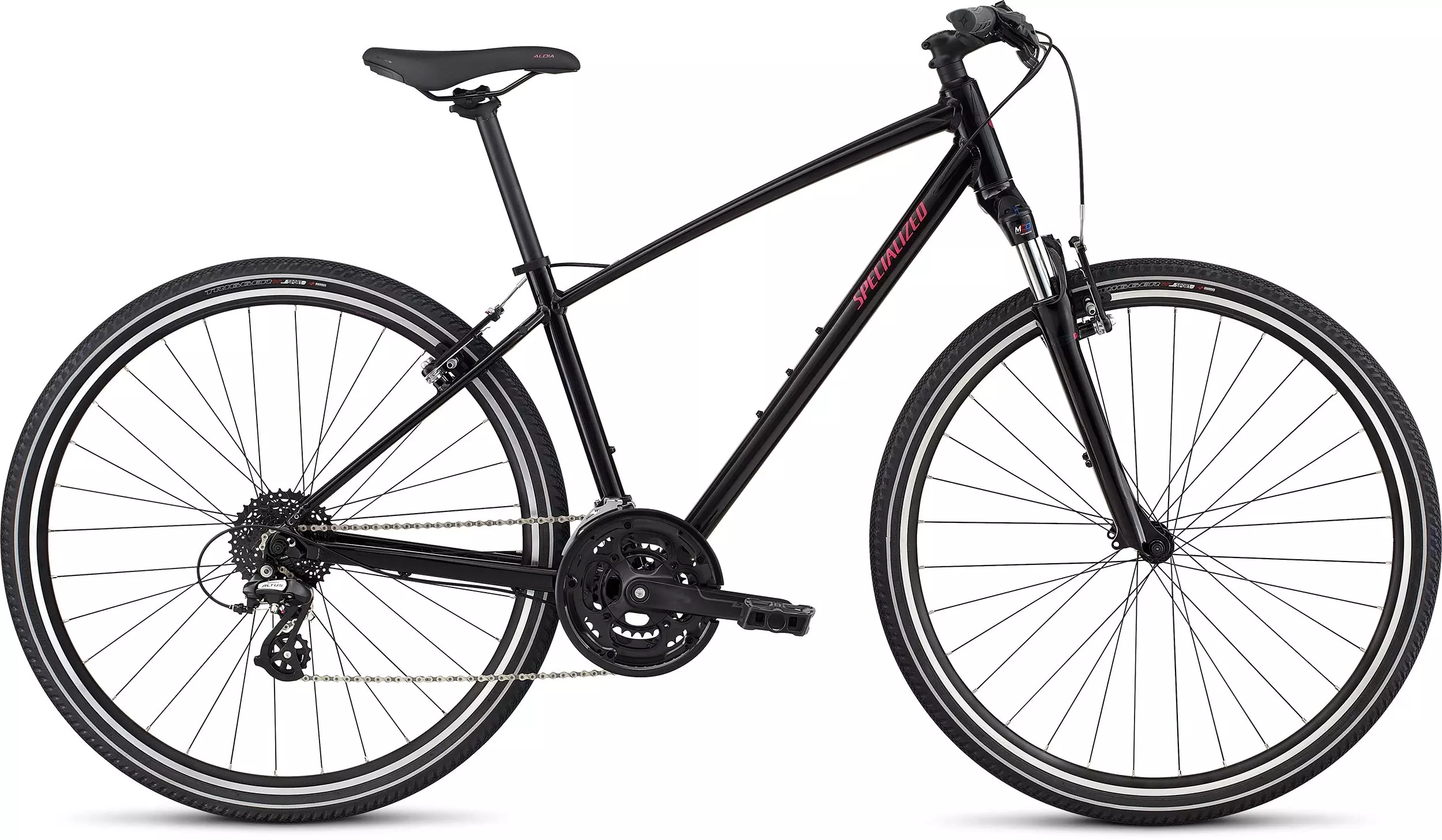

Take your fitness to new and adventurous levels with the Ariel, a bike that'll see you tackling workouts on paved or dirt paths with equal confidence and control. It features a light and tough A1 SL Premium Aluminum frame that's been designed with our Women's Fitness Geometry with an ultra-low standover, so it will fit and feel like a dream right out of the box. Not stopping there, we also included a custom suspension fork that takes the sting out of bumpy terrain, a host of women's-specific components that increase comfort, fit, and performance, and hassle-free V-brakes that'll see you spending more time riding and less time bleeding your brakes. Put it all together, and you have a purpose-built bike that's bent on giving you the perfect ride, whether it's on the dirt or on the road.

  • Designed for women who want to mix adventure with fitness, the hard-working, sturdy A1 SL Premium Aluminum frame features our Women’s Fitness Geometry—meaning that you’ll go faster with maximum efficiency, only without the discomfort of an aggressive ride position. The more comfortable you are, the longer you’ll ride.

  • Enjoy greater control over varying terrain with a custom, easy-adjust, Multi-Circuit Damping fork with 60mm of travel that's tuned for the trail.

  • V-brakes provide reliable stopping power and hassle-free maintenance, so you'll be able to spend more time riding and less time bleeding those brakes.

Tekniske specifikationer

Icon

FRAMESET

FRAME

Specialized A1 SL Premium Aluminum, Fitness Geometry, rack & Plug + Play mounts

SEAT BINDER

Alloy, 31.8mm

SUSPENSION

FORK

SR Suntour NEX, aluminum V-brake lower, coil spring, hydraulic lock-out w/Multi-Circuit Damping, 60mm of travel

WHEELS

INNER TUBES

SPECIALIZED SV STANDARD BULK ROAD

RIMS

700c, 6061 aluminum double-wall

FRONT HUB

Specialized, loose ball bearings, 32h, 9mm QR

REAR HUB

Specialized, loose ball bearings, 8-/9-speed cassette body, 32h, 9mm QR

SPOKES

Stainless, 14g

FRONT TIRE

Trigger Sport Reflect, 700x38mm, 60TPI, wire bead

REAR TIRE

Trigger Sport Reflect, 700x38mm, 60TPI, wire bead

DRIVETRAIN

FRONT DERAILLEUR

Shimano Tourney, top swing, for 7-/8-speed 31.8mm clamp

REAR DERAILLEUR

Shimano Altus, 8-speed

SHIFT LEVERS

Shimano EF500, EZ Fire Plus, 8-speed

CASSETTE

Sunrace, 8-speed, 11-34t

CHAIN

KMC X8, 8-speed w/reusable MissingLink

CRANKSET

Stout, forged alloy

CHAINRINGS

48/38/28T w/chainguard

BOTTOM BRACKET

BSA, square taper, cartridge bearings

COCKPIT

STEM

3D forged aluminum, 7-degree rise, 31.8mm clamp

HANDLEBARS

Specialized, double-butted alloy, 9-degree backsweep, 31.8mm

GRIPS

Body Geometry Flow Set Control Grips, lock-on

SADDLE

Aldia Sport, steel rails, 155mm

SEATPOST

Alloy, 2-bolt, 12.5mm offset, 27.2mm

BRAKES

FRONT BRAKE

V-brake, alloy, linear pull

REAR BRAKE

V-brake, alloy, linear pull

ACCESSORIES

PEDALS

Specialized Fitness platform

*Vægte baseret på produktion af malede rammer som afbildet. Faktiske vægte vil variere baseret på farveskema, ramme størrelse og komponent variation. Specifikationer kan ændres uden varsel.

Geometri

Icon
XSSML
Pedalarmslængde165mm165mm170mm170mm
Styrbredde640mm640mm660mm660mm
Frempindslængde60mm70mm80mm90mm
Sadelbredde155mm155mm155mm155mm
Sadelpinds længde350mm350mm350mm350mm
Sadelrørsvinkel73°73°73°73°
Kronrørslængde95mm110mm125mm145mm
Kronrørsvinkel70°70°70°70°
Kædestagslængde445mm445mm445mm445mm
Top-Tube Length, Horizontal555mm572mm587mm604mm
Krankboks – Fornavs afstand613mm630mm641mm659mm
Stand-Over Height697mm725mm758mm790mm
Seat-Tube Length, B-B Center to Top355mm375mm425mm475mm
Forgaflens fremløb42mm42mm42mm42mm
Krankboksens drop65mm65mm65mm65mm
Stellets stakhøjde580mm594mm611mm630mm
Stellængde (reach)378mm390mm400mm412mm
Efterløb87mm87mm87mm87mm
Akselafstand1051mm1067mm1078mm1096mm
